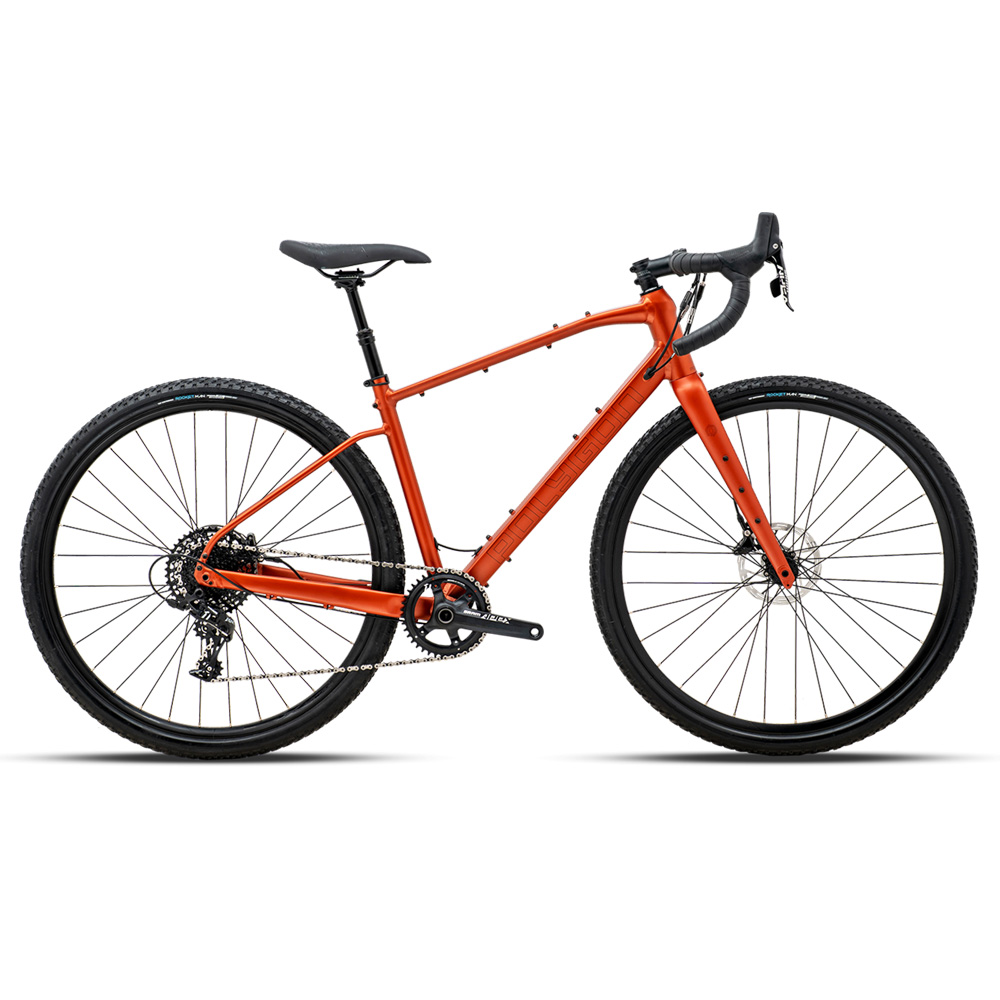

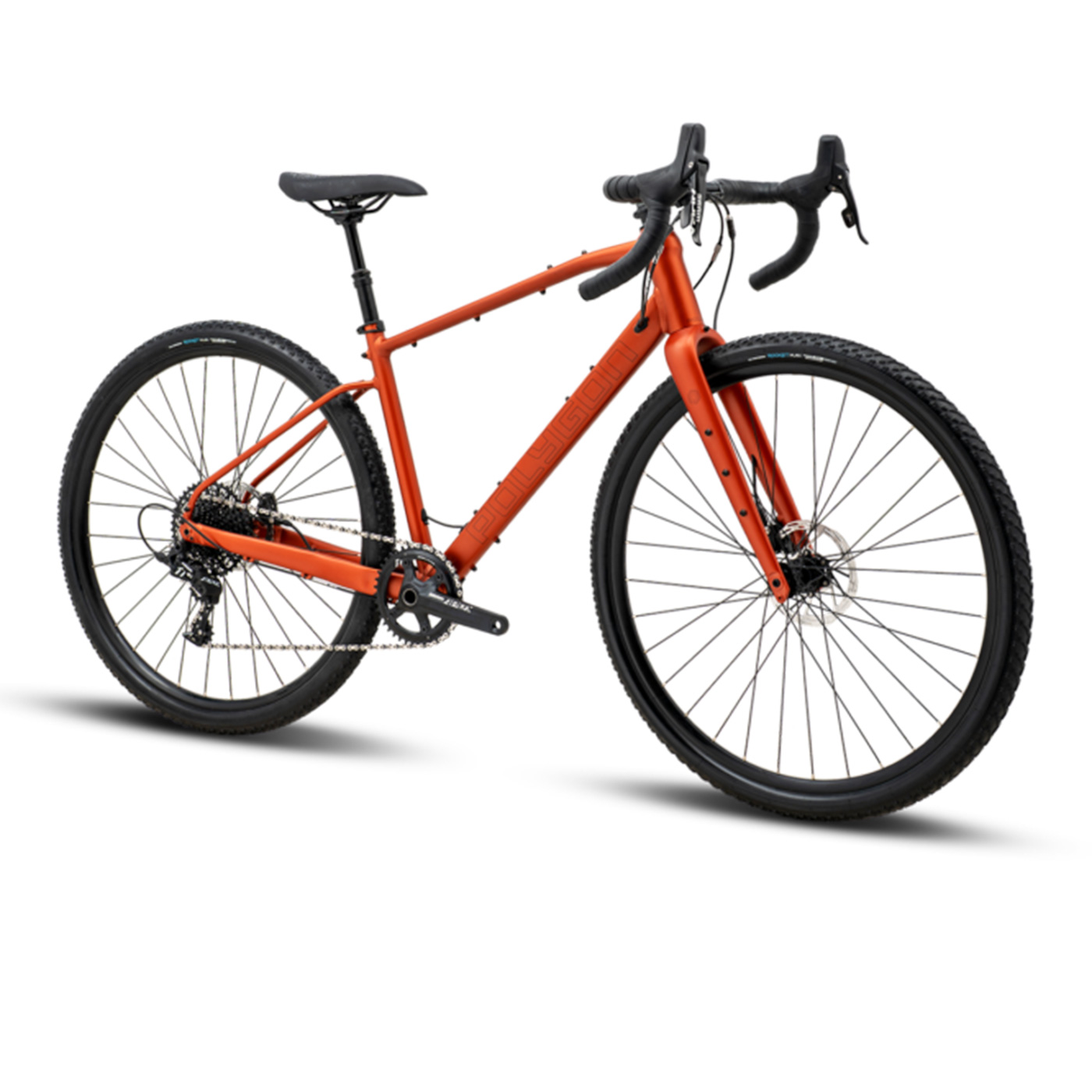

Polygon Bend R7

Brands: POLYGON

Engineered with precision and crafted for pure adventure, these bikes are designed to conquer rugged terrains with ease.

F. FRAME

Frame

ALX GRAVEL / CARBON RIGID FORK

F. GROUPSET

Groupset

SRAM APEX 1 11-SPEED BRIFTER

F. WHEELS

Wheels

ALLOY DOUBLE WALL 32H 700C

F. USE

Use

Off-road versatility

SKU: 220000000555 Category: Tag:

Polygon Bend R7

Brands: POLYGON

Buy more than AED 150 and get free delivery!
Orange
S
M
L
XL

Easy Return/Exchange

Fast Delivery

100% Secure Payment

Description

BEYOND THE BEND
GET FASTER, GET LOST, GET BEYOND

Responsive handling and agile geometry provide optimal maneuverability, empowering riders to navigate challenging trails and conquer untamed paths with confidence. Whether you're a seasoned gravel enthusiast or an aspiring off-road adventurer, the Polygon Bend Series offers unparalleled excitement and limitless exploration. Embrace the thrill of the Polygon Bend and let your adventures take flight.

FEATURES & SPECIFICATIONS

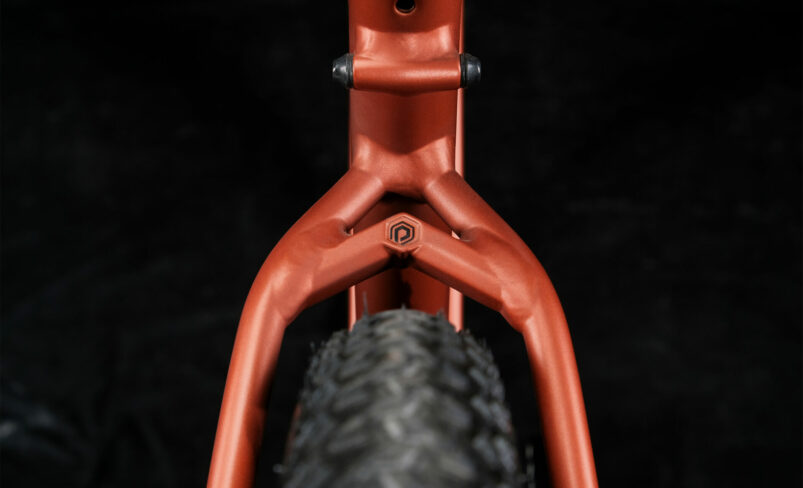

Tire clearance

Unleash your adventurous spirit with our gravel bike’s generous tire clearance, accommodating up to 50c tires. Embark on thrilling bikepacking journeys and conquer any terrain with ease, as you immerse yourself in the boundless exploration​

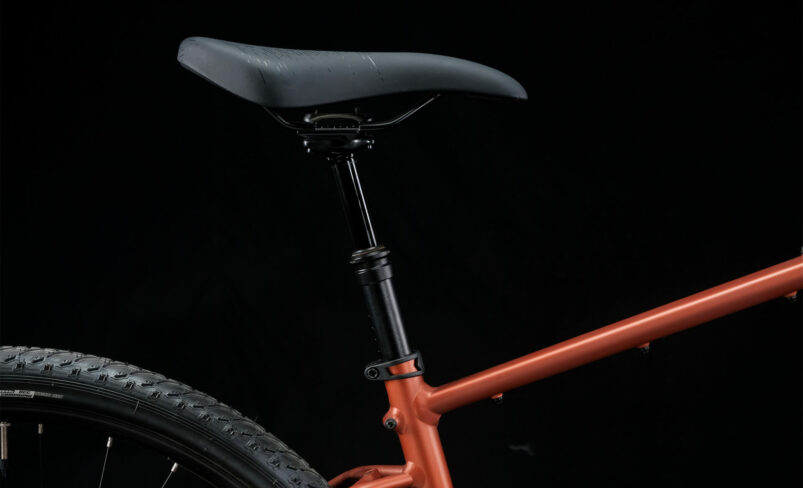

Dropper seat post

Polygon Bend Series provides you with dropper seat post to put you where you want to be; all at your fingertips. Effortlessly adjust your saddle height for technical trails and smooth descents, providing you the freedom to move and stay in control.​

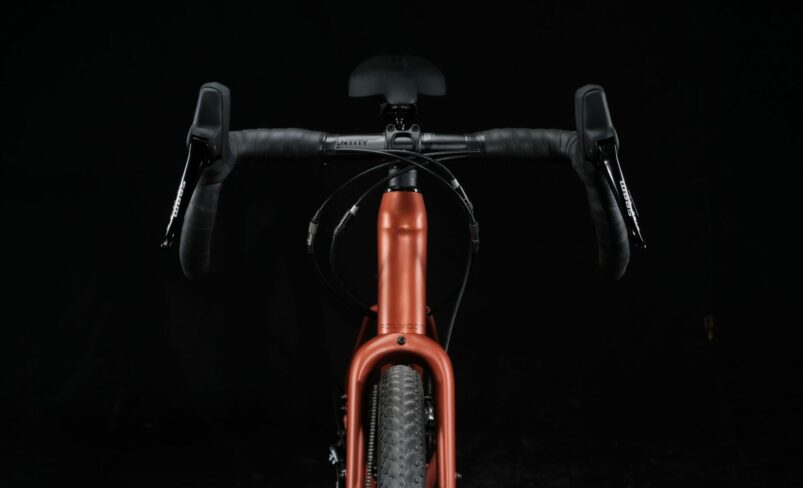

Aerodynamics and handling

Paired with a flared handlebar to enhance aerodynamics in a narrower position, while maintaining optimal handling on wider drops.​

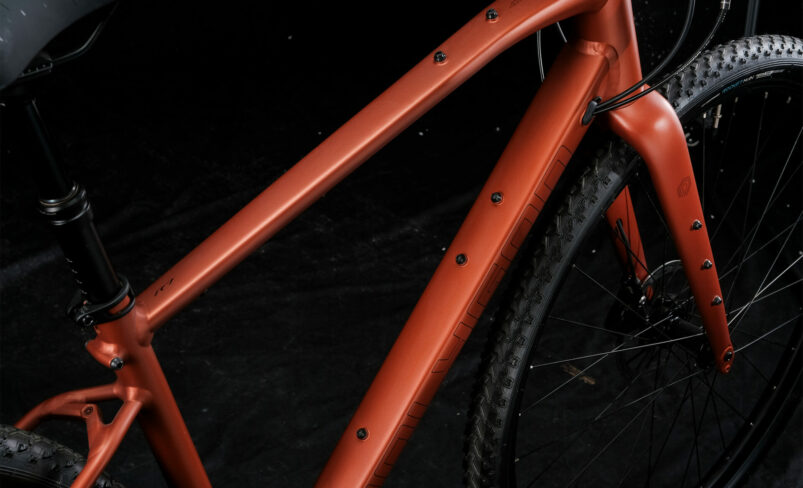

Mounts everywhere!

Pack your essentials. Our Polygon Bend Series features an adequate number of mounting bolts for bottles and bags on the seat tube, top tube, and down tube. No need to worry about other essentials for bikepacking; we’ve got you covered with rear carrier bolts and 3 mounts on each side of the fork. Mount up, adventure awaits!​

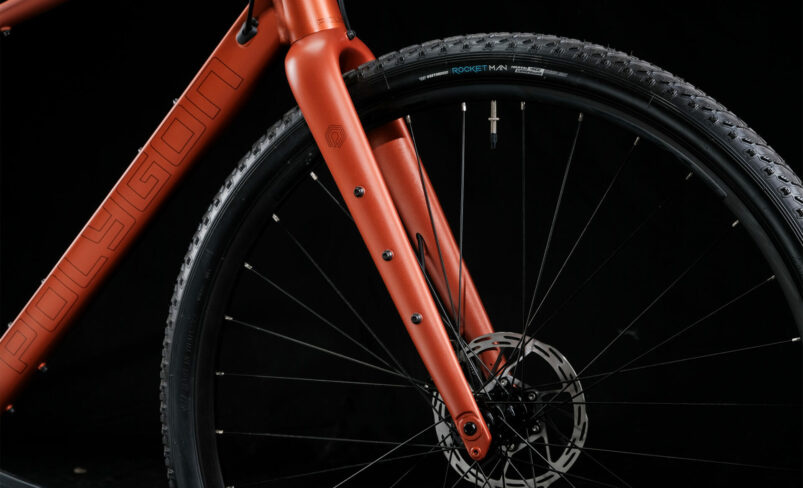

Ying yang balance

Don’t hate the rough surfaces of the land. Our seamless yet robust carbon fork is meant to conquer them. It strikes a perfect balance between low-maintenance simplicity and off-road performance, ensuring a comfortable and smooth ride with reduced vibrations. Embrace the perfect harmony.​

GEOMETRY & SIZE

S M L XL
Height (cm) 150-163 163-175 175-188 188-195
Seat Tube Length (A) 405 450 495 540
Seat Tube Angle (B) 74.5 74 73.5 73.5
Effective Seat Tube Angle (C) 74.5 74 73.5 73.5
Head Tube Length (D) 140 165 200 235
Head Tube Angle (E) 70 70 70.5 70.5
Effective Top Tube (F) 520 550 580 610
Bb Height (G) 282 282 282 282
Bb Offset (H) 72 72 72 72
Chainstay Length (I) 440 440 440 440
Wheelbase (J) 1030 1056 1078 1110
Frame Reach (K) 364 382 396 416
Frame Stack (L) 563 612 621 654
Standover Height (M) 694 736 781 823
Information
Color

Orange

Size

L 700X495, M 700X450, S 700X405, XL 700X540, S, M, L, XL

Brand

Frameset

ALX GRAVEL

Fork

CARBON RIGID

Frame color

ORANGE BRONZE

Decal color

BLACK

Shifter

SRAM APEX 1 11-SPEED BRIFTER

Crank

SRAM APEX 1 40T, MAX: 42T

Cassette

SRAM PG-1130 11-SPEED 11-42T

Rear Derailleur

SRAM APEX 1 11-SPEED

Bottom bracket

SRAM GXP

Chain

KMC X11-1 FOR 11-SPEED

Pedal

ONE PIECE PP FLAT

Saddle

FLUX2, CR-MO ø 7mm

Seatpost

TRANX-Z JD-YSP38J T: 70mm, DxL: 27,2 x 315mm

Handlebar

ALLOY FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mmREAR, B/R: 77mm

Handlestem

ALLOY STEM, EXT: 50mm, BB: 31,8mm, B/R: 7degree

Headset

FSA NO. 42 W/ SEALED BEARING

Wheelset

ALLOY DOUBLE WALL 32H

Wheel size

700C

Tire

VEE ROCKETMAN 700x44C 622×44 TLR

Rim

ALLOY DOUBLE WALL FV H: 18 622X25 32H FOR TYRE 622-44/76 DISC TLR

Hub

F: ALLOY DISC BRAKE 12x100mm 32H CL / R: ALLOY DISC BRAKE 12x142mm 32H CL FOR SPROCKET

Spokes

F: STAINLESS 14G NDS:292 & DS:294 W/ NIPPLE BRASS / R: STAINLESS 14G NDS:294 & DS:292 W/ NIPPLE BRASS

Brake lever

SRAM APEX 1

Brake caliper

SRAM APEX 1 HYDRAULIC DISC

Rotor

SRAM PACELINE 160mm CL
