SEIZE THE JOURNEY
AN ADRENALINE MACHINE TO RIDE ON MORE TRAILS

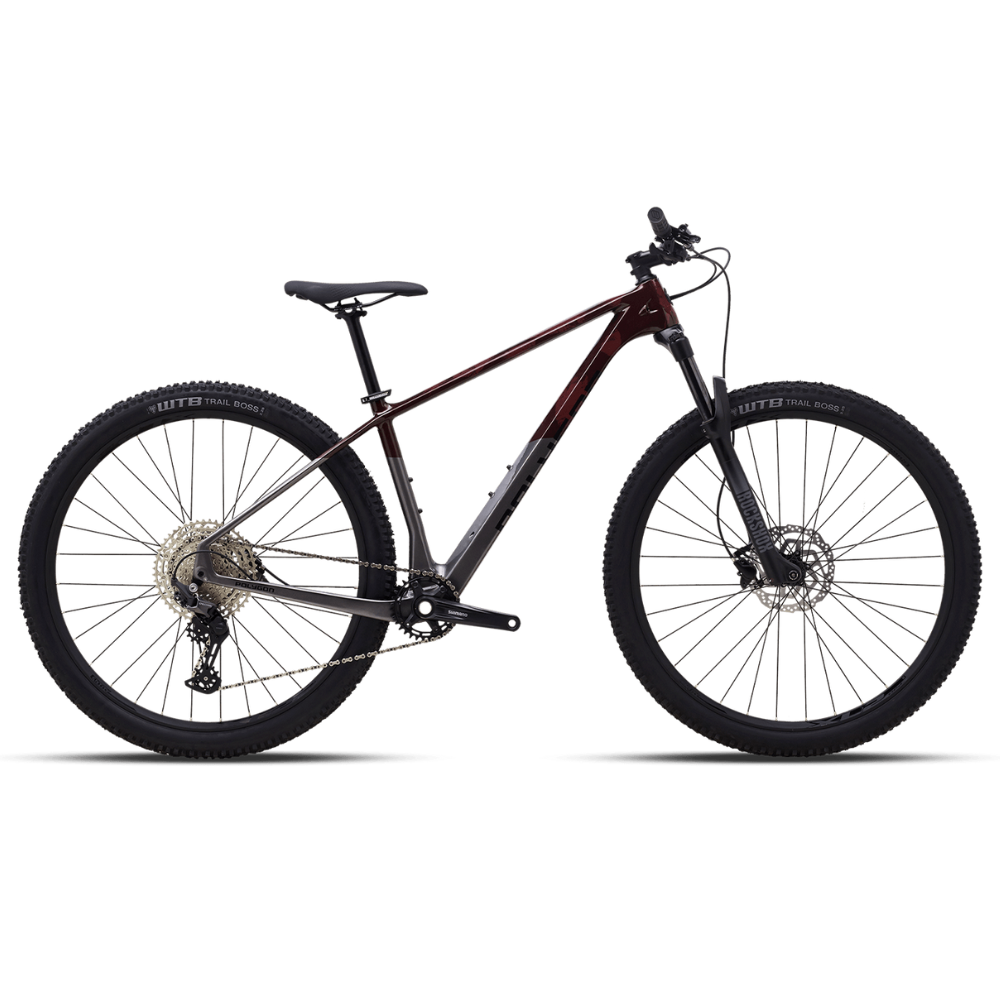

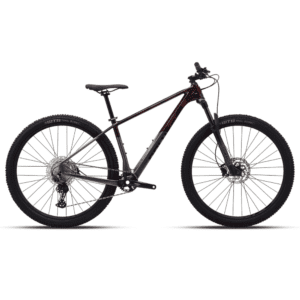

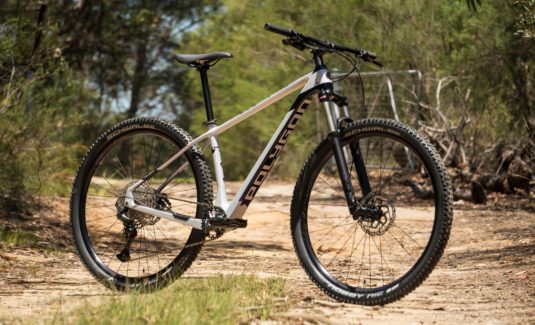

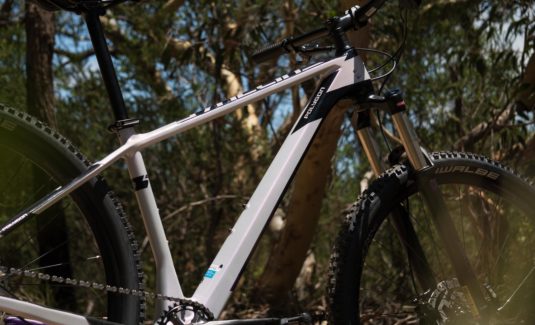

Designed as a top performing XC trail machine with modern geometry. Featuring an ultra light and stiff carbon frame designed around 27.5” and 29″ wheels, this bike will keep you rolling on cross country to technical tracks smoothly with style. This is for you, trail seeker. Whether you are looking for fun off-road riding or cross-country enthusiast striving for podiums, get ready to cross every boundary and seize your own journey.
| S (27.5”) | M (27.5”) | M (29”) | L (29”) | XL (29”) | |
|---|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 162-175 | 172-185 | 182-195 |
| Seat Tube Length (A) | 380 | 420 | 420 | 460 | 500 |
| Seat Tube Angle (B) | 73 | 73 | 73 | 73 | 73 |
| Effective Seat Tube Angle (C) | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
| Head Tube Length (D) | 100 | 120 | 100 | 120 | 140 |
| Head Tube Angle (E) | 67 | 67 | 67 | 67 | 67 |
| Effective Top Tube (F) | 569 | 594.6 | 597.7 | 621 | 649.15 |
| Bb Height (G) | 308.5 | 308.5 | 307.5 | 307.5 | 307.5 |
| Bb Offset (H) | 45 | 45 | 64 | 65 | 65 |
| Chainstay Length (I) | 425 | 425 | 435 | 435 | 435 |
| Wheelbase (J) | 1106.94 | 1134.8 | 1149.5 | 1176.9 | 1204.76 |
| Frame Reach (K) | 410 | 430 | 430 | 450 | 470 |
| Frame Stack (L) | 596.6 | 615 | 633.2 | 651.6 | 670 |
| Standover Height (M) | 690.9 | 729.2 | 730.8 | 763.7 | 779.2 |
