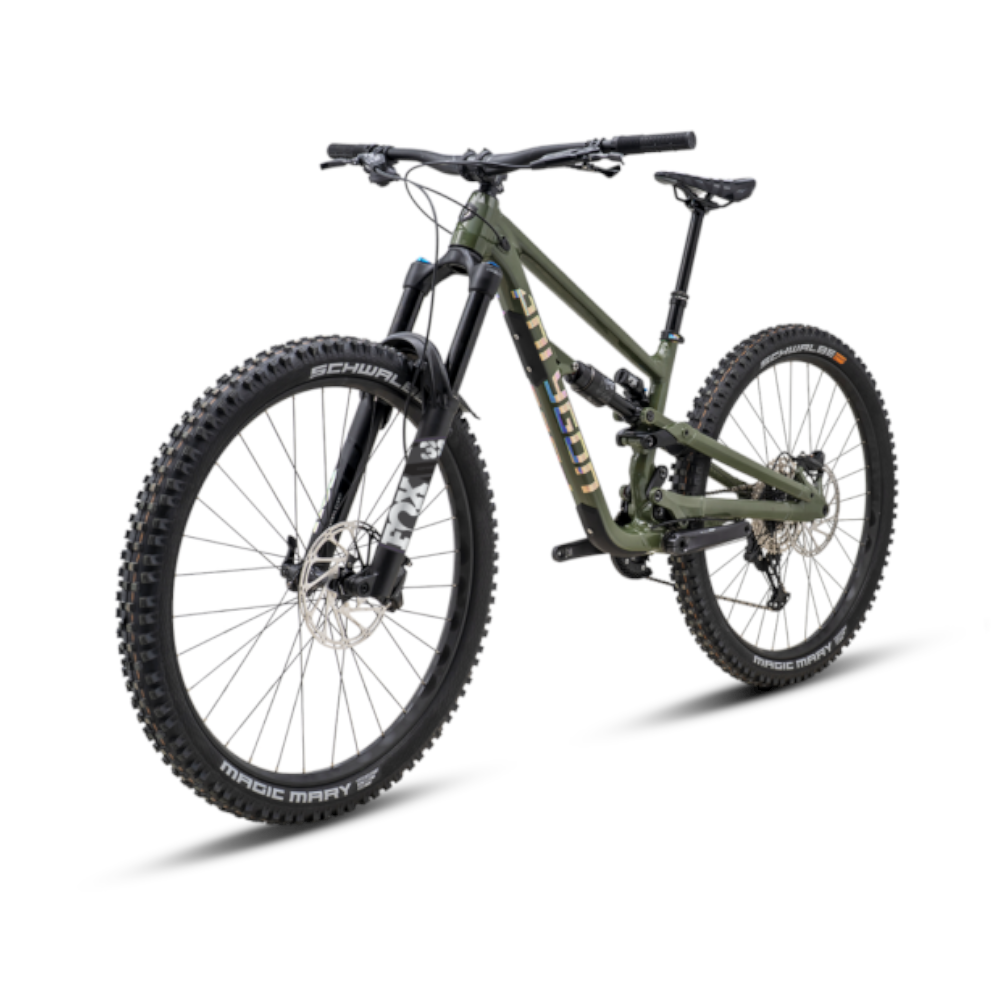

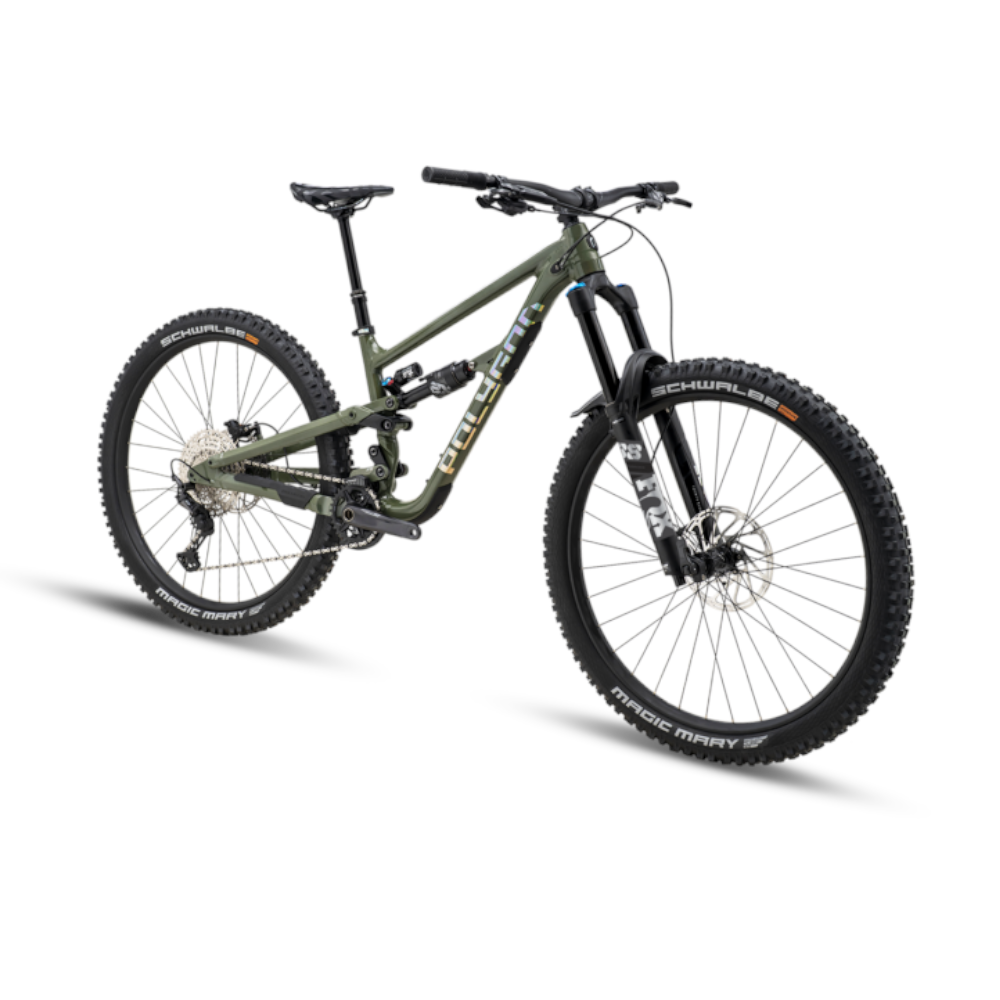

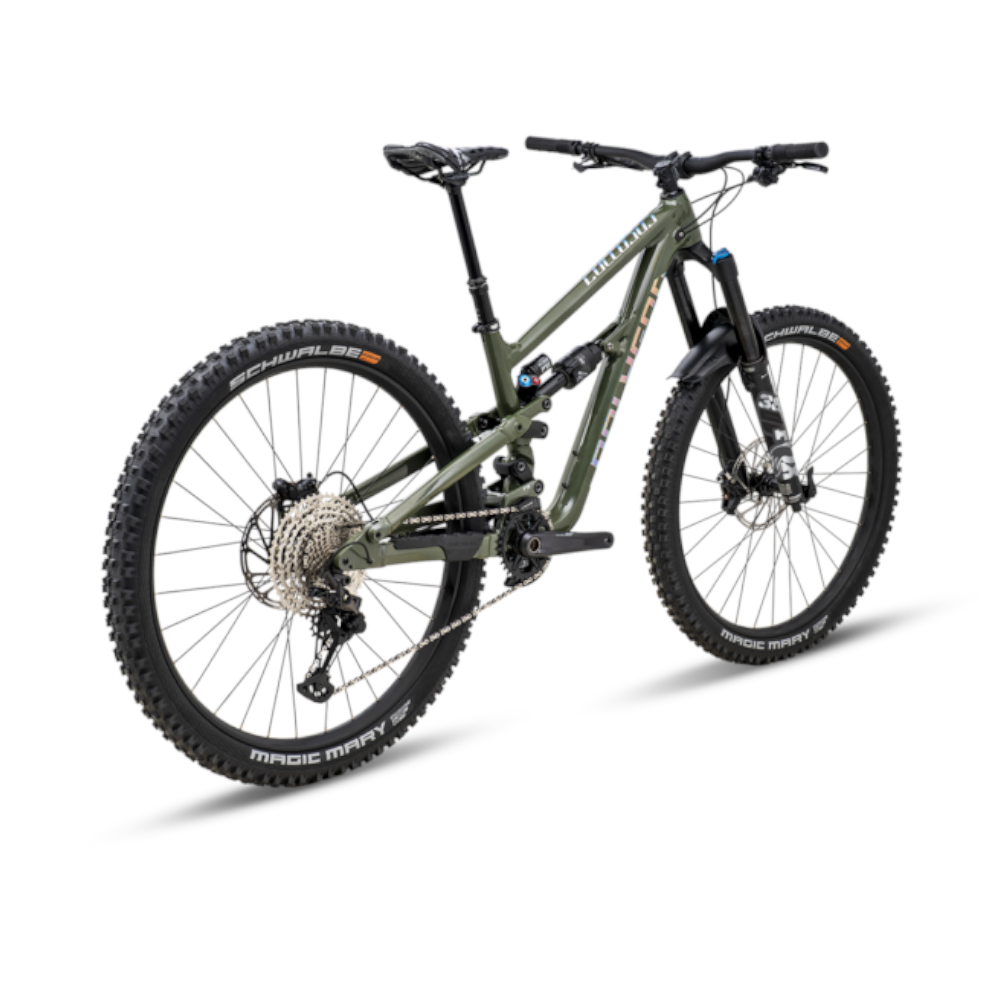

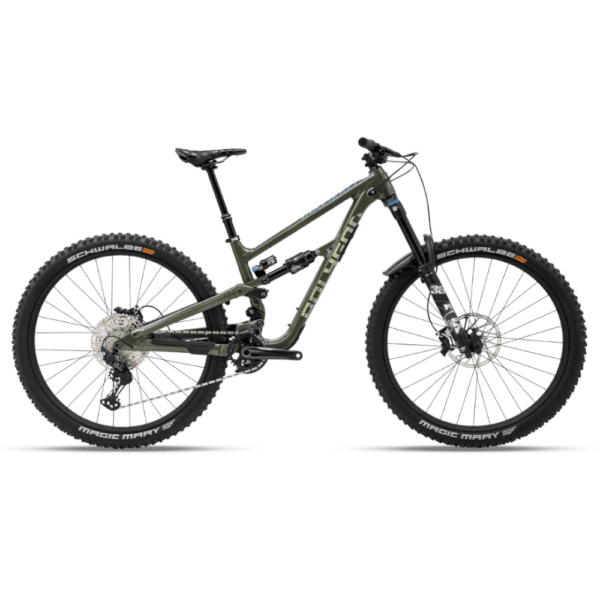

Polygon Collosus N9, RELEASE THE BEAST
RIDE FASTER, TRACK BETTER, LEAVE THEM IN THE DUST
FEATURES & SPECIFICATIONS

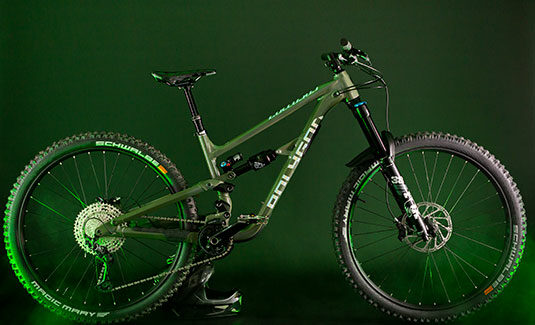

Conquer the Gnarliest Terrain
From the aggressive 29” wheels, low stand over height and modern reach numbers, the Colossus N9 stays composed through the gnarliest of terrain. With its short chain stays paired with its modern reach allows you to whip the bike around corners whilst still maintaining front wheel grip and staying composed

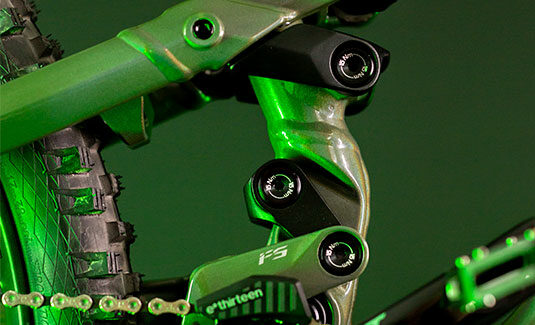

No Compromise
Our all new 6-bar linkage – the Independent Floating Suspension, controls the wheel path and anti-squat independently of the leverage curve; meaning, you will have the control of wheel behavior and the rear shock separately. No compromise between small-bump performance and suspension progressiveness
Polygon Collosus N9, Go Beyond The Limits
The Polygon Collosus N9 bikes geometry is based around providing riders the ability to push their limits with ease. Paired with FOX suspension, a Shimano XT 1×12 drivetrain and powerful 4 piston, this bike can be enjoyed on your local trails all the way to pushing for victories on the Enduro World Series circuit
Made For Any Abuse

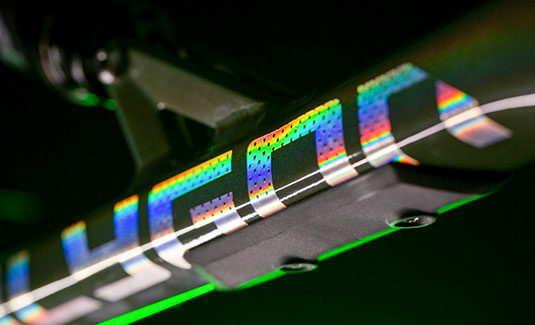

Collosus N9 comes with chain stay and down tube protector to give you more protection

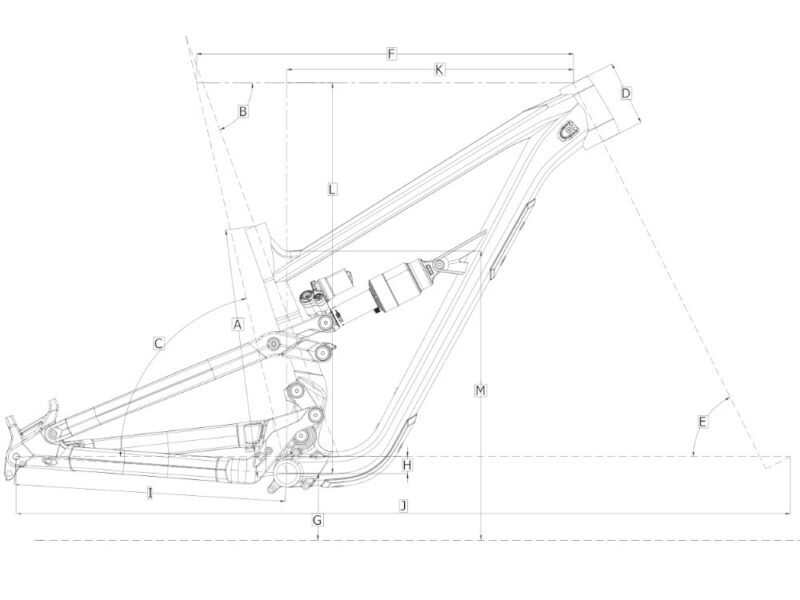

Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 172-185 | 182-195 |
| Seat Tube Length (A) | 390 | 400 | 415 | 430 |
| Seat Tube Angle (B) | 70 | 70 | 70 | 70 |
| Effective Seat Tube Angle (C) | 77 | 77 | 77 | 77 |
| Head Tube Length (D) | 100 | 105 | 110 | 120 |
| Head Tube Angle (E) | 63.5 | 63.5 | 63.5 | 63.5 |
| Effective Top Tube (F) | 583.58 | 604.61 | 626.39 | 647.71 |
| Bb Height (G) | 353 | 353 | 353 | 353 |
| Bb Offset (H) | 27 | 27 | 27 | 27 |
| Chainstay Length (I) | 435 | 435 | 435 | 435 |
| Wheelbase (J) | 1219.94 | 1242.17 | 1266.01 | 1288.87 |
| Frame Reach (K) | 440 | 460 | 480 | 500 |
| Frame Stack (L) | 621.92 | 626.39 | 634.09 | 639.82 |
| Standover Height (M) | 710 | 716 | 717 | 720 |
