Designed for riders who want to ride on a wide variety of terrain.
ALX XC SPORT ALUMINUM FRAME. Light & durable, butted and hydroformed 6061 aluminium frame features 73mm threaded bottom bracket, internal cable routing and Boost 148 rear axle for increased wheel strength & better tire clearance.
MODERN XC GEOMETRY. Using most of the modern features, Xtrada models utilize slack head tube and steep seat tube angle to ensure that the bike handles perfectly and travels effortlessly up and down the mountain.
INTERNAL CABLE ROUTING. Xtrada models use full internal routing with all-new internal cable routing system, providing a clean and rattle-free cable set up.
THRU AXLES. Thru axles are the modern standard for wheel and drivetrain specification that opens the opportunity for improved frame geometry with shorter chainstays, wider and stiffer suspension pivots, wider range of chainring options, as well as more clearance for bigger tires and wider, stiffer wheels.
SPEC HIGHLIGHTS
SUNTOUR XCR 32 AIR 120MM THRU-AXLE FORK. The XCR 32 air suspension fork features adjustable compression and excellent sensitivity. Its lightweight magnesium lowers and stiff 32 mm stanchions provide impressive durability. Tapered steerer combined with 15x100mm thru-axle adds extra stiffness.
SHIMANO DEORE M6100 1X12 SPEED WIDE-RANGE DRIVETRAIN. Deliver a new level of premium performance to the value category by bringing hallmark elite mountain bike technologies that maximizes versatility with its 510% gear range at unmatched value.
SHIMANO MT201 HYDRAULIC DISC BRAKES. Proven, bombproof design with reliable braking performance.
WIDE RIMS WITH SHIMANO HUBS. Entity XL2 30mm internal width rims provide better traction and stability by creating a wider contact patch between the tires and the ground. Shimano hubs featuring a Micro Spline freehub complete the set with reliable trail performance.

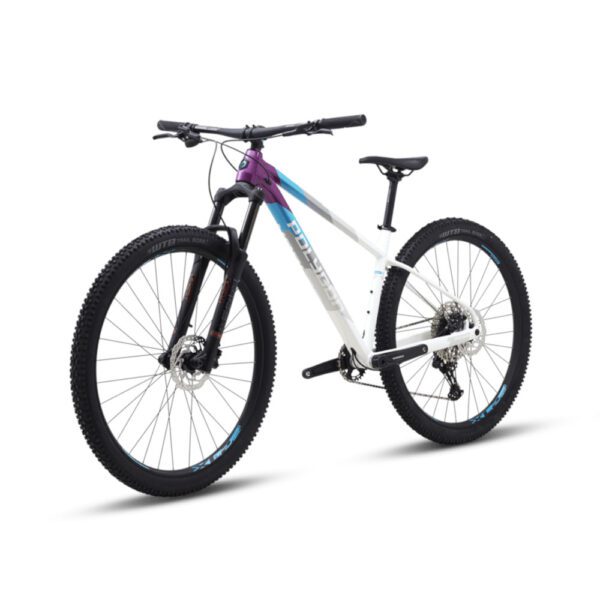

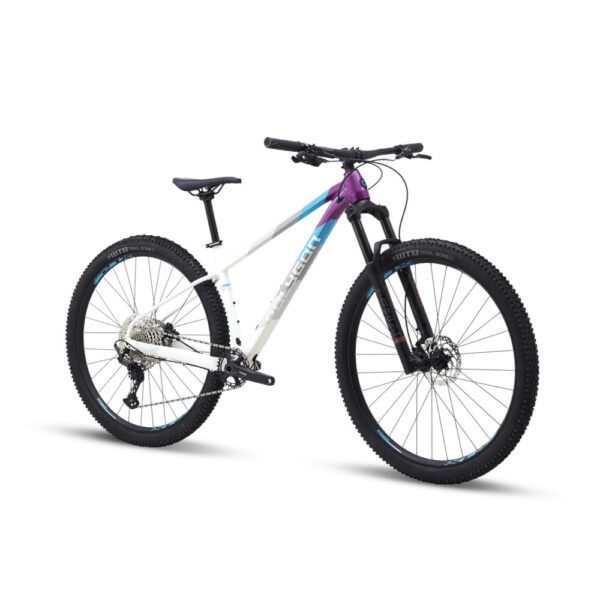

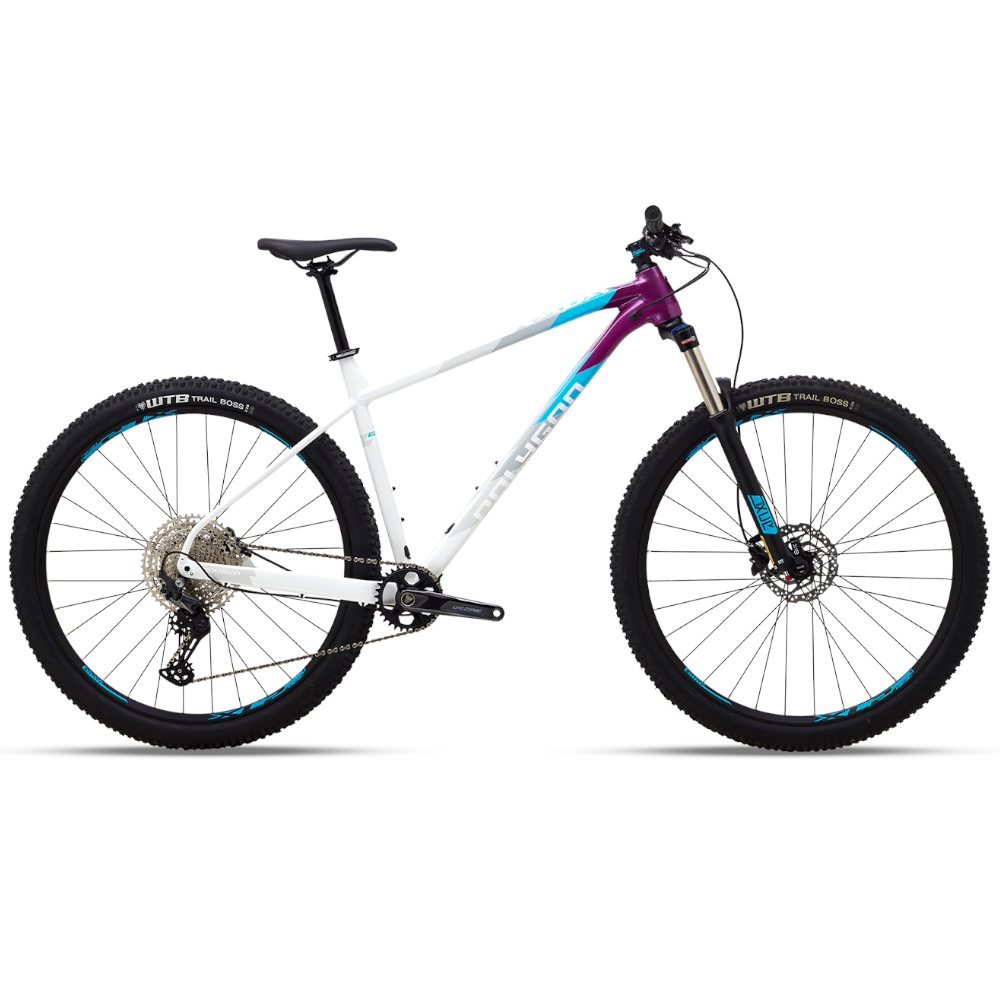

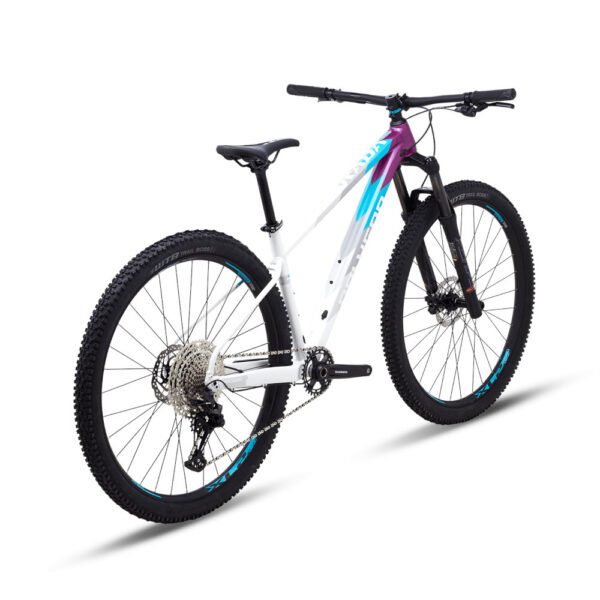

The Xtrada 7 is designed for riders who want to ride on a wide variety of terrain. The ALX super light 6061 hydro formed aluminum frame uses heat treated, hydro formed and butted tubing to give an optimal strength to weight ratio. The tapered head tube provides stable, front-end precision and the new Boost hub spacing on this frame allows for a stiffer wheel with more tyre clearance. The Boost system has also allowed for shorter chain stays, which makes the back of the bike a lot easier to flick around corners.The Xtrada 7 utilises Polygon’s new Wheel Fit Size System whereby each frame size is paired with the wheel size that best fits the rider and sets them up for optimal efficiency and power transfer. Frame S, M, L feature 27.5” wheels and frame M, L, XL come with 29” wheels. The Xtrada 7 is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.
GEOMETRY
SIZE CHART
MOUNTAIN BIKE W/ WHEEL FIT SIZE SYSTEM
| HEIGHT / cm | 152.5-165 | 162.5-175 | 172.5-185 | 182.5-195 |
|---|---|---|---|---|
| SIZE | S | M | L | XL |
| 27.5″ XTRADA | ✔ | ✔ | ✔ | |
| 29″ XTRADA | ✔ | ✔ | ✔ |
