Favero Assioma Duo/uno |left Pedal Body

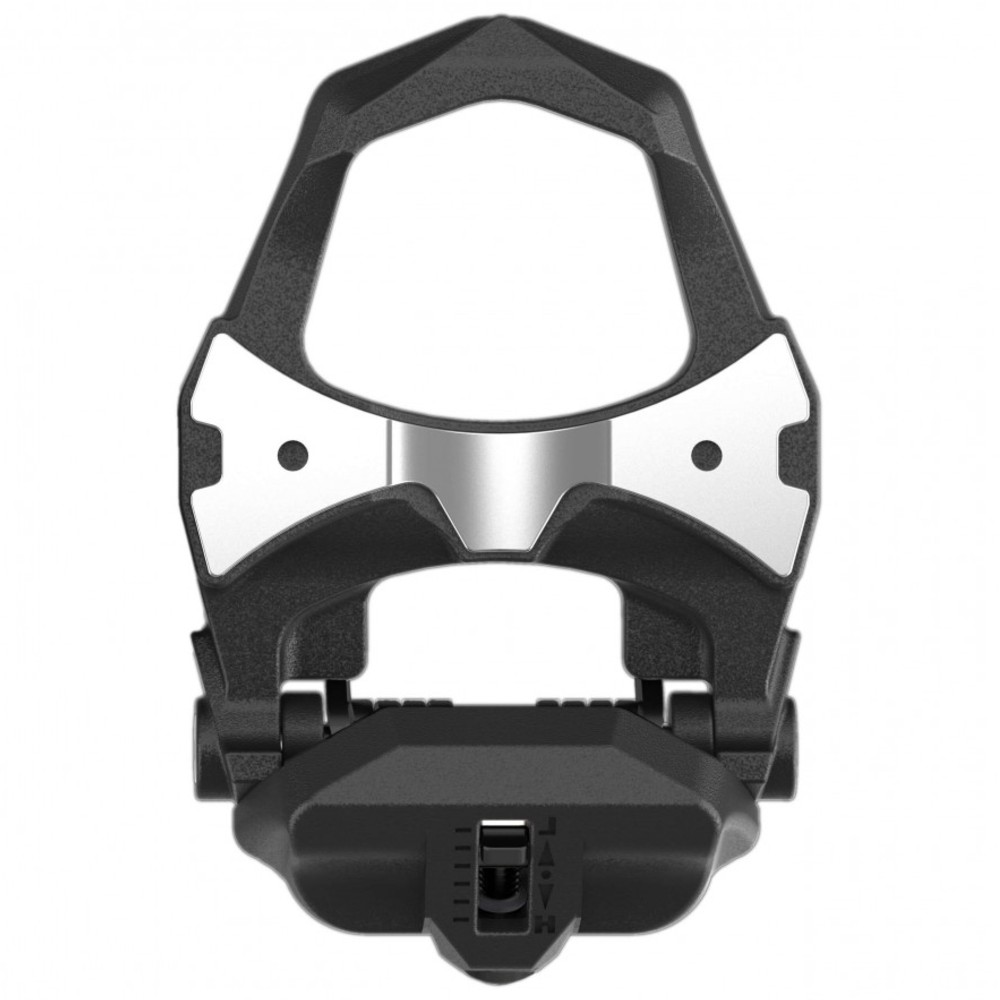

Favero Assioma Road Replacement Pedal Body

The Favero Assioma Road Replacement Pedal Body is a direct replacement for the ones on your Favero Assioma DUO and UNO power meter pedals. These pedal bodies feature improved aesthetics and the upgraded black spring that Favero released in mid-2019.

The new spring has a wider release torque tension. Specifically, the spring’s release torque tension range is from 8Nm to 20Nm (vs. 11Nm to 20Nm in the old pedal bodies). This wider range allows for lower release tension which makes the pedals easier to clip in and out of.

Each new pedal body includes bearings, M6 nut, oil-seal and end-cap.

Instructions for Changing Your Pedal Body

Changing the pedal body is easy. Simply remove the end cap and the M6 nut under the end cap in order to release the pedal body from the spindle. Then, reinstall the new pedal body. Make note not to over-tighten the end cap in order to avoid possible damage to the internal threads. The suggested force to apply is 2-3 Nm.
