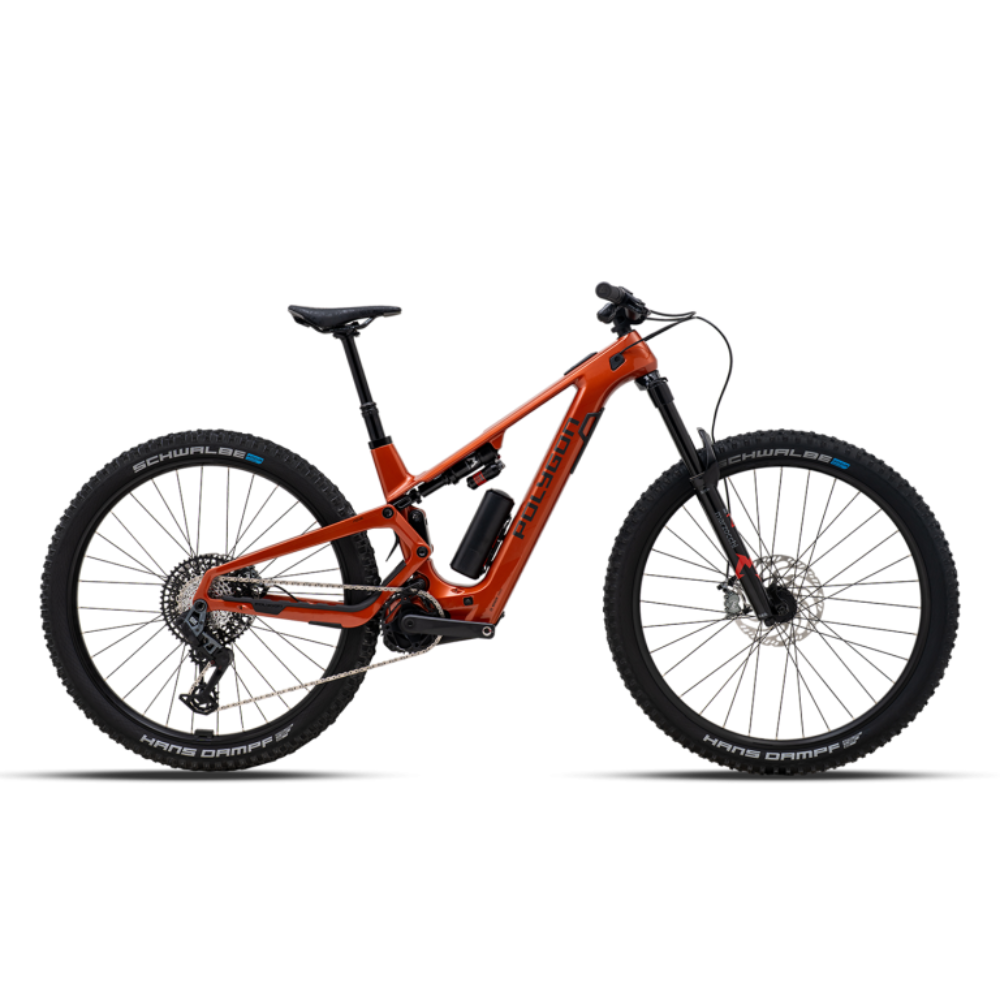

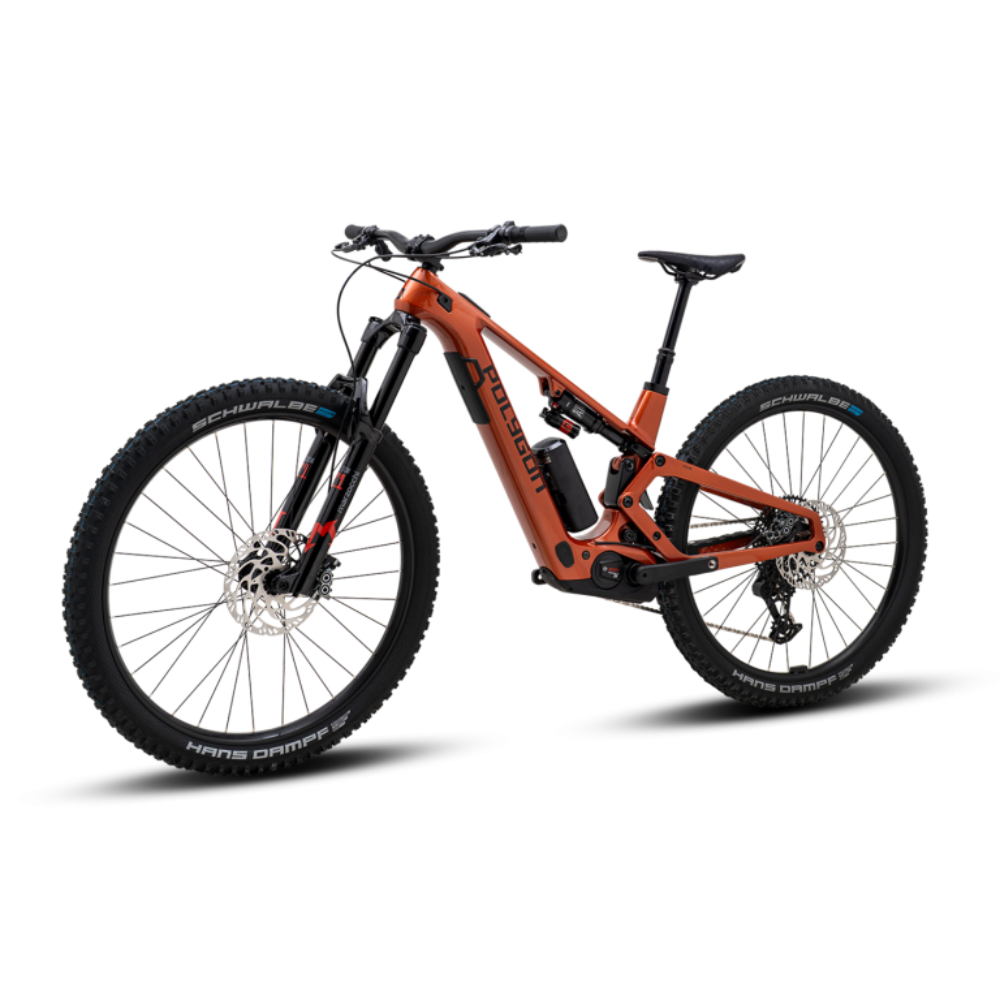

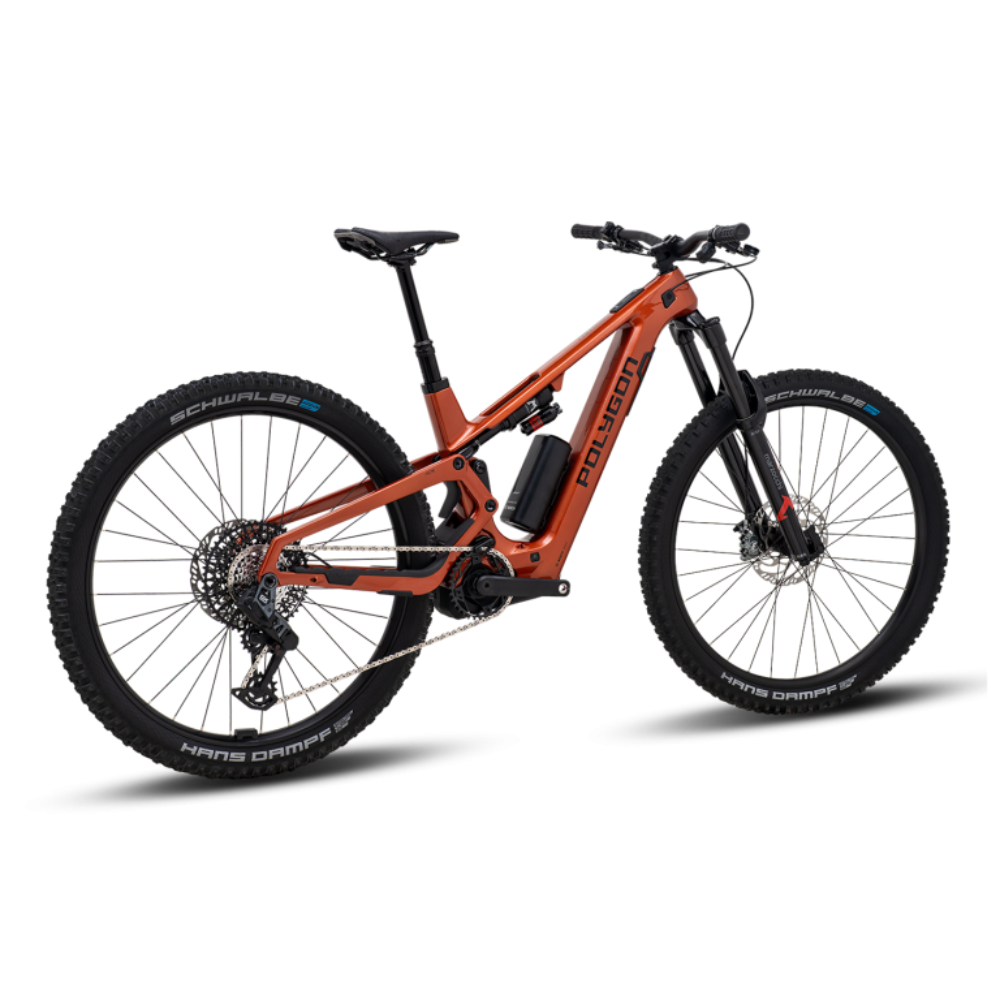

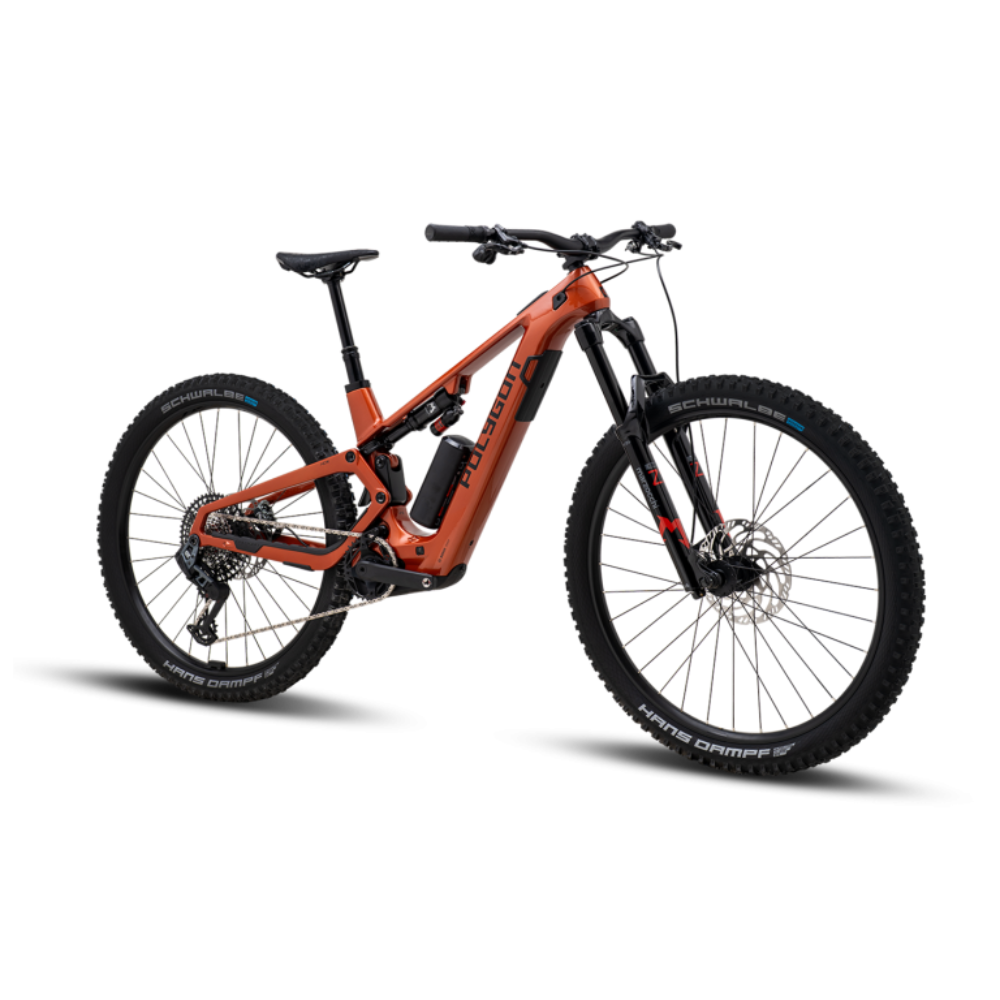

Unmatched performance in an SL e-trail bike

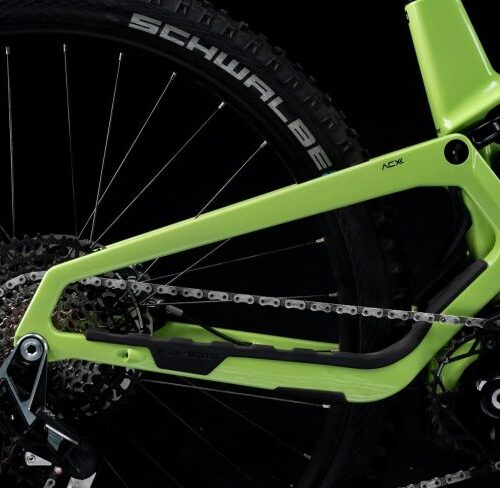

We’re proud to unveil the latest evolution in our lineup: the Collosus TLE. Born from a passion to push the limits of our Collosus platform, the TLE was designed to elevate the trail experience for riders like you. Drawing inspiration from the success of the Collosus N and DH models, the TLE reintroduces carbon construction and integrates our Independent Floating Suspension (IFS) system—refined to be lighter, stiffer, and more efficient than ever. The goal? Deliver unmatched performance without compromise. Years of development and rider feedback shaped the Collosus TLE into more than just a bike; it’s a companion built for progress. With a custom-tuned ride feel and dialed-in suspension kinematics, it balances anti-squat, anti-rise, and leverage curve to deliver precise climbing efficiency, confident braking, and plush responsiveness on every descent. Built around a full 29er platform, the TLE features Fox-tuned shocks and a versatile shock yoke, offering extensive adjustability to match your style. Practical touches like tailgate protection, generous chainstay coverage, and internal cable routing complete a clean, quiet ride on any trail. The TLE is also future-ready, with Bosch motor compatibility, a range extender option, and a Bosch PowerMore 250Wh battery included as standard—ready to take on long rides and epic adventures alike. The Collosus TLE is more than a new model—it’s a statement of our commitment to progress, performance, and the journey ahead. Experience what’s next in full-suspension carbon trail bikes.
Robust IFS linkage construction
The main part of the IFS system is the double link at the bottom of the seat tube, on the TLE we separated the links which gives us more freedom to keep the same anti squat, which was all dictated by the characteristics of the previous model.

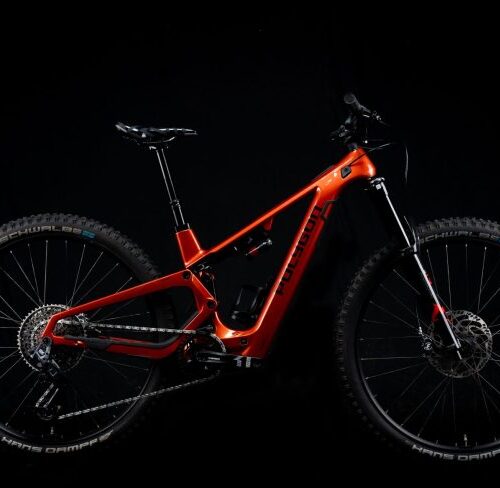

A ride that’s balanced, powerful, and light

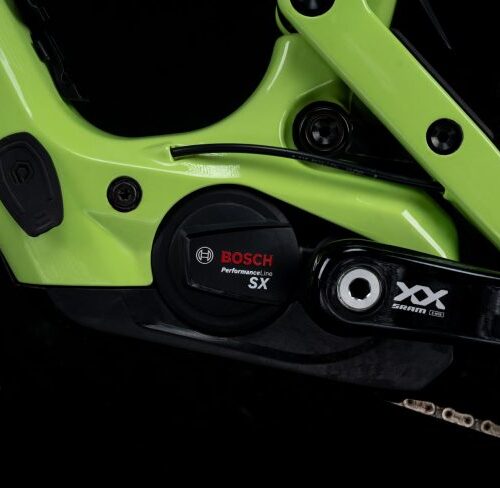

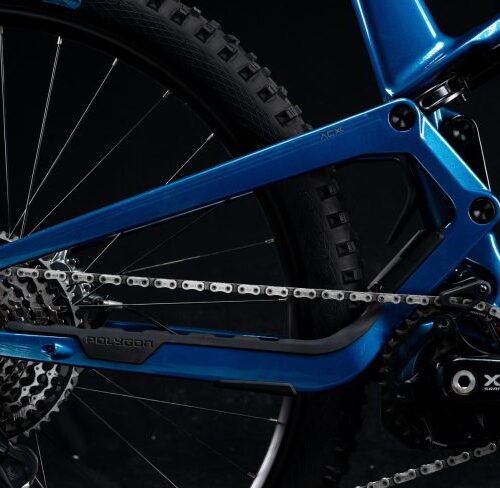

With a rear end length of 450mm, the Collosus TLE delivers a well-balanced ride. The longer chainstays are designed to seamlessly accommodate the Bosch Performance Line SX motor, providing a powerful 55 Nm of torque paired with a 400 Wh battery. It climbs with ease and descends with the confidence of a full enduro bike.
Smart design, built-in convenience

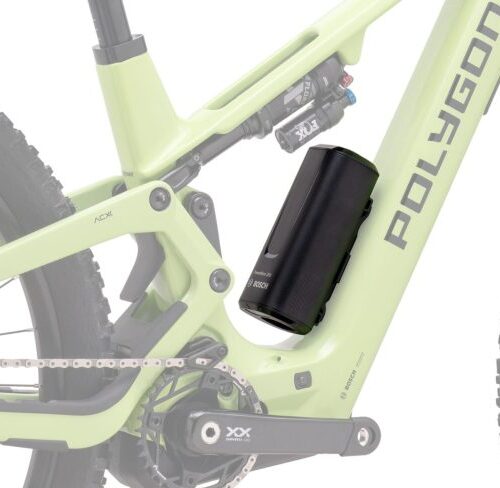

From a 750ml bottle fitment to Power More range extender compatibility with a 250Wh battery included, every detail is built for convenience. The top tube blends form and function, letting riders check sag while seated. With internal cable routing and dropper post integration, the Collosus TLE stays clean and purpose-driven.
UDH compatibility for next-gen shifting
With the UDH dropouts, the Collosus TLE is now compatible with T-Type drivetrains for seamless integration with modern shifting systems.

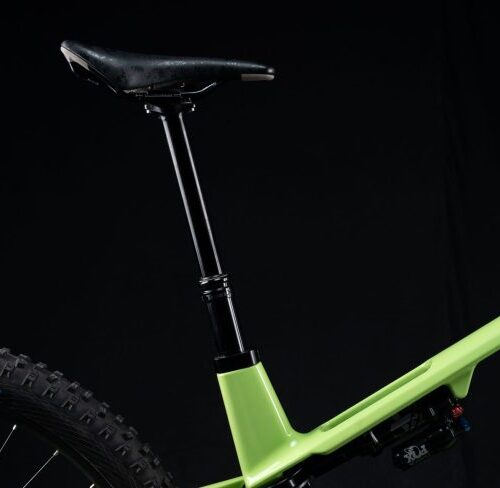

Ready for a more robust dropper post
Now featuring a 34.9mm seat tube diameter to support stronger, more reliable dropper posts.
Double-row bearings, consistent performance
The frame runs 3901 double row sealed bearings, ensuring unparalleled consistency across all main pivot points, including the shock yoke.
| Kit |
COLLOSUS TLE 0 AXS
|
COLLOSUS TLE 8 AXS
|
|---|---|---|
| Frame | ACX e-MTB | ACX e-MTB |
| Fork | FOX PERFORMANCE ELITE 36, FLOAT EVOL, 160mm TRAVEL, OFFSET: 44mm, HSC-LSC, HSR-LSR, W/ FENDER | MARZOCCHI BOMBER Z1, 160mm TRAVEL, OFFSET: 44mm, AIR SPRING, RAIL DAMPER,REBOUND ADJUST |
| Rear Shock | FOX FLOAT X PERFORMANCE ELITE, E2E: 210x55mm | MARZOCCHI BOMBER AIR, E2E: 210x55mm |
| Shifter | SRAM EC AXS POD CONTROLLER, 1×12-SPEED TRIGGER | SRAM EC AXS POD CONTROLLER, 1×12-SPEED TRIGGER |
| Crank Set | SRAM XX CARBON T-TYPE, 34T | SRAM CR T-TYPE, 34T |
| Cassette | SRAM XX EAGLE T-TYPE 10-52T XD DRIVER | SRAM GX EAGLE T-TYPE 10-52T XD DRIVER |
| Rear Derailleur | SRAM XX EAGLE T-TYPE AXS | SRAM GX EAGLE T-TYPE AXS |
| Tire | MAXXIS DISSECTOR 29″x2.40″ 622×65, TLE | MAXXIS DISSECTOR 29″x2.40″ 622×65, TLE |
| Brake Lever | MAGURA HC3 | MAGURA HC3 |
| Brake Caliper | MAGURA MT7 HYDRAULIC DISC | MAGURA MT7 HYDRAULIC DISC |
| Rotor | MAGURA MDR C, 203MM 6-BOLT | MAGURA MDR C, 203MM 6-BOLT |
| Motor | BOSCH PERFORMANCE LINE SX BDU3145 | BOSCH PERFORMANCE LINE SX BDU3145 |
| Sensor | BOSCH RIM MAGNET | BOSCH RIM MAGNET |
| Battery | BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL | BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL |
