Description
THE PATH IS YOURS
THE ULTIMATE COMMUTER BIKE

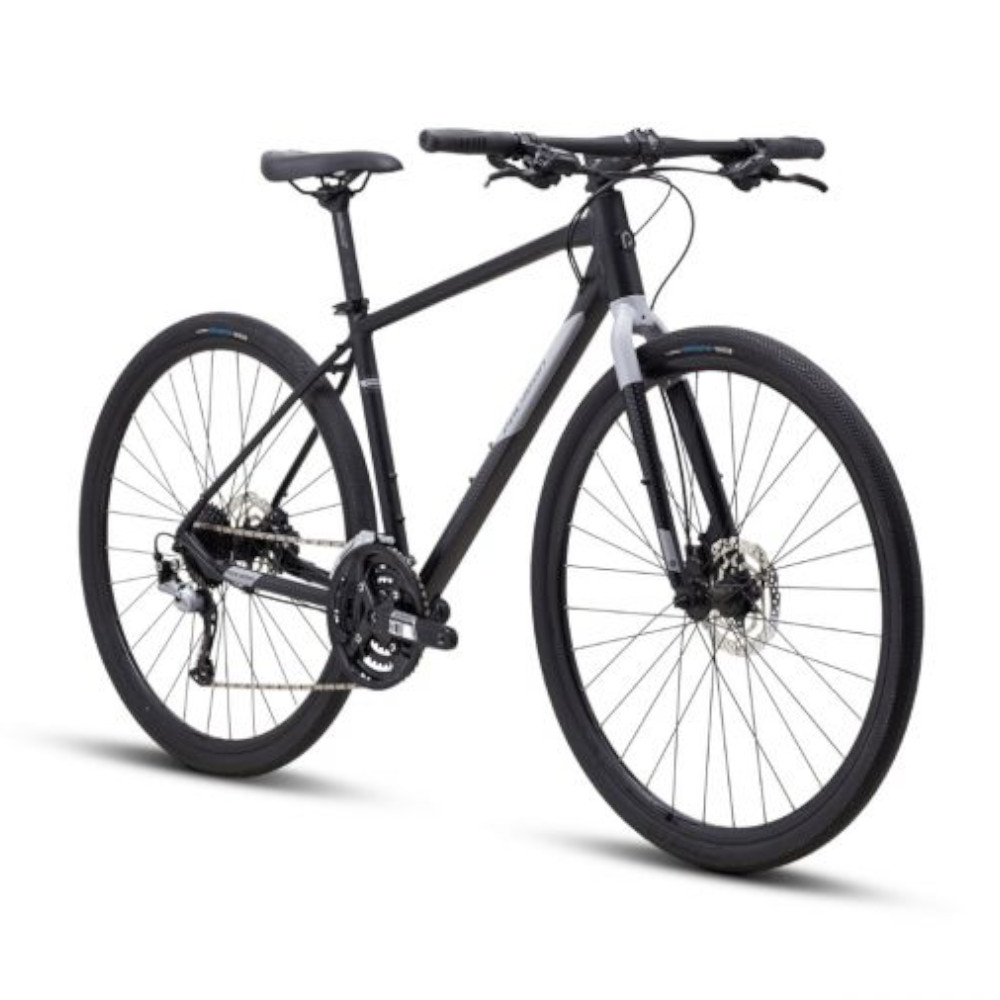

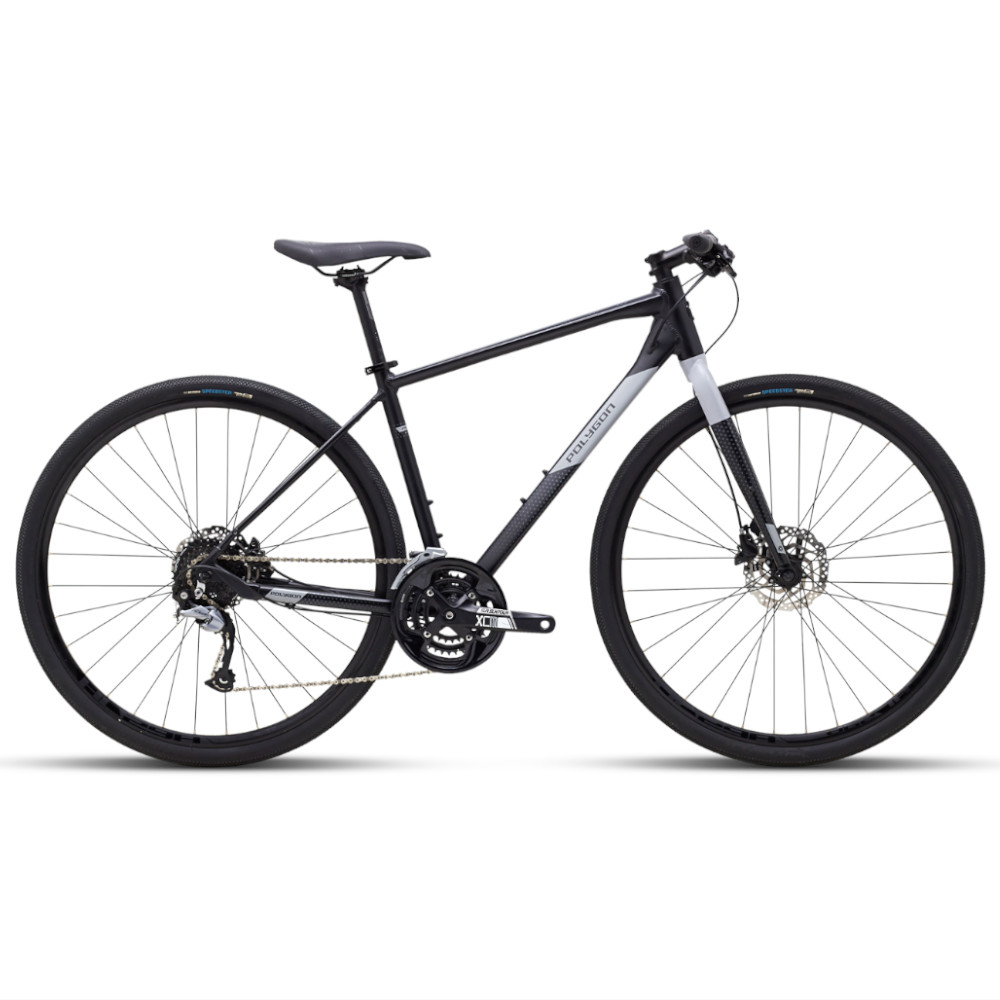

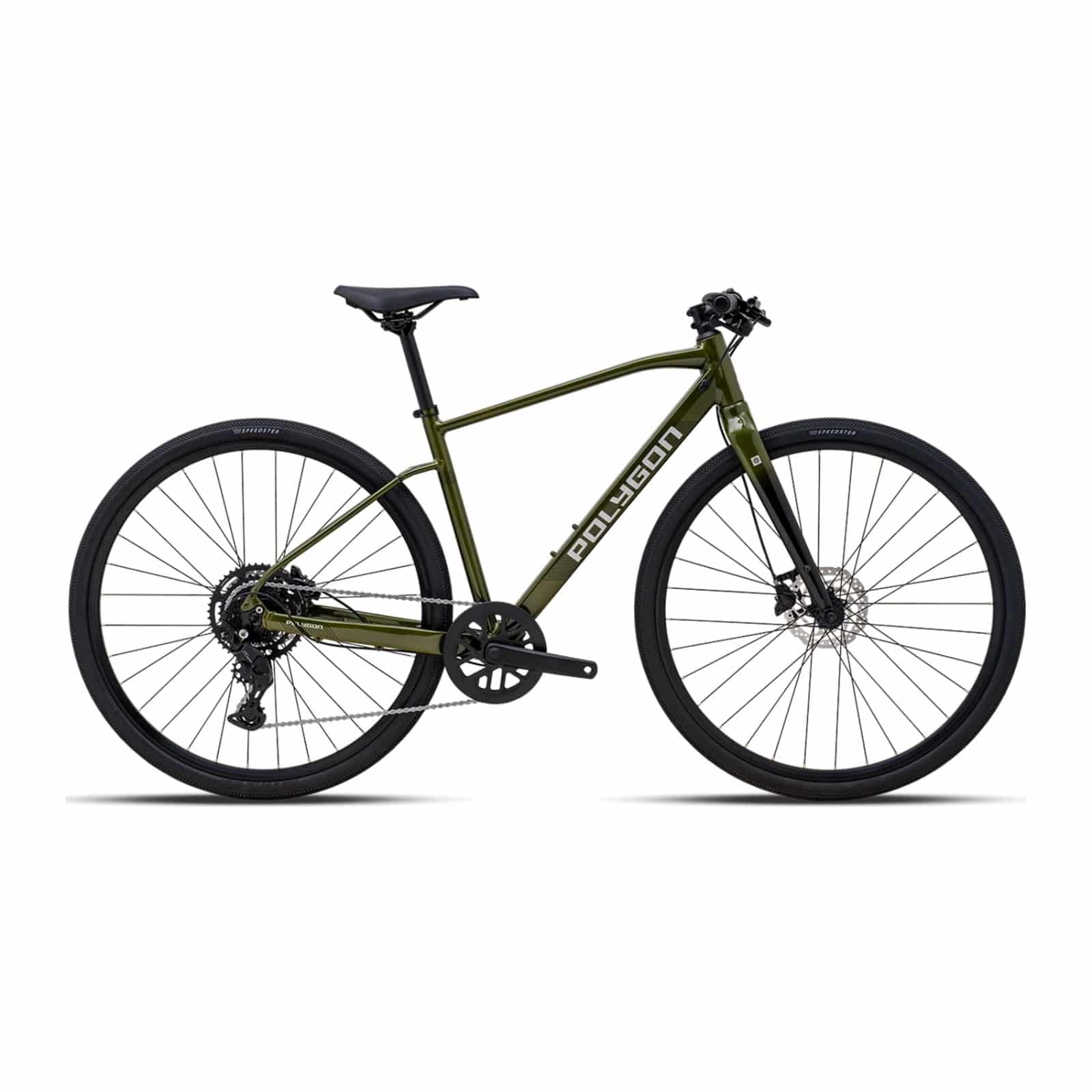

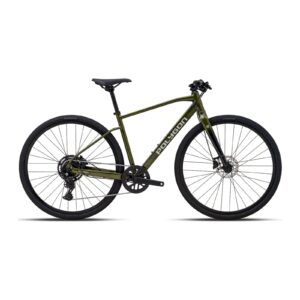

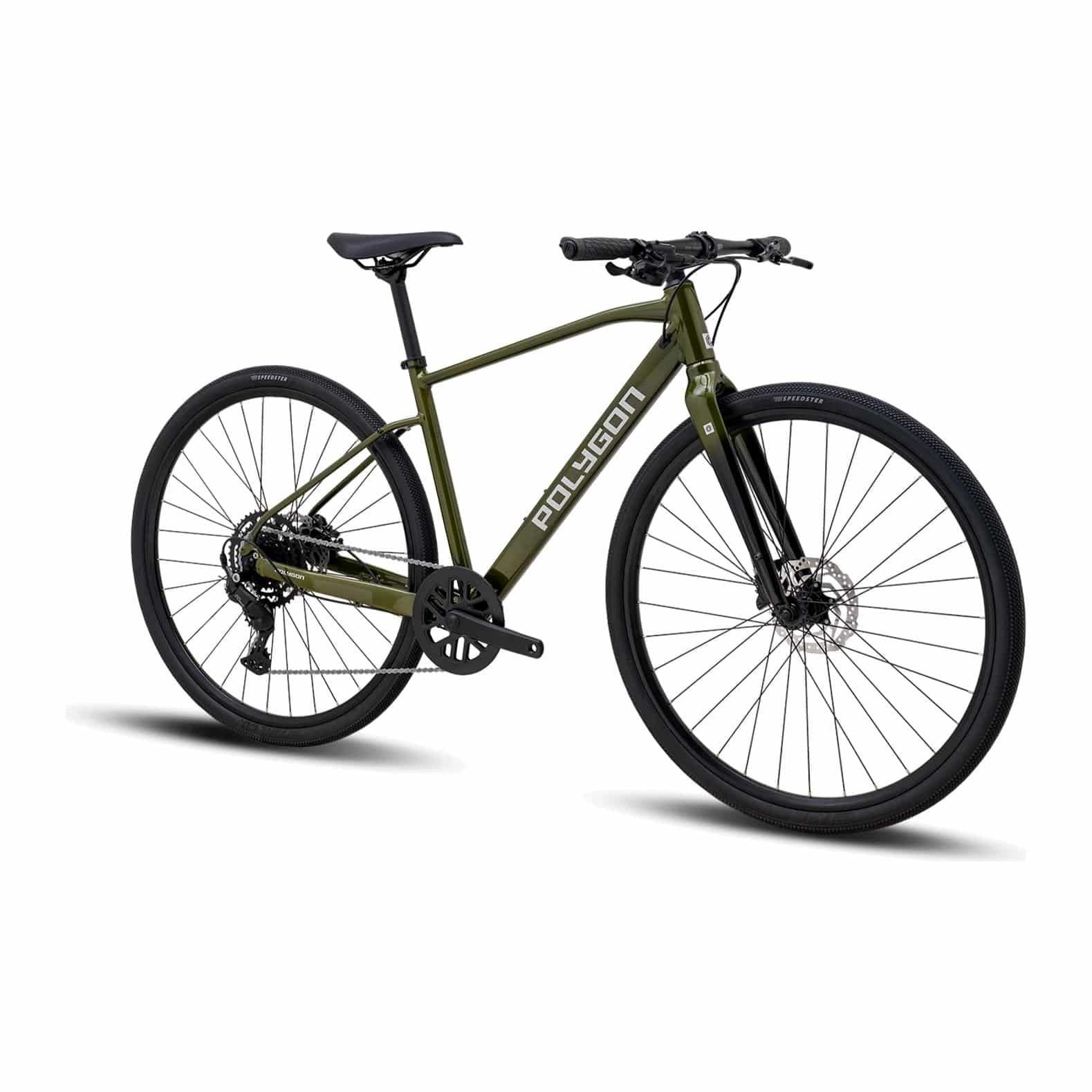

The Polygon Path 3 is a speed utility bike combines speed, agility, and style in a bike. Designed by combining the efficiency of a road bike with a specific commuter geometry. This commuting bike features a tough and light AL6 frame, a Shimano Acera / Altus 27 speed drive train, hydraulic disc brakes and 700x35c tires for a comfortable ride. The Path 3 is the perfect bike for social rides with friends or for dodging traffic to make it to a meeting on time.
Polygon Path 3 FEATURES
S | M | L | XL | |
Height (cm) | 150-160 | 160-170 | 170-180 | 180-190 |
Seat Tube Length (A) | 430 | 460 | 490 | 530 |
Seat Tube Angle (B) | 75 | 74.5 | 74 | 73.5 |
Effective Seat Tube Angle (C) | 75 | 74.5 | 74 | 73.5 |
Head Tube Length (D) | 110 | 140 | 170 | 200 |
Head Tube Angle (E) | 71 | 71 | 71.5 | 71.5 |
Effective Top Tube (F) | 530 | 553 | 577 | 601 |
Bb Height (G) | 281 | 281 | 281 | 281 |
Bb Offset (H) | 70 | 70 | 70 | 70 |
Chainstay Length (I) | 440 | 440 | 440 | 440 |
Wheelbase (J) | 1030 | 1050 | 1065 | 1084 |
Frame Reach (K) | 380 | 390 | 400 | 410 |
Frame Stack (L) | 558 | 586 | 617 | 645 |
Standover Height (M) | 705 | 735 | 766 | 796 |
Information
Weight | N/A |
---|---|
Dimensions | N/A |
Color |
Black ,Green |
Size |
700CX43 ,700CX46 ,700CX49 ,700CX52 ,S ,M ,L ,XL |
Brand | |
Frameset |
AL6 URBAN PAVEMENT FRAME |
Fork |
ALUTECH RIGID FORK |
Shifter |
SHIMANO M2010 ALTUS 3X9 SPEED |
Crank |
STEEL CRANKSET 48X36X26T |
Cassette |
SHIMANO CS-HG200 9-SPEED 11-34T |
Rear Derailleur |

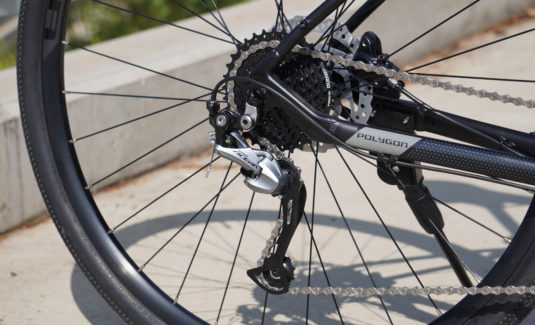

SHIMANO M3000 ACERA |
BB |
CARTRIDGE BB |
Chain |
KMC X9 |
Saddle |
SELLE ROYAL SADDLE |
Seatpost |
ENTITY OE, ALLOY, 27.2MMX350MM |
Handlebar |
ENTITY OE, ALLOY, W:700MM BB:31.8MM |
Handlestem |
ENTITY OE, ALLOY, E:60MM BB:31.8MM |
Headset |
SEMI-INTEGRATED HEADSET |
Wheel Set |
DOUBLE WALL WHEELSET 32H |
Wheel Size |
700C |
Tire |
VEE SPEEDSTER 700X40C |
Brake Lever |

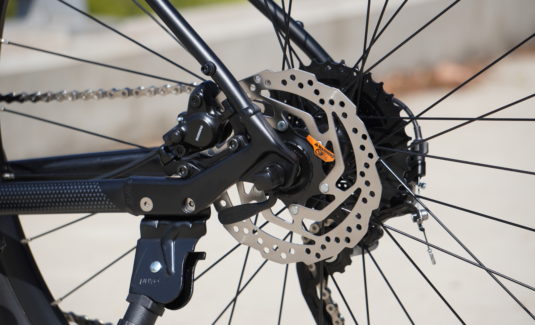

SHIMANO MT201 DISC BRAKE |
Frame Material |
Aluminium (AL) |
