Polygon Heist 5 .
Frame
ALX HYBRID 700C ALUMINIUM
Groupset
SHIMANO CUES 1×10, 11-48T
Wheels
ALLOY DOUBLE WALL 700C, WTB RIDDLER 700x45C
Use
City, Urban and Gravel
AED2,999.00
Easy Return/Exchange
Fast Delivery
100% Secure Payment
700c hybrid bike with an ALX alloy frame, 63 mm SR Suntour NVX32 fork, Shimano CUES 1×10 gearing (11–48T), Shimano MT200 hydraulic disc brakes and 45 mm WTB Riddler tyres. Rack and mudguard mounts; sizes S–XL.

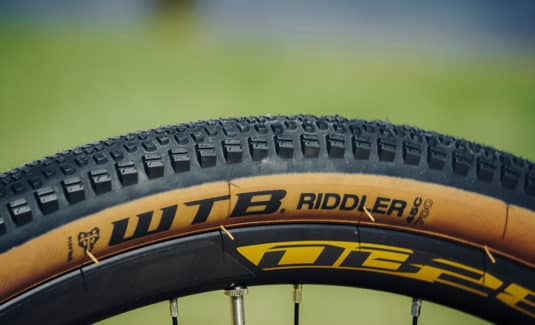

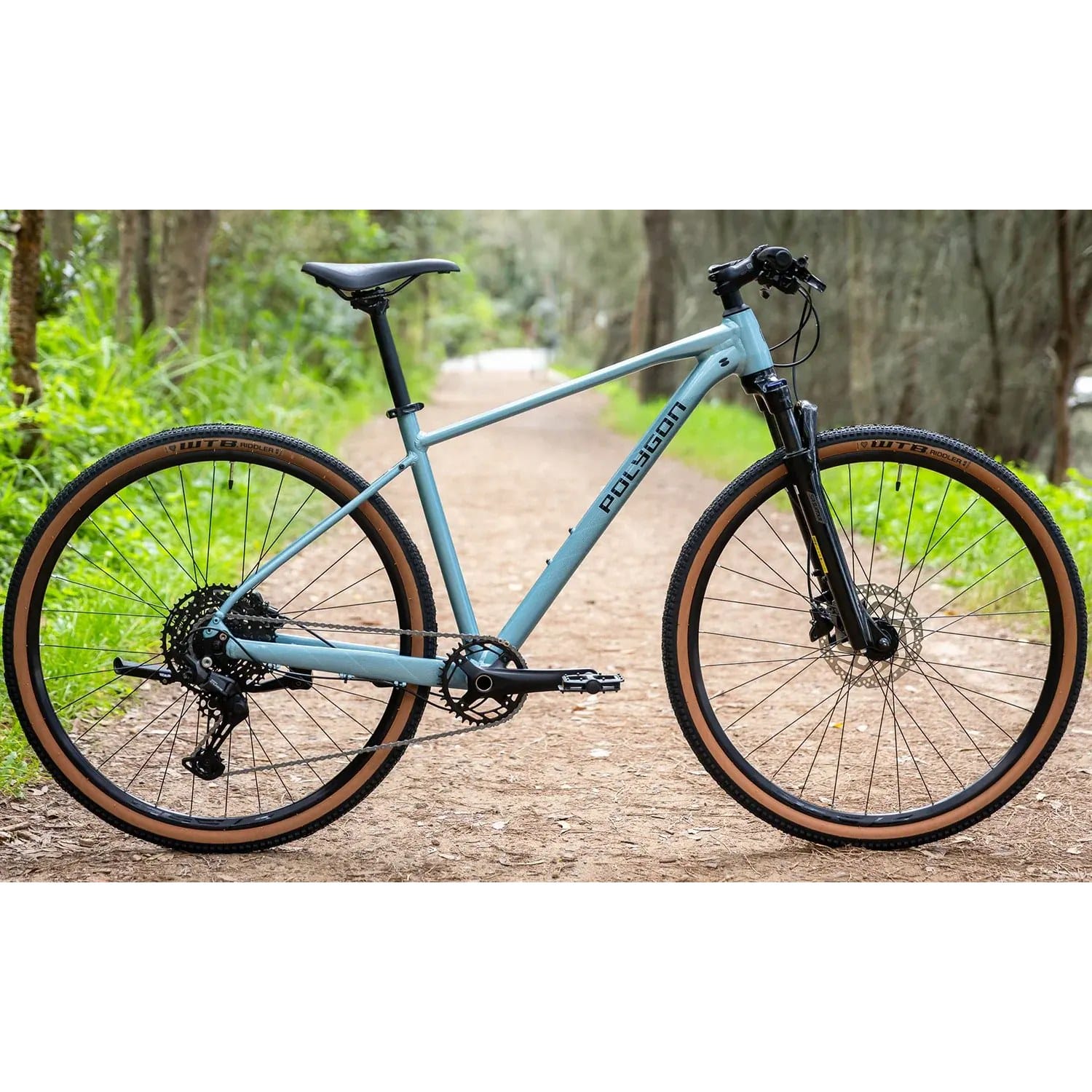

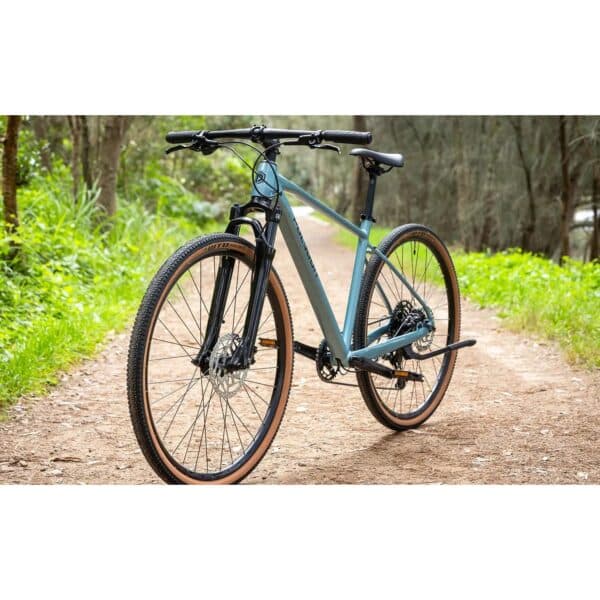

The Polygon Heist 5 is a 700c hybrid bike for commuting, fitness rides and light gravel. Its ALX alloy frame and upright riding position keep it stable at low speed and easy to control in traffic, while a 63 mm SR Suntour NVX32 fork and wide 45 mm WTB Riddler tyres take the sting out of rough tarmac, kerbs and gravel paths.
Shimano CUES 1×10 gearing gives you one shifter and a wide 11–48T range for bridges and climbs, and Shimano MT200 hydraulic disc brakes stop consistently in any conditions. Rack and mudguard mounts make it an easy everyday bike, from the Dubai Water Canal path to Al Qudra or the Abu Dhabi Corniche.
Good to know
- Sizes S to XL: choose by rider height in the size guide below.
- Practical: rack and mudguard mounts, and a quick-release seat clamp for fast saddle-height changes.
- Easy wheel removal: quick-release hubs front and rear.
- Ready to ride: platform pedals included.
What makes it work

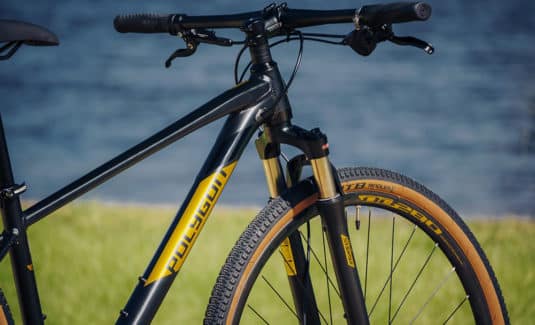

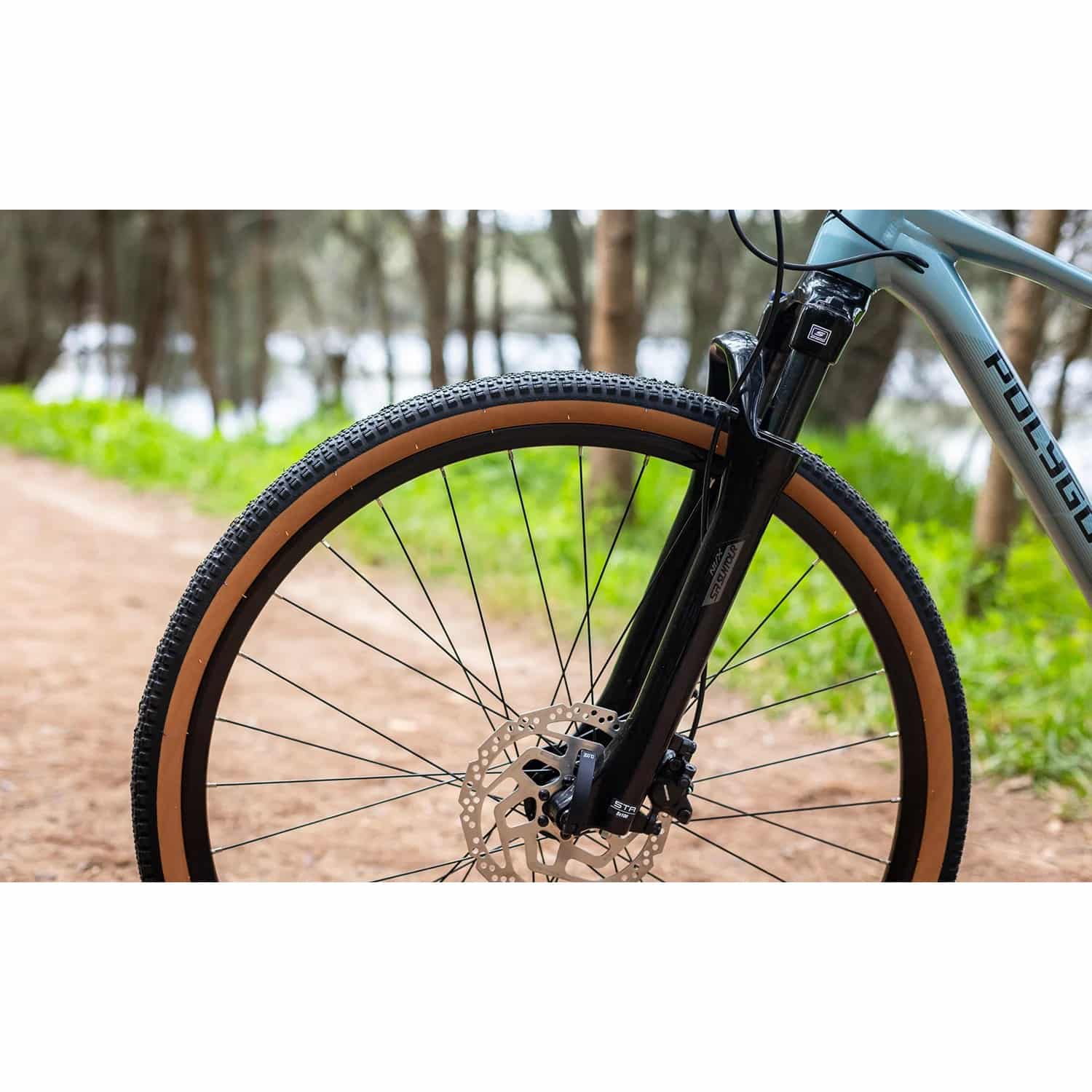

SR Suntour NVX32 fork
63 mm of travel on 32 mm stanchions, with a preload adjuster to suit your weight, for a calmer front end over cracks, kerbs and gravel.

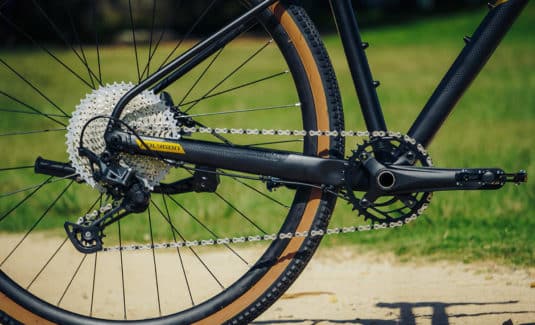

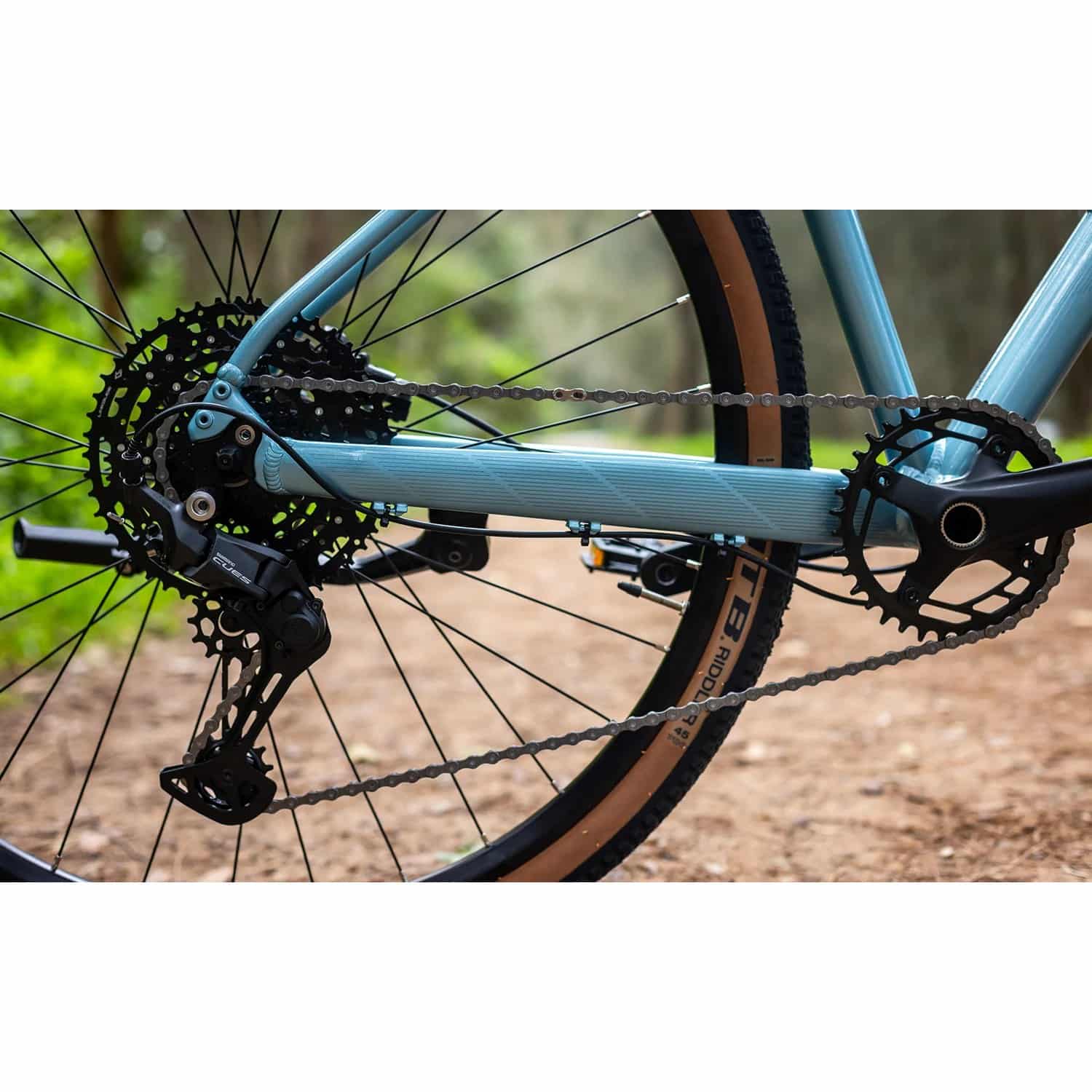

Shimano CUES 1×10
One SL-U6000 shifter, an RD-U6000 derailleur and an 11–48T Linkglide cassette for smooth, durable shifting, driven by a 36T Prowheel crank.

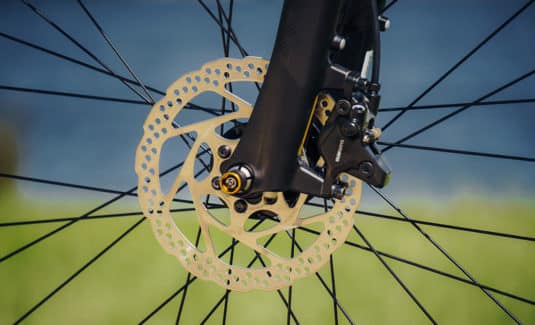

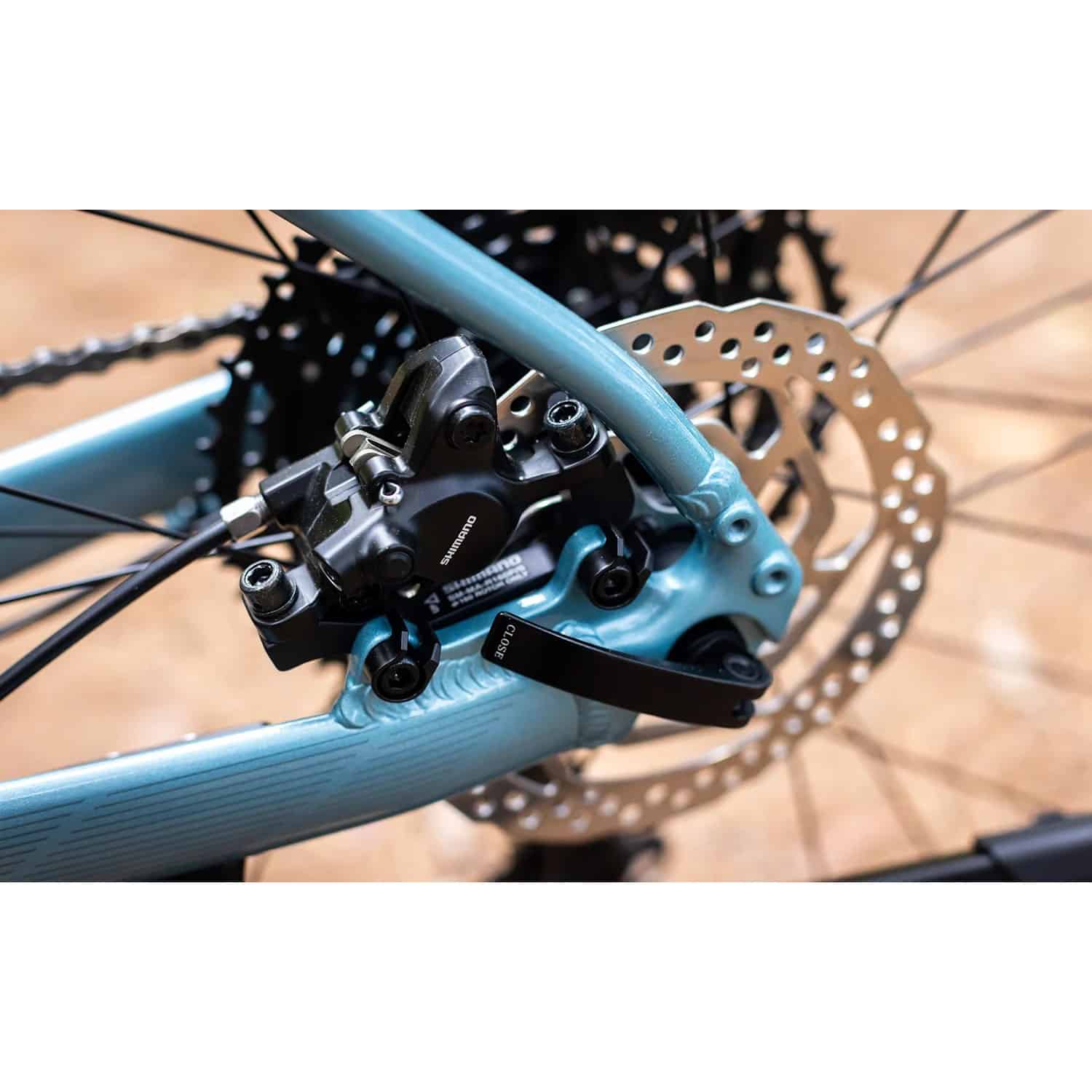

Shimano MT200 hydraulic brakes
Consistent stopping in wet and dry conditions with light lever effort, on 180 mm SM-RT26 rotors.

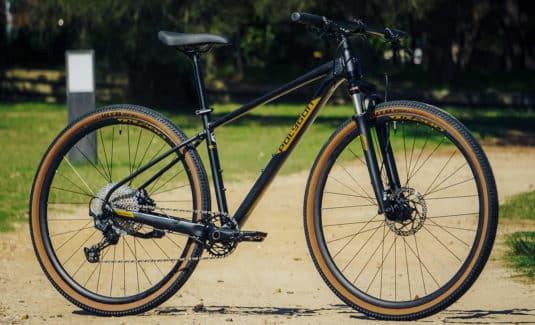

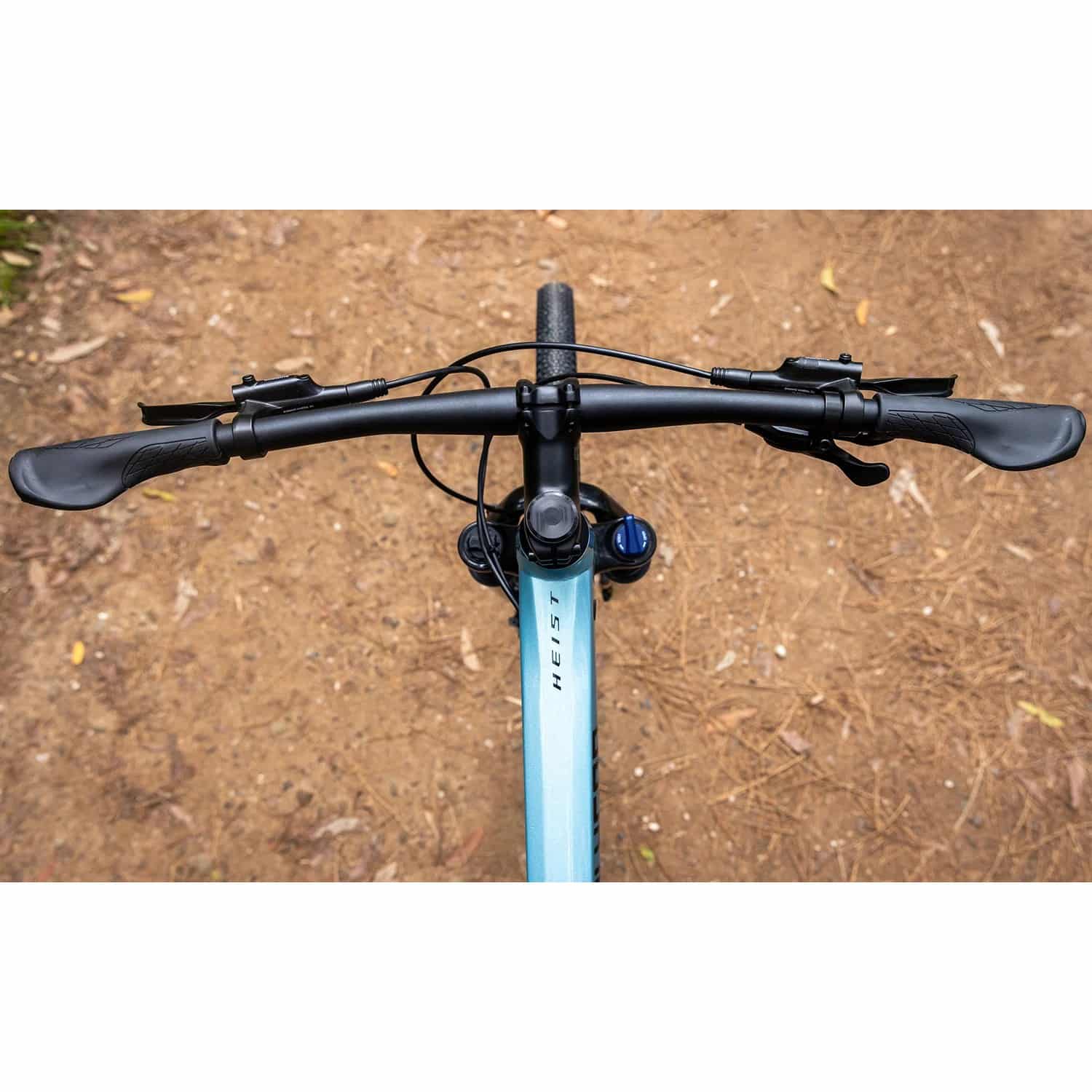

Upright cockpit
A 680 mm Polygon Sport flat bar with 6° of sweep on a 75 mm, 10° stem keeps you upright with a clear view of the road.

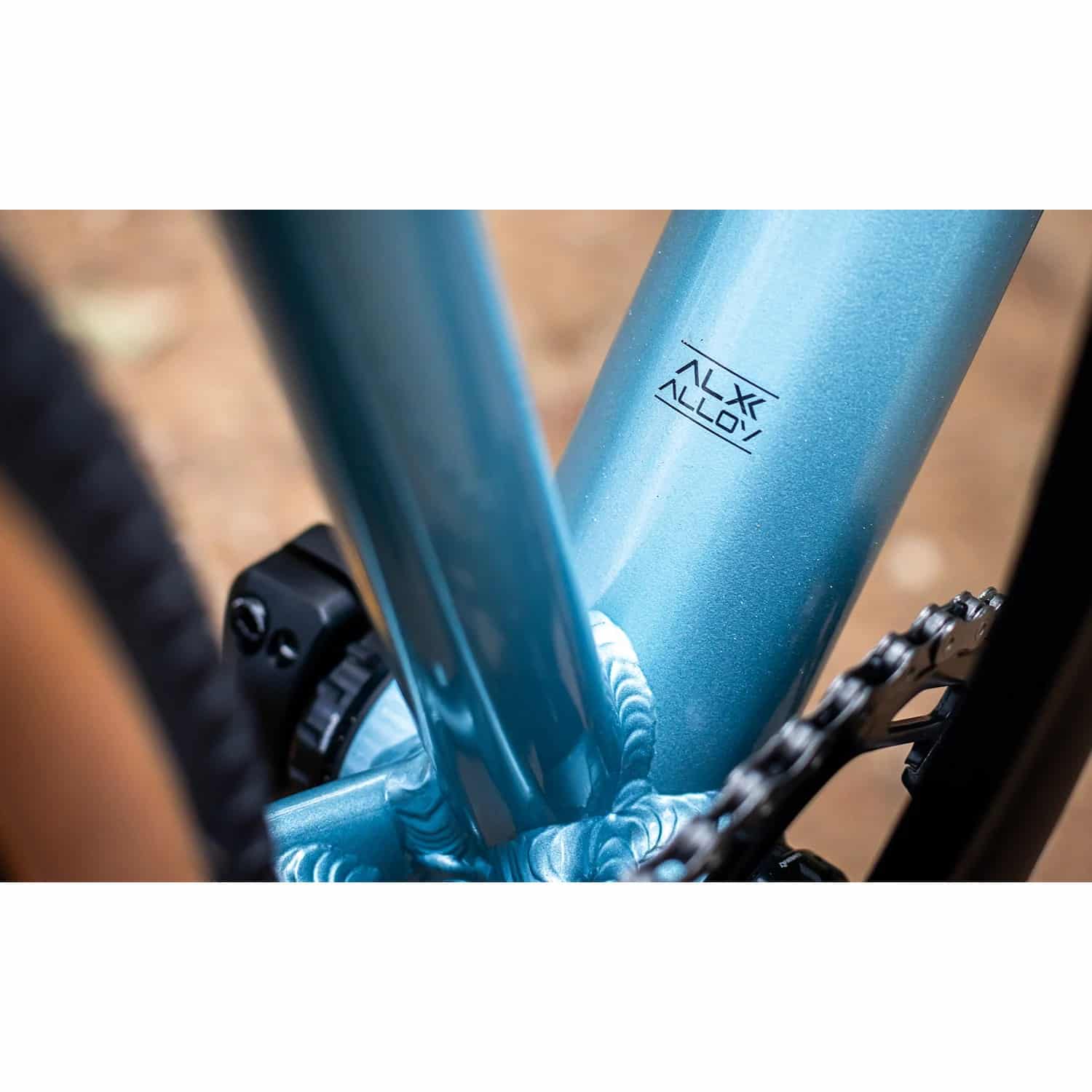

ALX alloy frame
A light, responsive hybrid frame with rack and mudguard mounts, built around 700c wheels with room for 45 mm tyres.
Size guide
| Size | Rider height | Seat tube | Reach | Stack | Standover |
|---|---|---|---|---|---|
| S | 155–165 cm (5′1″–5′5″) | 405 mm | 385 mm | 597 mm | 697 mm |
| M | 165–175 cm (5′5″–5′9″) | 432 mm | 390 mm | 607 mm | 711 mm |
| L | 175–185 cm (5′9″–6′1″) | 470 mm | 425 mm | 607 mm | 738 mm |
| XL | 185–196 cm (6′1″–6′5″) | 516 mm | 445 mm | 616 mm | 777 mm |
Rider heights are Polygon’s. Measurements in millimetres.
Full geometry
| mm | S | M | L | XL |
|---|---|---|---|---|
| Stack (A) | 597 | 607 | 607 | 616 |
| Reach (B) | 385 | 390 | 425 | 445 |
| Head tube angle (C) | 71° | 71° | 71° | 71° |
| Head tube length (D) | 90 | 100 | 100 | 110 |
| Seat tube angle (E) | 74° | 74° | 74° | 74° |
| Seat tube length (F) | 405 | 432 | 470 | 516 |
| Effective top tube (G) | 556 | 579 | 599 | 622 |
| BB height (H) | 294 | 294 | 294 | 294 |
| BB drop (I) | 70 | 70 | 70 | 70 |
| Chainstay (J) | 440 | 440 | 440 | 440 |
| Wheelbase (K) | 1050 | 1073 | 1093 | 1116 |
| Standover (L) | 697 | 711 | 738 | 777 |
| Handlebar width | 680 | 680 | 680 | 680 |
| Stem length | 75 | 75 | 75 | 75 |
| Crank length | 170 | 170 | 170 | 170 |
Who it is for
- Commuters who want one bike for roads, cycle paths and the odd gravel shortcut.
- Fitness riders who prefer a heads-up, upright position to drop bars.
- New riders: one shifter, hydraulic brakes and a forgiving fork make it easy to learn on. Want a step up? See the Polygon Heist X7.
Full specifications are listed in the Information tab.
Polygon’s sources give different weights for size M: 13.5 kg (29.7 lb) on BikesOnline and 14.5 kg on Rodalink. Polygon notes that specifications may change with component availability. Not published: maximum rider weight and rack load.
Questions people ask
Which size should I choose?
Use the rider-height ranges in the size guide. If you are between sizes, the smaller frame is easier to handle and the larger one more stretched out. Send us your height and inseam on WhatsApp and we will confirm.
Can I fit a rack and mudguards?
Yes. The frame has rack and mudguard mounts, so you can carry a bag or add protection from wet roads.
Is it suitable for gravel?
For light gravel and dirt paths, yes: the 63 mm fork and 45 mm WTB Riddler tyres add grip and comfort. It is a hybrid, not a mountain bike, so avoid rough singletrack.
What gears does it have?
A Shimano CUES 1×10 drivetrain: a single 36T chainring and an 11–48T cassette, operated with one shifter on the right.
Does it come with pedals?
Yes, plastic platform pedals are included, so it is ready to ride in everyday shoes.
Talk to us
| Weight | 19.00 kg |
|---|---|
| Dimensions | 141 × 25 × 76 cm |
| Size | L, L 700CX470, M 700CX431, S 700CX400, XL 700CX516 |
| Color | Blue |
| Brand | Polygon |
| Frame Material | Aluminium (AL) |
| Product Type | Hybrid / city bike, 700c, front suspension |
| Manufacturer Code | AIFPX28H5X (Polygon SKU family) |
| Frame | ALX Hybrid 700C aluminium, rack and mudguard mounts |
| Fork | SR Suntour NVX32-5TA, 63 mm travel, 32 mm stanchions, preload adjuster, tapered 1-1/2″ to 1-1/8″ steel steerer |
| Headset | Zero stack, caged bearings, ZS44/28.6 top, ZS56/40 bottom |
| Gearing | 1×10-speed |
| Shifter | Shimano CUES SL-U6000, 1×10 Rapidfire |
| Rear Derailleur | Shimano CUES RD-U6000 |
| Crankset | Prowheel Charm, 36T, 170 mm |
| Bottom Bracket | Prowheel 2-piece |
| Cassette | Shimano CUES CS-LG300, 11–48T, 10-speed, Linkglide |
| Chain | KMC X-Glide |
| Brakes | Shimano MT200 hydraulic disc, MT200 levers |
| Rotors | Shimano SM-RT26, 180 mm |
| Front Hub | Alloy quick release, 9×100 mm, 32H |
| Rear Hub | Alloy quick release, 9×135 mm, 32H |
| Rims | Alloy double wall, 32H |
| Spokes | 14G stainless steel, brass nipples |
| Tyres | WTB Riddler 700x45c |
| Handlebar | Polygon Sport flat bar, 680 mm, 31.8 mm clamp, 0 mm rise, 6° sweep |
| Stem | Polygon Sport, 75 mm, 10°, 31.8 mm clamp |
| Saddle | Selle Royal A059H, steel rails |
| Seatpost | Polygon Sport, 27.2 x 350 mm, 0 mm offset |
| Seat Clamp | 31.8 mm quick release |
| Pedals | Plastic platform pedals |
| Head Tube Angle | 71° |
| Bike Weight | 13.5 kg (29.7 lb, BikesOnline) / 14.5 kg (Rodalink), size M |
