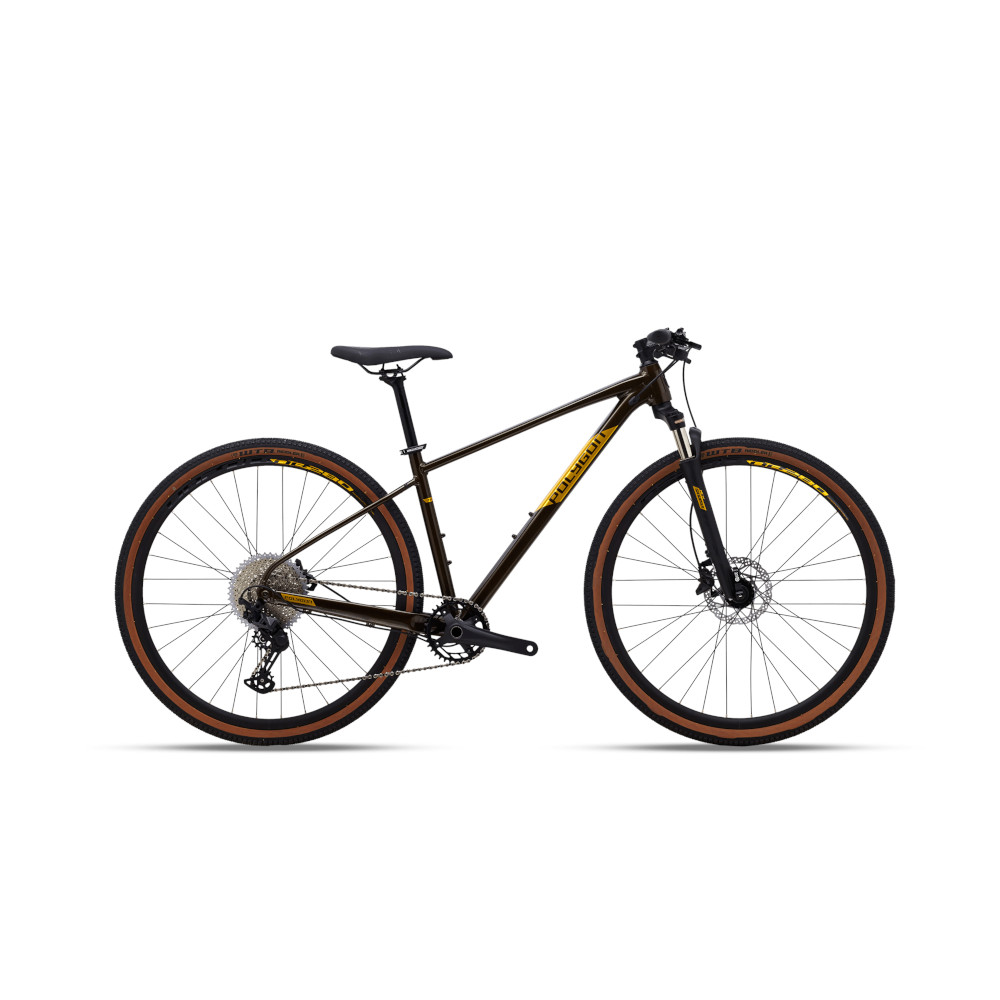

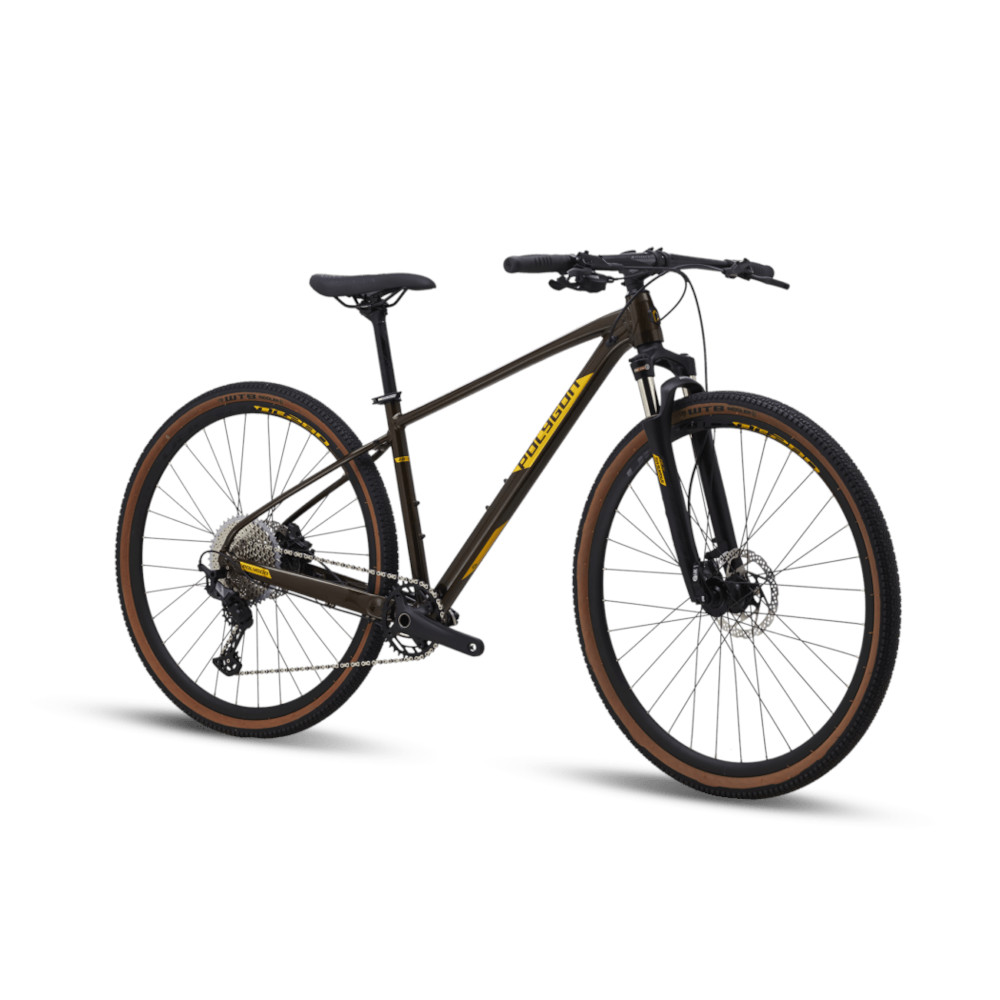

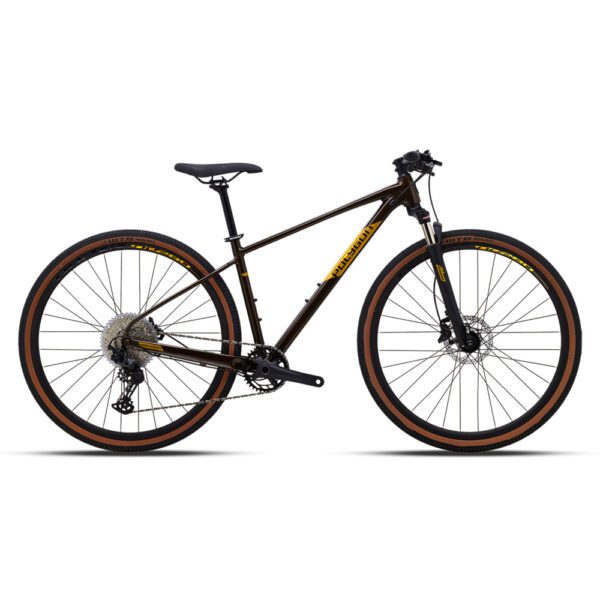

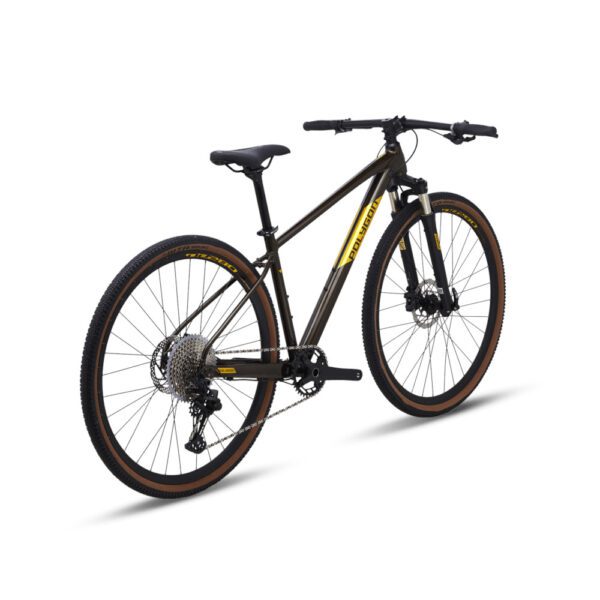

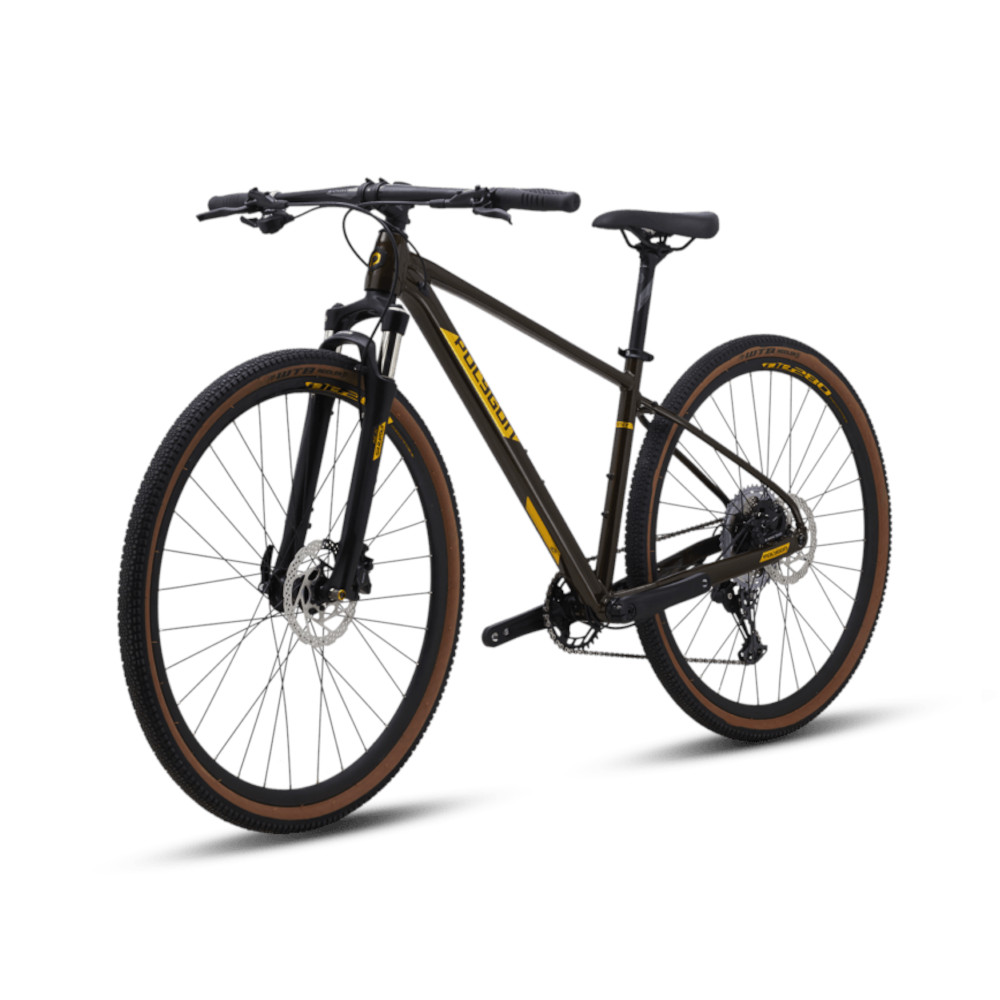

Polygon Heist X7

Color	Brown
Size	S M L XL Clear

Color

Size

Easier shift, better experience

There’s more in less. The biggest advantage from a 1x drivetrain is it lets you focus on your ride, instead of constantly adjusting gears. Now you can have more and better experience on trails.

Get faster on trails

Accompanied with low rolling resistance tires to reduce the energy loss as a tire rolls, decreasing the required rolling effort. Enabling you to get wherever you’re heading to faster than before.

Rough conditions won't stop us

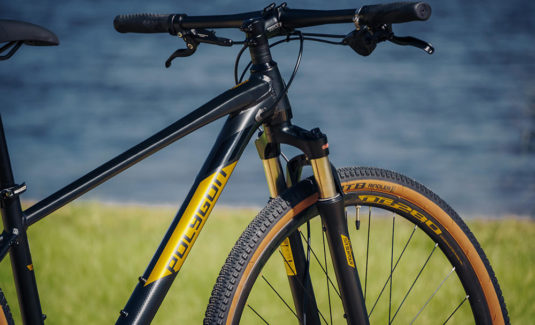

With its suspension fork to smooth out the ride, and Hydraulic Disc Brakes that lets you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.

Better handling and stability

Heist X7 comes with thru axle that reduces fork torsion from braking and uneven suspension loading. And as the result, it creates a much stiffer front end that leads to a better handling and stability.

For your morning commute or for weekend adventures.

AL6 URBAN CROSS 700C ALUMINUM FRAME . Light & durable hydroformed 6061 Aluminum frame with internal cable routing and rear thru-axle for extra stiffness.

SHIMANO DEORE SL-5100 1X11 SPEED DRIVETRAIN. High-performance groupset with impressive shifting efficiency combined with single chainring simplicity

SUNTOUR NCX FORK, 15MM THRU-AXLE. Provides 63mm of travel for extra comfort, light, and highly adjustable air spring, hydraulic lockout.

SHIMANO MT401 HYDRAULIC DISC BRAKES. Well-balanced braking power and modulation, lever reach can be adjusted to suit any hand size.

WTB RIDDLER 700 X 45C TIRES. Predictable, fast, grip in every situation.

Heist X is a durable urban bike providing a comfort city riding with mountain bike durability for light off-road adventures. Urban bike with MTB soul – this bike is one of the best solution for any urban warrior looking for a durable commuting bike providing a comfort riding position & short fun weekend ride on their local single tracks

GEOMETRY

SIZE CHART

Height/cm	150-160	160-170	170-180	180-190
Size	S	M	L	XL
Heist X	✔	✔	✔	✔

Weight	19 kg
Dimensions	141 × 25 × 76 cm
Color	Brown
Size	S, M, L, XL
Brand	POLYGON BIKES AND ACCESSORIES
Frame	AL6 URBAN CROSS, 12x142mm O.L.D. 2HRU
Fork	SUNTOUR NCX AIR, AIR SPRING, PRELOAD ADJUSTER, HYDRAULIC LOCK OUT, STRAIGHT 1-1/8" THREADLESS
Head Set	INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6, IS 52/40
Stem	ENTITY XPERT, EXT: 60mm (400, 431) / 80mm (470, 516), BARE BORE: 31.8mm, RISE/DROP: 7degree
Handlebar	ENTITY XPERT, W: 700mm, BAR BORE: 31.8mm, RISE/DROP 0mm, BEND: 6degree
Rear Derailleur	SHIMANO DEORE RD-M5100 DIRECT ATTACH
Shifter	SHIMANO DEORE SL-5100, 1×11 SPEED TRIGGER
Bottom Bracket	THREADED BB, BSA THREADED 68mm
Crank Set	PROWHEEL CHARM 36T 2-PIECE-CRANK, MAX CHAINRING: 38T, CRANK ARM: 170mm (S, M) / 175mm (L, XL)
Cassette	SUNRACE CSMX8, 11-SPEED 11-46T
Chain	KMC X11-1
Pedal	PP CAGE PEDAL W/ REFLECTOR
Brake	SHIMANO BR-MT400 HYDRAULIC DISC BRAKE, ROTOR: SHIMANO SM-RT56 160mm 6-BOLTS
Wheel Set	ALLOY DOUBLE WALL
Tire	WTB RIDDLER TIRE 700X45C
Saddle	ENTITY SADDLE, STEEL ø 7mm
Seat Post	ENTITY XPERT, DXL: 27.2X350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR
Wheel Size	700
Frame Material	Aluminium (AL)

Weight

19 kg

Dimensions

141 × 25 × 76 cm

Color

Brown

Size

S, M, L, XL

Brand

POLYGON BIKES AND ACCESSORIES

Frame

AL6 URBAN CROSS, 12x142mm O.L.D. 2HRU

Fork

SUNTOUR NCX AIR, AIR SPRING, PRELOAD ADJUSTER, HYDRAULIC LOCK OUT, STRAIGHT 1-1/8" THREADLESS

Head Set

INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6, IS 52/40

Stem

ENTITY XPERT, EXT: 60mm (400, 431) / 80mm (470, 516), BARE BORE: 31.8mm, RISE/DROP: 7degree

Handlebar

ENTITY XPERT, W: 700mm, BAR BORE: 31.8mm, RISE/DROP 0mm, BEND: 6degree

Rear Derailleur

SHIMANO DEORE RD-M5100 DIRECT ATTACH

Shifter

SHIMANO DEORE SL-5100, 1×11 SPEED TRIGGER

Bottom Bracket

THREADED BB, BSA THREADED 68mm

Crank Set

PROWHEEL CHARM 36T 2-PIECE-CRANK, MAX CHAINRING: 38T, CRANK ARM: 170mm (S, M) / 175mm (L, XL)

Cassette

SUNRACE CSMX8, 11-SPEED 11-46T

Chain

KMC X11-1

Pedal

PP CAGE PEDAL W/ REFLECTOR

Brake

SHIMANO BR-MT400 HYDRAULIC DISC BRAKE, ROTOR: SHIMANO SM-RT56 160mm 6-BOLTS

Wheel Set

ALLOY DOUBLE WALL

Tire

WTB RIDDLER TIRE 700X45C

Saddle

ENTITY SADDLE, STEEL ø 7mm

Seat Post

ENTITY XPERT, DXL: 27.2X350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR

Wheel Size

700

Frame Material

Aluminium (AL)
