Frame
ACX PERFORMANCE UCI APPROVED
Groupset
SHIMANO 105 R7101-12 12-SPEED
Wheels
LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE
Use
Road Race
AED 14,999
Easy Return/Exchange
Fast Delivery
100% Secure Payment
The new Helios A delivers a high-performance experience from the first turn of the cranks, with an exceptional blend of stiffness, lightness, and aerodynamics. The re-engineered 880g (size M) frameset is 150g lighter than the previous generation, yet offers greater torsional stiffness thanks to a reinforced front triangle and refined ACX carbon layup.
Comfort and performance go hand in hand on the Helios A. With clearance for up to 34mm tires, a simple swap boosts compliance and unlocks true all-rounder versatility. The updated cockpit with a flared handlebar and ergonomic flat tops further enhances comfort while improving control and stability, all without compromising speed.
The Helios A series was obsessively developed over three years alongside elite athletes, with a focus on aerodynamic performance and race-day reliability. The new frame is paired with a new front-end fork profile and optimized tubing shapes to cut drag and improve control – the result is a frameset that climbs fast, corners sharp, and descends with confidence. It’s supported by the Terengganu Polygon pro team—fast, efficient, and dialed.
The cockpit features semi-integrated cable routing for a clean, aerodynamic look while maintaining easy access for servicing. A carbon handlebar with an ergonomic flat-top shape provides comfort and control. The frame is also compatible with both round and aero seatposts, giving riders flexibility when dialing in their ideal fit and performance setup. The result is a sleek cockpit engineered for uncompromised performance.

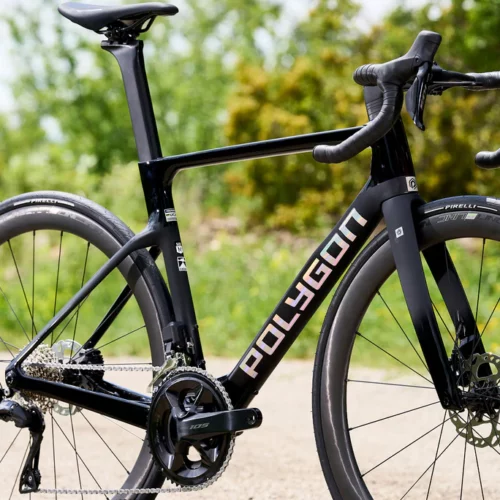

The Helios A7 frame employs optimized fibre orientation and controlled wall thickness to maximize stiffness-to-weight ratio. This engineering delivers UCI-approved race performance with a balanced ride quality that preserves comfort. Every tube shape and layup has been tuned for efficient power transfer without sacrificing compliance on long race days.

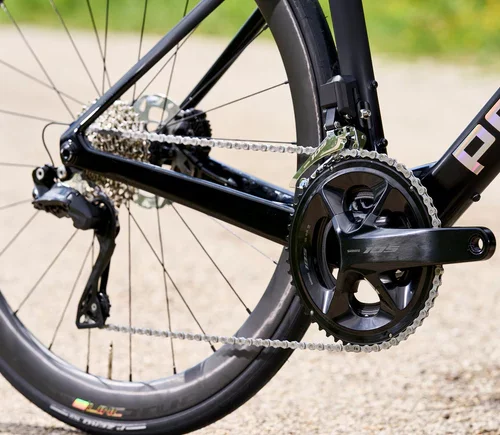

Equipped with the 2×12-speed Shimano 105 Di2 electronic groupset, the Helios A7 delivers precise, lightning-fast wireless shifting with the reliability and performance expected from Shimano’s latest road technology. The fully integrated system offers optimized shift logic, and enhanced drivetrain efficiency—bringing high-performance race capabilities to a wider range of riders.
The LINC Beta Carbon Disc Wheelset features a 45mm deep, aerodynamic carbon rim, optimizing airflow for reduced drag and enhanced stability. Its 22mm internal width supports wider tires, maximizing grip and minimizing rolling resistance. The wheelset’s tubeless-ready design allows for lower tire pressures. Paired with robust disc-specific hubs and a stiff spoke pattern, it ensures efficient power transfer and reliable braking performance.

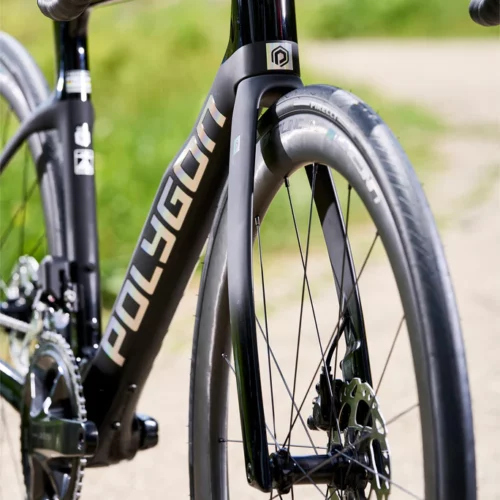

The updated fork features increased surface area, optimised rake, and smooth transitions for improved aero performance and front-end stiffness, all while weighing just 420g. Engineered to reduce drag and sharpen handling precision during high-speed descents and sprint finishes, it delivers a confident, race-ready front end without compromise.
| XXXS | XXS | XS | S | M | L | XL | |
| Rider’s Height | 4’8”–5’0” | 4’11”–5’3” | 5’2”–5’6” | 5’5”–5’9” | 5’7”–5’11” | 5’10”–6’2” | 6’1”–6’5” |
| Top Tube Effective | 502 | 513 | 529 | 540 | 556 | 570 | 598 |
| Reach | 370 | 375 | 385 | 390 | 400 | 405 | 420 |
| Seat Tube Length | 395 | 420 | 457 | 489 | 499 | 518 | 536 |
| Seat Tube Angle | 75 | 74.7 | 74.3 | 74 | 73.7 | 73.3 | 73 |
| Effective Seat Tube Angle | 75° | 75° | 74° | 74° | 74° | 73° | 73° |
| Head Tube Angle | 71 | 71.3 | 71.5 | 72.3 | 72.5 | 72.8 | 73 |
| Head Tube Length | 90 | 100 | 110 | 120 | 130 | 150 | 170 |
| BB Offset | 78 | 78 | 75.5 | 73 | 73 | 71.5 | 71.5 |
| Bottom Bracket Height | 78 | 78 | 76 | 73 | 73 | 72 | 72 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 969 | 976 | 988 | 985 | 996 | 1005 | 1024 |
| Frame Stack | 493 | 503 | 511 | 523 | 533 | 551 | 571 |
| Standover | 662 | 685 | 720 | 752 | 761 | 780 | 799 |
| Crank Length | 165mm | 165mm | 165mm | 170mm | 170mm | 172.5mm | 175mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm | 120mm |
| Handlebar Width | 400mm | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Color |
Black ,Blue ,WHITE PURPLE |
| Size |
M 700X520 ,L 700X545 ,S 700X500 ,XXS 700X448 ,XXS ,XS ,S ,M ,L ,XL |
| Brand | |
| Frameset |
ACX PERFORMANCE UCI APPROVED |
| Fork |
ACX PERFORMANCE UCI APPROVED |
| Shifter |
SHIMANO 105 Di2 ST-R7170, 2×12 SPEED |
| Crank |
SHIMANO 105 FC-R7100 52/36T |
| Cassette |
SHIMANO 105 CS-R7101-12 12-SPEED 11-34T |
| Rear Derailleur |
SHIMANO 105 Di2 RD-R7150 |
| Seatpost |
Carbon, Aero Shape, 35x351mm, Adjustable Offset |
| Handlebar |
Polygon Carbon Road Handlebar: 400mm (XXXS–XS), 420mm (S–M), 440mm (L–XL), Reach: 80mm, Drop: 125mm |
| Wheel Size |
LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED |
| Tyre |
PIRELLI PZERO ROAD TLR 700x28C |
| Brake Lever |
SHIMANO 105 ST-R7170 |
| Brake Caliper |
SHIMANO 105 HYDRAULIC DISC |
| Rotor |
SHIMANO SM-RT70 F:160mm / R:140mm CENTER LOCK |
| Frame Material |
Carbon (CF) |
