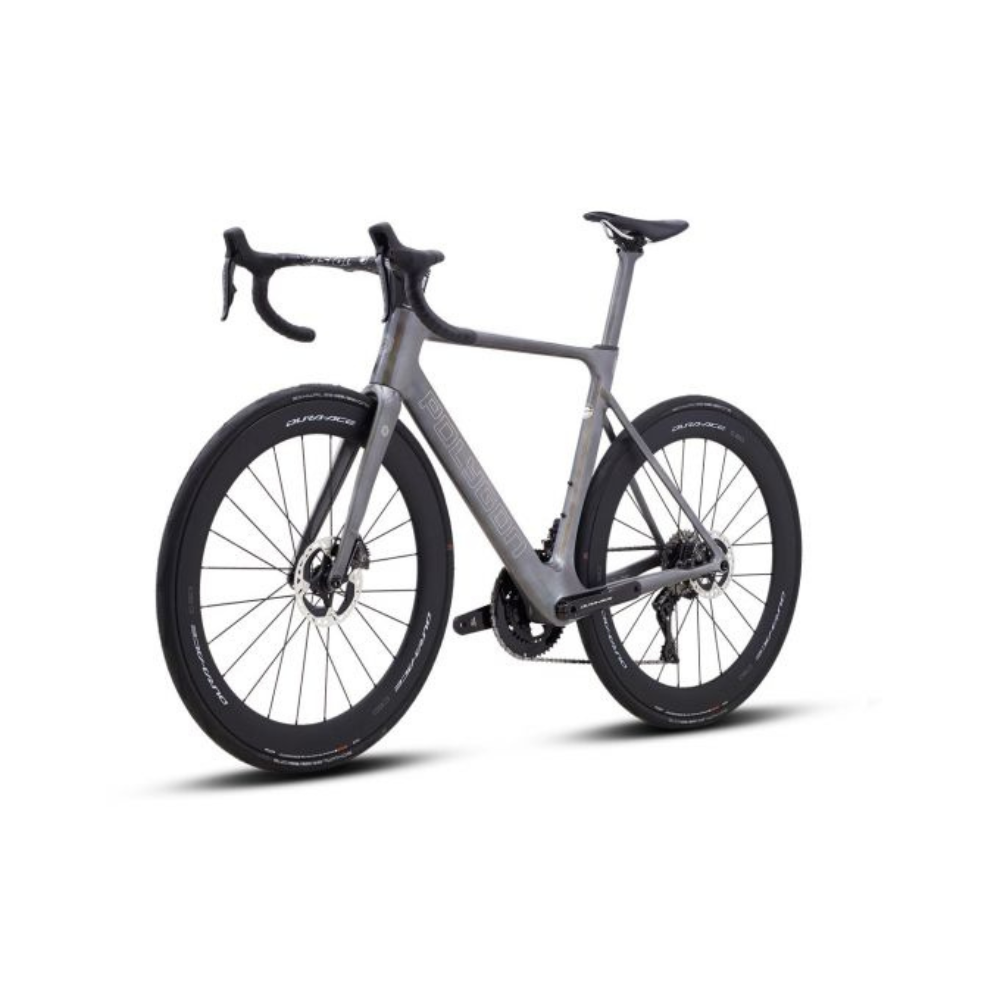

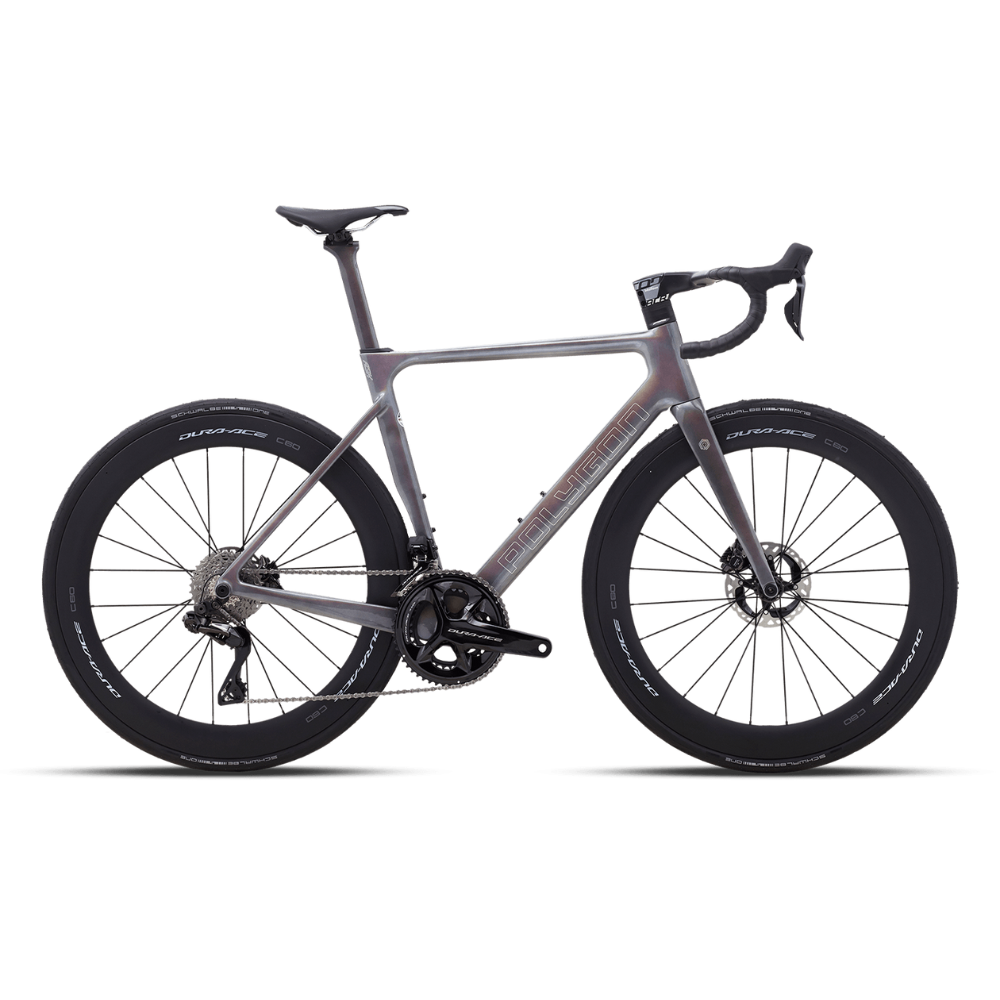

Polygon Helios A9xv

Color	MAGNETIC BLACK
Size	XS S M L XL Clear

Color

Size

IN THE RELENTLESS PURSUIT OF SPEED

DESIGNED TO CUT THROUGH AIR BETTER

In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because by embracing nature, we can be even faster.

Features

Cuts Through Air

The best teacher of aerodynamics comes from raindrops: the billions that seeks the most efficient way in cutting through air. With this inspiration, the new shape of Helios is designed to cut through air without leaving behind turbulence, thus achieving an industry-leading; 31% reduction in drag over previous generation designs.

Flies On Climbs

We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chainstay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.

Synchronized To The Human Body

At the end of the day, we designed Helios with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that is proven to minimize rolling resistance, enables the rider of this bike to best control, corner, and conquer.

Specification

The specifications, colors, parts, and availability of the products can be subjects to alter without prior notification.

Frameset

ACX PERFORMANCE UCI APPROVED

Fork

ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8″ TO 1-1/2″

Rear Shock

–

Drivetrain

Shifter

SHIMANO DURA-ACE Di2 ST-R9270, 2×12-SPEED DCL

Crank

SHIMANO DURA-ACE FC-R9200 52/36T, 170mm (XS, S, M) / 172.5mm (L, XL)

Cassette

SHIMANO DURA-ACE CS-R9200-12 11-34T

Rear Derailleur

SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH

SHIMANO SM-BB92-41B, PRESSFIT BB86

Chain

SHIMANO CN-M8100 12-SPEED

Cockpit

Saddle

ENTITY FLUX2, CR-MO ø 7mm

Seatpost

CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL)

Handlebar

VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), R/D: 125mm, BB: INTEGRATED, B/R: 80mm

Handlestem

VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree

Headset

INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40

Wheel & Tire

Wheel Set

SHIMANO DURA-ACE WH-R9270-C60-HR-TL (60mm) TUBELESS

Wheel Size

700C

Tire

SCHWALBE ONE ADDIX TLE 700x28C

Brake

Brake Lever

SHIMANO DURA-ACE HYDRAULIC DISC

Brake Caliper

SHIMANO DURA-ACE HYDRAULIC DISC

Rotor

SHIMANO DURA-ACE RT-MT900 F:160mm / R:140mm CENTER LOCK

Bike Weight

878 gram (Unpainted Frame – Size S)

Geometry & Size

A brief explanation of geometry is placed here. The geometry image below will stay / freeze.

XXS	XS	S	M	L	XL
Height (cm)	151-161	154-164	162-170	168-176	174-181	180-187
Seat Tube Length (A)	450	475	500	520	545	570
Seat Tube Angle (B)	75	74.7	74.3	74	73.7	73.3
Effective Seat Tube Angle (C)	75	74.7	74.3	74	73.7	73.3
Head Tube Length (D)	100	115	130	145	160	175
Head Tube Angle (E)	71.5	71.8	72	72.3	72.3	72.8
Effective Top Tube (F)	505.31	517.31	530.42	543.04	555.14	569.25
Bb Height (G)	271	271	271	271	271	271
Bb Offset (H)	73	73	73	73	73	73
Chainstay Length (I)	415	415	415	415	415	415
Wheelbase (J)	968.42	975.82	983.9	991.1	1000.62	1005.8
Frame Reach (K)	370	375	380	385	390	395
Frame Stack (L)	505	520.21	535.2	550.4	564.7	580.8
Standover Height (M)	715.04	739.4	763.21	780.8	802.52	824.28

Color	Black, MAGNETIC BLACK
Size	XS, S, M, L, XL
Brand	POLYGON BIKES AND ACCESSORIES

Color

Black, MAGNETIC BLACK

Size

XS, S, M, L, XL

Brand

POLYGON BIKES AND ACCESSORIES
