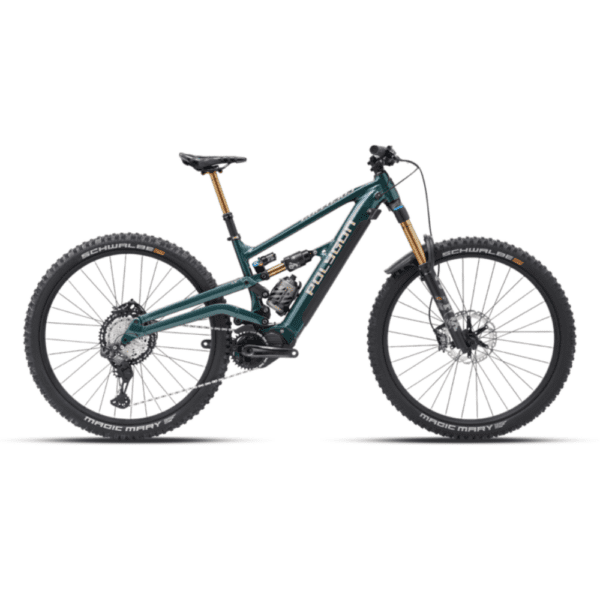

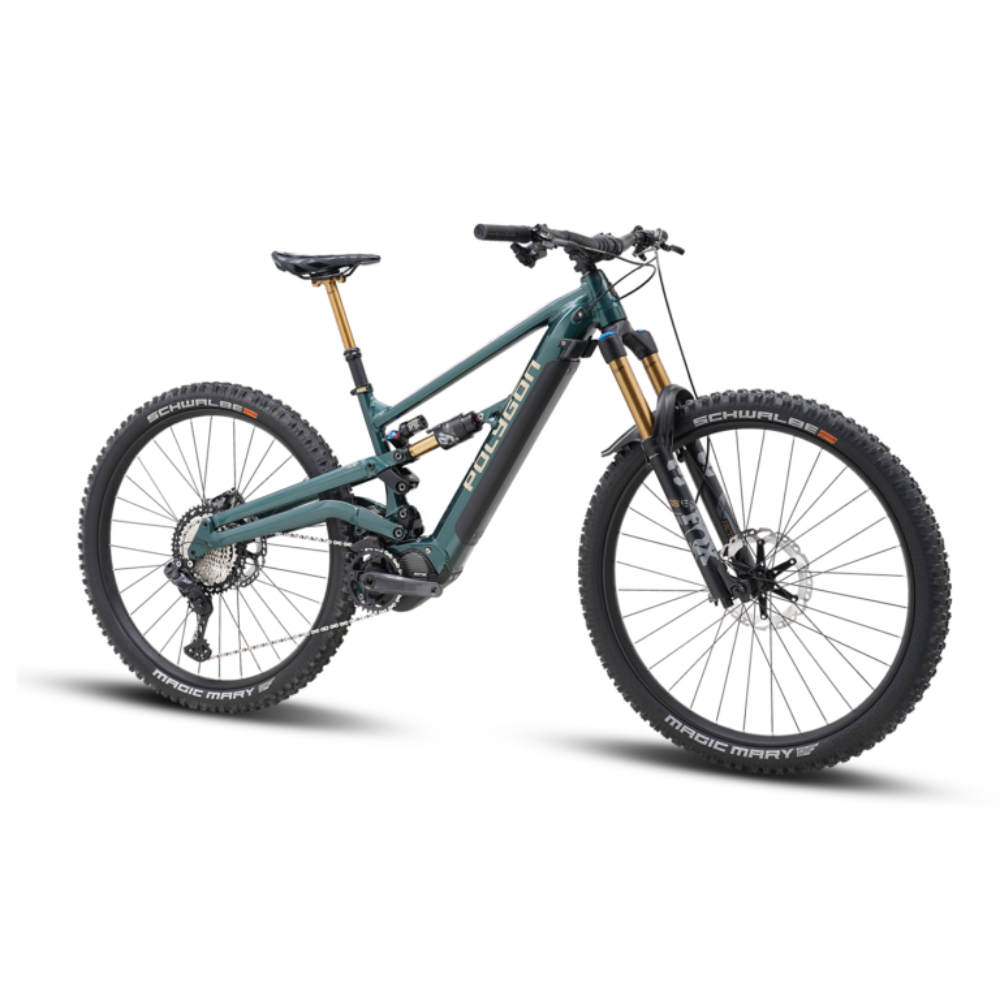

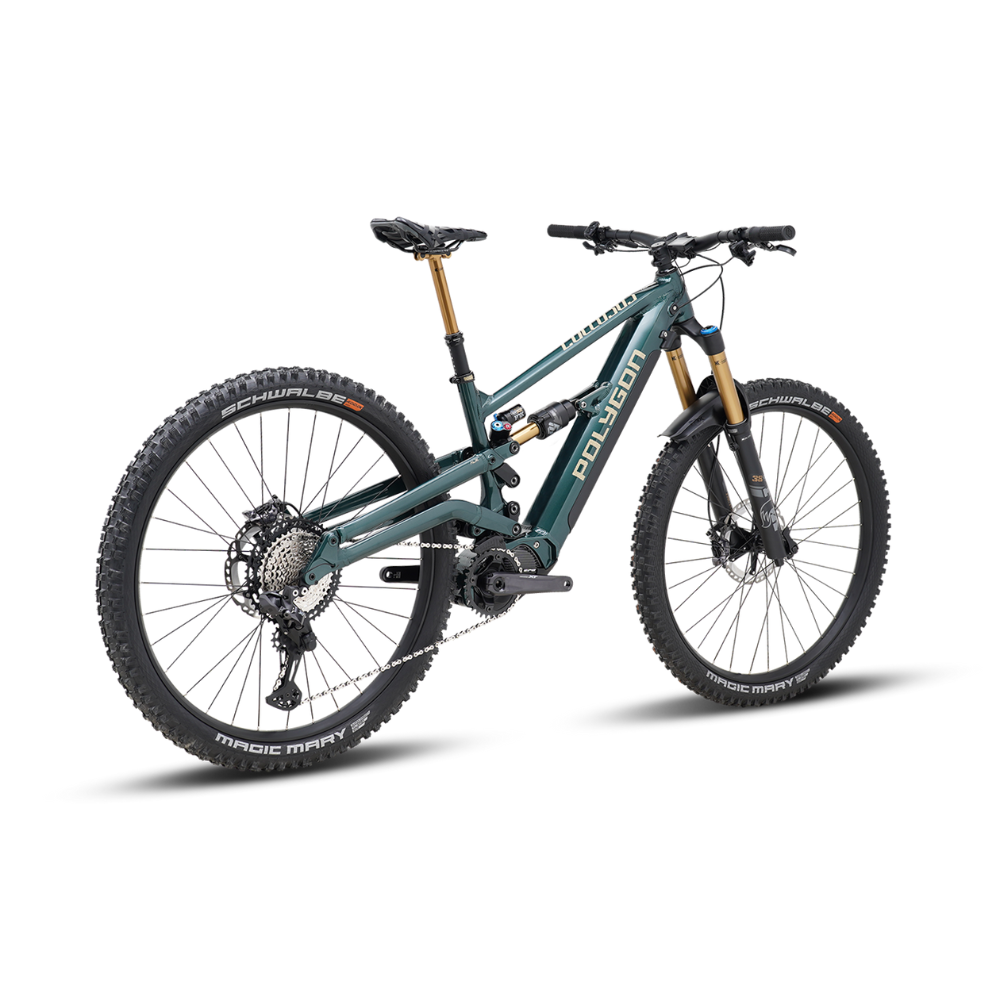

Polygon Collosus N8xe Eu

Color	Green
Size	M
Wheel Size	Clear

FUN REDEFINED
RIDE FURTHER, FASTER, FUN LIKE NEVER BEFORE

Comes from the bloodline of a champion – Collosus N, we give you another perspective to have more fun and tame the trails with the combination of our proven suspension platform; the IFS System (Independent Floating Suspension System), and the powerful 85 NM support, and Shimano’s free shift that enables seamless shifting without the need to pedal; ensuring a controlled flow as you navigate descents and corners. Welcome to where climbs transform into fun and, of course, your descents triple.

Endless support during the rowdiest terrain

The 6-bar Independent Floating Suspension platform provides 160mm of optimized wheel path to swallow square-edge hits and remain active under braking, while the independent shock leverage allows supple sensitivity with progressive support for composure in the rowdiest of rock gardens.

Less sacrifice, more victory

The IFS platform’s separation of wheel path from shock leverage also allows highly efficient power transfer without sacrificing small bump compliance. Put your power down and Shimano STEPS delivers a mountain more, direct to the ground on even the chunkiest trails.

Short back and sides

When your business is going fast, 29” wheels deliver unrivaled performance when the trails get gnarly. Their inherently optimal roll over and a long contact patch provide all the braking, cornering and climbing traction you desire, while 2.6” wide Schwalbe Super Gravity tires strike the balance of cushion and precision.

There’s no momentum without speed

The Collosus N8E features a slack 64.5° head angle with long reach and low bottom bracket. Combined with the 29” wheels and short offset fork for a long trail, the stability and high-speed composure is confidence inspiring.

Conquers the steepest climbs

On the other hand, agility is achieved by one of the shortest rear center lengths in category, possible thanks to the IFS wheel path and elevated chainstay design. Despite the 435mm rear center, The Collosus N8E confidently conquers the steepest climbs thanks to the steep 77° seat angle and low, forward center of gravity.

	S	M	L	XL
Height (cm)	155-165	165-175	175-185	185-195
Seat Tube Length (A)	400	410	420	430
Seat Tube Angle (B)	70	70	70	70
Effective Seat Tube Angle (C)	77	77	77	77
Head Tube Length (D)	100	105	110	120
Head Tube Angle (E)	64.5	64.5	64.5	64.5
Effective Top Tube (F)	594.56	615.6	636.65	658.73
Bb Height (G)	345	345	345	345
Bb Offset (H)	35	35	35	35
Chainstay Length (I)	435	435	435	435
Wheelbase (J)	1212.09	1234.25	1256.4	1280.7
Frame Reach (K)	450	470	490	510
Frame Stack (L)	626.16	630.68	635.19	644.22
Standover Height (M)	710	710	710	710

Color	Green
Size	M
Wheel Size	29X410
