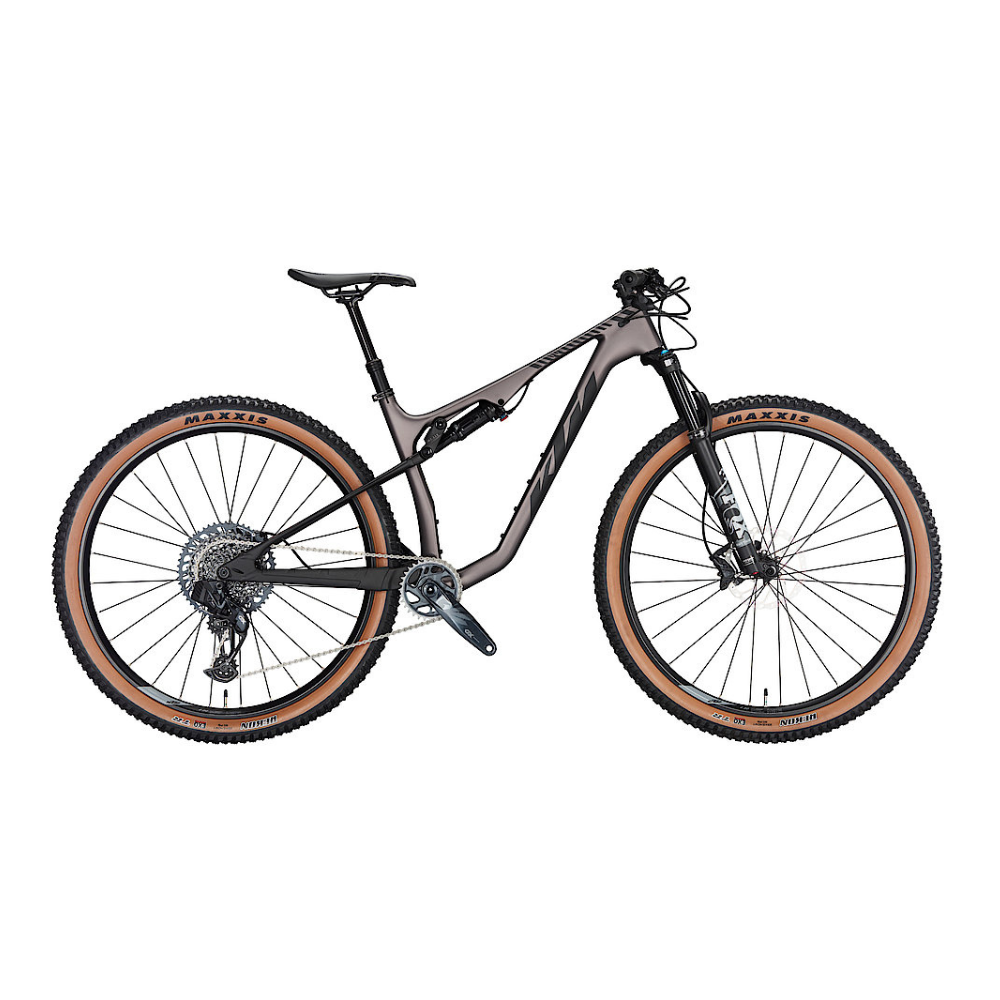

Ktm Scarp Mt Elite Axs

Brands: KTM FAHRAD
F. FRAME

Frame

Scarp 29" Premium Carbon-Alloy

F. GROUPSET

Groupset

SRAM GX Eagle AXS 12speed

F. WHEELS

Wheels

KTM Line – DT Swiss 370 CL

F. USE

Use

Cross country & Technical tracks

SKU: 220000000649 Category: Tag:

Ktm Scarp Mt Elite Axs

Brands: KTM FAHRAD

Buy more than AED 150 and get free delivery!
ELDERBERRY MATT (BLACK)
M
L

Easy Return/Exchange

Fast Delivery

100% Secure Payment

Description

MORE TRAVEL. MORE PLEASURE.

The SCARP EVO II frame took KTM all the way to the World Cup podium. Now it's your turn to write your own SCARP success story. Never underestimate the impact of more travel on a race bike. Launched in 2020 the Scarp MT expanded the KTM MTB range. MT, short for marathon, combines the advantages of more travel with an ultra-light race frame. KTMs STRAIGHT-LINE-LINK (SLL) technology matched with 115 mm rear and 120 mm front travel, which guarantees optimum performance over long distances even on rough terrain. A trail orientated specification ensures the pleasure of an extra-long marathon adventure. A 67.5 head angle, enough space for a second bottle cage, as well as a dropper seat post at some of the models, wraps up the MT concept. Available at five different price points and specification versions. With a weight of less than 10 kg, the top model SCARP MT EXONIC is absolutely suitable for cross country races. Like their big brother, PRIME and MASTER rely on a full carbon frame, while the entry-level models ELITE and PRO are equipped with an aluminium rear triangle.

SPECIFICATIONS



FRAME Scarp 29″ Premium Carbon-Alloy rear SLL95mm / M-0916
FORK FOX 32 Float 29″ Rhythm 120mm remote 15×110
SHOCK FOX Float DPS PerformanceElite remote 190×45
R. DERAILL. SRAM GX Eagle AXS 12speed
SHIFTLEV. SRAM GX Eagle AXS Controller
CRANKSET SRAM GX Eagle DUB 32T
SPROCKET SRAM GX Eagle XG-1275 / 10-52
CHAIN SRAM GX Eagle 12s
BRAKE Shimano Deore M6100 / M6100 2-Piston
ROTOR Shimano RT64 CL 180 / 160
WHEEL F KTM Line – DT Swiss 370 CL 28L 110/15 / Ambrosio E30 Trail 28H 622x30TC / DT Champion 2.0 black
WHEEL R KTM Line – DT Swiss 370 CL 28L 148/12 XD LN18 / Ambrosio E30 Trail 28H 622x30TC / DT Champion 2.0 black
TIRE F Maxxis Rekon EXO/TR 62-622
TIRE R Maxxis Rekon EXO/TR 62-622
GRIP KTM Team silicone
BAR KTM Team flat 2X 740mm
STEM KTM Team MTB 7°
HEADSET KTM Team drop/in 1.1/8″-1.5″
SADDLE Selle San Marco RND Manganese Rails
SEATPOST KTM COMP II dropper internal
WEIGHT 12,90 kg
PERMISSIBLE TOTAL WEIGHT 121 kg

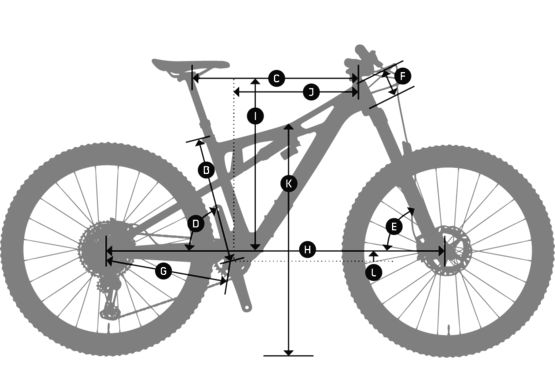

GEOMETRY

MEDIUM

A Size 43
B Seattube length 430
C Toptube length 603
D Seat angle 74°(69,5°)
E Head angle 67,5°
F Headtube length 105
G Chainstay length 435
H Wheelbase 1152
I Stack 603
J Reach 431
K Standover height 790
L BB drop 38



LARGE



A Size 48
B Seattube length 480
C Toptube length 623
D Seat angle 74°(70°)
E Head angle 67,5°
F Headtube length 115
G Chainstay length 435
H Wheelbase 1174
I Stack 612
J Reach 448
K Standover height 790
L BB drop 38
Information
Color

ELDERBERRY MATT (BLACK)

Size

M, L

Brand
