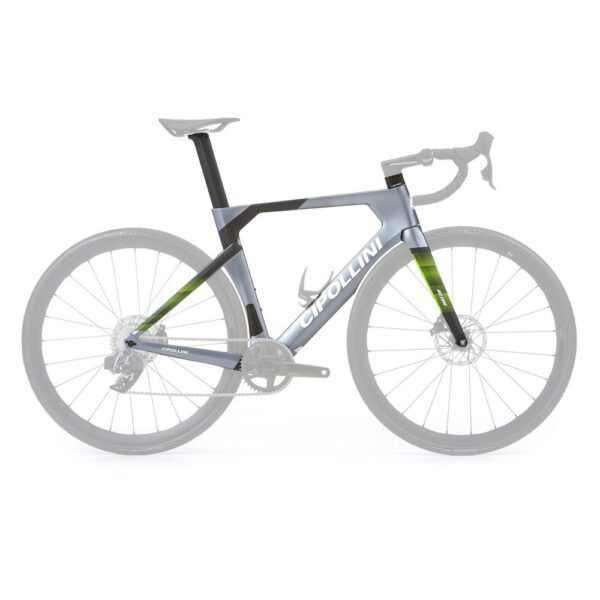

RB1K AD.ONE

THE AERO THAT REWRITES HISTORY

AD.ONE ACHIEVES THE MAXIMUM SPEED LEVEL, THE OPTIMAL RIDEABILITY AND SMOOTHNESS BALANCE. IT’S A NEW BEGINNING.

TIME TRIAL AERODYNAMICS FOR A ROAD MACHINE
- RB1K AD.ONE matches the NKTT aerodynamics and the handling of a road bike.
DIFFERENT TUBES AND CONNECTION SECTIONS ON EACH SIZE
- The frame has been engineered to guarantee the same stiffness and handling in each size.
TITANIUM THRU AXLE
- No compromises for the maximum stiffness on your RB1K AD.ONE.
1X READY
- Specific cover dedicated to those who want the maximum aerodynamics without the front derailleur.
INCREASED BUTTONHOLE FOR HYDRAULIC MAINTENANCE
- The increased dimension of the buttonhole allows an easy maintenance: you can unroute the cable with the ogive on.
TCM TECHNOLOGY
- The real monocoque frame, allowing the perfect con- nection between the rear triangle and the bottom bracket.

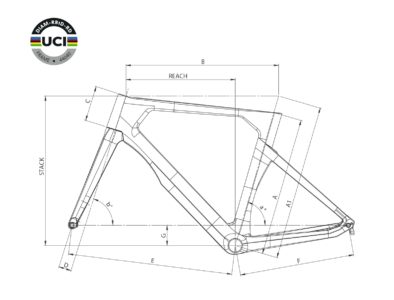

	A	A1	B	a⁰	b⁰	C	D	E	F	G	H	reach	stack
XS	454	527	510	74.6°	71.1°	105	45	570	410	72	–	370	508
S	473	542	527	74.2°	72.0°	116	45	577	410	72	–	379	522
M	494	555	545	73.8°	72.5°	126	45	587	410	72	–	390	533
L	512	570	560	73.5°	72.8°	141	45	597	410	70	–	398	546
XL	528	589	575	73.3°	73.4°	159	45	604	410	68	–	406	564
XXL	545	611	590	72.8°	73.7°	179	45	611	410	68	–	410	583

Weight

N/A

Dimensions

N/A

Color

ACLM22 ANTHRACITE – CARBON – LIME MATT, CARS22 CARBON-ANTHRACITE-RED SHINY, CCWS22 COBALT BLUE – CARBON – WHITE SHINY

Size

S, M
