PROPERTIES:
Maximum speed: Unlimited (max 35 km/h recommended)
Speed limit setting: YES
Display shows:
Real speed: NO (in SpeedBox App only)
Correct travelled distance: After the countdown process is
finished)
Activation/deactivation (do not perform while riding):
WALK function / – + – + / SpeedBox App
Indication of tuning activation/deactivation: YES (3.5/2.5 km/h)
Compatible with:
All the Smart System displays
All the Smart System motors
SpeedBox App
Not compatible with:
Bosch Rim Magnet
ABS system

The tuning with Bluetooth technology and mobile app for your e-bike with Bosch Gen4 motor and Smart System. Enjoy your unlimited ride and all the great functions that our SpeedBox App has to offer.

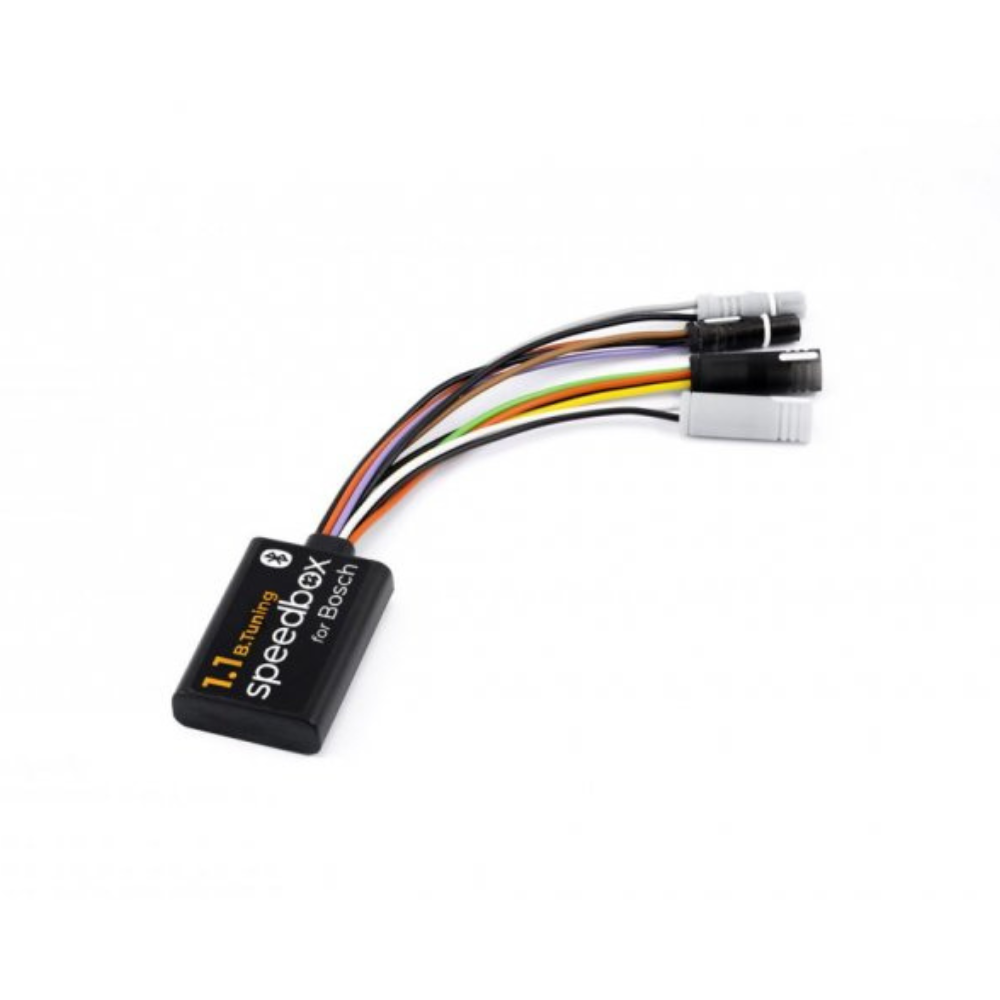

SpeedBox 1.1 B.Tuning for Bosch brings a unique connection of e-bike and mobile phone and suppresses the speed limiter on your e-bike.

The actual speed and other riding data will be displayed correctly in our SpeedBox App – right on the display of your phone.

How does SpeedBox 1.1 B.Tuning for Bosch work?

To activate all the functions of the SpeedBox correctly, it is necessary to enter the menu after the first switching on of the e-bike after the tuning installation and switch to the circumference of the wheel of your e-bike.

Activate/deactivate the tuning before the ride (when the e-bike is standing still), not during riding!

This tuning is also easy to control. You will activate SpeedBox 1.1 B.Tuning via mobile app or directly on your e-bike’s control unit by activating the WALK assist function shortly (holding down the “–” button). Your e-bike display will show a value of 3.5 km/h (2.2 mph) and from now on you will be able to ride up to 35 km/h or more. You may change the default speed limit to any limit you want (up to 99 kph), however, to minimize the risk of error codes, we recommend not to exceed 35 km/h.

To deactivate the tuning, activate the WALK assist function shortly again (by holding down the “–” button). Your e-bike display will show a value of 2.5 km/h (1.6 mph) and the speed limit will be reset to 25 km/h. Your e-bike will then work the same as before the tuning installation.

SpeedBox was also designed for e-bikes that do not have the WALK assist function enabled, or activated. In this case, you can activate/deactivate tuning by switching between two assistance modes twice, i.e. by pressing the – + – + buttons.

When you first open the SpeedBox App, you will be asked to type in a new PIN. This PIN will be requested each time you open the SpeedBox App. After confirming the PIN, you will be asked to set a service password. Your service password will be used in case you forget the PIN or want to change it.

You can set the maximum speed limit by switching the modes from TURBO mode three levels down and then three levels up: eMTB – TOUR+ – ECO – TOUR+ – eMTB – TURBO. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by activating/deactivating WALK assist function shortly or by turning the rear wheel 360°. The value of 2.5 km/h on the display corresponds with the limit of 25 km/h, 3.0 corresponds with 30 km/h, 3.5 corresponds with 35 km/h etc. The last displayed limit will be saved after 15 seconds of inactivity.

After finishing the ride, leave the e-bike on for a while until the SpeedBox finishes the “countdown” process (the riding time will continue on the display until it stops and shows the correct distance travelled) to prevent tuning detection on your e-bike.

SpeedBox App for SpeedBox 1.1 B.Tuning

SpeedBox App is an application specially designed for SpeedBox B.Tuning products. It uses Bluetooth technology to connect your e-bike to your mobile application. After downloading the application and connecting your mobile phone to your e-bike you will see current data and trip parameters displayed on your mobile phone. Individual trips can be stored so that the results can be compared with friends and together they can monitor their performance. So just enjoy the ride and leave checking the parameters for later!

SpeedBox App features:

• Tuning control
• Speed limit setting
• Saving and viewing your trips
• Invisible mode
• Motor diagnostics

SpeedBox B.Tuning is not limited to working with SpeedBox App. However, it is a great tool that will provide you with a complete overview of your performances.

Download SpeedBox App to your phone just before ordering the SpeedBox B.Tuning chip. You can try out our demo version and get to know all the awesome features and, at the same time, make sure that the application is fully functional on your phone. To connect to the SpeedBox B.Tuning, your phone needs to be equipped with Bluetooth 4.0 or higher.

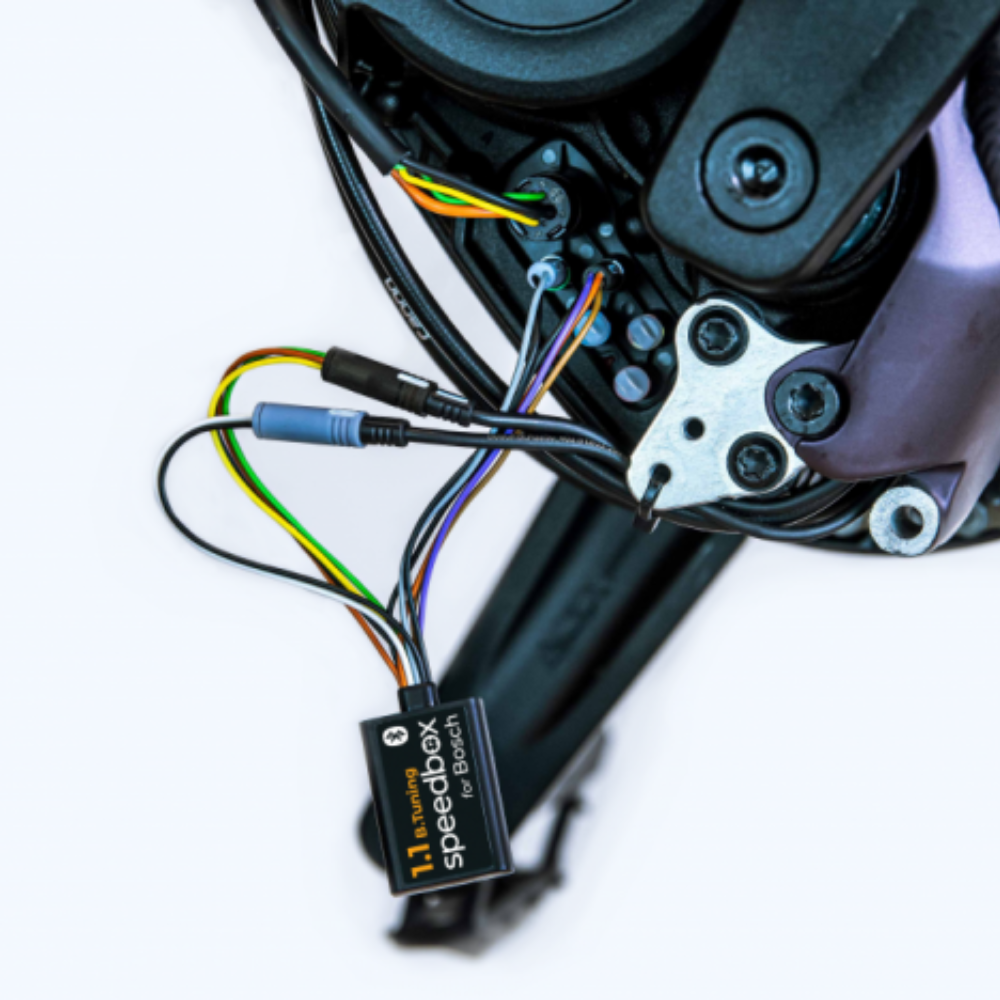

Assembly

We use original connectors for the production of SpeedBox products ensuring that the installation process is very simple and the chip is connected properly. We have also prepared detailed instructions and videos to make installation easy for you. Disassembly of the tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.

If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 10 km before the tuning is activated.

Important:

Connect the male – female connectors in the direction of the lock. Do not rotate the connectors during connection!

Warning

Please note that the operation of this type of modified electric bike on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use of SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk. The use of SpeedBox may void the warranty of your e-bike.

We strongly recommend using other safety features and protective gear to prevent injuries.

We recommend not updating the firmware of your e-bike. Updating increases the risk of tuning detection.

When stopping for a short time, in order to continue riding smoothly, we recommend keeping one foot on the pedal so that the countdown does not start.

When stopping for a longer period of time, allow at least a partial countdown to take place.

After a long ride, the countdown may take several minutes.

Do not remove the display if the countdown has not been finished.

Activate/deactivate the tuning before the ride (when the e-bike is standing still), not during riding.

We recommend not to exceed a speed of 35 km/h.
