Shimano Crankset 12-speed Fc-rx820-2 48/31t 170mm
AED1,299.00
Only 1 left in stock
Easy Return/Exchange
Fast Delivery
100% Secure Payment

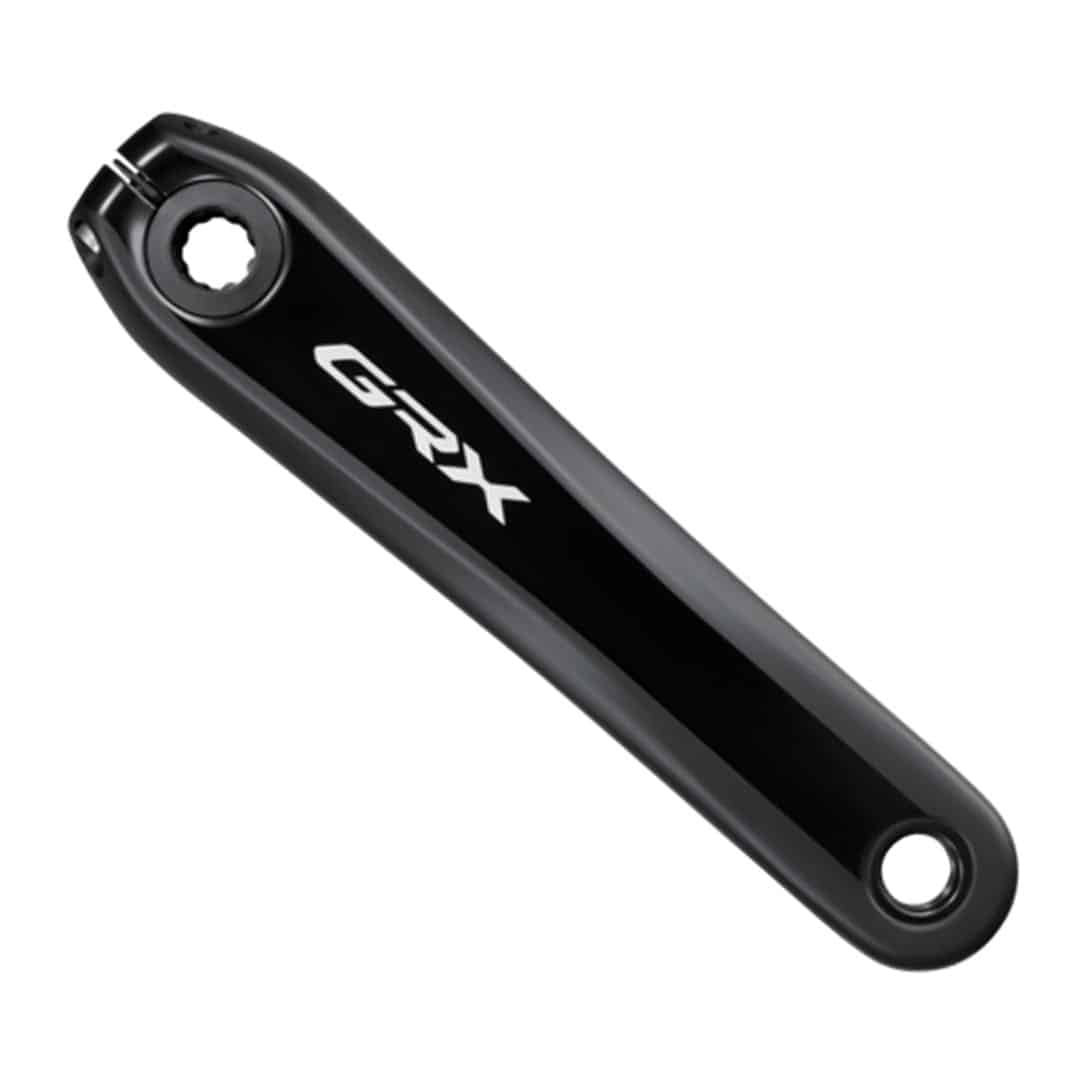

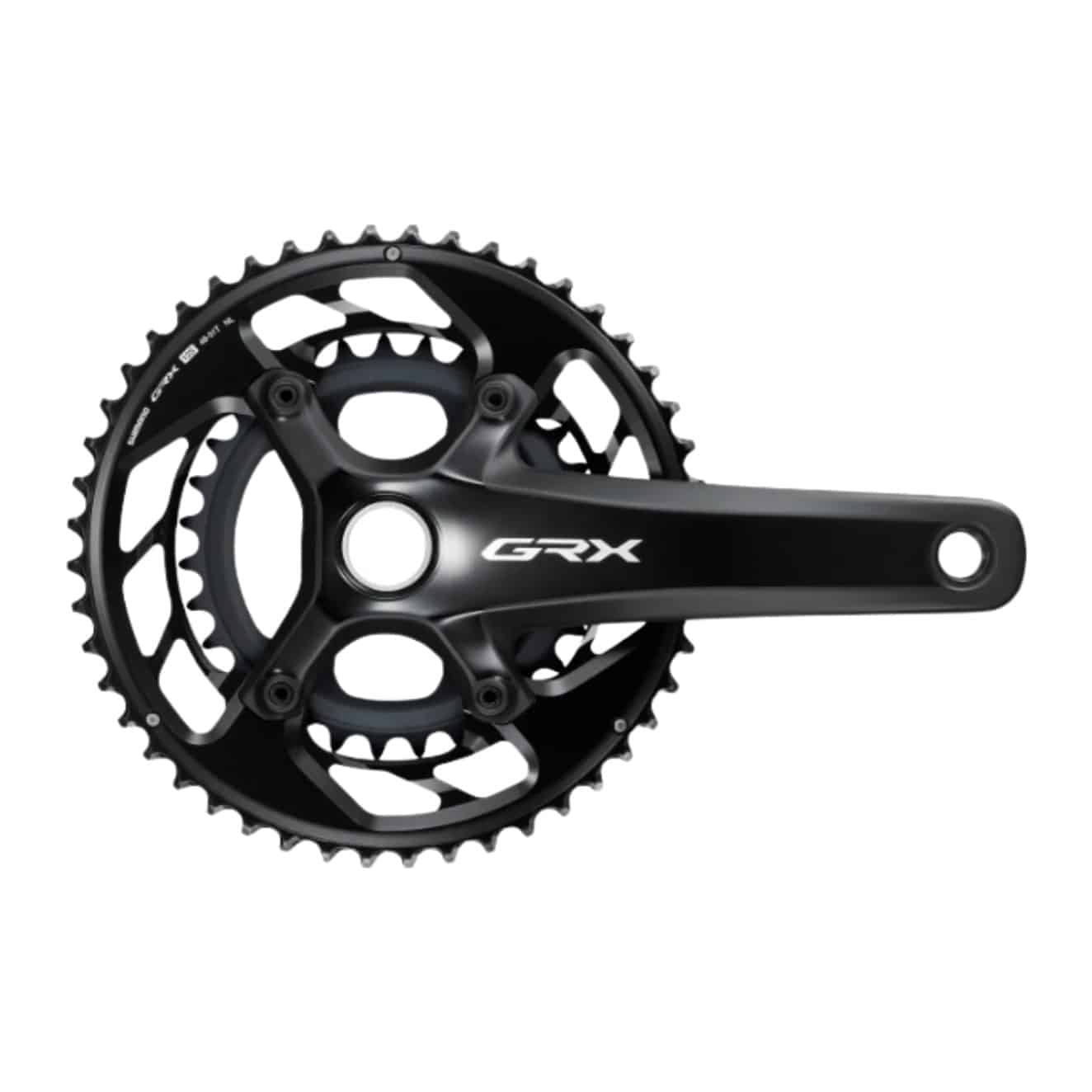

Shimano GRX FC-RX820-2 Hollowtech II gravel crankset, 2 × 12-speed, 48-31T, 170 mm (IFCRX8202CX81).
- 17T range between rings for mixed terrain
- 110 / 80 mm asymmetric BCD, 24 mm axle
- Bottom bracket not included
The Shimano GRX FC-RX820-2 is the 2 × 12-speed Hollowtech II crankset from Shimano’s GRX gravel group, with 48-31T chainrings and 170 mm arms.
The 17-tooth gap between the rings gives you a properly low gear for loose climbs and soft sandy tracks, while 48T still pulls well on tarmac — a good match for mixed rides out past Al Qudra or up into the Hajar mountains.
Check these before you order
- 12-speed only. Use a 12-speed HG chain and the GRX 12-speed front derailleur FD-RX820.
- Bottom bracket not included. Fits 68 / 70 mm threaded shells with a Shimano Hollowtech II 24 mm bottom bracket, or press-fit with the matching Shimano press-fit BB.
- Chainline and Q-factor figures differ between the sources we checked, so we have left them off — ask us if your frame is tight on clearance.
Who it is for
- Gravel riders who want lower gears for loose and sandy terrain
- Upgrading a gravel bike to Shimano GRX 12-speed
- Adventure and bikepacking set-ups
Full specifications are listed in the Information tab.
Weight for this exact size isn’t published on the pages we checked; the reference weight is the published figure for 172.5 mm, 48-31T.
Questions people ask
Which front derailleur do I need?
The GRX 12-speed FD-RX820.
Is the bottom bracket included?
No. Choose a Shimano Hollowtech II bottom bracket that suits your frame.
Can I use it on a road bike?
Yes, if your road frame and front derailleur suit a 48-31T gravel crankset — ask us to check your set-up.
What is the Shimano code?
IFCRX8202CX81, EAN 4550170303440.
Talk to us
| Weight | 0.95 kg |
|---|---|
| Dimensions | 42 × 22 × 10 cm |
| Brand | Shimano |
| Discipline | Gravel |
| Product Type | Gravel crankset (2x) |
| Groupset | Shimano GRX RX820 (12-speed) |
| Model Code | FC-RX820-2 |
| Speed | 2 × 12-speed |
| Chainrings | 48-31T |
| Crank Arm Length | 170 mm |
| BCD | 110 / 80 mm asymmetric |
| Spindle | Hollowtech II, 24 mm axle |
| Bottom Bracket Shell | 68 / 70 mm threaded |
| Front Derailleur Compatibility | FD-RX820 |
| Finish | Black |
| Bottom Bracket | Not included |
| Reference Weight | 721 g (published figure for 172.5 mm, 48-31T) |
| Manufacturer Code | IFCRX8202CX81 |
