The Shimano FC-M510-1 1 x 12-speed crank with 177 mm Q-factor, 52 mm chainline and 135 / 142 / 148 mm O.L.D stands for highest drive efficiency. It offers optimum power transmission and maximum speed for the new system, which only use 1 chainring.
12-speed technology at Deore level: 1×12-speed Crank FC-MT510-1 from Shimano
The group-free crankset at DEORE level comes in single-only (1×12) configuration for drivetrain simplicity. It features the same Dynamic Chain Engagement+ technology as XTR, DEORE XT and SLX cranksets, which with its narrow/wide tooth profile is key to the improved chain retention, smoothness and quietness of the drivetrain.
Features – Shimano FC-MT510-1 12-speed Crank 32T
- FC-MT510-1 Q-Factor 177mm
- Chain line 52mm
- O.L.D 135mm / 142mm / 148mm
- Compatibility 1×12-speed with cassette 10-51
Product features
- Use: MTB
- Model: FC-MT510-1
- Gradation: 32T
- Q-Factor: 177mm
- Threaded BB shell width: 68 / 73mm
- Gear rear: 12-speed
- Construction: 2-Piece
- Compatible Chain: HG+ 12-speed
- Crank arms: 4 arm
- Bolt Circle Diameter: 96mm
- O.L.D: 135mm / 142mm / 148mm
- Chain line: 52mm
Crank Arm Length (choose variant)
- 170mm
- 175mm
Material
- Crank arm: Aluminum
- Crank axle: Steel

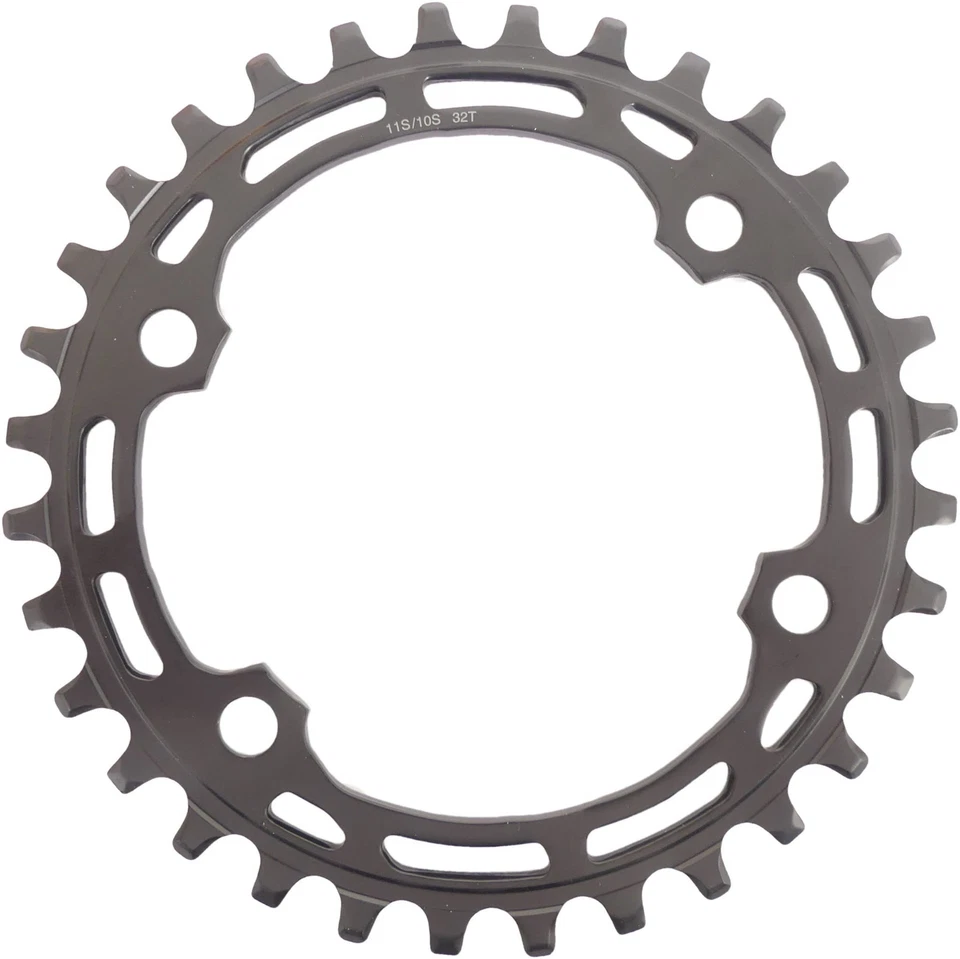

- Chainring: Steel
Scope of delivery
- 1 x Shimano FC-MT510-1 12-speed Crank 32
Technology
DYNAMIC CHAIN ENGAGEMENT+
SPECIAL GEAR TEETH FUNCTION SHIMANO’s DYNAMIC CHAIN ENGAGEMENT+ is a special gear teeth profile designed for use in single-chainring configurations for XC, enduro, and trail riding. It gives more chain retention and smoother pedaling – even over bumpy terrain. Chain retention of any gear will reduce abrasion and worn out.
