The SHIMANO DEORE FC-M5100-1 mountain bike crank delivers precise and reliable shifting for 1×10 or 1×11-speed drivetrains.
- Even driving even in rough terrain
- With special retention technology to prevent the chain from bouncing off

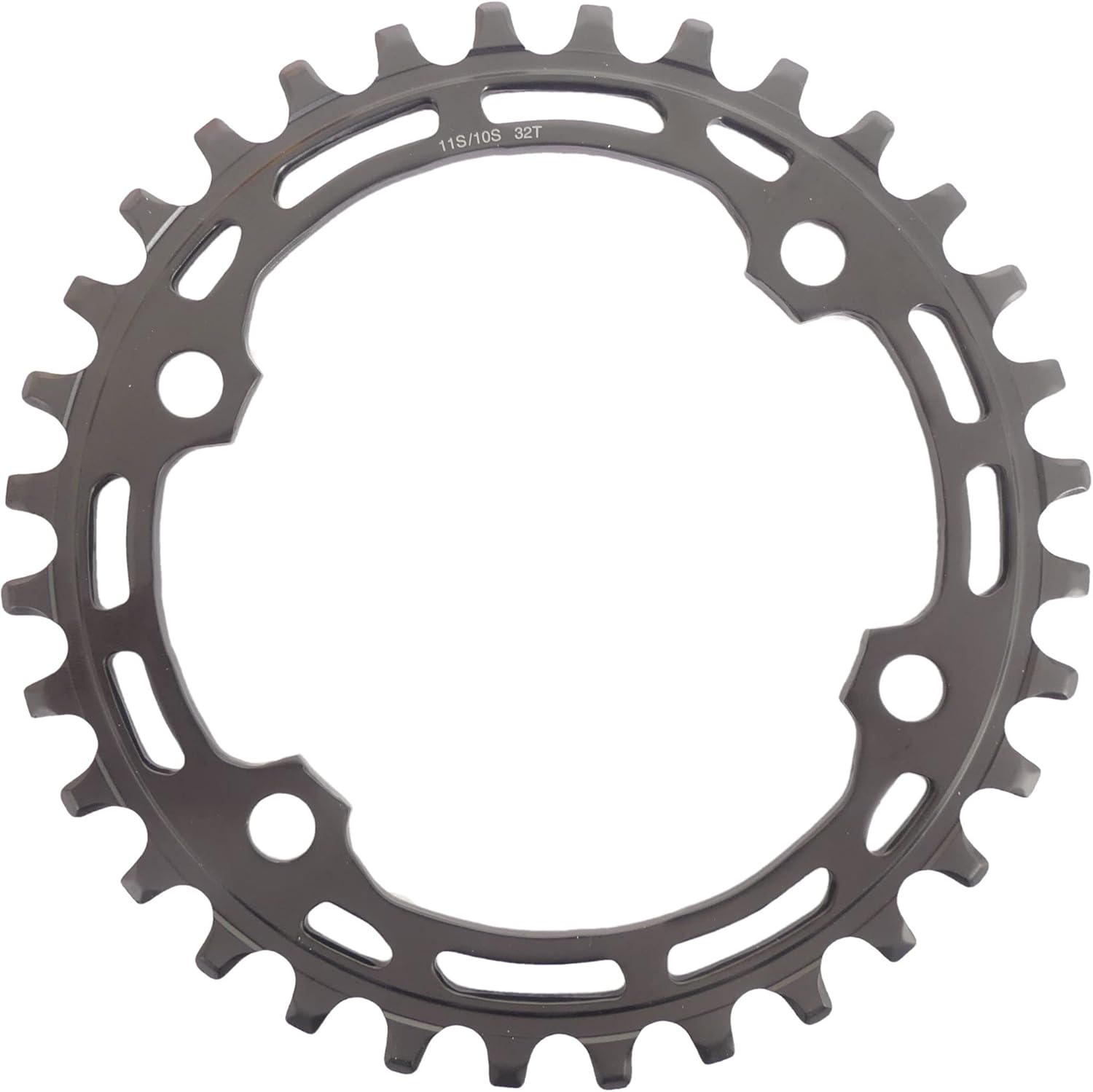

- Chainring
- Compatible with Shimano Deore M5100 MTB drivetrain
- Color: Black
BENEFIT
2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
BENEFIT
For 10/11-speed
Model No
FC-M5100-1
Series
DEORE
Rear speeds
11/10
Compatible chain
HG 11-speed, HG-X 10-speed
Chain line (mm)
52
O.L.D.
Thru (mm)
142, 148
QR/Nut (mm)
135, 141
P.C.D. (mm)
96
Spider/gear arms
4
Chainring combination
30T, 32T
Q-factor (mm)
178.5
Crank arm length (mm)
170
✔
175
✔
Optional chain guard
Without chain/bash guard
✔
2-PIECE CRANKSET
✔
Compatible bottom bracket type
Outboard
✔
Recommended bottom bracket
Threaded (normal)
BB-MT501
Press-Fit
BB-MT500-PA
Threaded bottom bracket shell width (mm)
68
✔
73
✔
Crank fixing screw included
✔
Color
Series color
