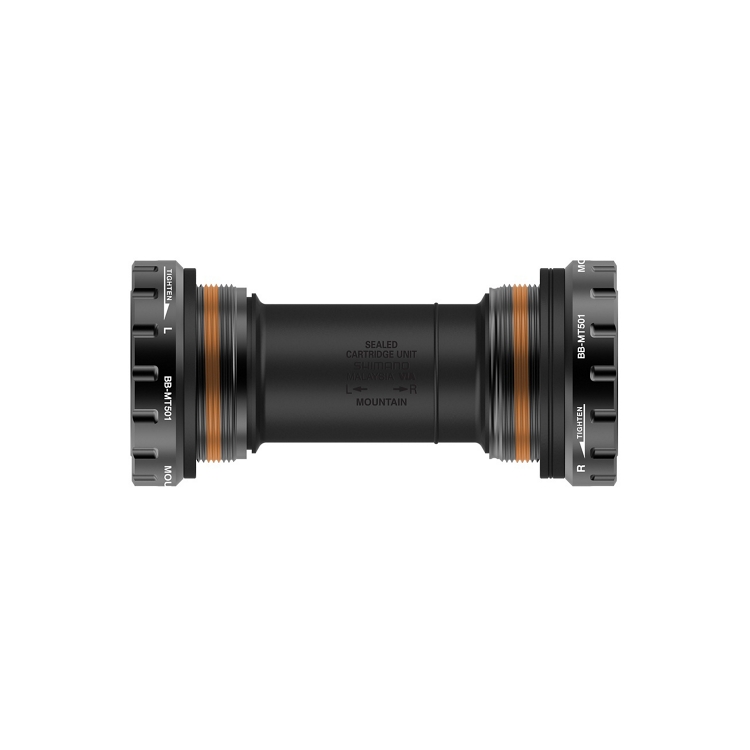

Shimano Deore BB-MT501 bottom bracket for frames with BSA thread

The Shimano BB-MT501 is a bottom bracket with a sleeve made of synthetic material designed to fit a 24 mm axle crankset into a frame with a BSA bearing. With the enclosed spacers, it is suitable for shell width of both 73 mm and 68 mm. Apart from Deore, Shimano recommends the BB-MT501 for the cranksets of the ZEE and Alivio series as well as for numerous no-group models from the MTB and touring sector. It features an optimised seal design that extends durability. Steel bearings ensure smooth rotation. The bearing cups are made of anodised aluminium. In combination with a corresponding crankset, this bottom bracket and its Hollowtech II technology ensures stability and efficiency with every pedal rotation.

Specifications:

Application:

All Mountain, Cross Country, City & Touring

Type:

BSA

Shell Width:

68 mm / 73 mm

Axle Diameter:

24 mm (Hollowtech II)

Technical Information:

Bearings:

steel

Bottom Bracket Cup Material:

aluminium

Bottom Bracket Centre Tube Material:

composite (resin)

Compatibility:

Recommended for:

• Deore FC-M6100, FC-M6120, FC-M6130
• Deore FC-M5100
• Deore FC-M6000, FC-M4100, FC-M617
• FC-MT610, FC-MT510, FC-MT511, FC-MT512
• FC-MT500, FC-M627
• FC-MT210, FC-MT200
• ZEE FC-M640, FC-M645
• CUES FC-U4010, FC-U6000, FC-U6010
• Deore FC-T6010
• Alivio FC-T4060
• FC-T551

Features:

• anodised bearing cups
• improved seal design
• long life
• high rotation and drive efficiency
• inner bearing sleeve made of synthetic resin

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Number:

EBBMT501B

Contents:

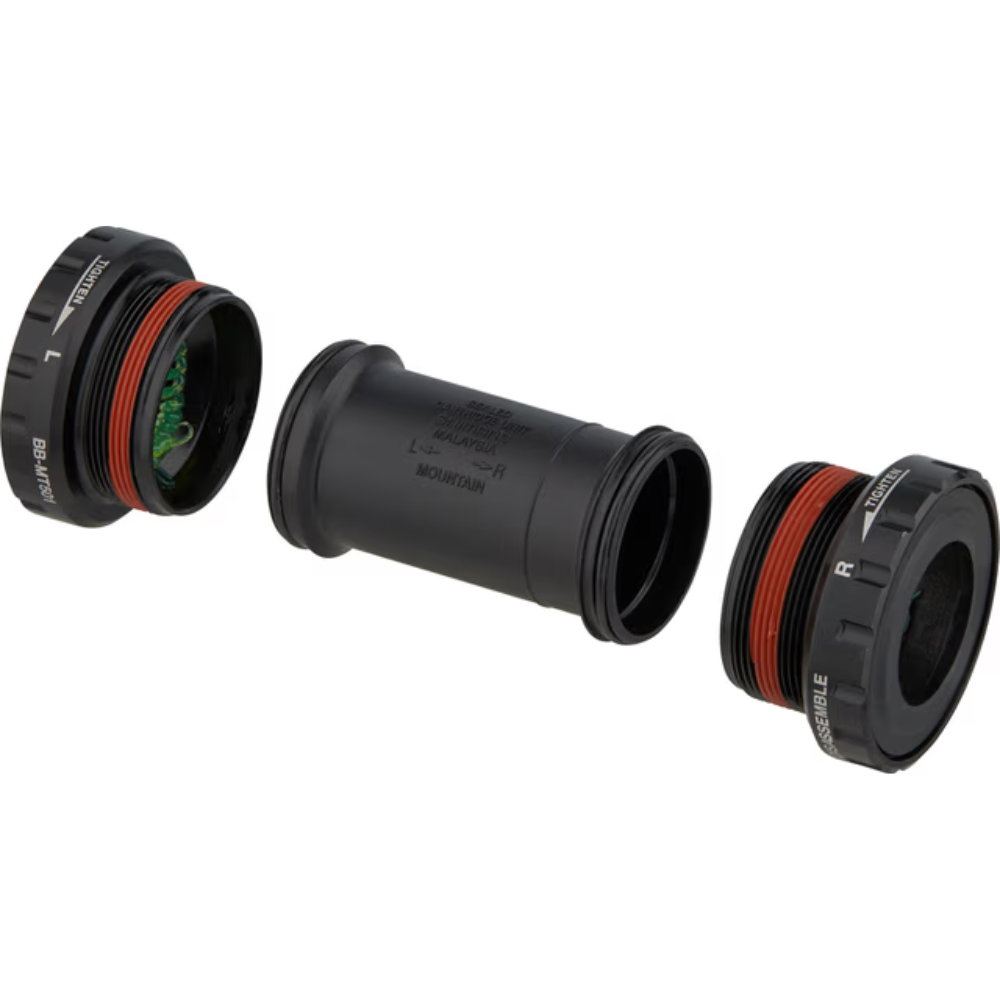

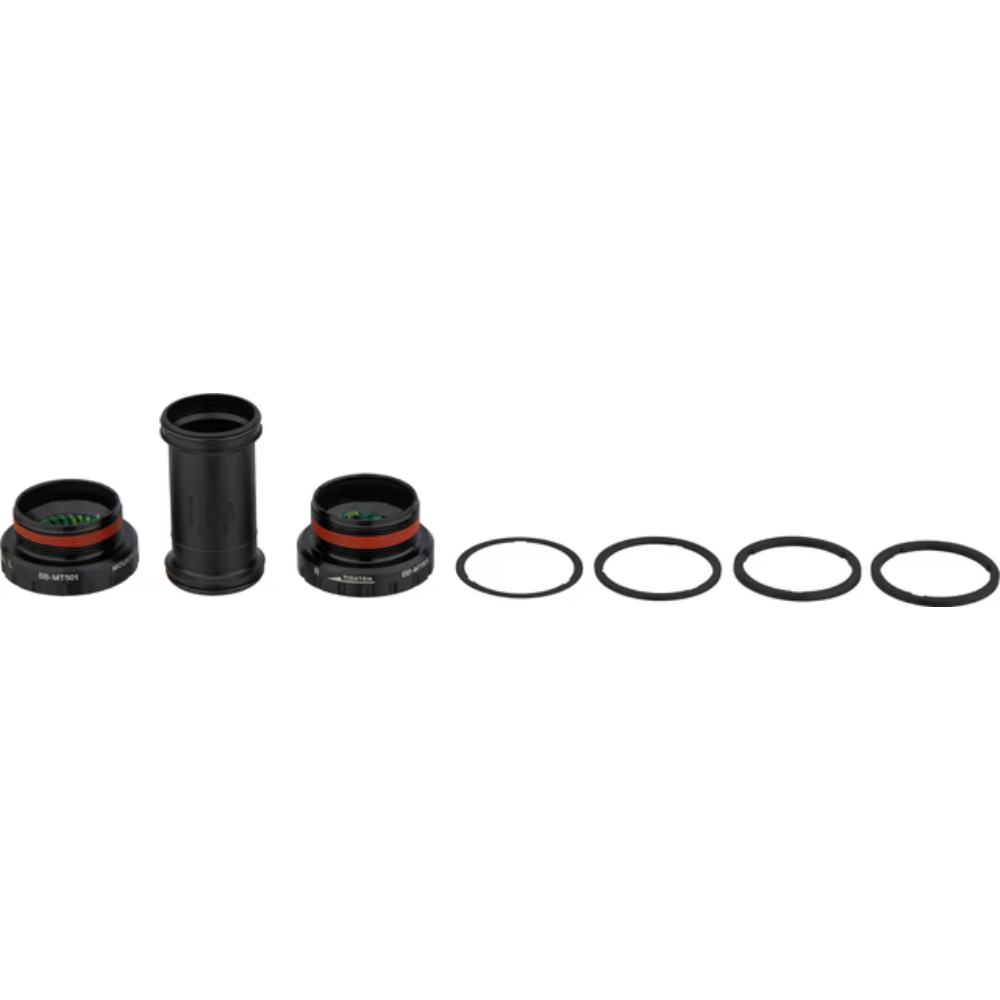

Shimano BB-MT501 bottom bracket, consisting of:

• 1 x right bearing cup with bearings
• 1 x left bearing cup with bearings
• 1 x bottom bracket centre sleeve
• 2 x spacer 2.5 mm
• 1 x spacer 1.8 mm
• 1 x spacer 0.7 mm
