Shimano Disc Brake Set St-r7170(l), Br-7170(f)
AED1,799.00
In stock
Easy Return/Exchange
Fast Delivery
100% Secure Payment
Shimano 105 Di2 ST-R7170 left lever + BR-R7170 front flat mount hydraulic brake, 1000 mm hose (IR7170DLF6SC100E).
- Wireless 12-speed Di2 shifting
- 10% wider pad clearance, reach adjust
- Mineral oil; rotor sold separately

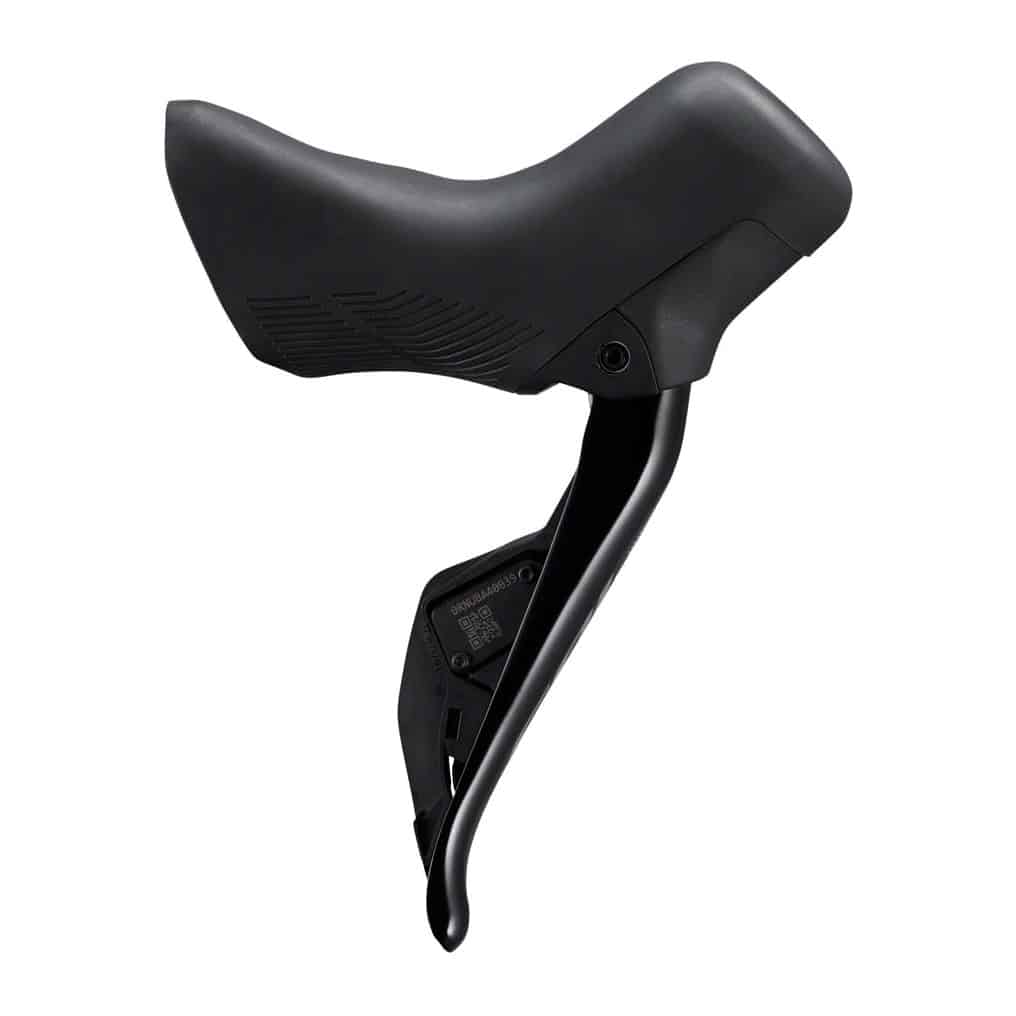

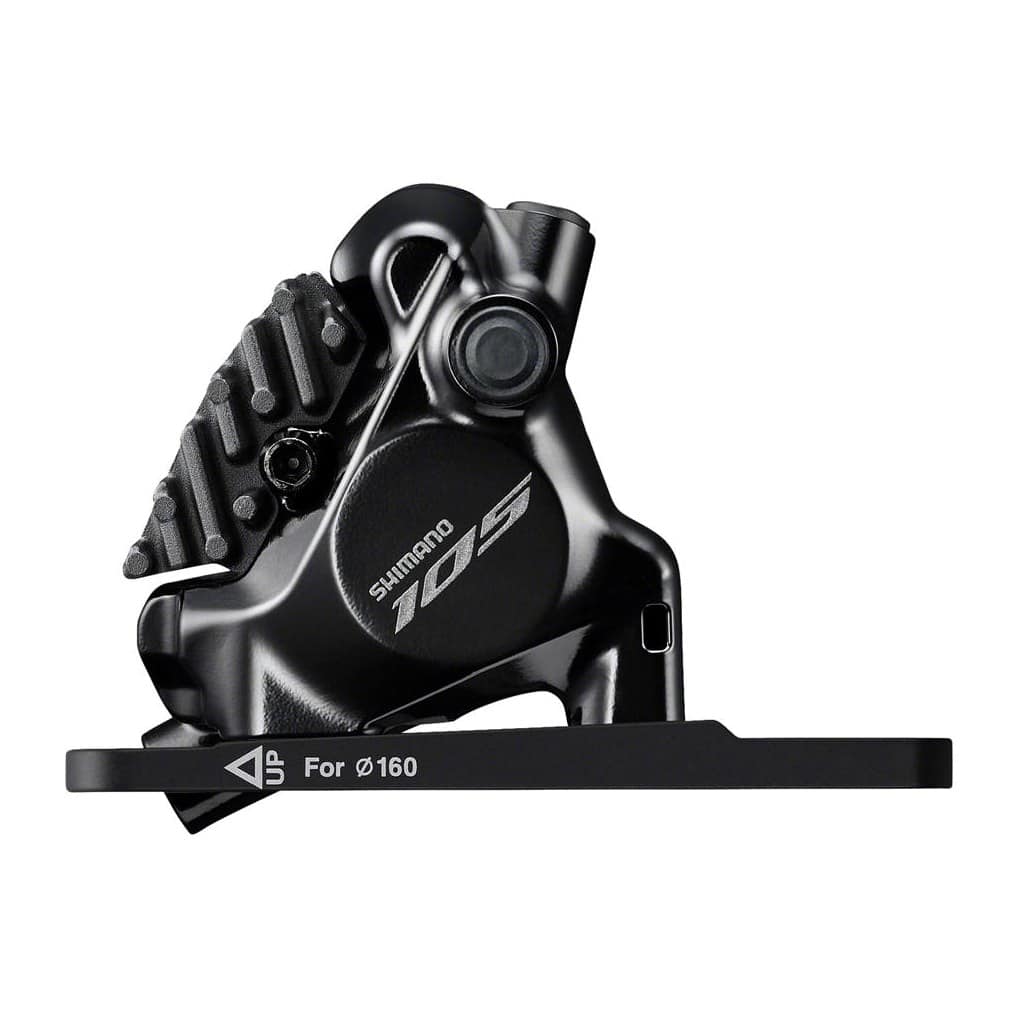

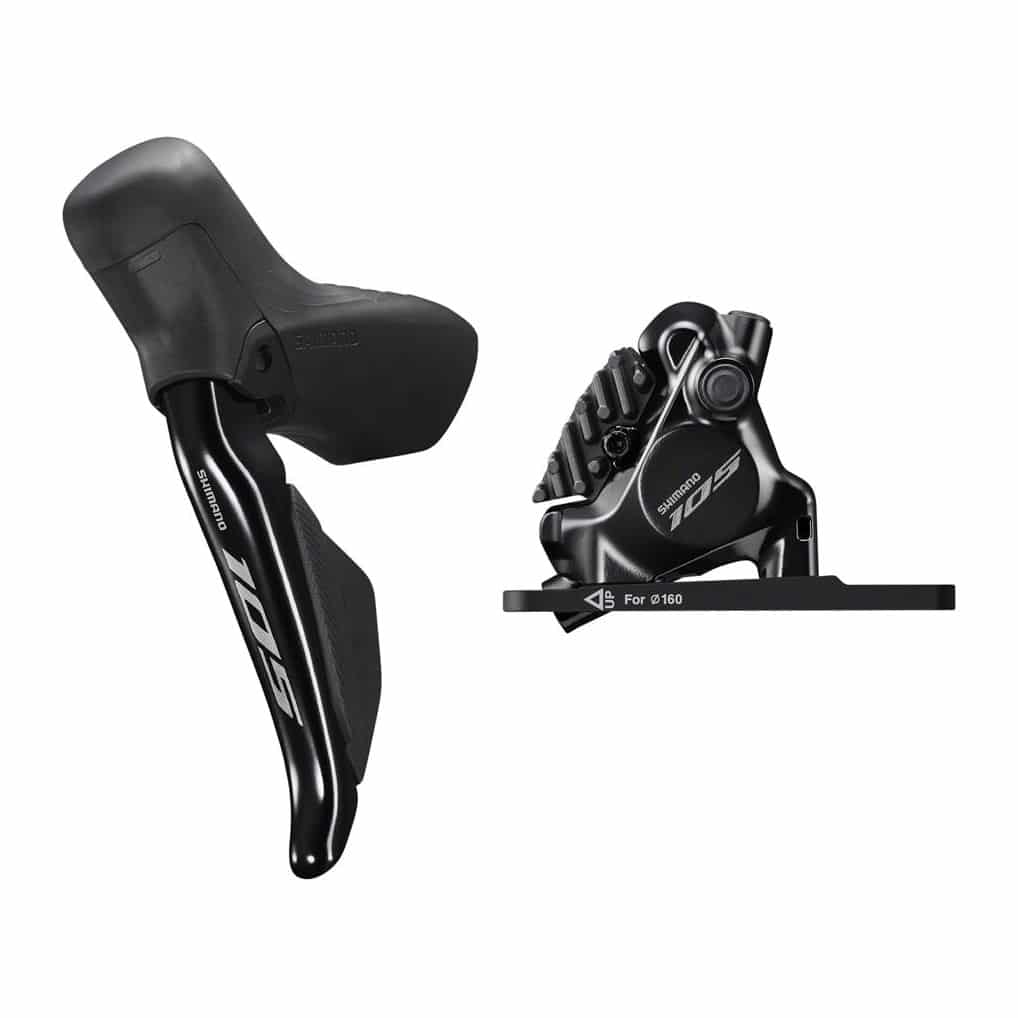

This is the left lever and front brake from Shimano’s 12-speed 105 Di2 R7100 group: an ST-R7170 dual control lever paired with a BR-R7170 flat mount hydraulic caliper on a 1000 mm hose. The left lever shifts the front derailleur and works the front brake.

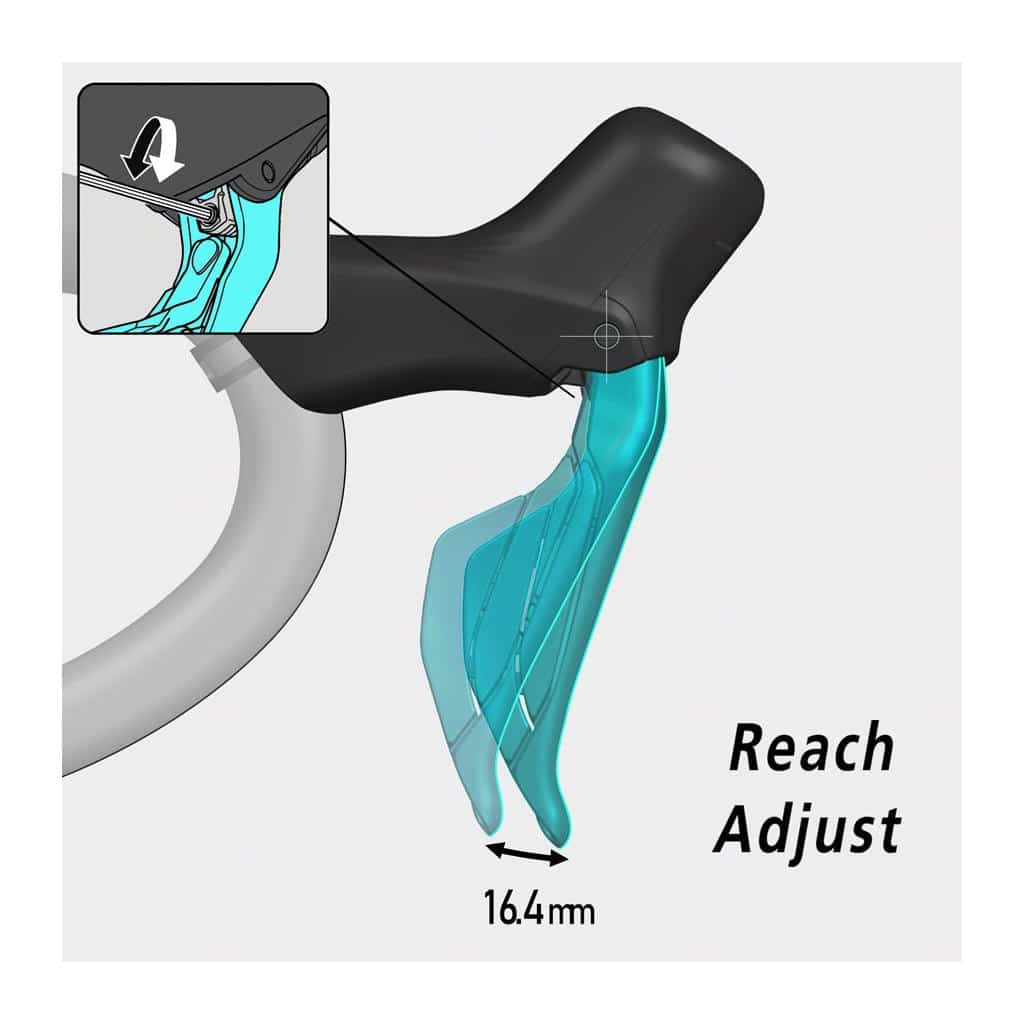

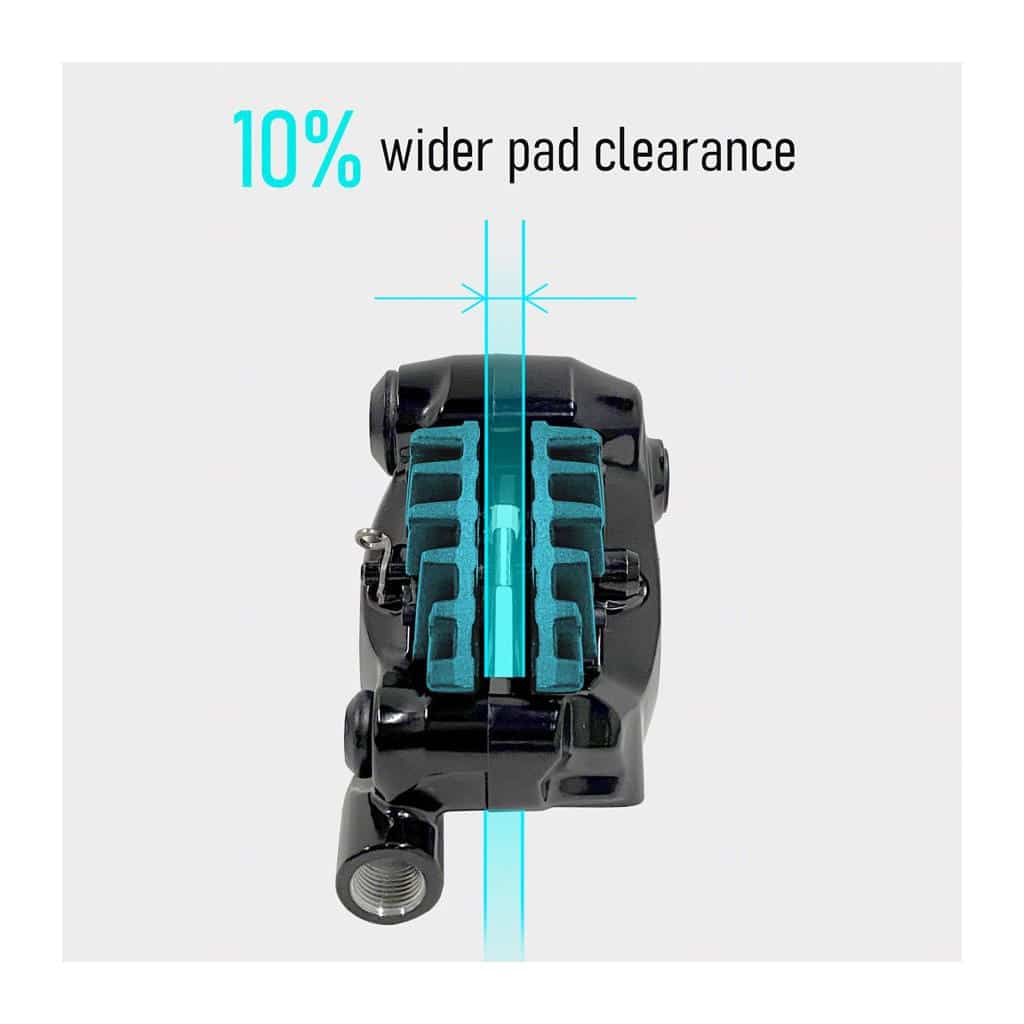

The lever shifts wirelessly, so only the brake hose runs to the frame. Shimano gave the caliper 10% more pad clearance than before to reduce rotor rub, and the lever reach adjusts so riders with smaller hands can brake comfortably from the drops.
Check these before you order
- 105 Di2 (12-speed) only. The shift buttons connect wirelessly to a Shimano 12-speed Di2 system — they do not work with mechanical derailleurs.
- Flat mount front caliper — needs a flat mount fork. Rotor sold separately.
- Shimano mineral oil brake — never DOT fluid. The lever runs on 2 × CR1632 coin cells.
- Hose length 1000 mm; the workshop trims it to fit your bike.
Fitting means routing and bleeding the hose and pairing the lever in the E-TUBE app — our Dubai workshop can do it.
Who it is for
- 105 Di2 riders replacing a crash-damaged left lever or front brake
- Building up a 105 Di2 road or endurance bike
Full specifications are listed in the Information tab.
Published weight for this set is 387 g. Not published for this exact code on the pages we checked: the brake pad compound supplied.
Questions people ask
Does it work with mechanical 105?
No — this is the Di2 (electronic) lever. Mechanical 105 uses the ST-R7120.
Is the rotor included?
No, the rotor is sold separately.
What battery does the lever use?
Two CR1632 coin cells.
What is the Shimano code?
IR7170DLF6SC100E, EAN 4550170234829.
Talk to us
| Weight | 0.60 kg |
|---|---|
| Dimensions | 30 × 20 × 10 cm |
| Brand | Shimano |
| Discipline | Road |
| Product Type | Di2 lever and hydraulic brake set |
| Groupset | Shimano 105 Di2 R7100 (12-speed) |
| Model Code | ST-R7170 / BR-R7170 |
| Side | Left lever, front caliper |
| Shifting | Di2 wireless |
| Caliper Mount | Flat mount |
| Hose Length | 1000 mm |
| Brake Fluid | Shimano mineral oil |
| Lever Battery | 2 × CR1632 |
| Pad Clearance | 10% wider than previous generation |
| Adjustment | Reach adjust |
| Reference Weight | 387 g (published figure) |
| Manufacturer Code | IR7170DLF6SC100E |
