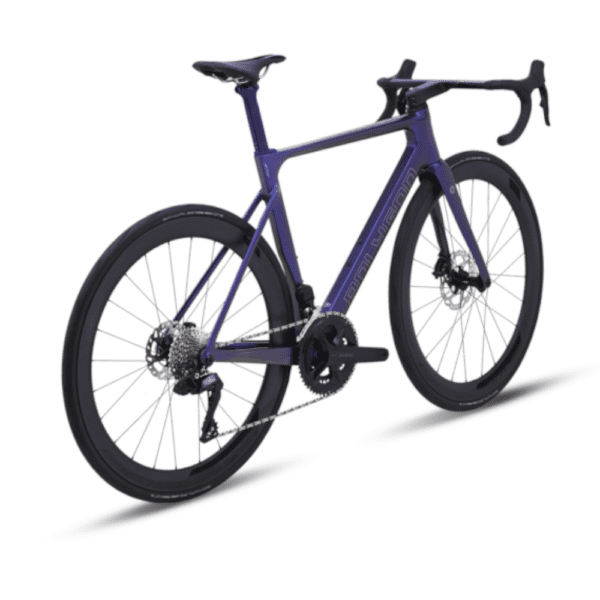

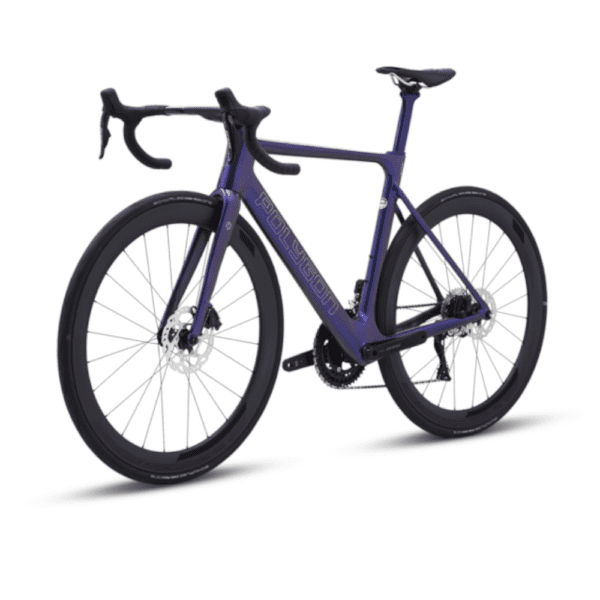

IN THE RELENTLESS PURSUIT OF SPEED
DESIGNED TO CUT THROUGH AIR BETTER
FEATURES & SPECIFICATIONS
Cuts Through Air
The best teacher of aerodynamics comes from raindrops: the billions that seeks the most efficient way in cutting through air. With this inspiration, the new shape of Helios is designed to cut through air without leaving behind turbulence, thus achieving an industry-leading; 24% reduction in drag over previous generation designs.
Flies On Climbs

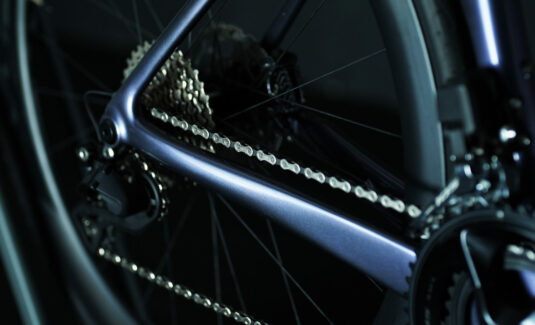

We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chainstay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.
Synchronized To The Human Body

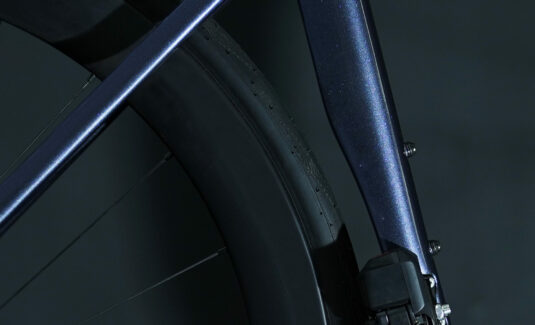

At the end of the day, we designed Helios with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that is proven to minimize rolling resistance, enables the rider of this bike to best control, corner, and conquer.
Geometry & Size
| XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| Height (cm) | 144-154 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length (A) | 450 | 475 | 500 | 520 | 545 | 570 |
| Seat Tube Angle (B) | 75 | 74.7 | 74.3 | 74 | 73.7 | 73.3 |
| Effective Seat Tube Angle (C) | 75 | 74.7 | 74.3 | 74 | 73.7 | 73.3 |
| Head Tube Length (D) | 100 | 115 | 130 | 145 | 160 | 175 |
| Head Tube Angle (E) | 71.5 | 71.8 | 72 | 72.3 | 72.3 | 72.8 |
| Effective Top Tube (F) | 505.31 | 517.31 | 530.42 | 543.04 | 555.14 | 569.25 |
| Bb Height (G) | 271 | 271 | 271 | 271 | 271 | 271 |
| Bb Offset (H) | 73 | 73 | 73 | 73 | 73 | 73 |
| Chainstay Length (I) | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (J) | 968.42 | 975.82 | 983.9 | 991.1 | 1000.62 | 1005.8 |
| Frame Reach (K) | 370 | 375 | 380 | 385 | 390 | 395 |
| Frame Stack (L) | 505 | 520.21 | 535.2 | 550.4 | 564.7 | 580.8 |
| Standover Height (M) | 715.04 | 739.4 | 763.21 | 780.8 | 802.52 | 824.28 |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Color |
Purple ,Red Black ,WHITE/GREEN ,WHITE/PURPLE |
| Size |
XL 700X575 ,XXXS ,M 700X520 ,L 700X545 ,S 700X500 ,XS 700X475 ,XXS 700X448 ,XXS ,XS ,S ,M ,L ,XL |
| Brand | |
| Frameset |
ACX PERFORMANCE UCI APPROVED |
| Fork |
ACX PERFORMANCE UCI APPROVED |
| Shifter |
SHIMANO 105 Di2 ST-R7170, 2×12 SPEED BRIFTER |
| Crank |
SHIMANO 105 FC-R7100, CRANK ARM 170MM (XXS, XS, S, M) / 172.5MM (L, XL) |
| Cassette |
SHIMANO 105 CS-R7100-12 11-34T |
| Rear Derailleur |
SHIMANO 105 Di2 RD-R7150 |
| BB |
SHIMANO BB-RS500 PRESSFIT 86 |
| Chain |
KMC X12 |
| Saddle |
ENTITY FLUX2, CR-MO ø 7mm |
| Seatpost |
CARBON, AERO 35 x 306mm (XXS) / 337mm (XS) / 357mm (S, M, L, XL) |

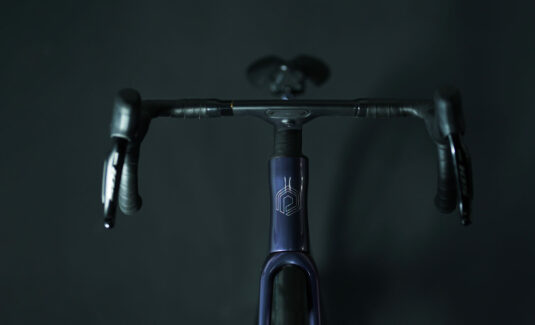

| Handlebar |
BLKTEC R8 INTEGRATED, W: 400mm (XXS, XS, S) / 420mm (M, L, XL), BB: INTEGRATED, R/D: 0, B: 0 |
| Handlestem |
BLKTEC R8 INTEGRATED, EXT: 100mm (XXS, XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 0 Degree |
| Headset |
INTEGRATED SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 ,IS 52/40 |
| Wheel Set |
ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED |
| Wheel Size |
700C |
| Tire |
SCHWALBE ONE ADDIX TLE 700x28C |
| Rim |
CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY |
| Hub |
F: ALLOY 12x100mm 24H SEALED BEARINGS CL / R; ALLOY 12x142mm 24H SEALED BEARINGS CL |
| Spokes |
F: STAINLESS STRAIGHT PULL BUTTED F: NDS:264mm DS:266mm / R: NDS:266mm DS:263mm |
| Brake Lever |
SHIMANO 105 ST-R7170 |
| Brake Caliper |
SHIMANO 105 BR-R7170 |
| Rotor |
SHIMANO SM-RT70 F:160mm / R:140mm CL |
Only logged in customers who have purchased this product may leave a review.
Related products
Polygon Strattos S3
AED 2,999- Frame ALX ALL-ROUND, QRx130mm – Aluminium
- Groupset Shimano Sora 2X9 Speed
- Wheels C04 Alloy 700C
- Use Built For Comfort And Speed
Bmc Roadmachine Two 105 Di2 2×12
AED 16,999- Frame Roadmachine Carbon
- Groupset SHIMANO 105 (FC-R7100)
- Wheels PRD23 , 23mm
- Use Endurance bike

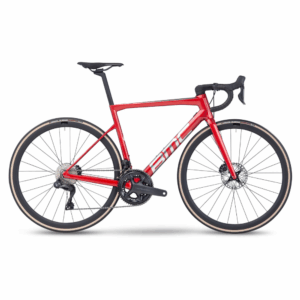

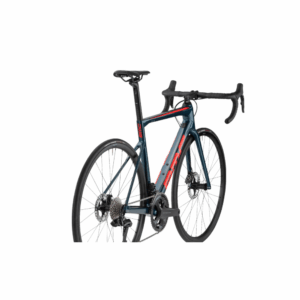

Bmc Teammachine Slr 01 Four Ultegra Di2 2×12
AED 34,499- Frame Teammachine SLR 01 Premium Carbon
- Groupset Shimano Ultegra
- Wheels CR 40 SL Carbon
- Use Road Bike

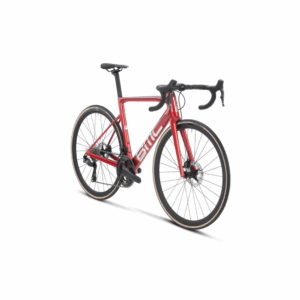

Bmc Teammachine Slr 01 Three Force Axs 2×12
