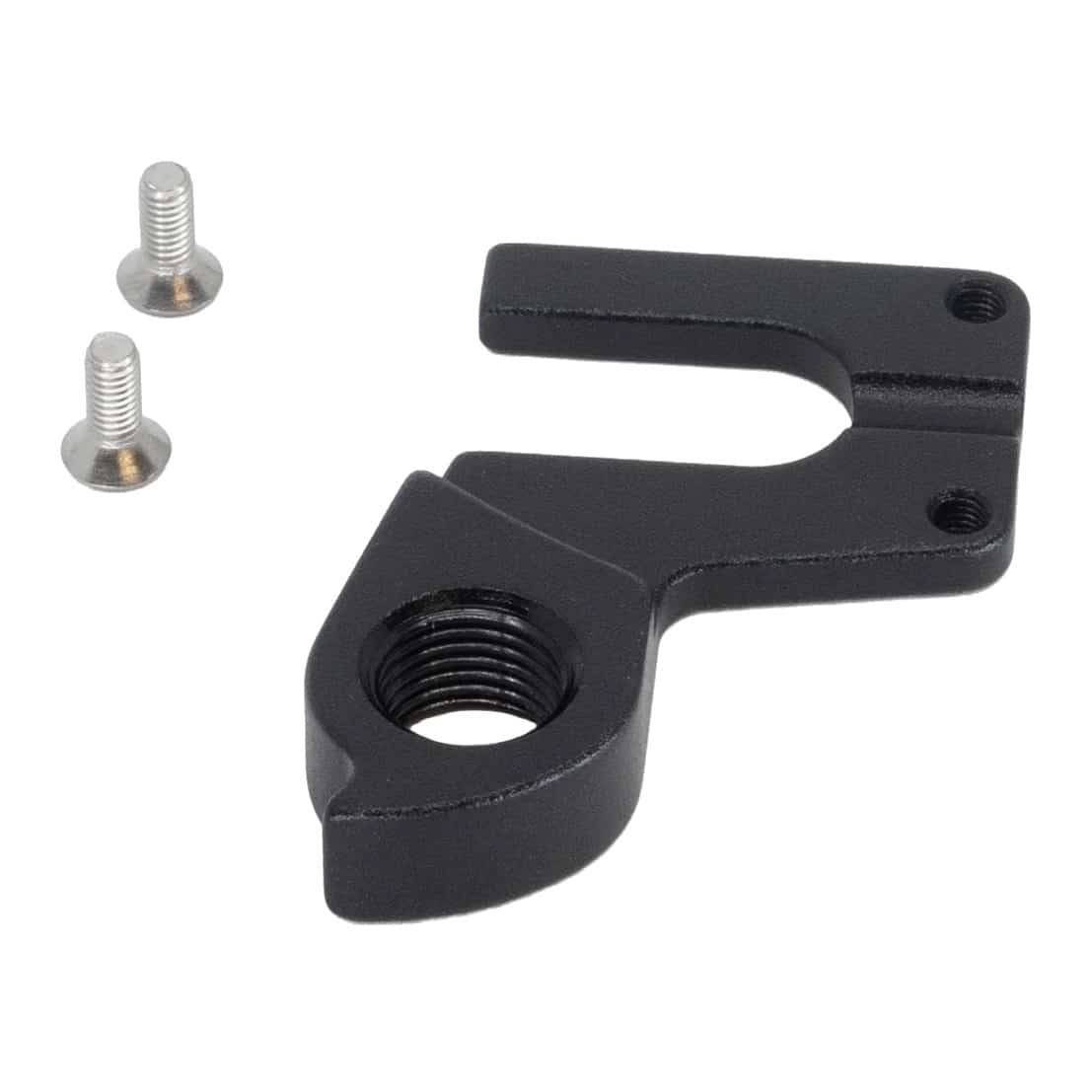

BMC Dropout #36 is the genuine BMC replacement rear derailleur hanger for the BMC Timemachine TM01 and TM02, carrying BMC article number 210544. It appears under both frames in BMC’s own spare part lists from model year 2015 through 2022, so the fitment here is BMC’s, not an estimate.
The dropout is a separate bolt-on part, designed to be the component that bends or breaks in a crash or a bad shift so that the frame and the rear derailleur survive. Fitting a fresh one restores correct derailleur alignment and clean, quiet shifting.
Fits these BMC frames
- Timemachine TM01
- Timemachine TM02
Listed against both frames in the BMC spare part lists for model years 2015, 2021 and 2022. If your Timemachine is a different generation, or you are not sure which you have, send us the frame model and serial number and we will confirm before you pay.
At a glance
| Brand | BMC |
|---|---|
| Part | Rear derailleur hanger (BMC calls it a dropout) |
| BMC dropout number | #36 |
| BMC article number | 210544 |
| Fits | BMC Timemachine TM01, Timemachine TM02 |
| Genuine part | Yes. BMC original spare, not an aftermarket copy |
| Sold as | One dropout. Mounting bolts are reused from your frame unless supplied |
BMC does not publish a material or weight figure for this part, so we have left those out rather than estimate them.
Why a bent dropout is worth replacing
A derailleur hanger is a sacrificial part. Even a small bend you cannot see by eye pulls the rear derailleur out of parallel with the cassette, and the symptoms look exactly like a worn drivetrain: hesitant shifts in one direction, chain noise in the largest sprockets, a gear that will not hold. On an electronic groupset it can also show up as repeated auto-trim or a shift that refuses to complete.
A bent hanger is also the thing standing between a hard shift and a destroyed rear derailleur or a torn carbon frame. If your bike has been knocked over, shipped, or has shifted into the spokes, replace the hanger rather than trying to live with it.
Fitting
- Remove the rear wheel and the rear derailleur before unbolting the dropout.
- Clean the frame interface and use a little grease or the assembly paste specified for your frame on the bolts.
- Tighten to the torque printed on the frame or given in your BMC manual. Do not guess on a carbon frame.
- Have the alignment checked with a hanger alignment gauge once fitted. A new hanger is not automatically a straight one.
Not comfortable doing it yourself? Our workshop in Dubai can fit and align it while you wait.
Common questions
How do I know my Timemachine takes dropout #36?
Compare the old one side by side, or send us your frame model, model year and serial number. BMC assigns the dropout per frame platform and model year, so the model name on its own is not always enough.
My shifting went bad after a crash. Is it the dropout?
Very often, yes. It is the first thing a mechanic checks. A hanger can look straight and still be a degree or two out, which is enough to ruin indexing across the cassette.
Can a bent dropout be straightened instead?
A light bend can sometimes be corrected with an alignment gauge. One that has already been straightened once, or that is visibly deformed or cracked, should be replaced. Aluminium work-hardens and the second failure tends to happen under load.
Should I keep a spare?
If you race or travel with the bike, yes. A time-trial bike in a bike box is exactly the situation where a hanger gets bent, and a spare in the case is what saves the event.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 12 × 10 × 2 cm |
| Brand | BMC |
| Part Type | Rear Derailleur Hanger (Dropout) |
| BMC Dropout Number | #36 |
| BMC Article Number | 210544 |
| Fits Model | Timemachine TM01, Timemachine TM02 |
