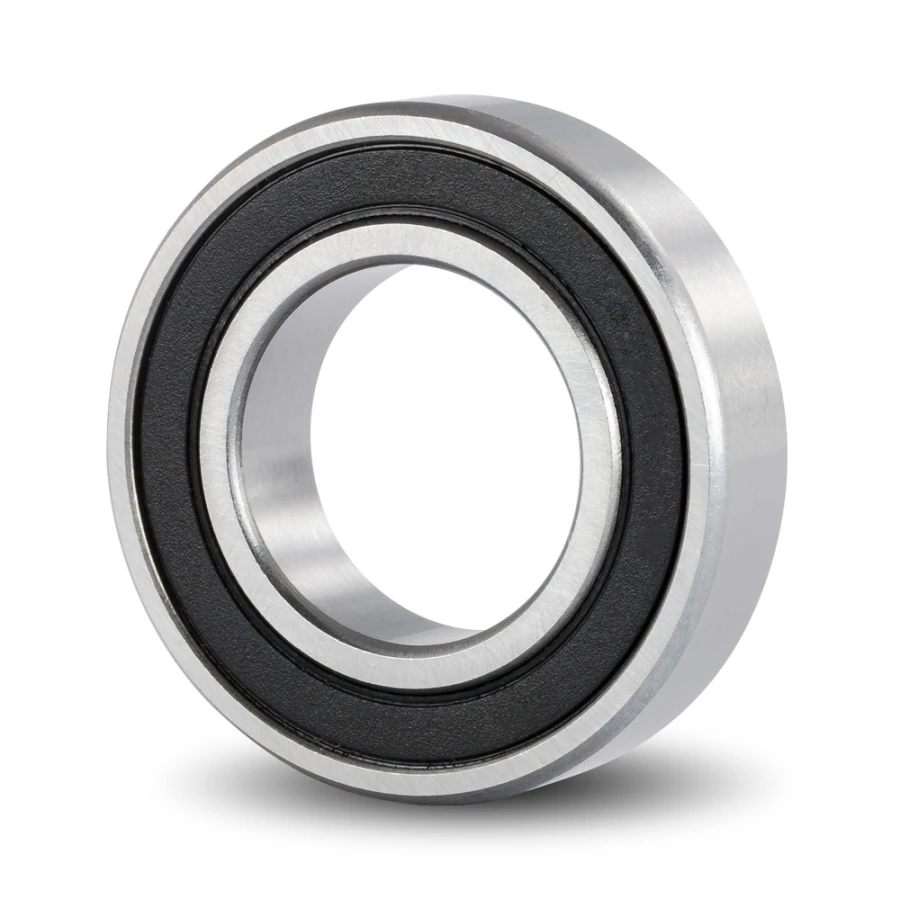

- thin section bearing with a thin cross section
- suitable for space-saving installation in radial and axial directions
- extra light series with compact dimensions and low weight
- suitable for radial loads and light axial loads in both directions
- offers high running accuracy and quiet running
- seal: contact lip seal on both sides made of rubber (2RS) for high sealing effect
- If you need this bearing in RS design with only one seal and one open side, you can simply remove one of the two seals:Â to the instructions
- good fixed bearing property, but can also be used as a floating bearing, each in both directions
- manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings (see further information)
Inside Ø (mm): | 15 |
Outside Ø (mm): | 28 |
Width (mm): | 7 |
Static radial load rating (N): | 2250 |
Dynamic radial load rating (N): | 4340 |
Limiting speed (1/min): | 20400 |
max. Operating Temperature: | +100°C (briefly up to +120°C) |
min. Operating Temperature: | -20°C |
Tolerance for inside Ø (mm): | 0/-0,008 |
Tolerance for outside Ø (mm): | 0/-0,009 |
Tolerance for width (mm): | 0/-0,12 |
Bore: | cylindrical |
Extended Inner Ring: | no |
Tolerance Class: | ABEC 1 / P0 |
Internal Clearance: | CN (Standard) |
Noise and vibration testing: | Class V |
Seal: | 2RS |
Seal Colour: | Black |
Ring Material: | Rolling Bearing Steel |
Rolling Element Material: | Rolling Bearing Steel |
Cage Material: | Sheet Steel |
Sealing material: | NBR |
Type of lubrication: | greased |
Lifetime lubricated: | yes |
Magnetic: | yes |
Norm: | DIN 625-1 |
Item weight: | 16Â g |
