A new level of performance for SHIMANO 12-speed road rear derailleurs

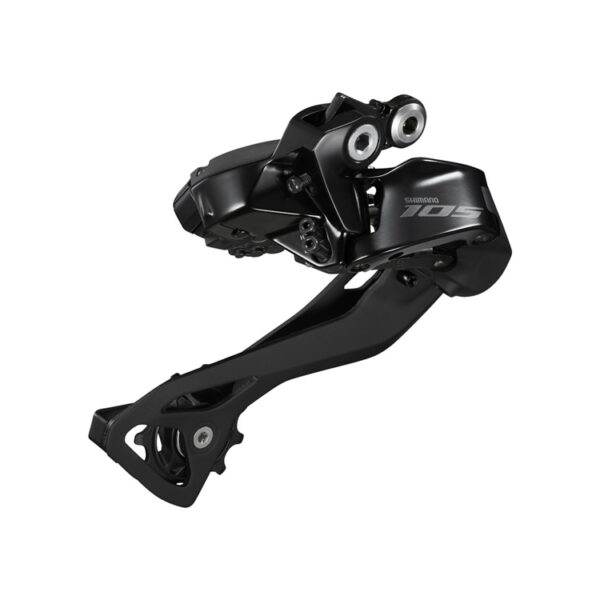

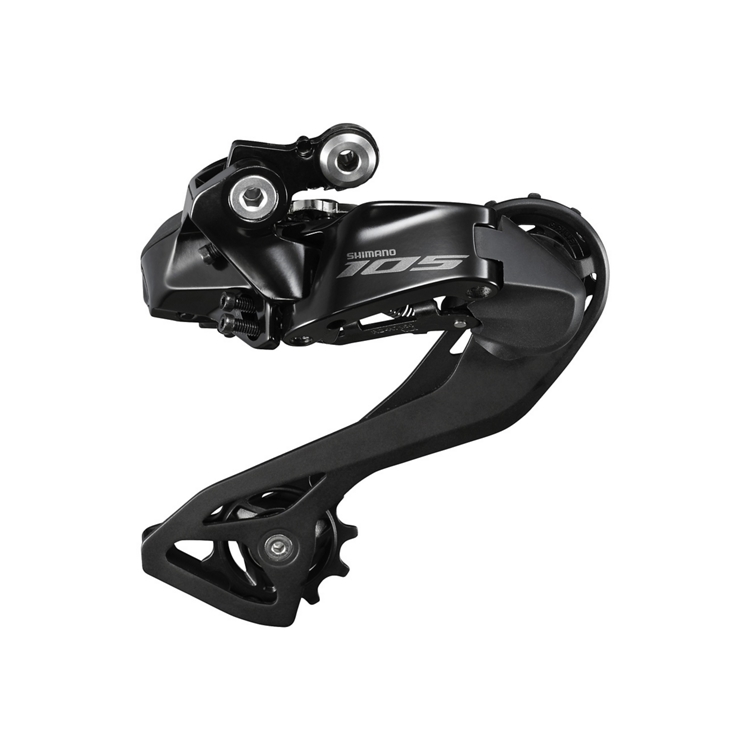

Wide 36T-compatible 12-speed Di2 rear derailleur. Receiving the wireless shifting signal from the shift lever, the SHIMANO 105 rear derailleur completes a shift in the blink of an eye with its high-performance motor and optimized link structure. This is the hub of the Di2 system, with the charging port, indicator LEDs, adjustment switches and more integrated into a compact package. A low-profile design reduces damage from contact and falls.
FEATURES
- Compact design includes an integrated wireless unit, charger, switch
- LED status indicator
- Battery indicator
- Pairing
- Adjust mode, etc.
- Wider range capacity
- Max. low sprocket: 36T
PRODUCT SPECIFICATIONS
| MODEL NO | RD-R7150 |
|---|---|
| SERIES | SHIMANO 105 R7100 Di2 Series |
| Color | Series color |
| Average weight | 302 |
| Remarks | w/o Bracket spec. available |
|---|---|
| Rear speeds | 12 |
| Top-normal spring type|SHIMANO SHADOW RD | ✔ |
| Mount|Direct attachment (conventional) | ✔ |
| Mount|Direct mount | ✔ |
| Max. front difference | 16T |
| Total capacity | 41T |
| Low sprocket|Max. | 36T |
| Low sprocket|Min. | 34T |
| Top sprocket|Max. | 11T |
| Top sprocket|Min. | 11T |
| Fluoric coated link bushings | 4 |
| Pulley|Teeth | 11 |
| Pulley|Sunken type pulley screw | ✔ |
| B-axle|Hollow axle | ✔ |
| B-axle 2|Hollow axle | ✔ |
| Di2 connectivity wired|Di2 shifting | ✔ |
| Di2 connectivity wireless|Di2 shifting | ✔ |
| Di2 connectivity wireless|Bluetooth® LE custom (*1)|Adjust mode information | ✔ |
| Di2 connectivity wireless|Bluetooth® LE custom (*1)|Di2 battery level | ✔ |
| Di2 connectivity wireless|Bluetooth® LE custom (*1)|Gear position | ✔ |
| Di2 connectivity wireless|Bluetooth® LE custom (*1)|SHIMANO STEPS data items (*3) | ✔ |
| Di2 connectivity wireless|Bluetooth® LE custom (*1)|Compatible with E-TUBE RIDE | ✔ |
| Di2 connectivity wireless|Bluetooth® LE custom (*1)|Compatible with E-TUBE PROJECT | ✔ |
| Di2 connectivity wireless|ANT private (*2)|Adjust mode information | ✔ |
| Di2 connectivity wireless|ANT private (*2)|Di2 battery level | ✔ |
| Di2 connectivity wireless|ANT private (*2)|Gear position | ✔ |
| Di2 connectivity wireless|ANT private (*2)|SHIMANO STEPS data items (*3) | ✔ |
| Firmware update by E-TUBE PROJECT | ✔ |
| SD50 port (pcs) | 0 |
| SD300 port (pcs) | 1 |
| SD50 connector (pcs) | 0 |
| SD300 connector (pcs) | 0 |
| LED for system status | ✔ |
| Charging port (pcs) | ✔ |
| Charging cable | EW-EC300 |
