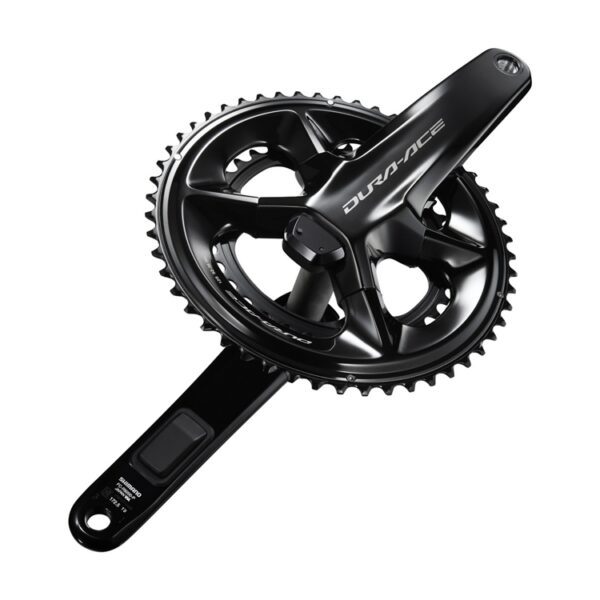

A vital tool for serious cyclists, the DURA-ACE FC-R9200-P power meter delivers reliable, waterproof, dual-sided power measurement. With a rechargeable battery and Bluetooth®LE and ANT+ connectivity, the FC-R9200-P is a user-friendly training partner.
The DURA-ACE FC-R9200-P power meter brings everything a data-driven cyclist could want. Its integrated, waterproof design brings all-weather reliability while delivering accurate information including left/right balance. A rechargeable Li-ion battery is user-friendly and Bluetooth®LE and ANT+ connectivity ensure easy setup
FEATURES

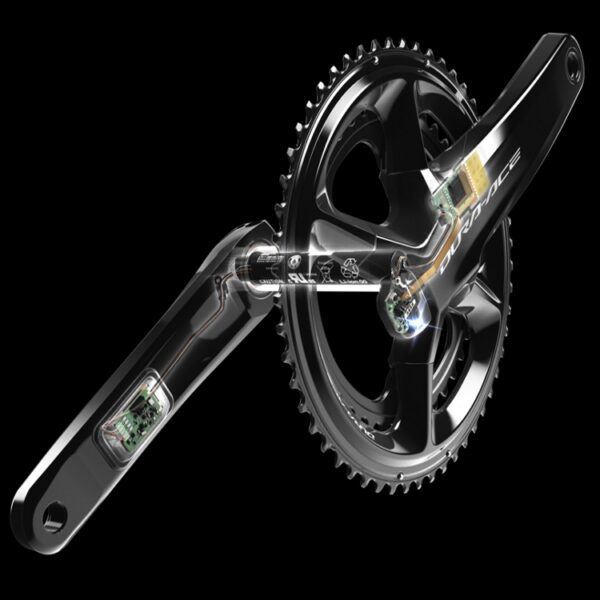

- Integrated, waterproof, and rechargeable Li-ion battery
- Up to 300+ hours of ride time * Depending on ANT+/Bluetooth®LE settings
- Accurate data collection
- < 1.5% strain gage accuracy throughout the entire calibration range * Depending on ANT+/Bluetooth®LE settings

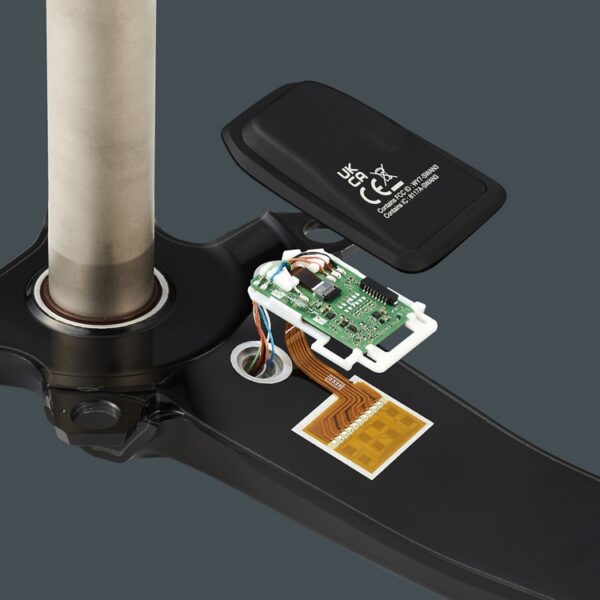

- Proprietary strain gauge
- Possible to start quickly
- Simple zero offset calibration with switch on transmitter
- Active temperature compensation
- Software automatically compensates for temperature changes

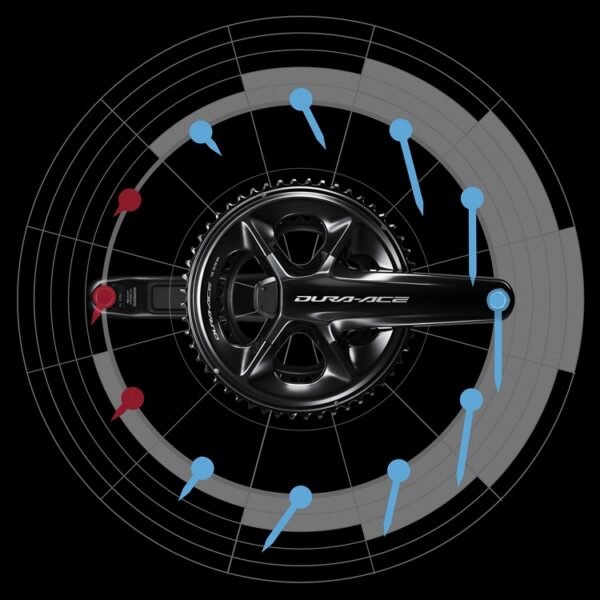

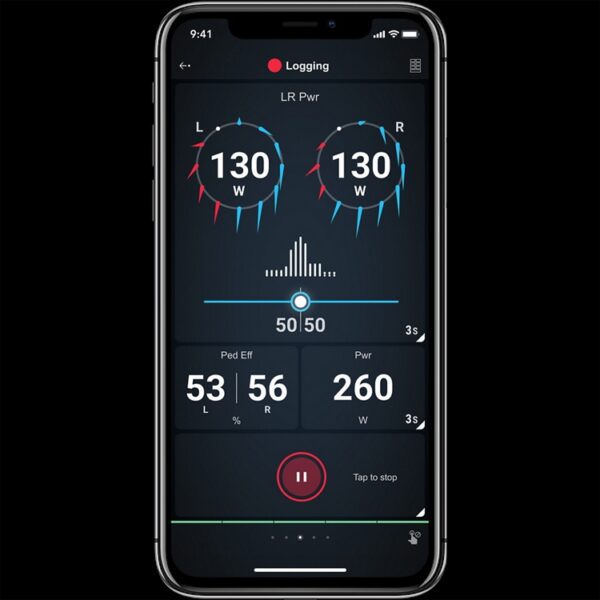

- The provision of new force vector data makes it the optimal training tool to analyze and improve pedal stroke efficiency
- With SHIMANO CONNECT Lab, you can analyze and visualize your training and power data
PRODUCT SPECIFICATIONS
MODEL NO | FC-R9200-P |
---|---|
SERIES | DURA-ACE R9200 Series |
Average weight | 745 (50-34T) 752 (52-36T) 774 (54-40T) |
Remarks | Crankset specifications not listed here are the same as FC-R9200 * w/o chainrings Chemistry: Li-ion Rated voltage: 3.7 V Rated capacity: 0.66 Ah Rated capacity: 2.442 Wh |
Chainring combination | 50-34T, 52-36T, 54-40T, w/o chainrings |
---|---|
Crank arm length (mm)|160 | ✔ * |
Crank arm length (mm)|165 | ✔ (50-34T, 52-36T, w/o chainrings) |
Crank arm length (mm)|167.5 | ✔ * |
Crank arm length (mm)|170 | ✔ |
Crank arm length (mm)|172.5 | ✔ |
Crank arm length (mm)|175 | ✔ |
Crank arm length (mm)|177.5 | ✔ * |
Force measurement|Right side | ✔ |
Force measurement|Left side | ✔ |
Force measurement|Number of strain sensor | 24 |
Cadence measurement|Magnet | ✔ |
Accuracy (%) | ±1.5 |
LED for system status | ✔ |
Number of control button | 1 |
Zero offset|By control button | ✔ |
Zero offset|By device | ✔ |
Active temperature compensation | ✔ |
Battery|Type|Lithium ion | ✔ |
Battery|Life | 270 h |
Battery|Charging port | ✔ |
Battery|Charging cable | EW-EC300 |
Firmware update by E-TUBE PROJECT | ✔ |
Di2 connectivity wireless|Bluetooth® LE|Cycling power | ✔ |
Di2 connectivity wireless|ANT+ |Bicycle power | ✔ |
Di2 connectivity wireless|Bluetooth® LE custom (*1)|Compatible with E-TUBE RIDE | ✔ |
Di2 connectivity wireless|Bluetooth® LE custom (*1)|Compatible with E-TUBE PROJECT | ✔ |
SD50 port (pcs) | 0 |
SD300 port (pcs) | 0 |
SD50 connector (pcs) | 0 |
SD300 connector (pcs) | 0 |
