Product Description

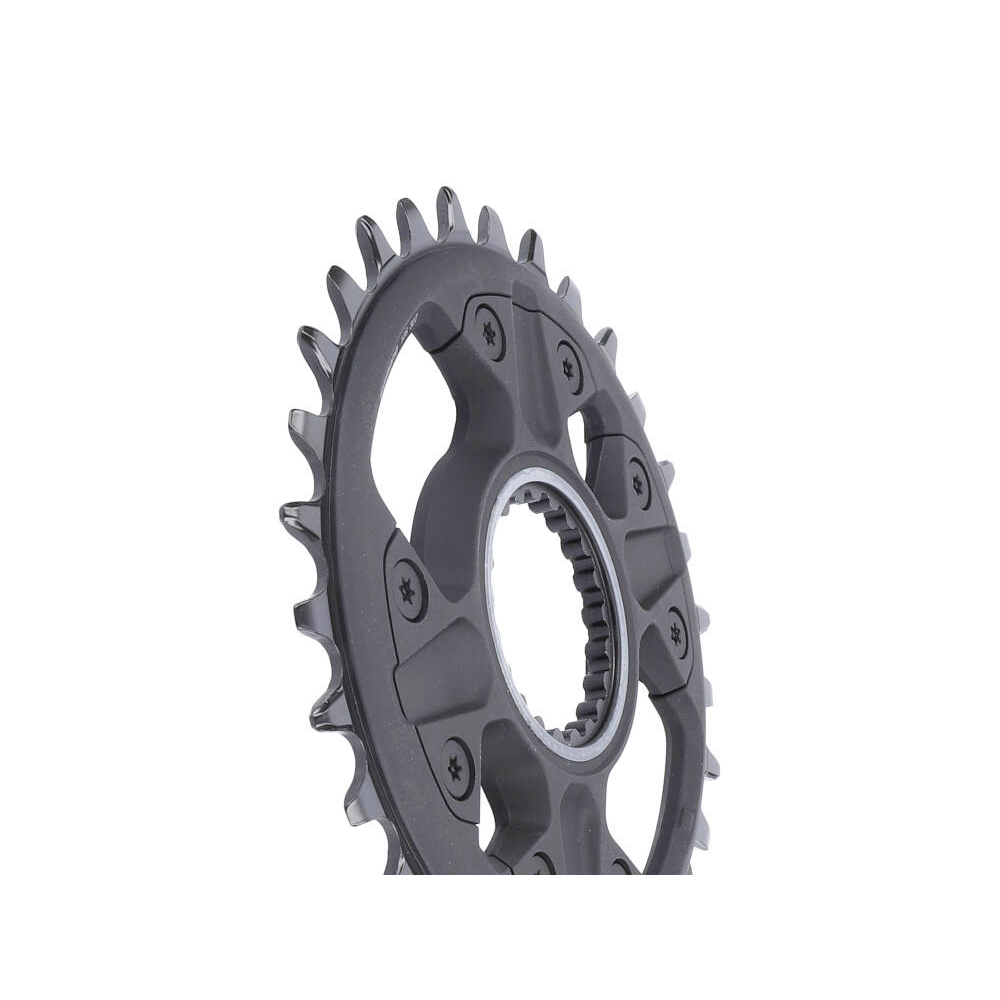

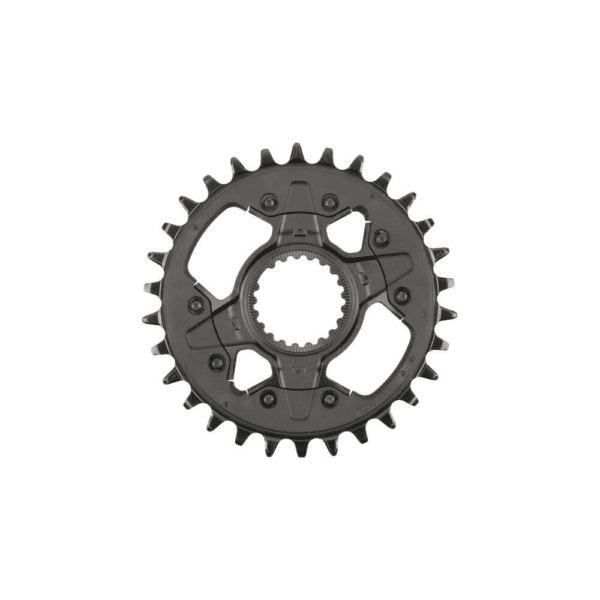

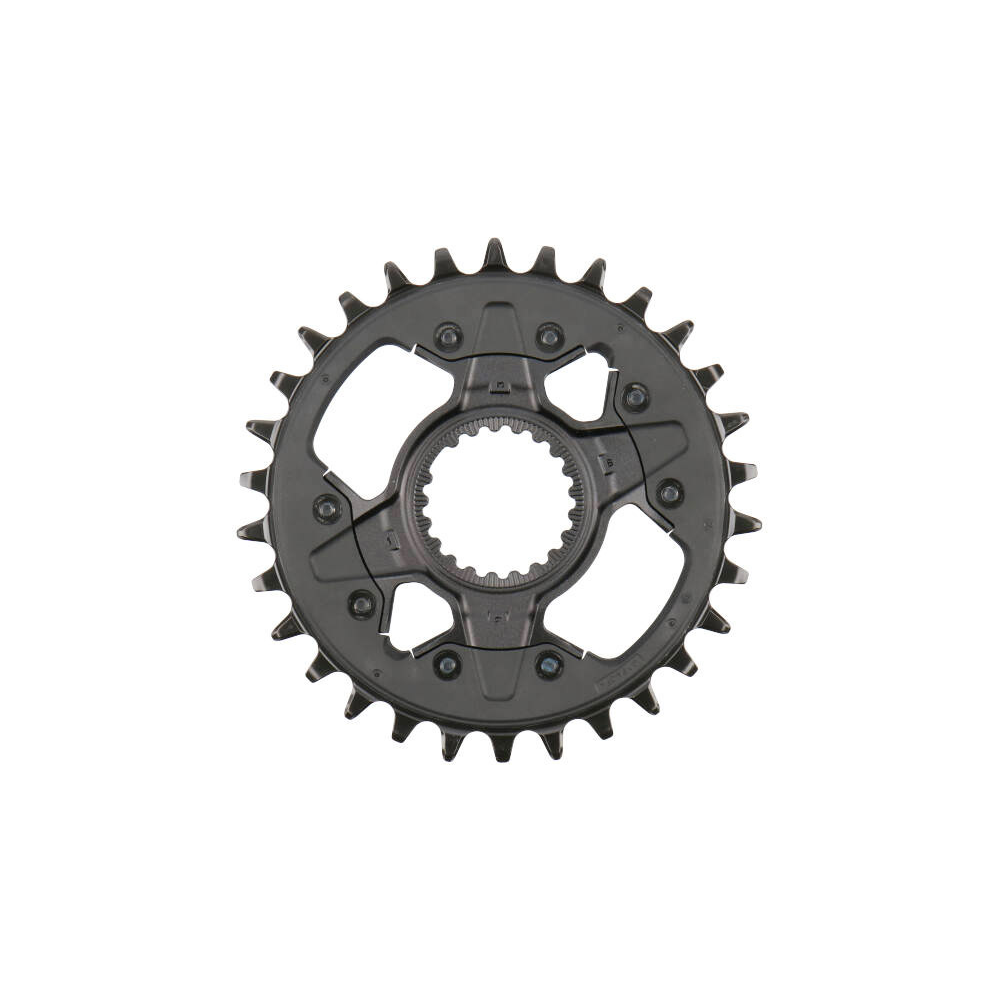

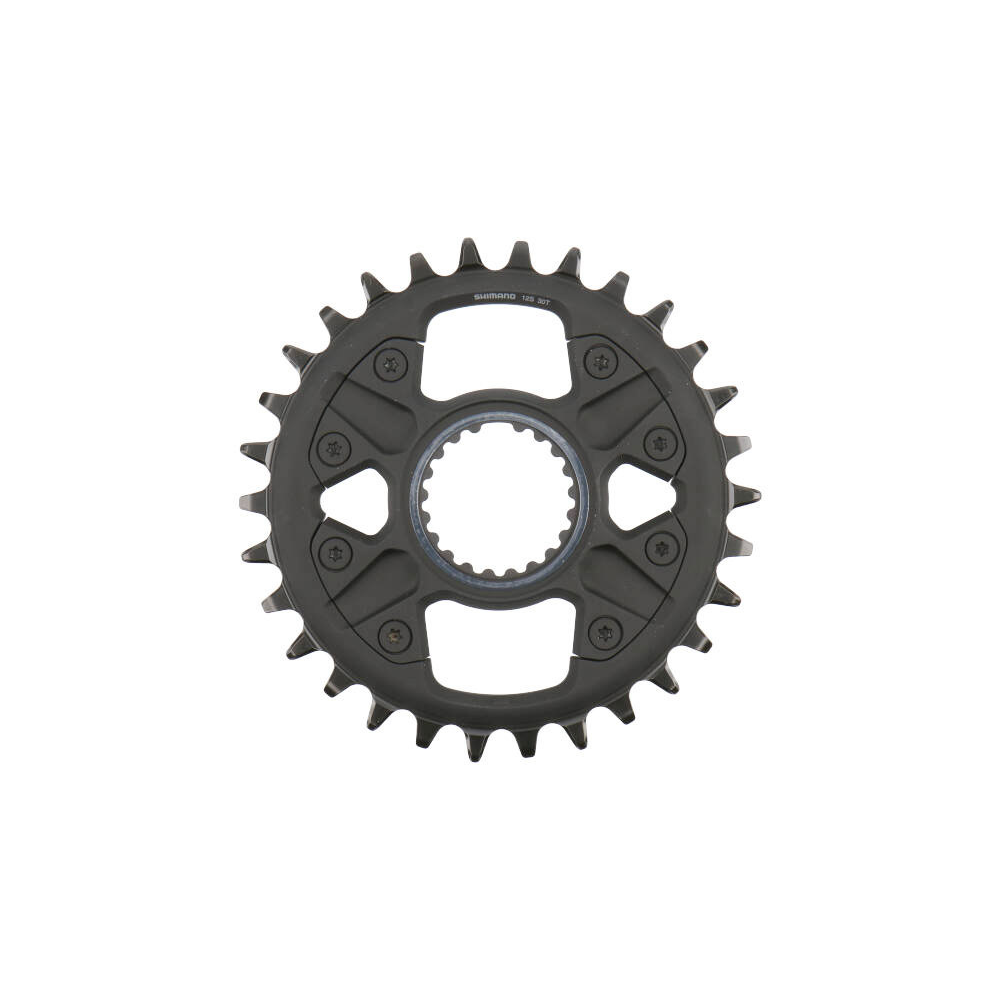

The Deore 12-speed direct mount chainring for FC-M6100 series 1x MTB cranksFeatures-Compatible with Deore FC-M6100-1, FC-M6120-1, FC-M6130-1 cranks-Crafted with aluminum for weight savingsItem Specifications-Color:Black-Tooth Count:32-Round or Oval:Round-Drivetrain Speeds:12-Material:Aluminum-Defined Color:Black-Direct Mount Type:Direct Mount
- Compatible with Shimano Deore FC-M6100-1, FC-M6120-1, FC-M6130-1 cranks
- Crafted with aluminum for weight savings
- Round or Oval: Round
- Drivetrain Speeds: 12
- Material: Aluminum
The Shimano DEORE FC-M6100 1×12-speed crank with 172 mm Q-factor, 52 mm chainline and 142 / 148 mm O.L.D stands for highest drive efficiency. It offers optimum power transmission and maximum speed for the new DEORE system, which only use 1 chainring (no box packaging).
Formed from the same DNA as its big siblings: DEORE 1×12-speed Crank FC-M6100-1 from Shimano
Molded from the same DNA as XTR, DEORE XT and SLX, the new M6100 series delivers Shimanoโs proven 12-speed technologies at DEORE level.
In addition to a new special 12-speed chain (CN-M6100) with the corresponding new 12-speed QUICK LINK lock, SHIMANO is also equipping the DEORE M6100 with new cranksets for 12-speed (FC-M6100/6120/6130-1). Most of them use 1-speed systems.
The sleek metallic color shift DEORE crankset comes in single-only (1×12) configuration for drivetrain simplicity. It features the same Dynamic Chain Engagement+ technology as XTR, DEORE XT and SLX cranksets, which with its narrow/wide tooth profile is key to the improved chain retention, smoothness and quietness of the drivetrain. For secure and fast mounting of the chainring, the crank is equipped with a direct mount system, making chainring changes a breeze.
Features – Shimano DEORE FC-M6100-1 12-speed Crank | 32T
- FC-M6100-1 Q-Factorย 172mm
- Chain lineย 52mm
- O.L.Dย 142mm / 148mm (Boost)
- Compatibilityย 1×12-speed with CS-M6100 cassette 10-51
- Mounting systemย Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
Product features
- Use:ย MTB
- Group:ย DEORE M6100
- Model:ย FC-M6100-1
- Gradation:ย 32T
- Q-Factor:ย 172mm
- Threaded BB shell width:ย 68 / 73mm
- Gear rear:ย 12-speed
- Construction:ย 2-Piece
- Compatible Chain:ย CN-M6100 12-speed
- Crank arms:ย 4 arm
- O.L.D:ย 142mm / 148mm (Boost)
- Chain line:ย 52mm
Crank arm length (choose variant)
- 170mm
- 175mm
Material
- Crank arm:ย Aluminum Anodized
- Crank axle:ย Steel Plated
Technology
DYNAMIC CHAIN ENGAGEMENT+
SPECIAL GEAR TEETH FUNCTION SHIMANOโs DYNAMIC CHAIN ENGAGEMENT+ is a special gear teeth profile designed for use in single-chainring configurations for XC, enduro, and trail riding. It gives more chain retention and smoother pedaling – even over bumpy terrain. Chain retention of any gear will reduce abrasion and worn out.
Shimano’s 12-speed DEORE M6100
SHIMANO INC.
3-77 Oimatsu-cho, Sakai-ku, Sakai-shi
590-8577 Osaka
Japan
https://www.shimano.com
Shimano Europe BV
High Tech Campus 92
NL-5656 Eindhoven
Netherlands
