Shimano Bottom Bracket Bsa 117.5/68mm Bb-un300 Square
AED69.00
Only 2 left in stock
Easy Return/Exchange
Fast Delivery
100% Secure Payment

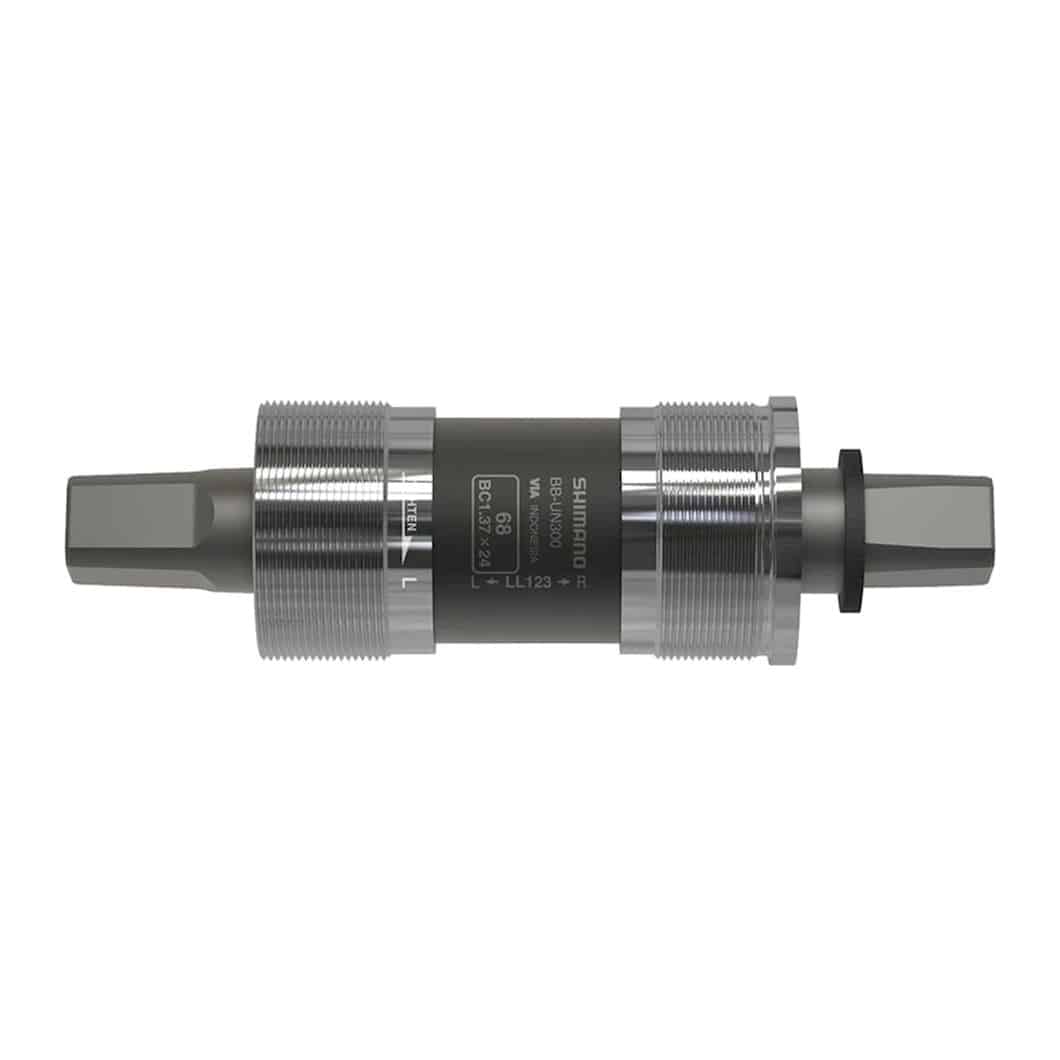

Shimano BB-UN300 square-taper cartridge bottom bracket for 68 mm BSA shells with a 117.5 mm spindle (EBBUN300B17X).
- One-piece cartridge — no adjustment needed
- Fits square-taper (JIS) cranks
- Crank fixing bolts not included
The Shimano BB-UN300 is a square-taper cartridge bottom bracket — the one-piece unit that most city bikes, hybrids, kids’ bikes and entry-level mountain and road bikes are built around. This version fits a 68 mm BSA (English-thread) shell with a 117.5 mm spindle.
The bearings sit inside the cartridge, so there is nothing to adjust: thread it in, fit your cranks and ride. When the old one starts to creak, grind or feel loose, replacing the whole cartridge is the standard fix. Shimano also builds a chain line stabiliser into the design for steadier chainline.
Check these before you order
- Shell: 68 mm wide, BSA / English thread. It does not fit Italian-thread, press-fit or 73 mm shells.
- Spindle length: 117.5 mm. Match the length on your old bottom bracket (it is usually printed on the cartridge) — the wrong length moves your chainline and can stop the front shifting working properly.
- Cranks: square-taper (JIS) only. Not for Hollowtech II, Octalink or other splined cranks.
- Crank fixing bolts are not included.
Not sure which length you have? Send us a photo of your old bottom bracket on WhatsApp and we will check it for you.
Who it is for
- Riders replacing a worn bottom bracket on a square-taper crank bike
- Home mechanics and workshops servicing city, hybrid and kids’ bikes
- Anyone whose old cartridge is marked 68 × 117.5
Full specifications are listed in the Information tab.
Not published for this exact code on the pages we checked: Shimano’s weight and the bearing seal type. Ask us if you need either.
Questions people ask
Does it come with crank bolts?
No. It is supplied without crank fixing bolts — reuse your old ones if they are in good condition, or ask us for a pair.
How do I know which spindle length I need?
Read the markings on your old cartridge (for example “68-117.5”) or measure the spindle tip to tip. Keep the same length unless a mechanic has told you otherwise — it sets your chainline.
Will it fit my mountain bike?
Only if the frame has a 68 mm BSA shell. Many mountain bike frames use 73 mm shells, which need a different version.
Can you fit it for me?
Yes. Fitting needs a crank puller and a splined bottom bracket tool — our Dubai workshop can do it while you wait for most bikes.
What is the Shimano code?
EBBUN300B17X, EAN 4550170619220.
Talk to us
| Weight | 0.35 kg |
|---|---|
| Dimensions | 14 × 8 × 8 cm |
| Brand | Shimano |
| Product Type | Square taper bottom bracket |
| Model Code | BB-UN300 |
| Shell Standard | BSA (English thread) |
| Shell Width | 68 mm |
| Spindle Length | 117.5 mm |
| Crank Interface | Square taper (JIS) |
| Construction | Cartridge |
| Adapter Material | Aluminium |
| Crank Bolts | Not included |
| Manufacturer Code | EBBUN300B17X |
