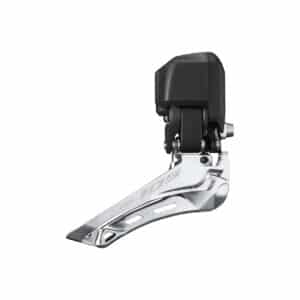

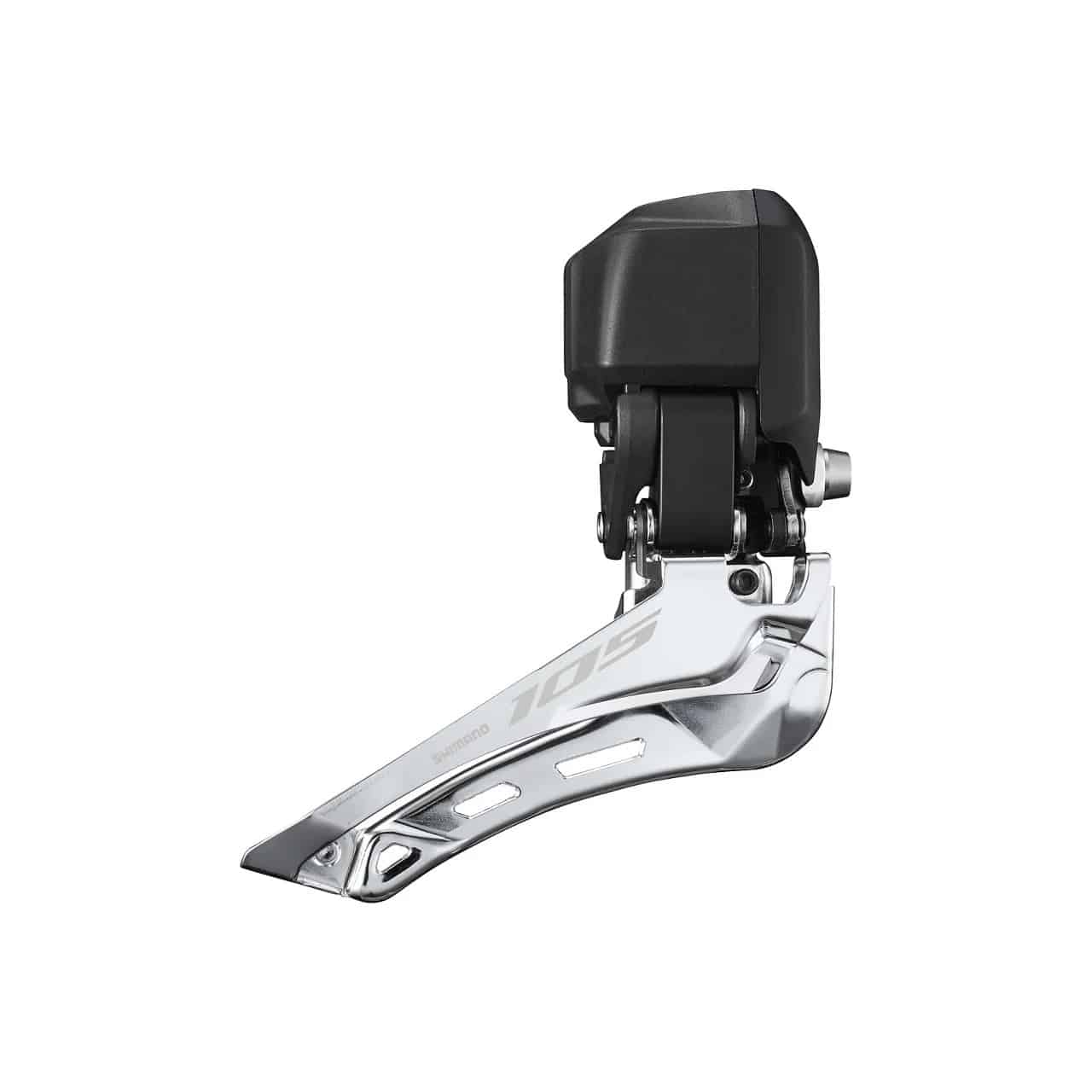

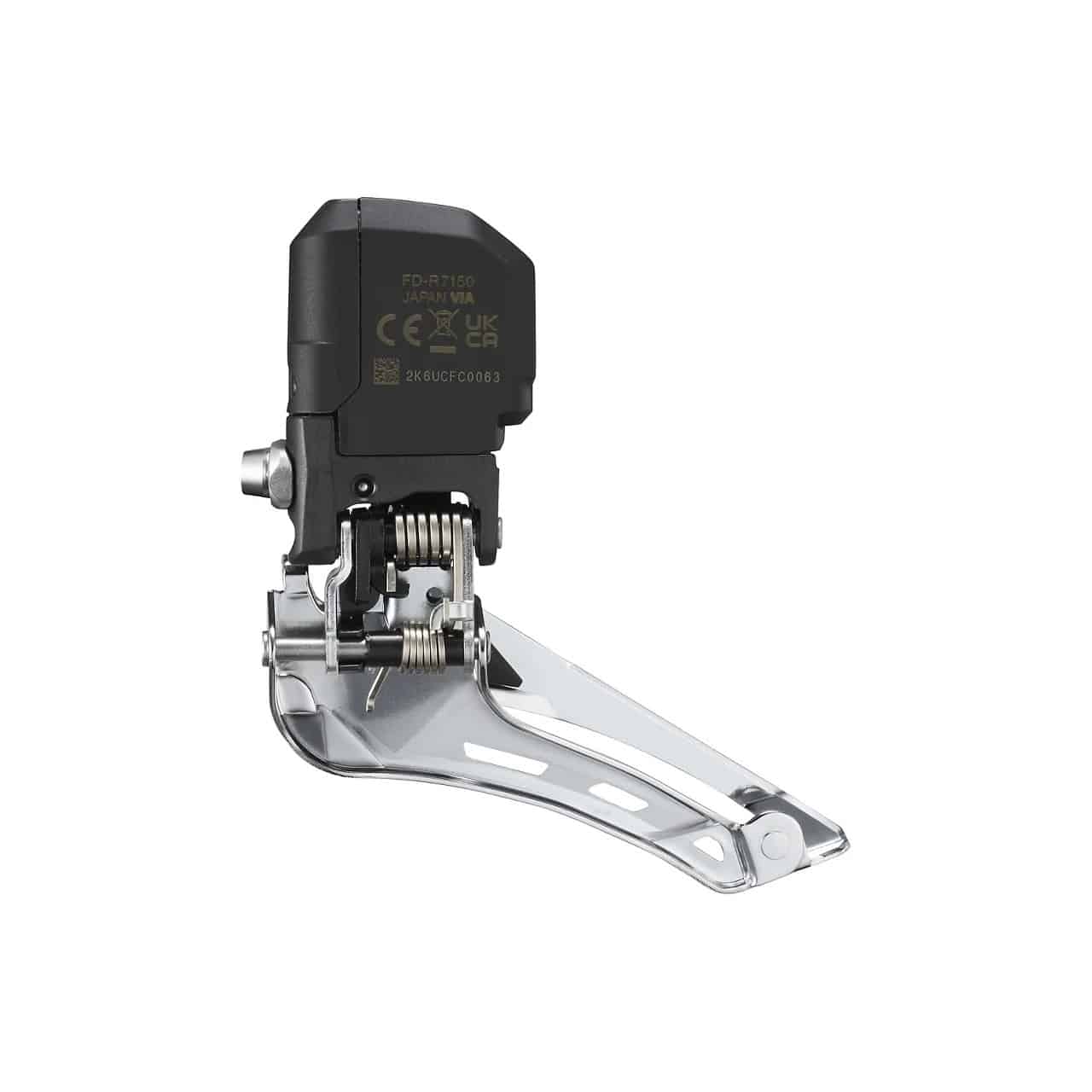

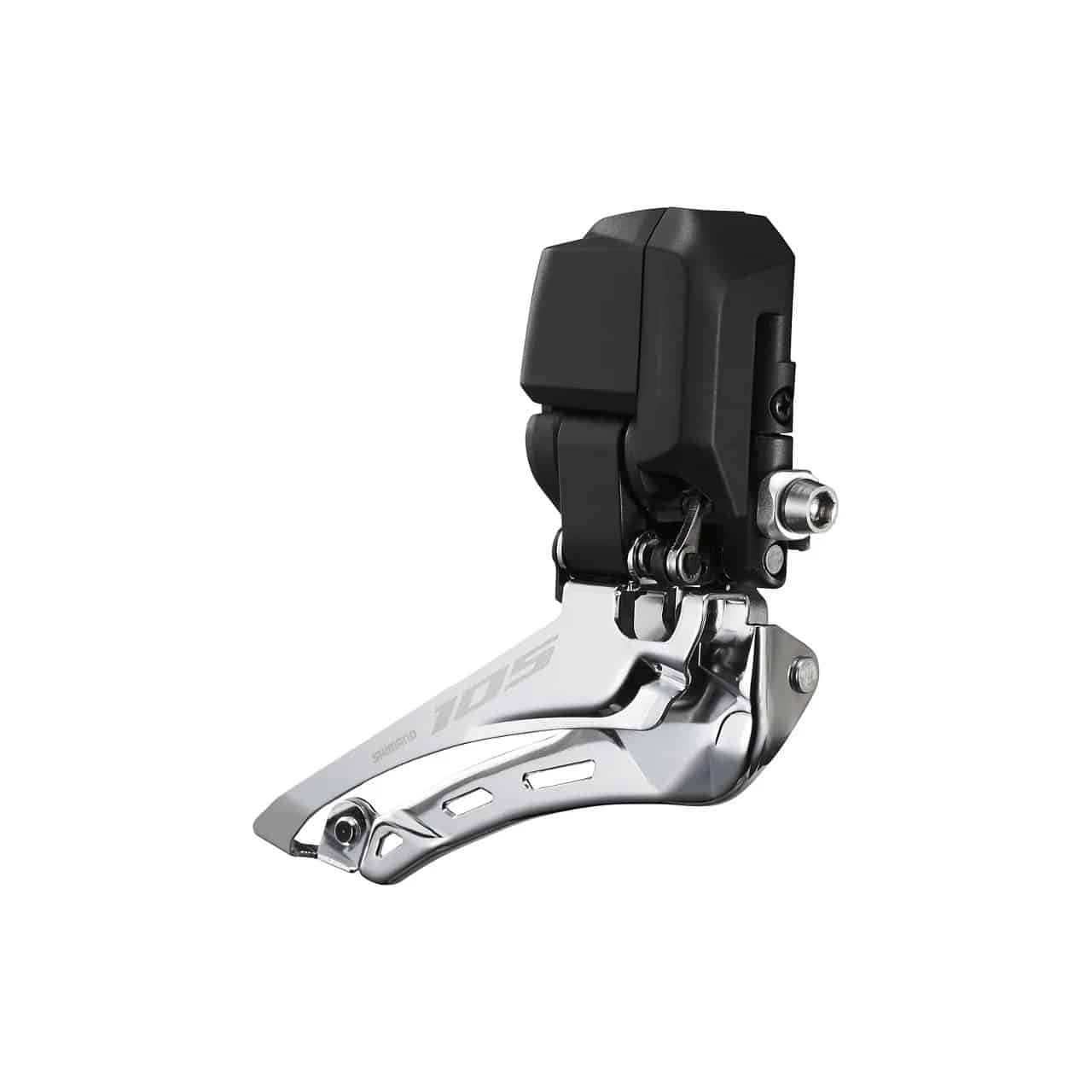

Shimano 105 Front Derailleur Double Di2 Fd-r7150
Original price was: AED459.00.AED367.00Current price is: AED367.00.
In stock
Easy Return/Exchange
Fast Delivery
100% Secure Payment
The electronic front derailleur for Shimano’s 12-speed 105 Di2 groupset, with automatic trim and Synchronized Shift through the E-TUBE app.
- 2 × 12-speed, braze-on, down swing
- Top gear 50–52T, 16T capacity, 44.5 mm chainline
- Needs a BT-DN300 battery and EW-SD300 cable (not included)
The Shimano 105 Di2 FD-R7150 is the electronic front derailleur for Shimano’s 12-speed 105 Di2 groupset. Shimano says Di2 lets you shift between the big and small chainrings whenever you like while minimizing the risk of a dropped chain, and you can shift at the rear without trimming the front derailleur to avoid chain rub.
It is part of Shimano’s semi-wireless system: the derailleur is wired to the Di2 battery with an EW-SD300 cable, while the ST-R7170 shifters shift wirelessly. In the E-TUBE app you choose manual, semi-synchronized or fully synchronized shifting, so on the long drag up Jebel Hafeet or a fast group ride at Al Qudra you can leave the front shifts to the system and keep your eyes on the road.
Check these before you order
- Di2 system: it only works in a Shimano 12-speed road Di2 setup. It needs a BT-DN300 Di2 battery and an EW-SD300 electric wire (choose the length for your frame). Neither is included.
- Shifters: Shimano 105 Di2 ST-R7170 levers shift wirelessly; the ST-R7170 left lever controls the front derailleur.
- Mount: braze-on, for frames with a front derailleur mounting boss. Frames without a boss need a band adapter (not included).
- Chainrings: top gear 50–52T with a 16T total capacity, so 50-34T or 52-36T doubles such as the Shimano 105 FC-R7100 52-36T crankset. Use a Shimano HG 12-speed chain.
- Not on Di2? For mechanical 12-speed 105, choose the mechanical 105 FD-R7100.
Not sure it fits your frame? Send us the bike model on WhatsApp +971 50 254 5363 and we will check.
What makes it work
Made for 2 × 12 road doubles
Top gear 50–52T, 16T total capacity and a 44.5 mm chainline, matched to Shimano’s 12-speed road double cranksets.
Automatic trim
Shimano’s programmed chain guide control trims the cage for you, so rear shifts don’t need a front adjustment to stop chain rub.
One cable, firmware updates
A single E-TUBE SD300 port wires it to the battery, and its firmware updates through Shimano E-TUBE PROJECT.
Three ways to shift
- Manual: the left lever shifts the front derailleur and the right lever shifts the rear, as on any Di2 system.
- Semi-Synchronized Shift: you shift the front, and the rear derailleur adjusts automatically to avoid a big jump in gearing.
- Synchronized Shift: you only use the rear shift buttons, and the front derailleur picks the chainring based on the rear derailleur’s position.
You switch between them in Shimano’s E-TUBE app.
Who it is for
- Riders building or upgrading to a Shimano 105 Di2 2 × 12 groupset
- Riders replacing a worn or damaged FD-R7150 on a 105 Di2 road, TT or triathlon bike
- Anyone on 12-speed Shimano road Di2 who wants synchronized front shifting
Setting up Di2 needs Shimano’s TL-EW300 tool for the cable plugs and the E-TUBE app for adjustment and firmware. If you would rather not do it yourself, message us about fitting.
All technical details (mount, chainring range, capacity, chainline, chainstay angle, ports and Shimano code) are listed in the Information tab.
Specifications are Shimano’s for the FD-R7150, including the 142 g average weight. The materials row comes from retailer data, not Shimano. The weight in the Information tab is the value we use for shipping.
FAQ
Does it work with mechanical shifters?
No. It needs Shimano 12-speed road Di2 shifters such as the 105 Di2 ST-R7170 and a BT-DN300 battery. For a mechanical 12-speed 105 bike, choose the mechanical 105 FD-R7100.
Are the battery and cable included?
No. The box contains the front derailleur only. You also need a BT-DN300 Di2 battery and an EW-SD300 electric wire in the right length for your frame.
Will it fit my frame?
It is a braze-on derailleur for frames with a front derailleur mounting boss, designed for a chainstay angle of 61–66°. Frames without a boss need a band adapter. Send us your frame model if you are unsure.
Which cranksets does it work with?
Shimano 12-speed road double cranksets with a 50–52T big ring and up to 16T between the rings, such as 50-34T or 52-36T. Use a Shimano HG 12-speed chain.
What is Synchronized Shift?
In Synchronized Shift you only use the rear shift buttons, and the front derailleur changes chainring automatically based on the rear derailleur’s position. You turn it on, or choose Semi-Synchronized or manual shifting, in the E-TUBE app.
Questions before you order?
This is the Shimano 105 Di2 FD-R7150 braze-on front derailleur, Shimano code IFDR7150F (EAN 4550170234263). Message us on WhatsApp +971 50 254 5363 or email info@bikeera.com and we will help you check compatibility.
| Weight | 0.25 kg |
|---|---|
| Dimensions | 25 × 15 × 10 cm |
| Brand | Shimano |
| Discipline | Road |
| Product Type | Electronic front derailleur (Di2) |
| Groupset | Shimano 105 Di2 (R7100 series) |
| Model Code | FD-R7150 |
| Speed | 2 × 12 |
| Mount | Braze-on (band adapter needed for frames without a boss) |
| Action | Down swing |
| Top Gear Teeth | 50–52T |
| Total Capacity | 16T |
| Chainline | 44.5 mm |
| Chainstay Angle | 61–66° |
| Compatible Chain | Shimano HG 12-speed |
| Shifting Modes | Manual, Semi-Synchronized Shift, Synchronized Shift |
| E-TUBE Port | 1 × SD300 (EW-SD300 cable) |
| Power | Wired to a BT-DN300 battery |
| Shifter Compatibility | Shimano 12-speed road Di2, e.g. 105 Di2 ST-R7170 (wireless shifting) |
| Link Bushings | 2 |
| Firmware | Updatable via Shimano E-TUBE PROJECT |
| Materials | Steel, aluminium and glass-fibre composite (retailer data) |
| In the Box | Front derailleur only (battery and EW-SD300 cable not included) |
| Reference Weight | 142 g (Shimano average) |
| Manufacturer Code | IFDR7150F |
