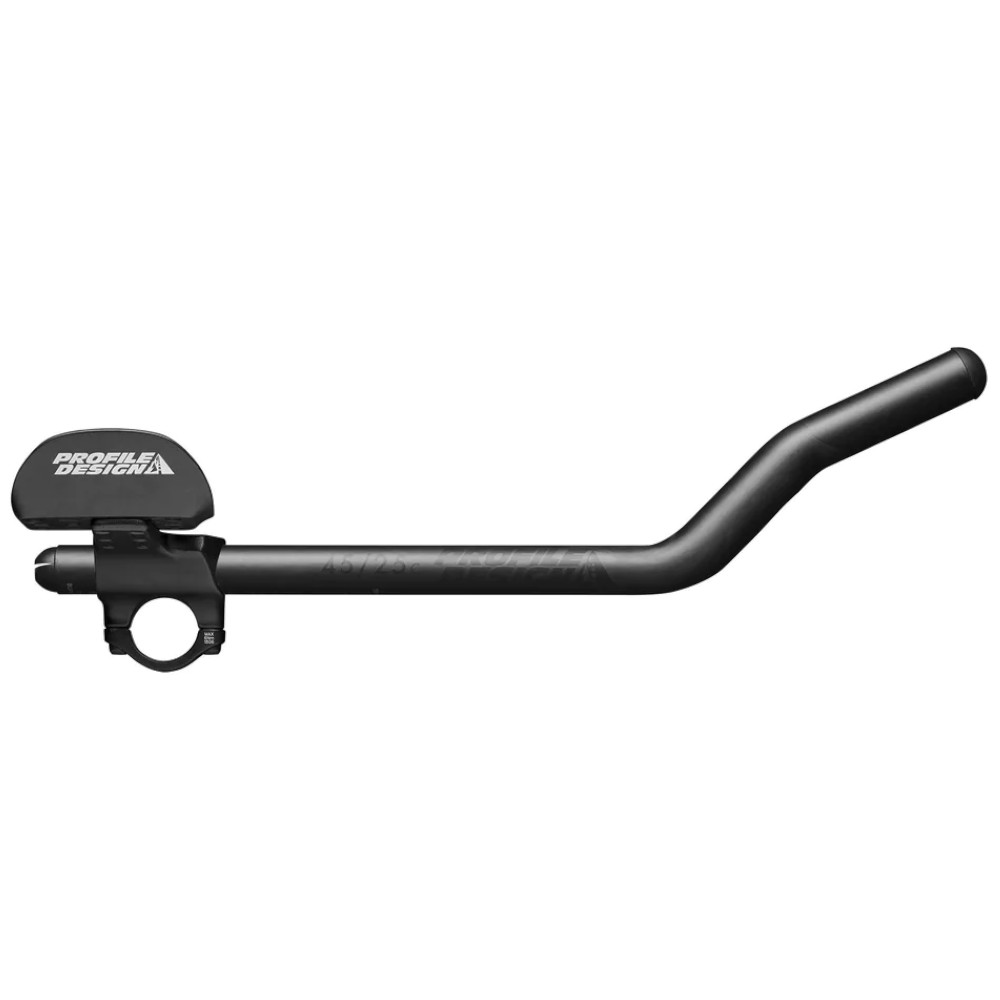

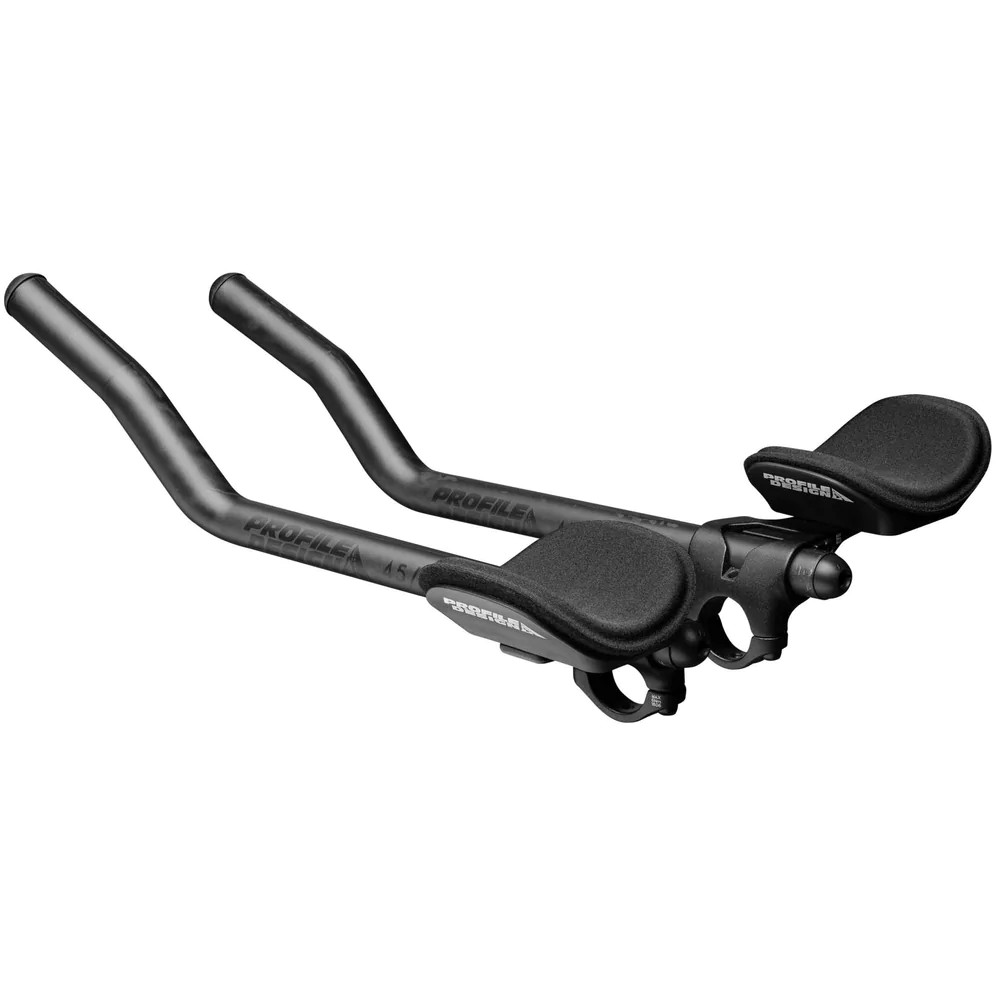

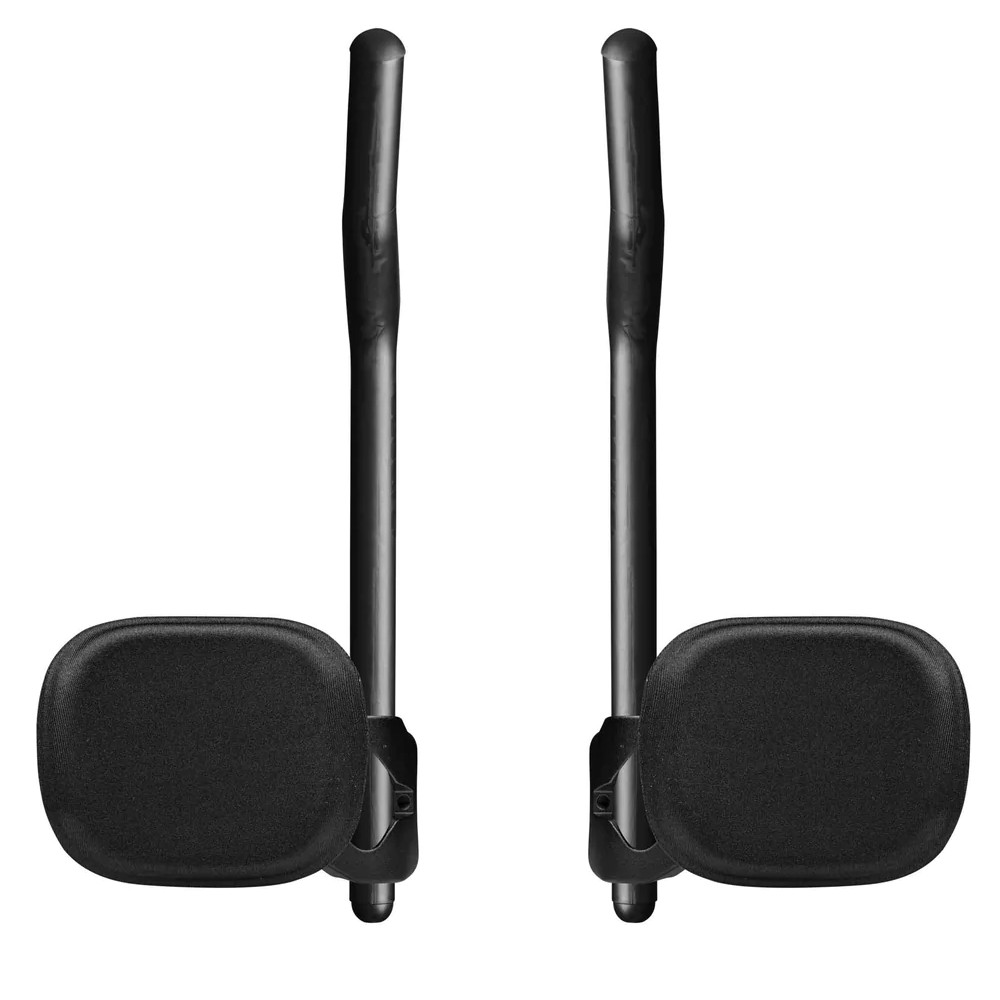

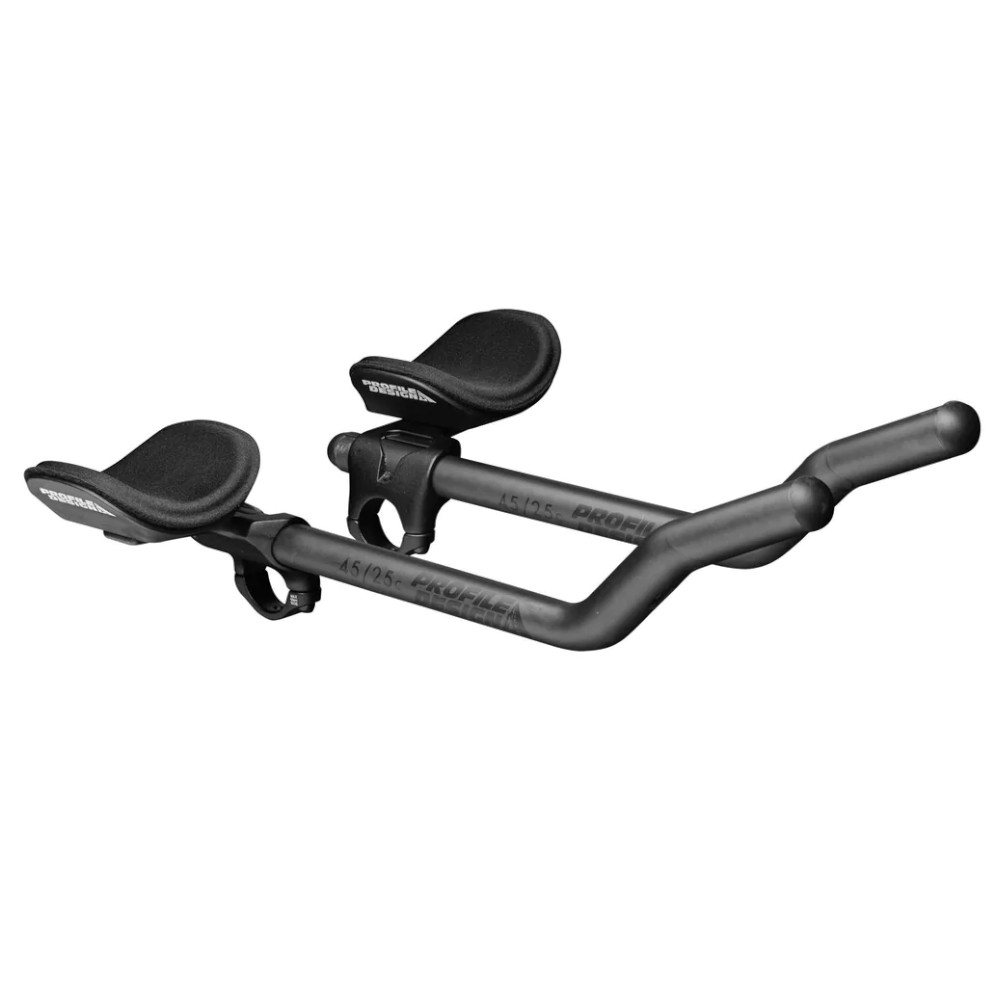

Profile Design Supersonic Ergo 4525c Aerobar

Brands: Profile Design
SKU: 723660008178 Category: Tag:

Profile Design Supersonic Ergo 4525c Aerobar

Brands: Profile Design

AED 1,029

Buy more than AED 150 and get free delivery!

Out of stock

Easy Return/Exchange

Fast Delivery

100% Secure Payment

Description

The Supersonic bracket (previously know as the J5) is the first and premier model of the new generation Profile Design brackets.  It offers easier adjustments and a greater fit range than anything that came before it.

Paring this bracket with the ergo aremrest offers industry leading fit options and greater comfort.

Performance

The Supersonic/Ergo platform is designed to give riders the freedom to find their best possible position with a huge range of independence adjustments.

Fit Data

  • Armrest Offset: -85mm to -17.5mm in 7.5mm steps
  • Armrest Width: 124mm to 290mm in 18.5mm steps (With Extensions at 100mm)
  • Armrest Stack: 58.5mm (no riser kit) to 138.5mm in 5mm increments (With aftermarket Riser Kit)

There are 80 distinct position options achievable just by moving the armrests.  Combine that with risers and this bar offers 1440 possible configurations.  As a clip on bar it is also possible to adjust the extension width and tilt easily.

Orgin

The supersonic was the first of our generation brackets – resulting from careful analysis of the way riders use their aerobars and the adjustments that need to be made.

The Ergo armrest is an integrl part of the overall adjustability scheme.  The  dual – offset design (shared with Race and Boom armrest) gives the most precise adjustment range of any armrest on the market.  This, along with the evenly curved shape, allows it to work well for the majority of riders.

Extensions

  • Extension Shape: The 4525c extensions offer a 45 deg lower and 25 deg upper section with a 7.5mm lateral shift per side.  This allows the rider to choose between a low, short reach position or a high hands, stretched position for aerodynamics.  They are 400mm long and can be cut to suit nearly every rider.  They are drilled for rear-exit cable routing.

Information
Weight 1.40 kg
Dimensions 25 × 15 × 75 cm
