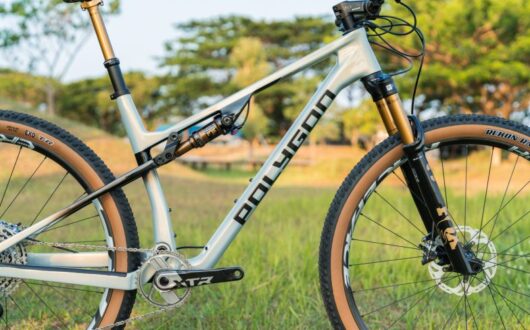

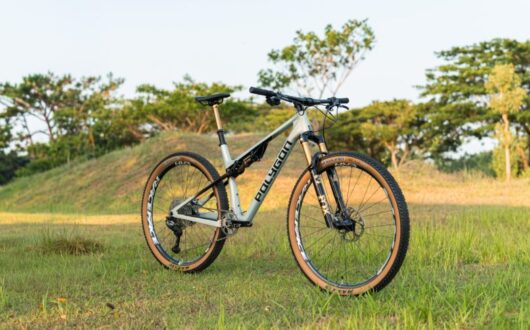

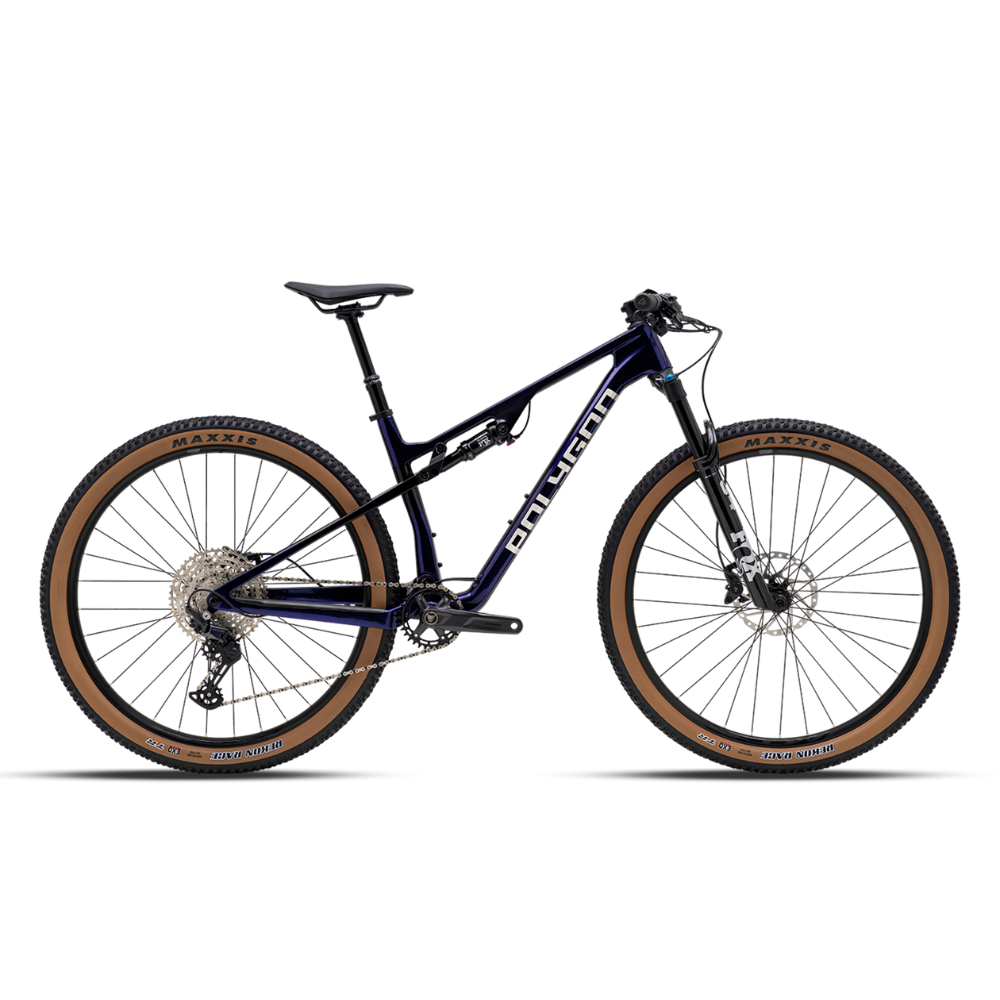

Cross-country racing isn’t what it used to be—and neither is the Syncline. The new 2026 Syncline DR6 XC full sus carbon MTB takes everything we’ve learned from years of UCI racing and builds it into a carbon full-suspension machine made for the speed, precision, and intensity of modern XC. It’s your edge. For race day. For every day. For the chase.
Features





Fast but Composed
With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control — staying smooth through roots, planted in rock gardens, and precise in switchbacks.
No Watt Wasted

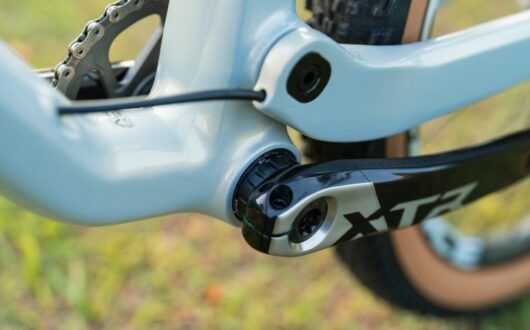

Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis and a threaded BSA73 bottom bracket for maximum stiffness and easy service.
Locked in Precision
Sleek internal routing keeps things quiet, while a 12x148mm Boost thru-axle and UDH hanger deliver rock-solid drivetrain stability when you’re battling for position and precise shifting under pressure.
Traction, Wherever You Need It
From rocky climbs to muddy sprints, with 29×2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control.
Geometry Made for Modern XC
With modern geometry and a 4-bar flex-stay suspension platform, the Syncline DR is built to take on today’s increasingly demanding XC courses.
| Weight | 16 kg |
|---|---|
| Dimensions | 175 × 25 × 60 cm |
| Size |
S ,M ,L ,XL |
| Wheel Size |
29" |
| Color |
Blue |
| Fork |
FOX 34 SL PERFORMANCE SERIES 120mm TRAVEL |
| Rear Shock |
FOX FLOAT SL PERFORMANCE ELITE SERIES, E2E: 165x40mm |
| Shifter |
SHIMANO DEORE M6100, 1×12 SPEED |
| Crank |
SHIMANO MT512, 32T |

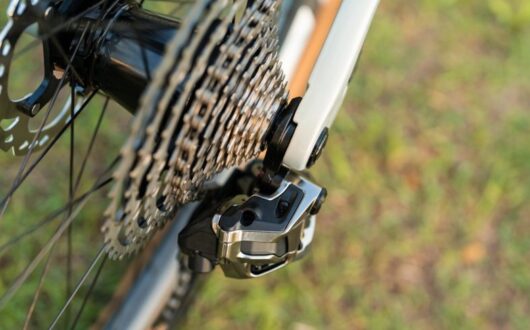

| Rear Derailleur |
SHIMANO DEORE M6100 |
| BB |
SHIMANO BSA BB |
| Chain |
KMC X-12 |
| Pedal |
ALLOY FLAT W/ REPLACEABLE PIN |
| Saddle |
FIZIK TERRA ARGO X7, CR-MO ø 7mm |
| Seatpost |
TRANZ-X JD-YSP23J 125mm TRAVEL, DxL: 31.6x412mm |
| Handlebar |
POLYGON EXPERT, W: 760mm, BB: 31.8mm, R/D: 5mm, B: 9degree |
| Handlestem |
POLYGON EXPERT, E: 70mm, BB: 31.8m, R/D: -17degree |
| Wheel Set |
POLYGON MT6 TUBELESS READY |
| Rim |
ALLOY DOUBLE WALL H:18mm W: 29mm 622-29 32H FOR TYRE 622-54/76 TL READY |
| Brake Lever |
SHIMANO DEORE M6100 |
| Rotor |
SHIMANO RT64, R:160mm / F:180mm |
