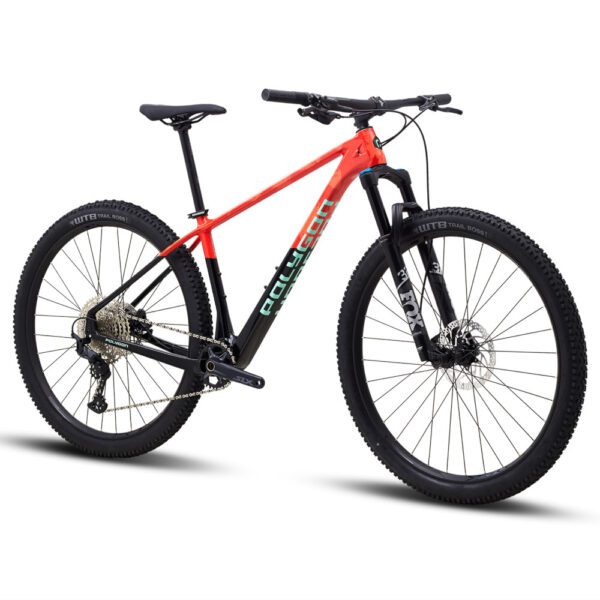

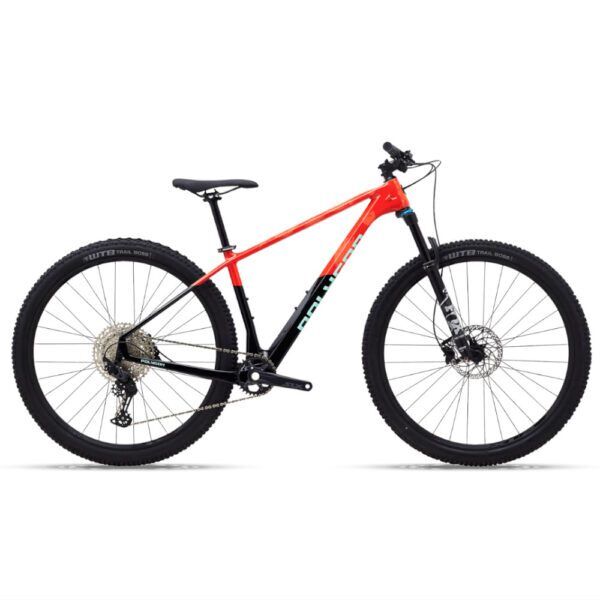

Polygon Syncline C5
Easy Return/Exchange
Fast Delivery
100% Secure Payment
SEIZE THE JOURNEY
DEVOTED FOR PRO CROSS-COUNTRY RACERS TO TRAIL SEEKERS
Designed as a top performing XC trail machine with modern geometry. Featuring an ultra light and stiff carbon frame designed around 27.5” and 29″ wheels, this bike will keep you rolling on cross country to technical tracks smoothly with style. This is for you, trail seeker. Whether you are looking for fun off-road riding or cross-country enthusiast striving for podiums, get ready to cross every boundary and seize your own journey.
DEVOTED FOR PRO CROSS-COUNTRY RACERS TO TRAIL SEEKERS
FEATURES
Excellent acceleration for an aggressive ride
Comes with a slack head tube angle and short chainstay, Syncline C takes you to have an excellent acceleration and the best performance on switchback turns. Along with the reliable hydraulic disc brakes, you are in control.
Easier shift, better experience
There’s more in less. The biggest advantage from a 1x drivetrain is it lets you to focus on your ride, instead of constantly adjusting gears. Now you can have more and better experience on trails.
Designed for riders
Built with adaptive carbon frame, Synline C gives you a better pedaling efficiency and riding feel. The journey is yours.
Enjoy a steady steering
Less flex for excellent front-end control with its tapered head tube design
Reliable for an extreme ride
Accompanied with a responsive suspension that can be adjusted in various conditions and a resilient braking efficiency for any extreme use.
| M (29”) | L (29”) | L (29”) | |
| Height (cm) | 162-175 | 172-185 | 172-185 |
| Seat Tube Length (A) | 420 | 460 | 500 |
| Seat Tube Angle (B) | 73 | 73 | 73 |
| Effective Seat Tube Angle (C) | 75.3 | 75.3 | 75.5 |
| Head Tube Length (D) | 100 | 120 | 140 |
| Head Tube Angle (E) | 67 | 67 | 67 |
| Effective Top Tube (F) | 597.7 | 621 | 649.15 |
| Bb Height (G) | 307.5 | 307.5 | 304.5 |
| Bb Offset (H) | 65 | 65 | 65 |
| Chainstay Length (I) | 435 | 435 | 435 |
| Wheelbase (J) | 1149.5 | 1176.9 | 1204.76 |
| Frame Reach (K) | 430 | 450 | 470 |
| Frame Stack (L) | 633.2 | 651.6 | 670 |
| Standover Height (M) | 730.8 | 763.7 | 779.2 |
| Color | Red Black |
|---|---|
| Size | 29X425 M, 29X460 L, S 27.5X385, S, M, L, XL |
| Brand | Polygon |
| Frameset | ACX XC PERFORMANCE |
| Fork | FOX 32 RHYTHM, 120mm |
| Shifter | SHIMANO SLX SL-M7100-R 12-SPEED TRIGGER |
| Crank | SHIMANO SLX FC-M7100-1 32T 2-PIECE-CRANK |
| Cassette | SHIMANO DEORE CS-M6100 12-SPEED 10-51T MICRO SPLINE |
| Rear Derailleur | SHIMANO SLX RD-M7100-SGS DIRECT ATTACH |
| BB | SHIMANO BB-MT500-PA |
| Chain | KMC NEW X-12 |
| Pedal | ALLOY CAGE PEDAL W/ REFLECTOR |
| Saddle | ENTITY VOID SADDLE |
| Seatpost | ENTITY XPERT, 27.2x350mm |
| Handlebar | ENTITY XPERT, W: 740mm, BB: 31.8mm, R/D: 12mm, B: 9degree |
| Handlestem | ENTITY XPERT, EXT: 60mm, BB: 31.8mm, R/D: 7degree |
| Headset | INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6, IS 52/40 |
| Wheel Set | ALLOY DOUBLE WALL |
| Wheel Size | 29 |
| Tire | WTB TRAIL BOSS TIRE, 27.5×2.25 / 29×2.25 |
| Rim | 584-30 / 622-30 32H FOR TYRE 584 / 622-54/76 TUBELESS READY |
| Brake Lever | SHIMANO MT400 HYDRAULIC DISC BRAKE |
| Brake Caliper | SHIMANO MT400 HYDRAULIC DISC BRAKE |
| Rotor | FRONT:180mm REAR:160mm CENTER-LOCK |
| Bike Type | Hard Tail |
