UNBRIDLED POWER
Features
Always in control

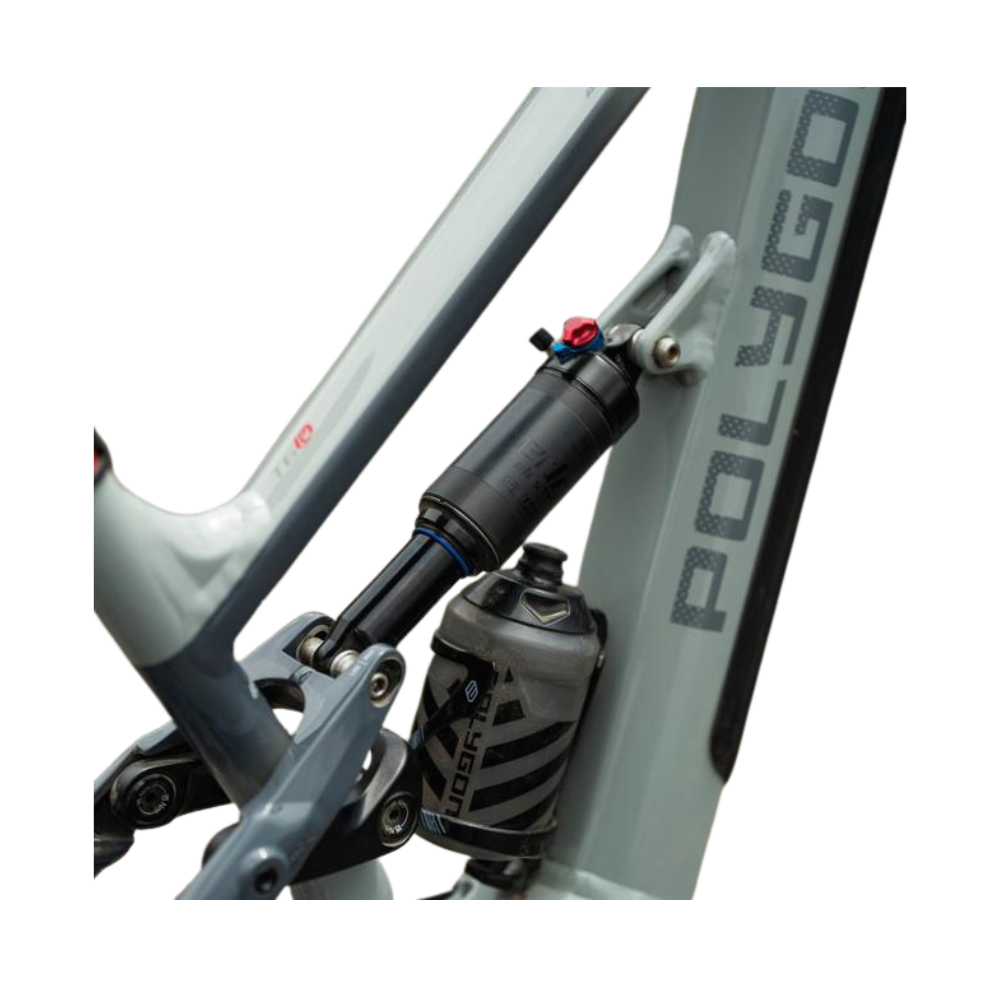

From the sharpest corners to gnarly roots, the steep seat tube angle and active suspension design ensures that the bike will always be planted on the ground.
There’s no momentum without speed
The Siskiu TE includes a slack and supportive 65° head angle and short offset fork for a long trail factor in the front end. Combine this with the 29” wheel size to provide stability and high-speed composure for a confidence inspiring feel up and down the trails.
Won’t choose one between agility and fast

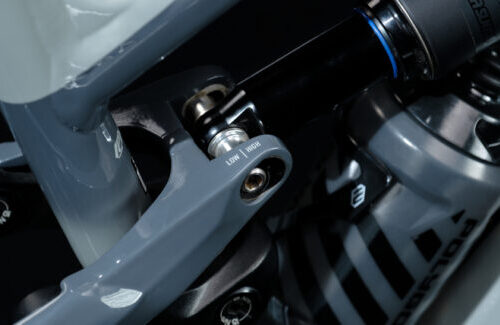

The Siskiu TE flip-chip allows riders to adjust their rear end geometry, when deciding to run a mullet setup. When there’s a smaller rear wheel, the flip chip should be in its tallest position to keep the rear centre high. When swapping to a 29” rear wheel the flip chip allows the frame to drop down, keeping a consistent riding position between wheel sizes.

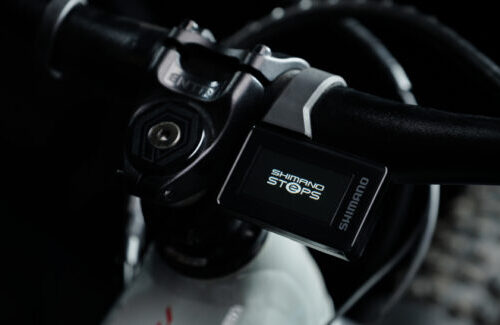

Power with precision
The Siskiu T6E features EP600 and the T7E features EP800 motor, both providing 85Nm of torque for solid performance. Boasting 85Nm of torque from a lightweight 2.6kg motor and 36% less drag than the previous E8000 generation. The EP8 rolls on the power in a smooth and predictable way. Rigid, durable and dependable for confidence on any adventure.
Specification
Frameset
Drivetrain
Cockpit
Wheel & Tire
Brake
Electric Parts
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 390 | 400 | 430 | 450 |
| Seat Tube Angle (B) | 71.7 | 71.7 | 71.7 | 71.7 |
| Effective Seat Tube Angle (C) | 77 | 77 | 77 | 77 |
| Head Tube Length (D) | 95 | 95 | 105 | 120 |
| Head Tube Angle (E) | 65 | 65 | 65 | 65 |
| Effective Top Tube (F) | 588 | 608 | 630 | 653 |
| Bb Height (G) | 337 | 337 | 337 | 337 |
| Bb Offset (H) | 39 | 39 | 39 | 39 |
| Chainstay Length (I) | 445 | 445 | 445 | 445 |
| Wheelbase (J) | 1205 | 1225 | 1249 | 1275 |
| Frame Reach (K) | 445 | 465 | 485 | 505 |
| Frame Stack (L) | 618 | 618 | 627 | 641 |
| Standover Height (M) | 677 | 683 | 706 | 720 |
