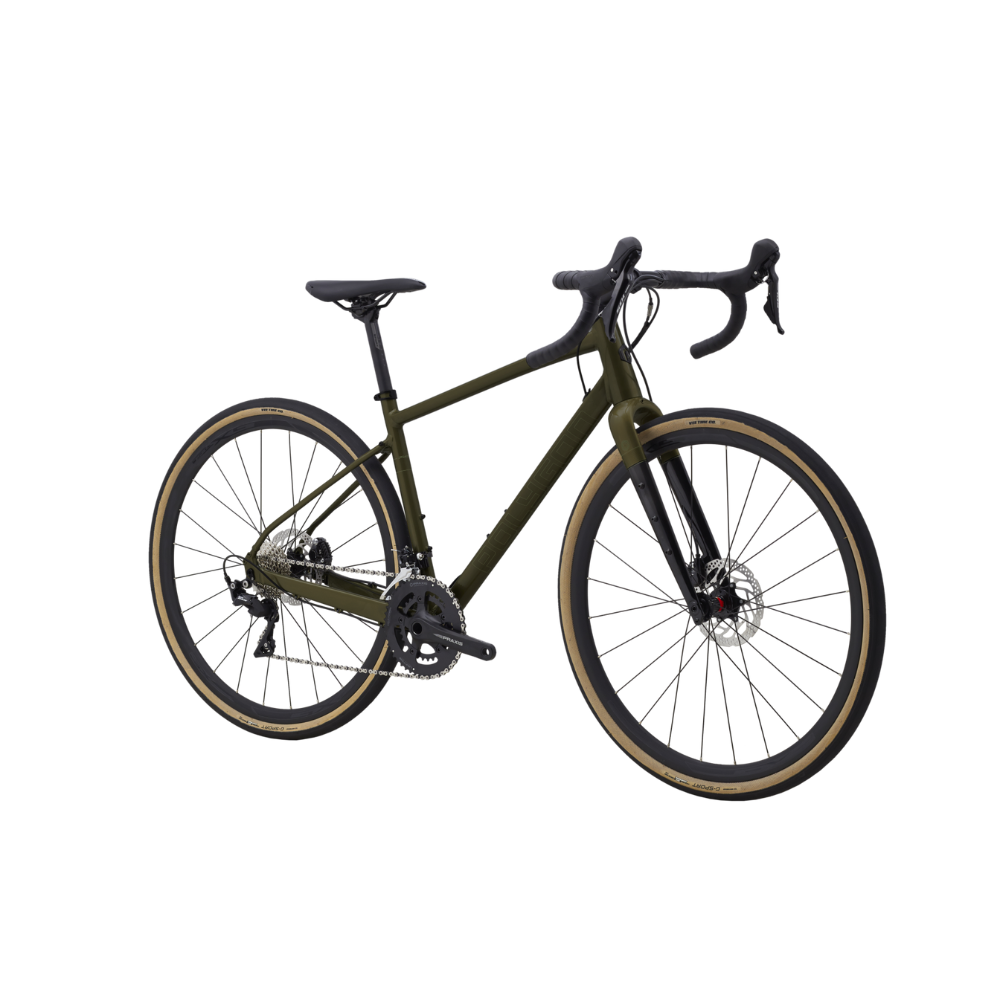

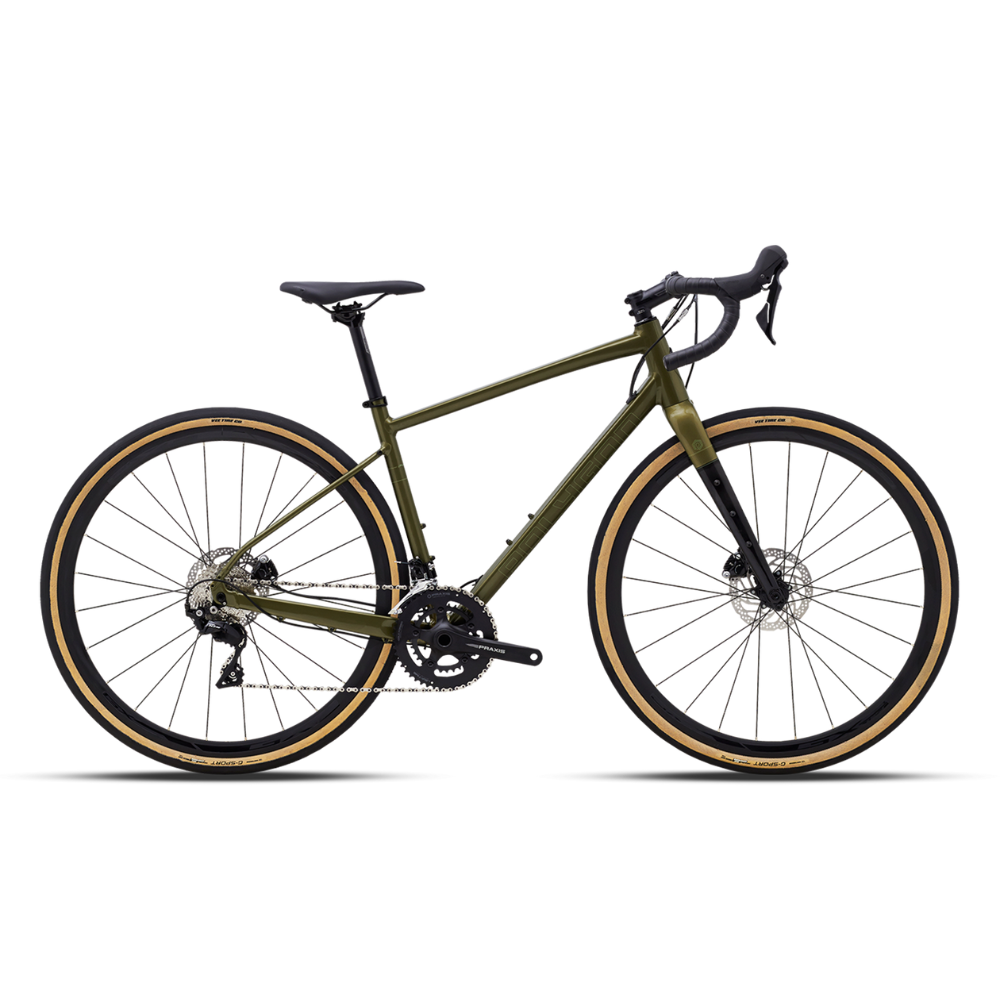

Polygon Path X5

Brands:

Frame

ALX GRAVEL,CARBON RIGID, FULL CARBON

Groupset

SHIMANO 105 CS-R7000 11-SPEED 11-30T

Wheels

ALLOY DOUBLE WALL FV H:30mm 622×19 24H FOR TIRE 622-28/62

Use

Road

SKU: 220000000797 Category: ROAD BIKES Tag: Polygon

View in store Book a test drive

Brands:

AED 6,499

Buy more than AED 150 and get free delivery!

Color

Size

Clear

Easy Return/Exchange

Fast Delivery

100% Secure Payment

Add to compare

Add to wishlist

Description

EXPLORE DIFFERENT PATH

The other side of the road

The mixture of urban bike and gravel bike has never been so rightfully deserved by a bike. The adventurous version of urban bike — Path, Path X, will take your urban-adventure to the next level of excitement. With its steep geometry alloy frame combined with drop bar and 700x35C tires, it enables you to whilst tackling the routes you know with ease.

Features

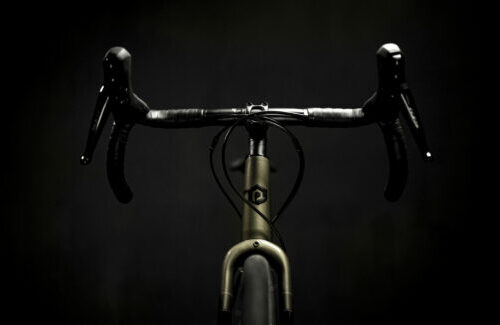

Nimble without compromising its handling

Comes with flared drop bar, resulting a narrower position that improves agility without compromising its handling on wider drops. With its 420-440mm length of handlebar, it gives you a little extra control when getting through light off-road.

Better acceleration with proper chainstay and wheelbase length

Accompanied with proper chainstay and wheelbase length, Path X provides you a better acceleration for riding efficiency.

Rough conditions won’t stop us

With its full carbon fork to smooth out the ride, and Hydraulic Disc Brakes that let you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.

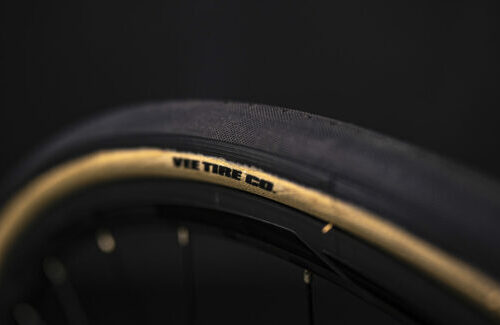

Gravel-ready tires

Its versatile tread design adapted to be used on larger gravel wheels max 42c. They’re fast and great on tarmac, dirt road, pavements, and gravel path.

Specification

The specifications, colors, parts, and availability of the products can be subjects to alter without prior notification.

Frameset

Frameset

ALX GRAVEL

Fork

CARBON RIGID, FULL CARBON

Frame Color

GREEN OLIVE

Decal Color

OLIVE

Drivetrain

Shifter

SHIMANO 105 ST-R7020, 2×11-SPEED BRIFTER

Crank

PRAXIS ALBA 48-32T

Cassette

SHIMANO 105 CS-R7000 11-SPEED 11-30T

Rear Derailleur

SHIMANO 105 RD-R7000 SS 11-SPEED

PRAXIS BSA 68mm

Chain

KMC X11 11-SPEED

Cockpit

Saddle

ENTITY, STEEL ø7mm

Seatpost

ENTITY SPORT, 27.2x350mm

Handlebar

ENTITY SPORT, W: 420mm (S/M) / 440mm (L/XL), BB: 31.8mm, R/D: 125mm

Handlestem

ENTITY SPORT, EXT: 80mm (S/M) / 90mm (L/XL), BB: 31.8mm, R/D: 7degree

Headset

INTEGRATED HEADSET W/ SEALED BEARING, IS 42/28.6 / IS 52/40

Wheel & Tire

Wheel Set

ALLOY DOUBLE WALL

Tire

VEE G-SPORT 700x35C, 622×35

Rim

ALLOY DOUBLE WALL FV H:30mm 622×19 24H FOR TIRE 622-28/62

Hub

F: NOVATEC D791SB 12x100mm 24H CL / R: NOVATEC D792SB 12×142 24H CL

Spokes

STAINLESS 14G

Brake

Brake Lever

SHIMANO 105 ST-R7020

Brake Caliper

SHIMANO 105 BRK-R7020

Rotor

SHIMANO SM-RT30 160mm CL

Geometry & Size

A brief explanation of geometry is placed here. The geometry image below will stay / freeze.

	S(mm)	M(mm)	L(mm)	XL(mm)
Height (cm)	150-163	163-175	175-188	188-195
Seat Tube Length (A)	430	470	515	560
Seat Tube Angle (B)	74.5	74	73.5	73
Effective Seat Tube Angle (C)	74.5	74	73.5	73
Head Tube Length (D)	140	160	190	220
Head Tube Angle (E)	70	71.5	71.8	72
Effective Top Tube (F)	525	550	580	610
Bb Height (G)	276.5	276.5	276.5	276.5
Bb Offset (H)	78	78	78	78
Chainstay Length (I)	425	425	425	425
Wheelbase (J)	1016.9	1022.8	1044.9	1067.5
Frame Reach (K)	367.2	379.7	395.3	410.4
Frame Stack (L)	568.9	593.8	623.5	652.8
Standover Height (M)	687.5	726	768.41	809.9
