Polygon Bend R9x Gravel Bike
Polygon Bend R9x Gravel Bike
Click to enlarge
Polygon Bend R9x Gravel Bike
Polygon Bend R9x Gravel Bike

Polygon Bend R9x

Brands: POLYGON BIKES AND ACCESSORIES

Engineered with precision and crafted for pure adventure, the Polygon Bend R9x bike is designed to conquer rugged terrains with ease.

F. FRAME

Frame

ALX GRAVEL / CARBON RIGID FORK

F. GROUPSET

Groupset

SRAM RIVAL ETAP AXS 1×12-SPEED BRIFTER

F. WHEELS

Wheels

NOVATEC G24 DISC (28mm) W/ TUBELESS TAPE INSTALLED 700C

F. USE

Use

Off-road versatility

SKU: 220000000556 Category: Tag:
Brands: POLYGON BIKES AND ACCESSORIES

AED 11,999

Buy more than AED 150 and get free delivery!

Easy Return/Exchange

Fast Delivery

100% Secure Payment

Add to compare
Add to wishlist
Description

BEYOND THE BEND - GET FASTER, GET LOST, GET BEYOND

Responsive handling and agile geometry provide optimal maneuverability, empowering riders to navigate challenging trails and conquer untamed paths with confidence. Whether you're a seasoned gravel enthusiast or an aspiring off-road adventurer, the Polygon Bend Series offers unparalleled excitement and limitless exploration. Embrace the thrill of the Polygon Bend and let your adventures take flight.

FEATURES & SPECIFICATIONS

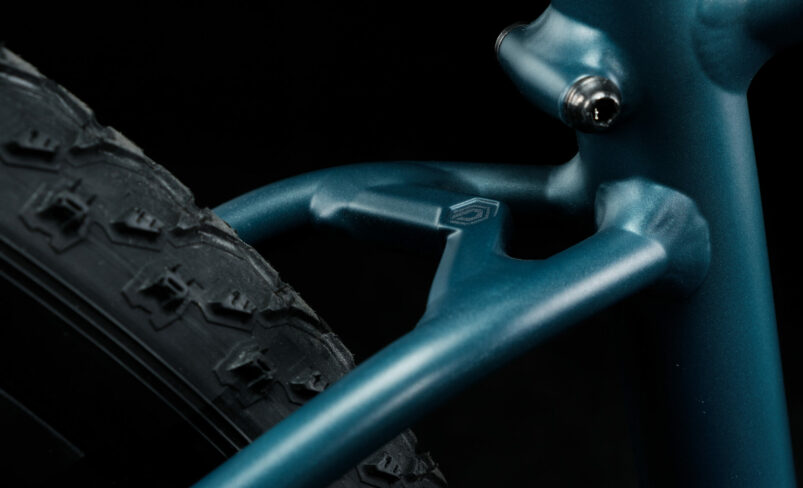

Generous tire clearance

Unleash your adventurous spirit with our gravel bike’s generous tire clearance, accommodating up to 50c tires. Embark on thrilling bikepacking journeys and conquer any terrain with ease, as you immerse yourself in the boundless exploration​

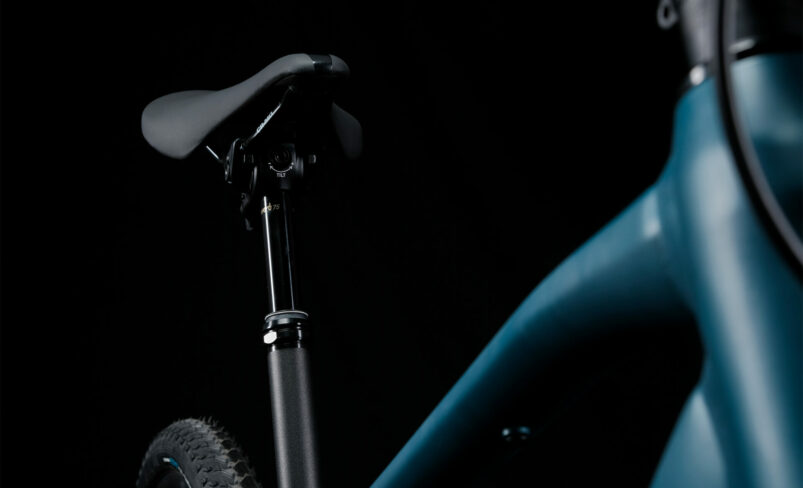

Dropper seat post

Polygon Bend Series provides you with dropper seat post to put you where you want to be; all at your fingertips. Effortlessly adjust your saddle height for technical trails and smooth descents, providing you the freedom to move and stay in control.​

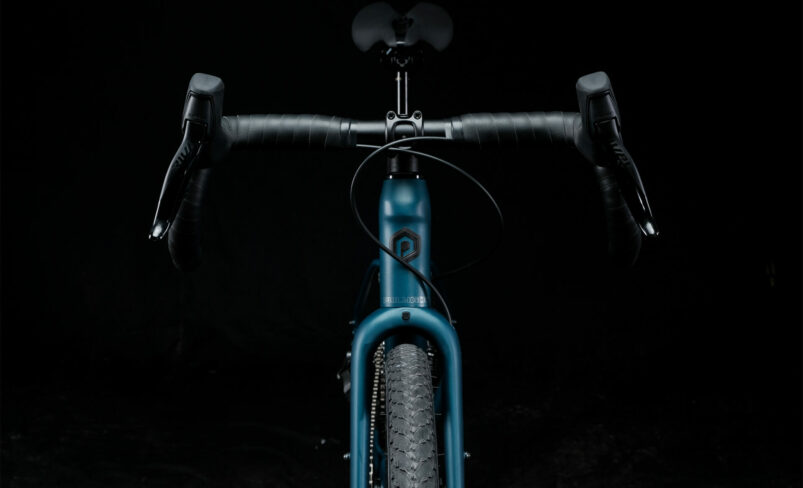

Aerodynamics and handling

Paired with a flared handlebar to enhance aerodynamics in a narrower position, while maintaining optimal handling on wider drops.

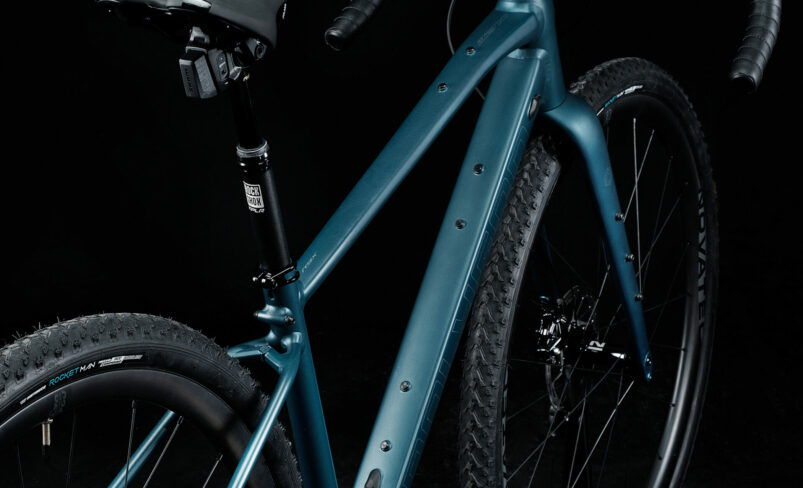

Mounts everywhere!

Pack your essentials. Our Polygon Bend Series features an adequate number of mounting bolts for bottles and bags on the seat tube, top tube, and down tube. No need to worry about other essentials for bikepacking; we’ve got you covered with rear carrier bolts and 3 mounts on each side of the fork. Mount up, adventure awaits!​

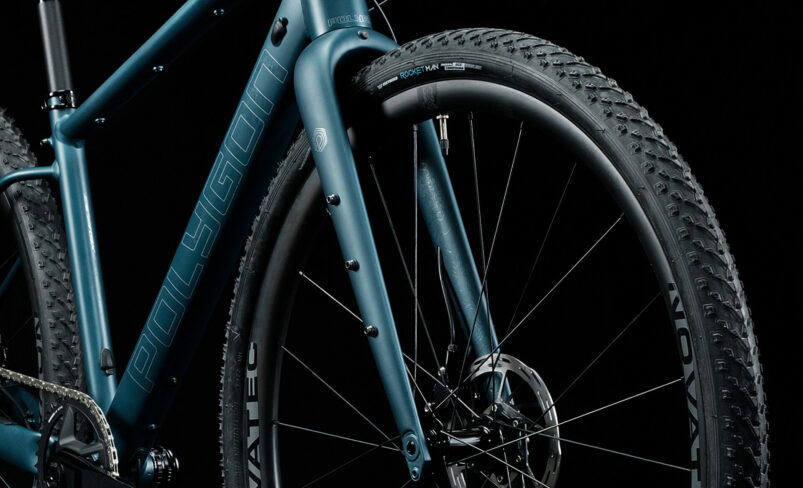

Ying yang balance

Don’t hate the rough surfaces of the land. Our seamless yet robust carbon fork is meant to conquer them. It strikes a perfect balance between low-maintenance simplicity and off-road performance, ensuring a comfortable and smooth ride with reduced vibrations. Embrace the perfect harmony.​

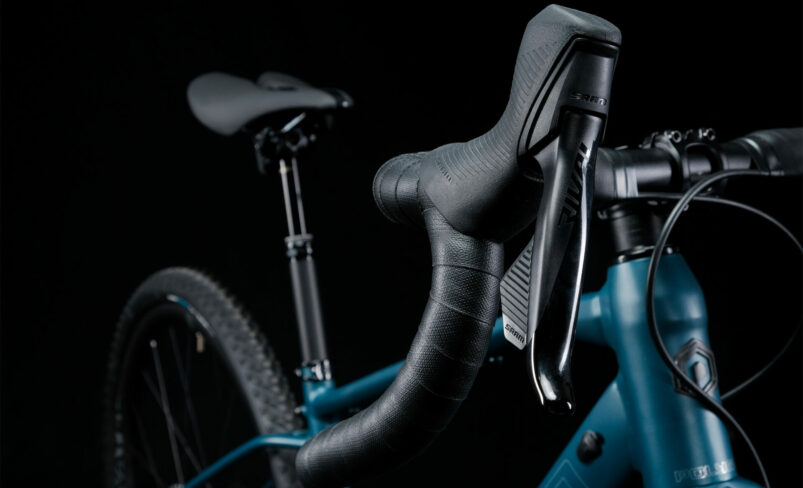

Wireless shifting

Experience the ultimate cycling pleasure with Polygon Bend R9X and Bend V9X’s new SRAM Rival 1 eTap AXS, ensuring a superior shifting experience.​

GEOMETRY & SIZE

S M L XL
Height (cm) 150-163 163-175 175-188 188-195
Seat Tube Length (A) 405 450 495 540
Seat Tube Angle (B) 74.5 74 73.5 73.5
Effective Seat Tube Angle (C) 74.5 74 73.5 73.5
Head Tube Length (D) 140 165 200 235
Head Tube Angle (E) 70 70 70.5 70.5
Effective Top Tube (F) 520 550 580 610
Bb Height (G) 282 282 282 282
Bb Offset (H) 72 72 72 72
Chainstay Length (I) 440 440 440 440
Wheelbase (J) 1030 1056 1078 1110
Frame Reach (K) 364 382 396 416
Frame Stack (L) 563 612 621 654
Standover Height (M) 694 736 781 823
Information
Weight N/A
Dimensions N/A
Color

Blue
Size

L 700X495

,

S 700X405

,

S

,

M

,

L
Brand

Frameset

ALX GRAVEL
Fork

CARBON RIGID
Frame color

NAUTICAL BLUE
Decal color

SILVER
Shifter

SRAM RIVAL ETAP AXS 1×12-SPEED BRIFTER
Crank

SRAM RIVAL 1 WIDE 40T
Cassette

SRAM XG-1251 12 SPEED 10-44T
Rear Derailleur

SRAM RIVAL XPLR ETAP AXS 12-SPEED
Chain

SRAM RIVAL 1
Pedal

ONE PIECE PP FLAT
Saddle

ENTITY, STEEL ø 7mm
Seatpost

REVERB AXS XPLR T: 75mm, DxL: 27,2 x 400mm
Handlebar

ENTITY XPERT FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mm, BR: 77mm
Handlestem

ENTITY XPERT, EXT: 70mm, BB: 31,8mm, R/D: 7degree
Headset

FSA NO. 42 W/ SEALED BEARING
Wheelset

NOVATEC G24 DISC (28mm) W/ TUBELESS TAPE INSTALLED
Wheel size

700C
Tire

VEE ROCKETMAN 700x44C 622×44 TLR
Rim

CARBON FV H: 28 622×24 24H FOR TYRE 622-35/68 TLR
Hub

F: NOVATEC D791 12x100mm 24H CL / R: NOVATEC D792 12x142mm 24H CL FOR XDR
Spokes

F: STAINLESS DOUBLE BUTTED 14G NDS:286mm DS:288mm W/ 16mm ALLOY NIPPLE / R: STAINLESS DOUBLE BUTTED 14G NDS:288mm DS:285mm W/ 16mm ALLOY NIPPLE
Brake lever

SRAM RIVAL eTap AXS
Brake caliper

SRAM RIVAL HYDRAULIC DISC
Rotor

SRAM PACELINE 160mm CL
