| Series |
SHIMANO
|
||
|---|---|---|---|
| Model no. | |||
| Color | 1 Hub shell |
Black
|
|
| 1 Quick release |
–
|
||
| 2 Hub shell |
–
|
||
| 2 Quick release |
–
|
||
| Brake type |
CENTER LOCK disc brake
|
||
| Rear speeds |
11/10/9/8
|
||
| O.L.D. (mm) |
148
|
||
| Spoke hole | 24H |
–
|
|
| 28H |
✔
|
||
| 32H |
✔
|
||
| 36H |
✔
|
||
| 10 tooth cog compatible |
–
|
||
| External serration disc brake rotor lock ring | With |
–
|
|
| Without |
✔
|
||
| Internal serration disc brake rotor lock ring | With |
–
|
|
| Without |
✔
|
||
| CENTER LOCK mount cover option |
–
|
||
| Axle fixing method |
12 mm E-THRU
|
||
| Quick release skewer length (mm) | 166 |
–
|
|
| 168 |
–
|
||
| 170 |
–
|
||
| 172 |
–
|
||
| 173 |
–
|
||
| 174 |
–
|
||
| 176 |
–
|
||
| 178 |
–
|
||
| Thru axle (length x inner diameter ; mm) | 135 x 10 |
–
|
|
| 135 x 12 |
–
|
||
| 142 x 12 |
–
|
||
| 148 x 12 |
✔
|
||
| 150 x 12 |
–
|
||
| 157 x 12 |
–
|
||
| Flange distance (mm) |
61.45
|
||
| Offset (mm) |
7.6
|
||
| P.C.D. left / right (mm) |
50.5/51.5
|
||
| Flange diameter left / right (mm) |
59.3/60.3
|
||
| Spline type | MICRO SPLINE |
–
|
|
| HG spline L2 (ROAD 12-speed dedicated) |
–
|
||
| HG spline L (ROAD 12/11-speed) |
–
|
||
| HG spline M (10/9/8-speed, MTB 11-speed) |
✔
|
||
| HG spline S (7-speed) |
–
|
||
| Engagement type |
Pawl ratchet
|
||
| Quick engagement |
–
|
||
| Seal | Hub |
Labyrinth+Contact
|
|
| FREEHUB body |
Contact
|
||
| Internal grease sleeve |
–
|
||
| Digital adjustment system |
–
|
||
| Bearing | Stainless ball |
–
|
|
| Cup |
–
|
||
| Cone |
–
|
||
| Cartridge |
✔
|
||
| FREEHUB body | Material |
Steel
|
|
| Finish |
–
|
||
| Hub shell | Material |
Aluminum
|
|
| Finish |
Anodized
|
||
| Axle | Material |
Steel
|
|
| Finish |
–
|
||
| Quick release lever | Material |
–
|
|
| Finish |
–
|
||
| Color |
–
|
||
| Quick release housing | Material |
–
|
|
| Finish |
–
|
||
| Quick release nut | Material |
–
|
|
| Finish |
–
|
||
| Disc brake rotor lock ring | Material |
–
|
|
| Finish |
–
|
||
Summer Sale
-20%

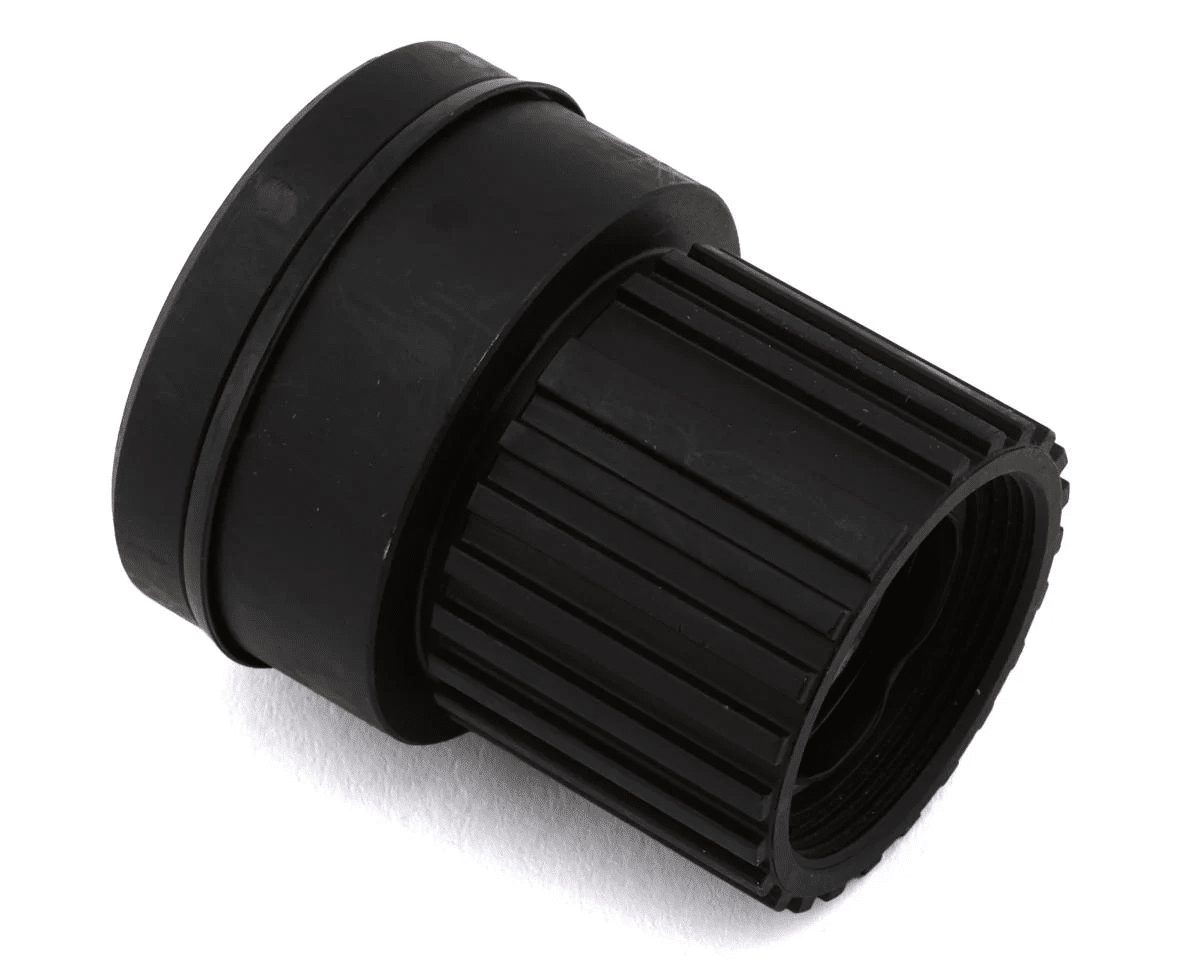

Shimano Freehub Body Y3jz98010 For Fh-tc500-hm-b
Brands:
Brands:
AED 119Includes taxesYou Save AED 30Our Price:
In stock
