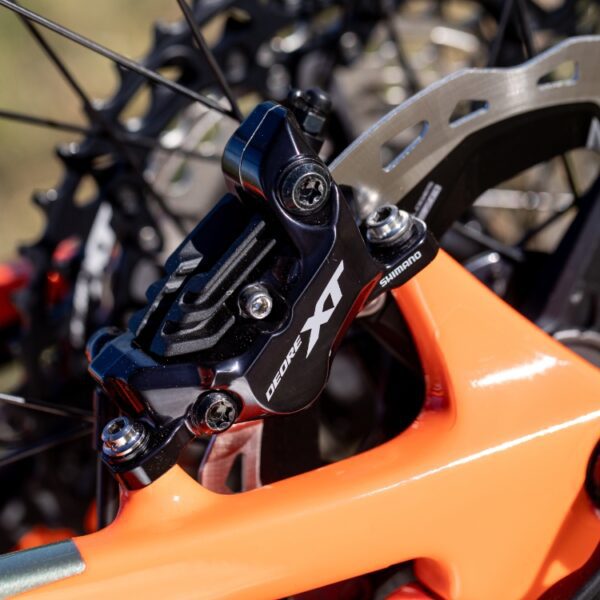

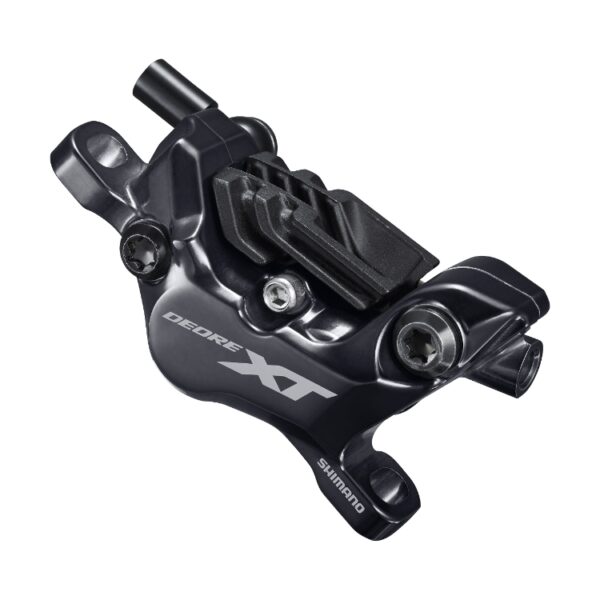

SHIMANO DEORE XT – 4-Piston – ICE TECHNOLOGIES – Hydraulic Disc Brake Caliper
The SHIMANO DEORE XT M8120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
FEATURES
- Superior modulation gives you greater control
- Quicker Piston retraction
- High braking power instills greater downhill confidence and control
- Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M8000)
- Four Piston
- Quick and easy assembly
- Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
| MODEL NO | BR-M8120 |
|---|---|
| SERIES | DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 141 |
| Brake type | Hydraulic disc brake |
|---|---|
| Brake hose (kit) | SM-BH90-SBM |
| Hose joint | Banjo |
| Brake hose color (kit)|1 | Black |
| J-Kit spec (for OEM) | ✔ |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
| Pad|Standard 1 | N03A-RF Resin (w/ fin) |
| Pad|Standard 2 | N04C-MF Metal (w/ fin) |
| Pad|Option 1 | D03S-RX Resin (w/o fin) |
| Pad|Option 2 | D02S-MX Metal (w/o fin) |
| Recommended brake lever | BL-M8100 BL-T8100 |
| Recommended disc brake rotor | RT-MT800 |
| Compatible rotor size|140 mm (SS) | ✔ |
| Compatible rotor size|160 mm (S) | ✔ |
| Compatible rotor size|180 mm (M) | ✔ |
| Compatible rotor size|203 mm (L) | ✔ |
| Compatible rotor size|220 mm (LL) | ✔ |
| Oil | SHIMANO mineral |
| Mount type | Post type |
| Piston | 4 |
| Caliper fixing screw|Tool size | 5 mm |
| Caliper fixing screw|Anti loosen method | Snap ring |
| Pad mount | Pad axle |
