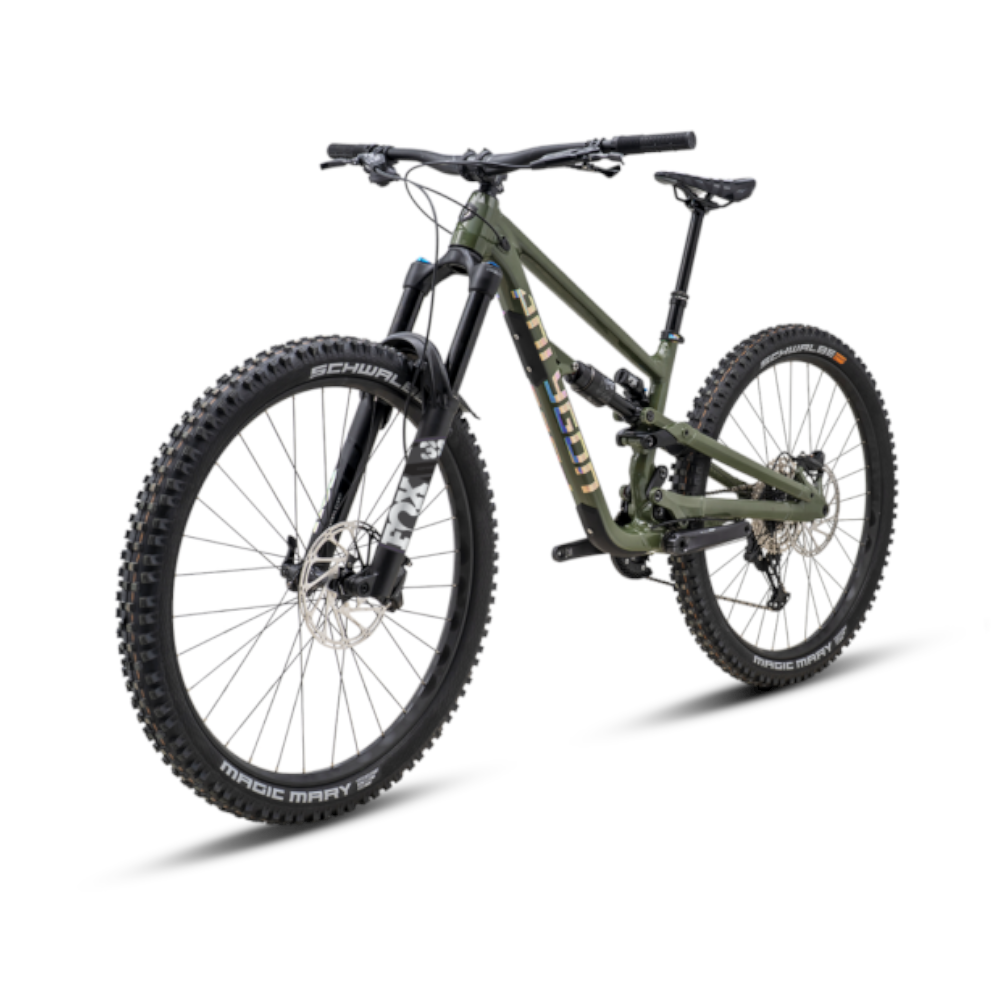

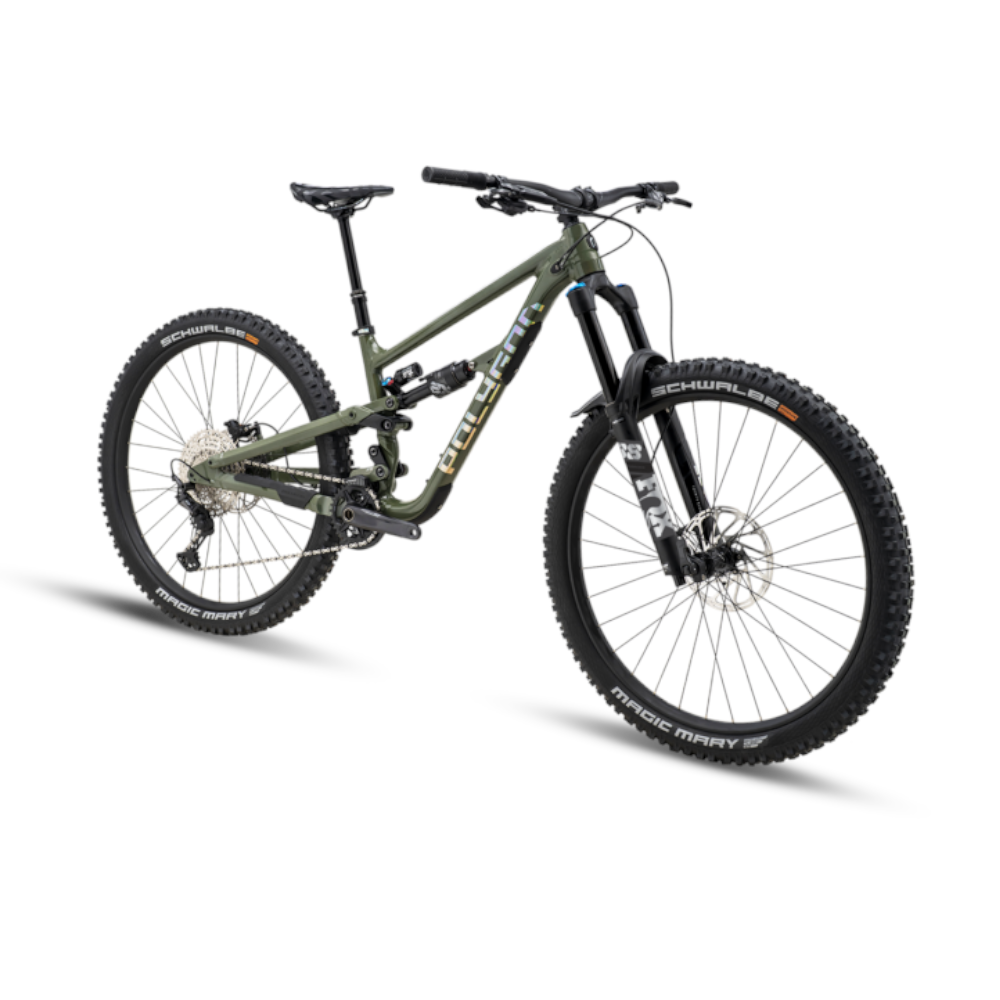

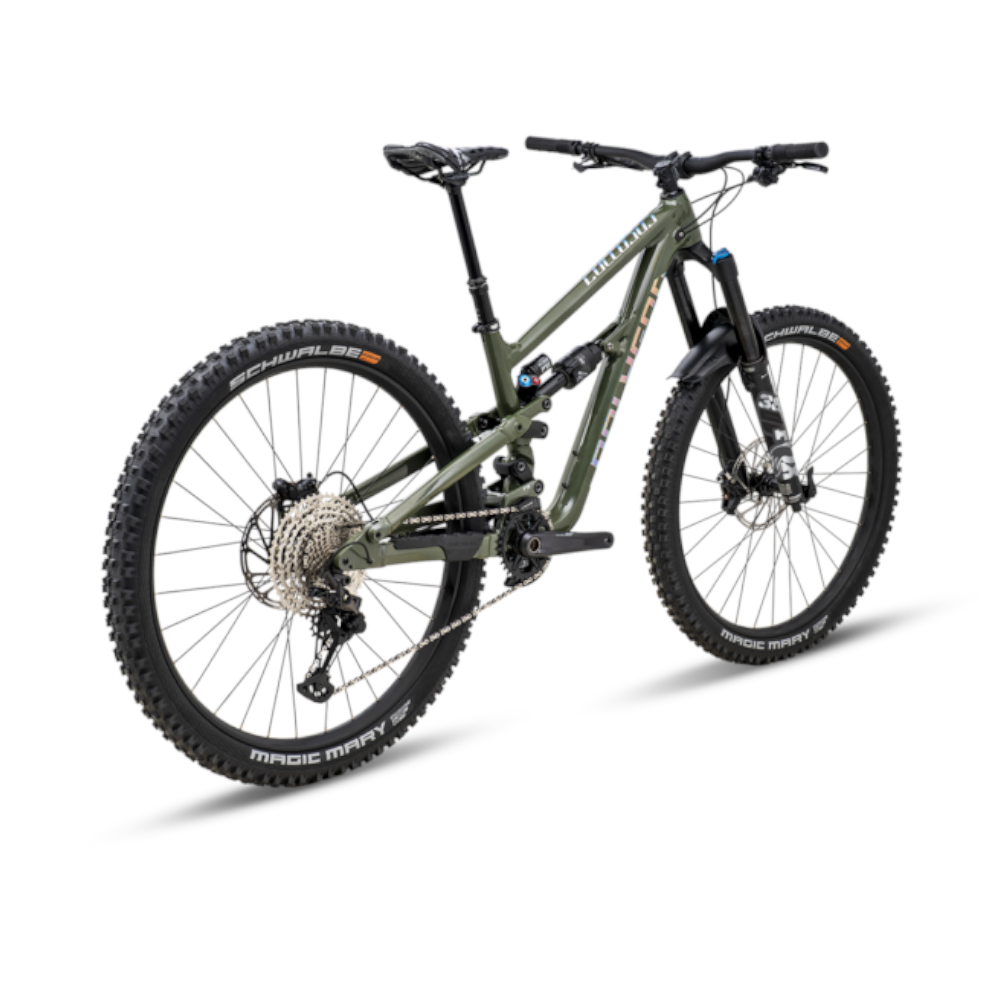

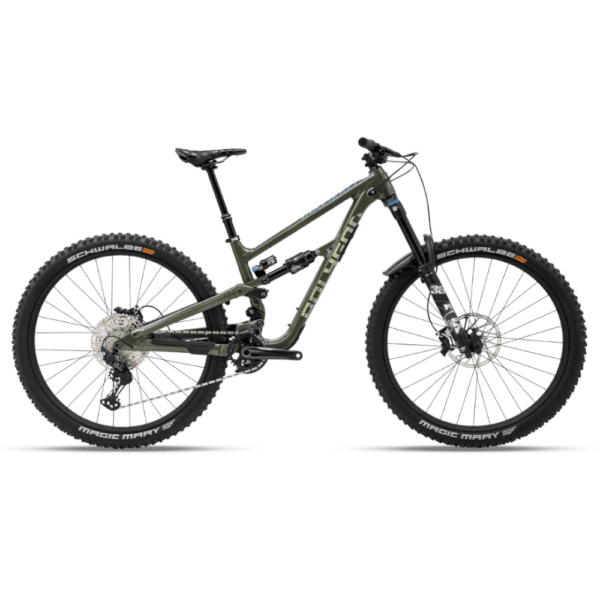

Polygon Collosus N9

Brands:

Frame

ALX AM/ENDURO 170mm TRAVEL

Groupset

SHIMANO XT RD-M8100-SGS 12-SPEED

Wheels

ENTITY XL2 TUBELESS READY 29"

Use

Mountains or Race

SKU: 220000000454 Categories: Full Suspension Bikes, Mountain Bikes Tag: Polygon

View in store Book a test drive

Brands:

Price range: AED 13,999 through AED 14,499

Buy more than AED 150 and get free delivery!

Color

Size

Wheel Size

Clear

Easy Return/Exchange

Fast Delivery

100% Secure Payment

Add to compare

Add to wishlist

Description

Polygon Collosus N9, RELEASE THE BEAST

RIDE FASTER, TRACK BETTER, LEAVE THEM IN THE DUST

The Polygon Collosus N9 was built with purpose and passion – utilizing a combination of parts, and technology to handle the most demanding of terrain. An innovative aggressive and agile fast bike for those wanting to conquer their personal limitations in the mountains or race at the world level. The bike’s slack 63.5 degree head angle paired with 435mm chain stays and a 77 degree seat tube angle combines to create a bike that has no compromises; the all new 6-bar linkage provides an efficient pedaling platform while going uphill, precise handling, comfortability at high speeds, unmatched grip and the ability to boost jumps and style it out for the camera.

FEATURES & SPECIFICATIONS

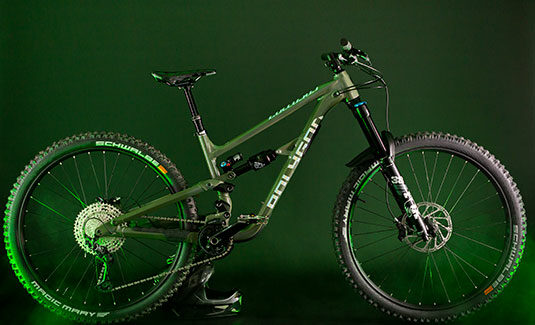

Conquer the Gnarliest Terrain

From the aggressive 29” wheels, low stand over height and modern reach numbers, the Colossus N9 stays composed through the gnarliest of terrain. With its short chain stays paired with its modern reach allows you to whip the bike around corners whilst still maintaining front wheel grip and staying composed

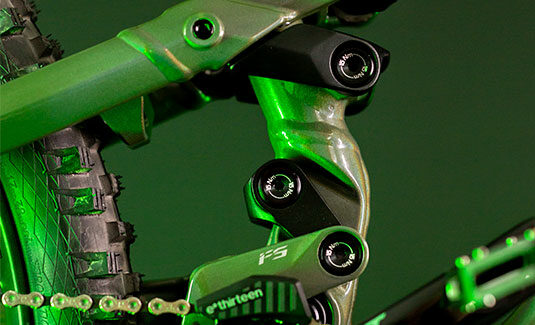

No Compromise

Our all new 6-bar linkage – the Independent Floating Suspension, controls the wheel path and anti-squat independently of the leverage curve; meaning, you will have the control of wheel behavior and the rear shock separately. No compromise between small-bump performance and suspension progressiveness

Polygon Collosus N9, Go Beyond The Limits

The Polygon Collosus N9 bikes geometry is based around providing riders the ability to push their limits with ease. Paired with FOX suspension, a Shimano XT 1×12 drivetrain and powerful 4 piston, this bike can be enjoyed on your local trails all the way to pushing for victories on the Enduro World Series circuit

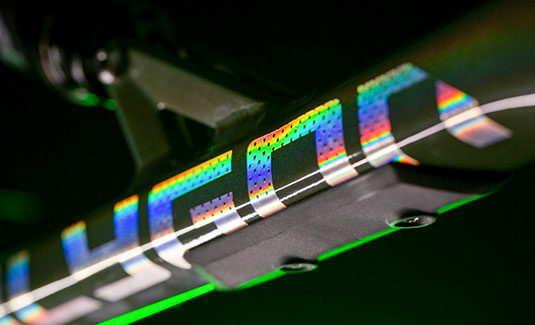

Made For Any Abuse

Collosus N9 comes with chain stay and down tube protector to give you more protection

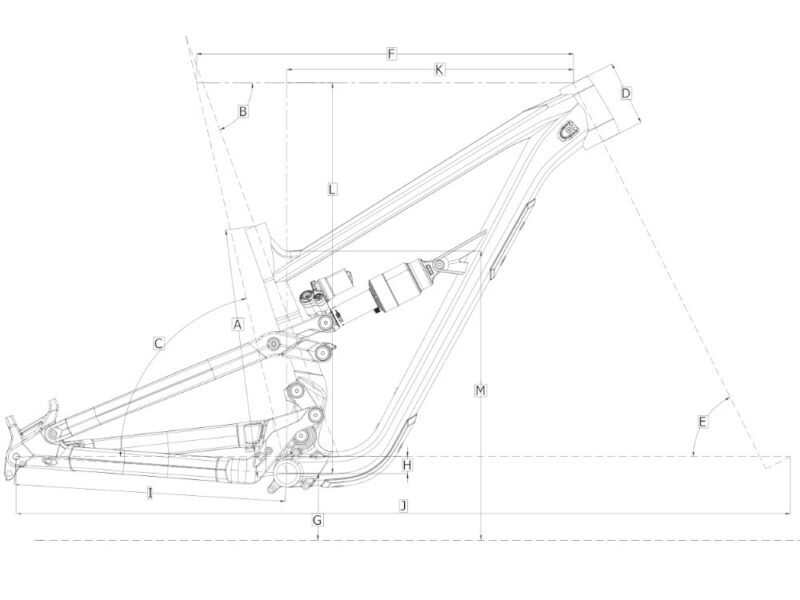

Geometry & Size

	S	M	L	XL
Height (cm)	152-165	162-175	172-185	182-195
Seat Tube Length (A)	390	400	415	430
Seat Tube Angle (B)	70	70	70	70
Effective Seat Tube Angle (C)	77	77	77	77
Head Tube Length (D)	100	105	110	120
Head Tube Angle (E)	63.5	63.5	63.5	63.5
Effective Top Tube (F)	583.58	604.61	626.39	647.71
Bb Height (G)	353	353	353	353
Bb Offset (H)	27	27	27	27
Chainstay Length (I)	435	435	435	435
Wheelbase (J)	1219.94	1242.17	1266.01	1288.87
Frame Reach (K)	440	460	480	500
Frame Stack (L)	621.92	626.39	634.09	639.82
Standover Height (M)	710	716	717	720

Information

Weight	N/A
Dimensions	N/A
Color	Black silver , Green , Green/Camel , Pink , Purple
Size	M 29X400 , L 29X415 , S 29X390 , XL 29X430 , S , M , L , XL
Wheel Size	29" , 29X390 , 29X400 , 29X415 , 29X430
Brand	POLYGON BIKES AND ACCESSORIES
Frameset	ALX AM/ENDURO 170mm TRAVEL
Fork	FOX 38 PERFORMANCE, 170mm
Rear Shock	FOX FLOAT X2
Shifter	SHIMANO XT SL-M8100-R 12-SPEED TRIGGER
Crank	SHIMANO XT FC-M8100-1 32T, MAX CHAIN RING: 36T, CRANK ARM: 170mm
Cassette	SHIMANO DEORE CS-M6100 12-SPEED 10-51T
Rear Derailleur	SHIMANO XT RD-M8100-SGS 12-SPEED
BB	SHIMANO BB-MT501 BSA THREADED 73mm
Chain	KMC X-12 FOR 12-SPEED
Pedal	ALLOY FLAT W/ REPLACEABLE PIN
Saddle	ENTITY XTEND, CR-MO ø7mm
Seatpost	TRANZ X JD-YSP23JL 150mm (S, M) / 170mm (L, XL) TRAVEL, DXL: 30.9 x 459mm (S, M) / 499mm (L, XL)
Handlebar	ACE FACE AEFFECT R 35, W: 780mm, BB: 35mm, R/D: 20mm, B: 8degree
Handlestem	RACE FACE AEFFECT R 35 , EXT: 40mm, BB: 35mm, R/D: 0degree
Headset	FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 , ZS 56/40
Wheel Set	ENTITY XL2 TUBELESS READY
Wheel Size	29"
Tire	SCHWALBE MAGIC MARY EVO 29"x2.60" 622×65 SUPER GRAVITY TLE ADDIX SOFT
Rim	ALLOY DOUBLE WALL H:17.5mm W: 35mm 622-35 32H
Hub	F: ALLOY HUB BOOST 15x110mm 32H CL / R: ALLOY FREEHUB BOOST 12x148mm 32H
Brake Lever	SRAM CODE R
Brake Caliper	SRAM CODE R HYDRAULIC DISC
Rotor	SRAM CENTERLINE 200mm CL
Frame Material	Aluminium (AL)
Bike Type	Dual Suspension
