FUN REDEFINED
RIDE FURTHER, FASTER, FUN LIKE NEVER BEFORE

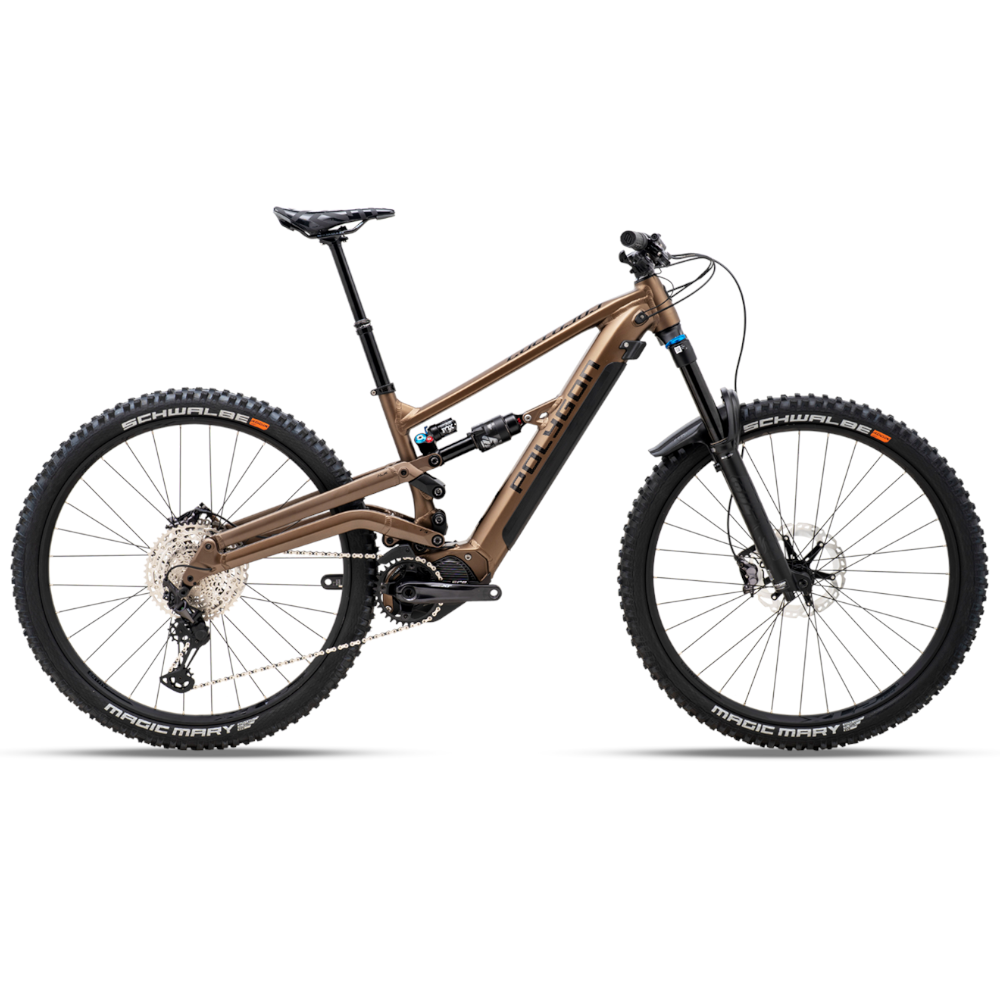

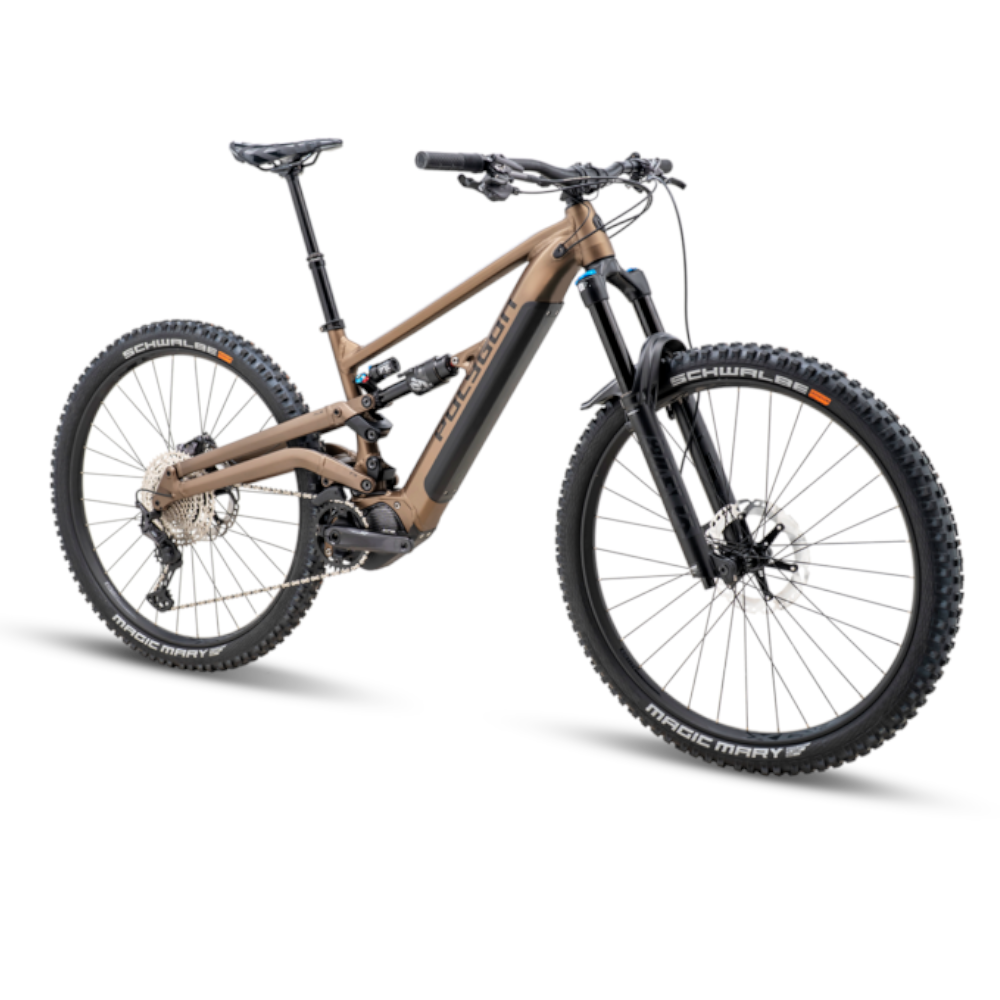

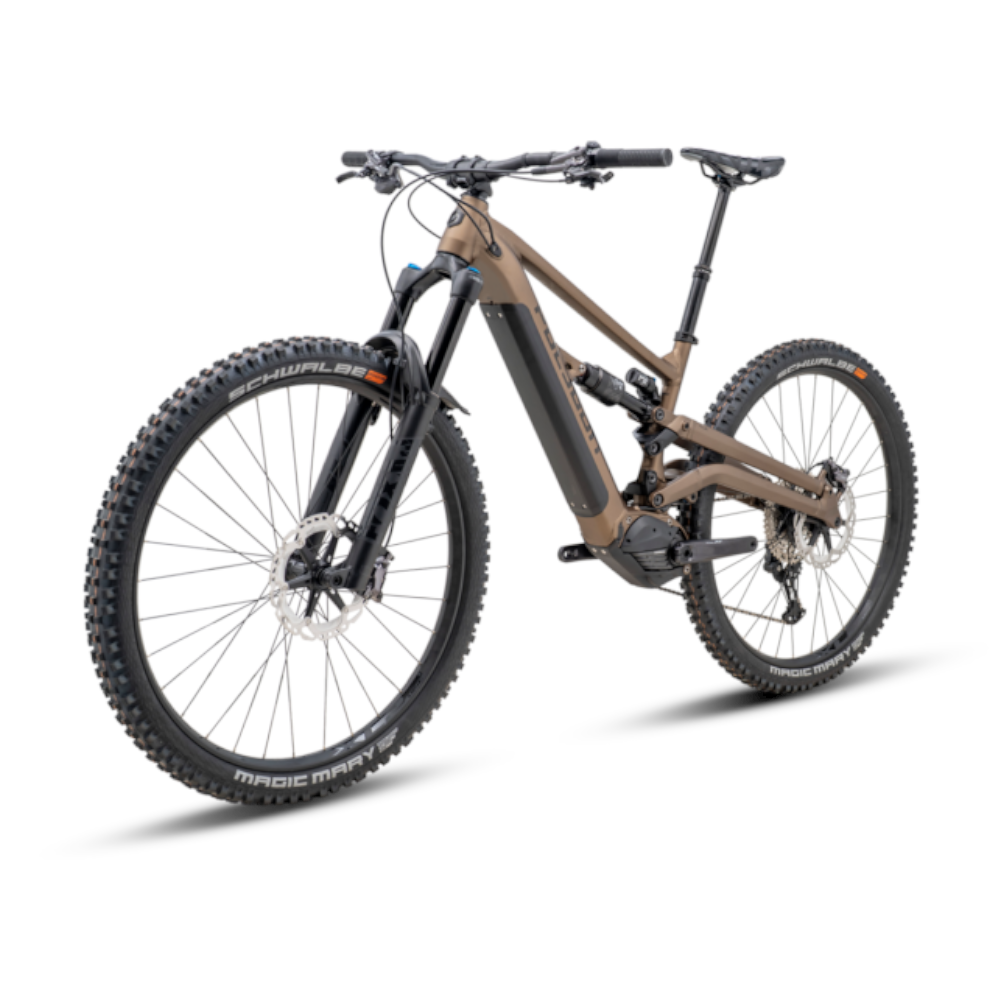

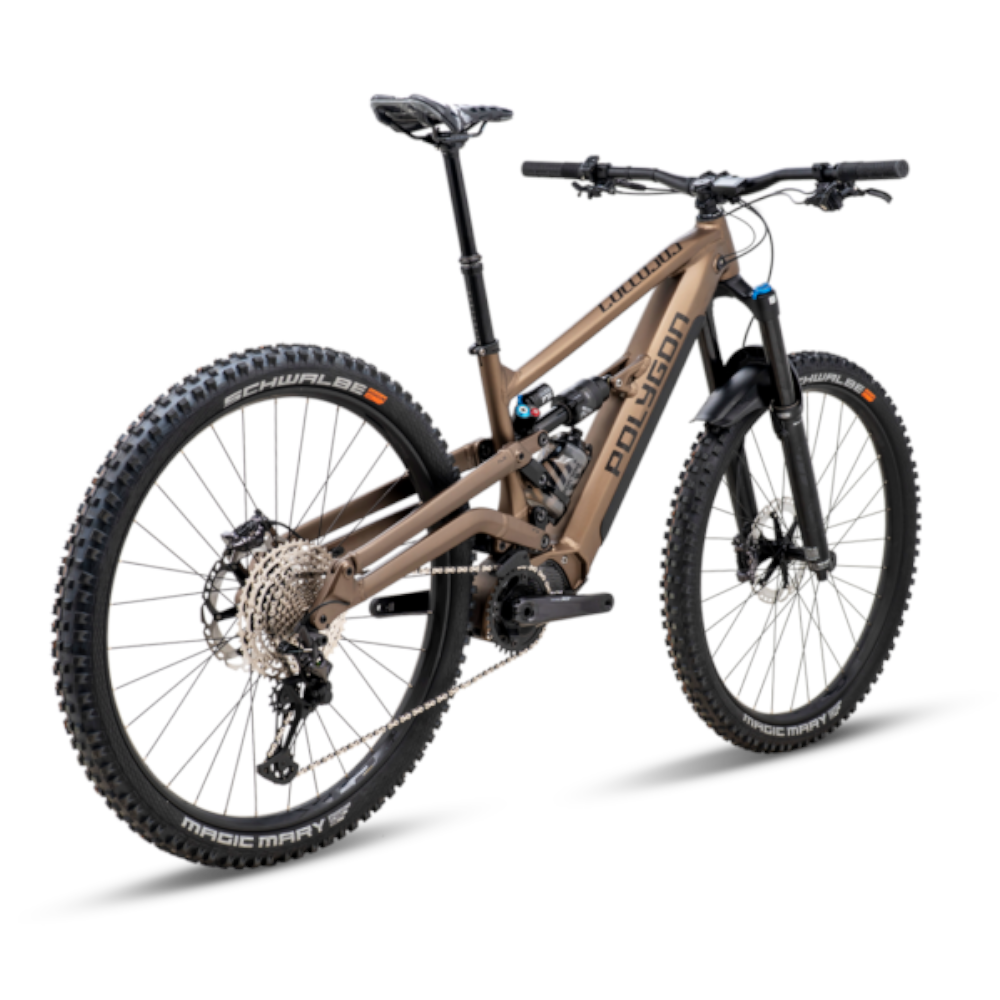

The Polygon Collosus N8E is Polygon’s newest E-enduro bike. Rather than simply bolting an e-system into an existing acoustic suspension platform, Polygon went back to the drawing board to engineer a 160mm 29” e-MTB to deliver the mountain biking experience we dream of; trail bike agility with enduro-esque composure where climbs transform into fun and, of course, your descents triple.
FEATURES & SPECIFICATIONS
Endless Support during the Rowdiest Terrain

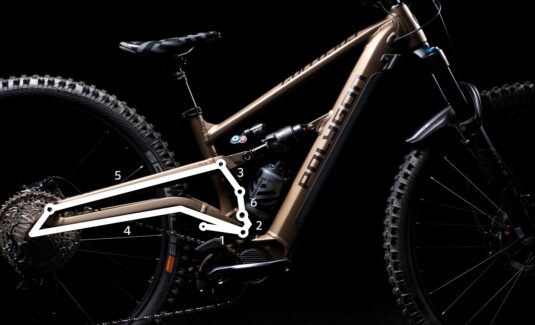

The 6-bar Independent Floating Suspension platform provides 160mm of optimized wheel path to swallow square-edge hits and remain active under braking, while the independent shock leverage allows supple sensitivity with progressive support for composure in the rowdiest of rock gardens.
Less Sacrifice, More Victory

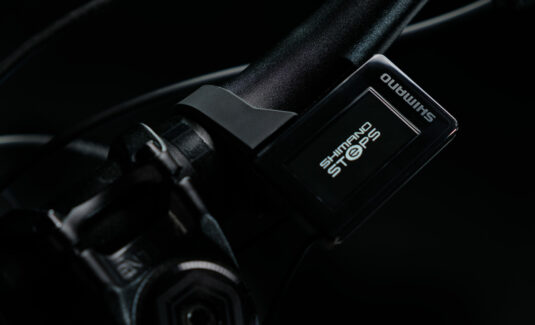

The IFS platform’s separation of wheel path from shock leverage also allows highly efficient power transfer without sacrificing small bump compliance. Put your power down and Shimano STEPS delivers a mountain more, direct to the ground on even the chunkiest trails.
Short Back and Sides
When your business is going fast, 29” wheels deliver unrivaled performance when the trails get gnarly. Their inherently optimal roll over and a long contact patch provide all the braking, cornering and climbing traction you desire, while 2.6” wide Schwalbe Super Gravity tires strike the balance of cushion and precisio
There’s No Momentum Without Speed

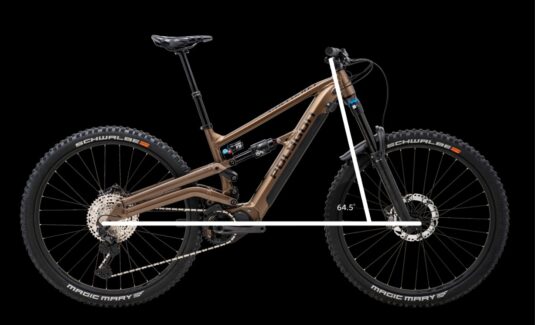

The Polygon Collosus N8E features a slack 64.5° head angle with long reach and low bottom bracket. Combined with the 29” wheels and short offset fork for a long trail, the stability and high-speed composure is confidence inspiring.
Conquers the Steepest Climbs

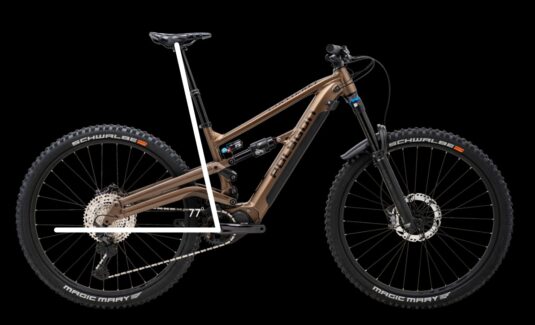

On the other hand, agility is achieved by one of the shortest rear center lengths in category, possible thanks to the IFS wheel path and elevated chainstay design. Despite the 435mm rear center, The Collosus N8E confidently conquers the steepest climbs thanks to the steep 77° seat angle and low, forward center of gravity.
Power with Precision
The Polygon Collosus N8E features the proven STEPS E8000 2.9kg motor which seamlessly provides up to 60Nm of torque for solid performance. Rigid, durable and weatherproof for confidence on any adventure.

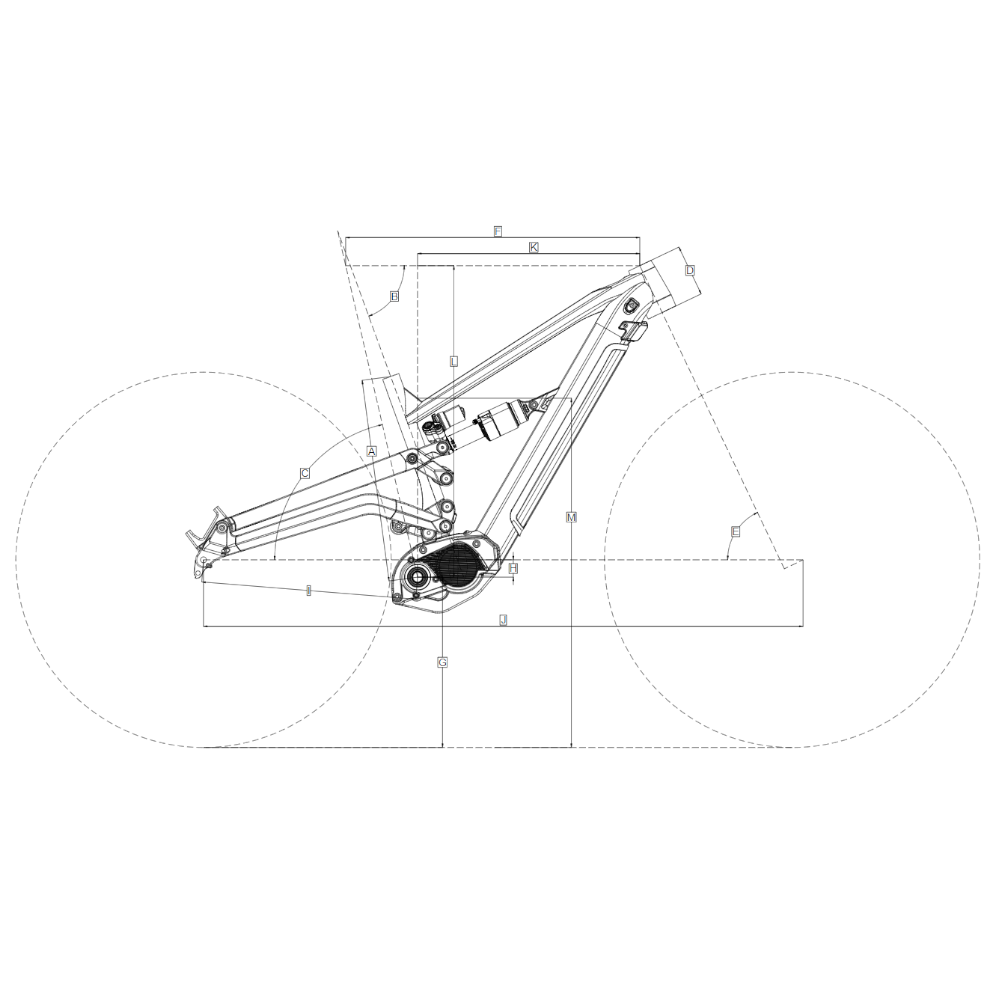

Geometry & Size
| S | M | L | XL | |
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 400 | 410 | 420 | 430 |
| Seat Tube Angle (B) | 70 | 70 | 70 | 70 |
| Effective Seat Tube Angle (C) | 77 | 77 | 77 | 77 |
| Head Tube Length (D) | 100 | 105 | 110 | 120 |
| Head Tube Angle (E) | 64.5 | 64.5 | 64.5 | 64.5 |
| Effective Top Tube (F) | 594.56 | 615.6 | 636.65 | 658.73 |
| Bb Height (G) | 345 | 345 | 345 | 345 |
| Bb Offset (H) | 35 | 35 | 35 | 35 |
| Chainstay Length (I) | 435 | 435 | 435 | 435 |
| Wheelbase (J) | 1212.09 | 1234.25 | 1256.4 | 1280.7 |
| Frame Reach (K) | 450 | 470 | 490 | 510 |
| Frame Stack (L) | 626.16 | 630.68 | 635.19 | 644.22 |
| Standover Height (M) | 710 | 710 | 710 | 710 |
| Color |
Brown ,Purple |
|---|---|
| Size |
L 29X420 ,M 29X410 ,S 29X400 ,S ,M ,L ,XL |
| Brand | |
| Frameset |
ALX ENDURO FRAME |
| Fork |
FOX 38 FLOAT PERFORMANCE, FLOAT EVOL, 160mm TRAVEL, OFFSET: 44mm, GRIP, 3POS, W/ FENDER |
| Rear Shock |
FOX FLOAT X2, AIR SPRING, 2 POSITION ADJUST, HSC-LSC, HSR-LSR, E2E: 205x65mm |
| Shifter |
SHIMANO XT SL-M8100-R 1X12-SPEED TRIGGER |
| Crank |
SHIMANO SM-CRE80-12-B 34T CHAINRING |
| Cassette |
SHIMANO DEORE CS-M6100 12-SPEED 10-51T |
| Rear Derailleur |
SHIMANO XT RD-M8100-SGS 12-SPEED |
| Chain |
KMC E12 FOR 12-SPEED |
| Pedal |
ALLOY FLAT W/ REPLACEABLE PIN |
| Saddle |
ENTITY XTEND, CR-MO ø7mm |
| Seatpost |
TRANZ X JD-YSP23JL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 30.9 x 459mm (S, M) / 499mm (L, XL) |
| Handlebar |
ENTITY, W: 780mm, BB: 35mm, R/D: 25mm, B: 9degree |
| Handlestem |
ENTITY, EXT: 35mm, BB: 35mm, R/D: 0degree |
| Headset |
FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 ,ZS 56/40 |
| Wheel Set |
ENTITY XL3 TUBELESS READY |
| Tire |
SCHWALBE MAGIC MARY EVO 29"x2.60" 622×65 SUPER GRAVITY TLE ADDIX SOFT |
| Rim |
ALLOY DOUBLE WALL H:17.5mm W: 35mm 622-35 32H FOR TYRE 622-54/76 TL READY |
| Hub |
F: SHIMANO HB-TC500-15-B 15x110mm 32H CL / R: SHIMANO FH-TC500-MS-B 12x148mm 32H CL FOR MICRO SPLINE |
| Spokes |
14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE |
| Brake Lever |
SHIMANO XT BL-M8100 |
| Brake Caliper |
SHIMANO XT M8120 HYDRAULIC DISC |
| Rotor |
SHIMANO XT F: RT-MT800 203 CL / R: RT-EM810 203 CL |
| Sensor |
SHIMANO EW-SS301 W/ 760mm CABLE |
| Motor |
SHIMANO DU-EP801 MID MOTOR |
| Battery |
SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED – 630Wh (36V, 14Ah) |
| Max. Speed |
Up to 25km/h |
| Max. Range |
Up to 100km |
| Frame Material |
Aluminium (AL) |
| Bike Type |
Dual Suspension |
