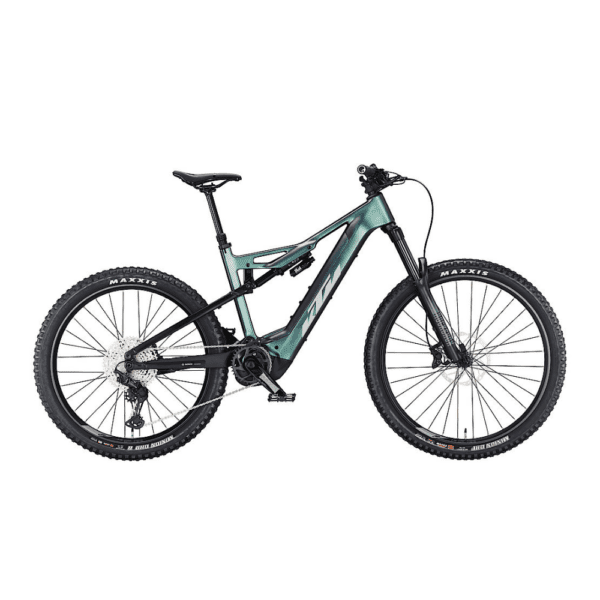

Ktm Macina Kapoho Elite

Brands: KTM FAHRAD
Battery

Battery

Bosch PowerTUBE 750Wh hor. smart system

F. FRAME

Frame

Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm

Motor

Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 25km/h / 85Nm

F. WHEELS

Wheels

KTM Line – Shimano MT410B CL 32H

SKU: 220000000804 Categories: , , Tags: ,
Brands: KTM FAHRAD

Includes taxesYou Save AED 5,400Our Price:

Buy more than AED 150 and get free delivery!
M
L
XL

Easy Return/Exchange

Fast Delivery

100% Secure Payment

Description

UPHILL. DOWNHILL. WHY NOT BOTH? The mere thought of the breath-taking view from the top of the mountain and the subsequent descent down to the valley is enough to get your heart racing? Then the MACINA KAPOHO with 160mm of travel is the bike you need. Whether carbon or aluminium frame, all models are fitted with the proven DiMMiX (Dimension-Mix) tires: 29-inch wheel at the front for optimal riding stability paired with the 27.5-inch PLUS tires at the rear for best power transmission and traction, show all its advantages in difficult terrain. Thanks to the STRAIGHT-LINE-LINK (SLL) concept for a sensitive and direct suspension performance, the KAPOHO bikes are ready for any outdoor adventure. With the self-contained BOSCH SMART SYSTEM, you are ready for the digital future. The BOSCH PERFORMANCE LINE CX motor and the most powerful BOSCH POWERTUBE battery ever (750WH) provide massive support. In addition, the EBIKE FLOW APP opens the door to the digital world and connects you with your bike. Thanks to the masterful work of our engineers, the proven KTM frame geometry has been retained despite the new increase in battery size and capacity. Removing and reinserting the battery is easier than ever before. POWER TUBE TOP LOADER (PTTL) is the name of KTM’s own innovation for this user-friendly battery handling.

Specification

E-SYSTEM BOSCH PT-CX7R4
FRAME Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2246
FORK RockShox 35 Silver TK 29″ 160mm 15×110 taper
SHOCK FOX Float X Performance 2-Pos 250×70
MOTOR Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 25km/h / 85Nm
DISPLAY Bosch LED remote SMART SYSTEM
BATTERY Bosch PowerTUBE 750Wh SMART SYSTEM hor.
CHARGER Bosch STANDARD Charger 4A SMART SYSTEM
R. DERAILL Shimano Deore XT M8100-12 SGS shadow+
SHIFTLEV. Shimano Deore M6100-12
CRANKSET KTM E-TRAIL ISIS 160mm Q16
CHAINRING FSA Megatooth steel 36T 12speed Direct Mount
SPROCKET Shimano Deore M6100-12 / 10-51
CHAIN Shimano M6100-12
BRAKE Shimano M4100 / MT420 4-Piston
ROTOR Shimano RT64 CL 203 / 180
WHEEL F KTM Line – Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
WHEEL R KTM Line – Shimano MT410B CL 32H 148-12TA / Ambrosio E35 Trail 32H 584x35TC / DT Alpine II 2.34 black
TIRE F Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622
TIRE R Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584
GRIP Ergon GA20
BAR KTM Team Trail35 rizer25 800mm
STEM KTM TEAM II Trail35
HEADSET Acros AICR internal 1.1/8″-1.5″ angle limit
SADDLE Selle San Marco Ground Short Open Fit Narrow
SEATPOST KTM COMP II dropper internal
PEDAL MTB-Pedal flat VPE-527 alloy
WEIGHT 25,90 kg
PERMISSIBLE TOTAL WEIGHT 145 kg







Geometry

Ktm Macina Kapoho Elite
 Size 43/48/53
B Seattube length 430/450/480
C Toptube length 590/610/630
D Seat angle 76,5° (74,6°)
E Head angle 65,3°
F Headtube length 100/110/125
G Chainstay length 442
H Wheelbase 1214/1236/1259
I Stack 603/612/626
J Reach 445/463/480
K Standover height 796/799/801
L BB drop 7



Information
Size

M, L, XL

Brand

Battery

Bosch PowerTUBE 750Wh hor. smart system

Motor

Bosch PERFORMANCE CX Gen.4 SMART SYSTEM – 25km/h / 85Nm
